8 1 Level Setting Windows 8 1 Windows

8. 1

Level Setting

Windows 8. 1 Windows 7 Windows 8. 1 • Image size: • 1. 97 GB image (WIM), 7. 87 GB expanded • Installation time (new): • 15 minutes • Upgrade time (from Vista): • 30 minutes • Image size: • 1. 96 GB image (WIM), 7. 76 GB expanded • Installation time (new): • 10 minutes • Upgrade time (from Windows 7): • 20 minutes • Image size: • 2. 13 GB image (WIM), 7. 65 GB expanded • Installation time (new): • ~10 minutes • Upgrade time (from Windows 8): • ~20 minutes

Windows 8. 1: Deployment Options Capture data and settings Remove existing OS Capture data settings, and apps Install new OS image Remove existing OS Install apps Install new OS image Restore data and settings Restore data, settings, and apps

Core Deployment Tools Windows AIK for Windows 7 SP 1 Windows ADK for Windows 8. 1 • Supports older hardware (e. g. no NX/PAE/SSE support) and OSes • Required for Config. Mgr 2007 and Config. Mgr 2012 RTM, works with MDT 2012 Update 1 • Includes Windows PE 3. 1, USMT 4. 0 • • Requires NX/PAE/SSE hardware support Required for Config. Mgr 2012 SP 1, recommended for MDT 2012 Update 1 Includes Windows PE 4. 0, USMT 5. 0 Avoid installing on the same machine as Windows AIK • Incremental updates to the latest tools • Includes Windows PE 8. 1 and USMT “ 6. 3” • Required for MDT 2013 and Config. Mgr 2012 R 2

Windows AIK vs. ADK 8. 1 Windows AIK • Windows PE 3. x • USMT 4. 0 • Windows System Image Manager • DISM • Image. X • Windows PE 5. 0 • USMT “ 6. 3” • Windows System Image Manager • DISM • Image. X* • Application Compatibility Toolkit • Volume Activation Management Tool • Windows Performance Toolkit • Windows Assessment Toolkit

ADK: Windows PE 5. 0

ADK: USMT “ 6. 3” Windows XP Windows Vista Windows 7 Windows 8. 1 Windows XP USMT 3 USMT 4, 5 USMT 5 Not supported Windows Vista Not supported USMT 4, 5 USMT 5 Not supported Windows 7 Not supported USMT 4, 5, “ 6. 3” USMT “ 6. 3” Windows 8 Not supported USMT 5, “ 6. 3” USMT “ 6. 3” Windows 8. 1 Not supported USMT “ 6. 3” http: //blogs. technet. com/b/askds/archive/2012/04/13/new-usmt-5 -0 -featuresfor-windows-8 -consumer-preview. aspx

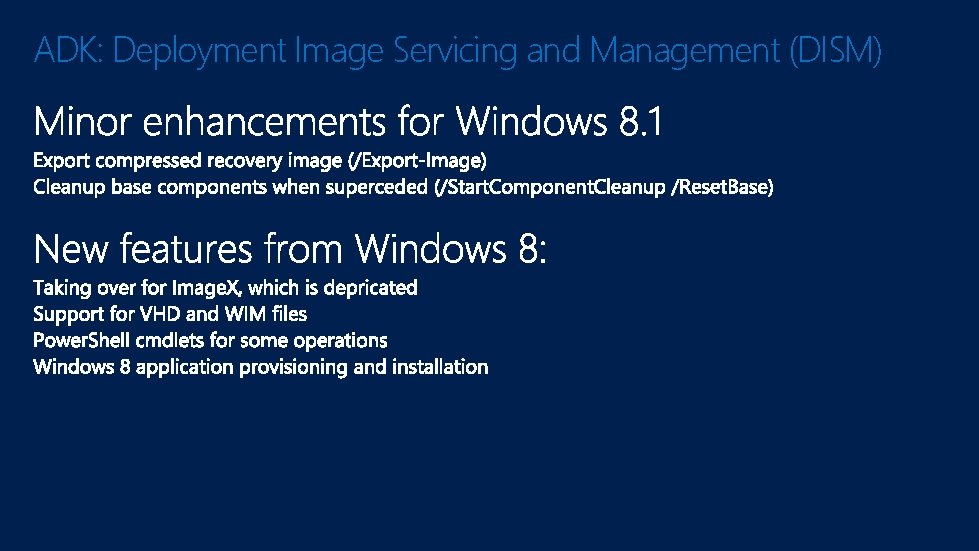

ADK: Deployment Image Servicing and Management (DISM)

ADK: Windows Performance Toolkit

ADK: Assessment Tools

Bit. Locker Enhancements

UEFI is important

Secure Boot

Windows Store apps Installation Provisioning Install via an “Enterprise App Store” using: Provision using the Microsoft Deployment Toolkit 2012 or DISM Enterprise side loading requirements • Windows 8 Enterprise, domain joined or with a separate side load product key • Windows 8 Pro or Windows RT, with a separate side load product key

Windows To Go

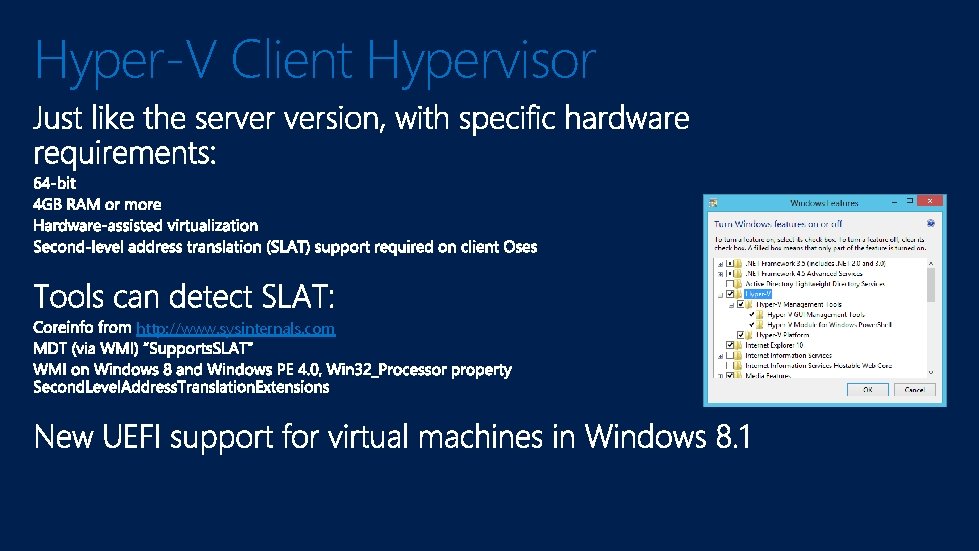

Hyper-V Client Hypervisor http: //www. sysinternals. com

Refresh and Reset Your PC

Slates and tablets

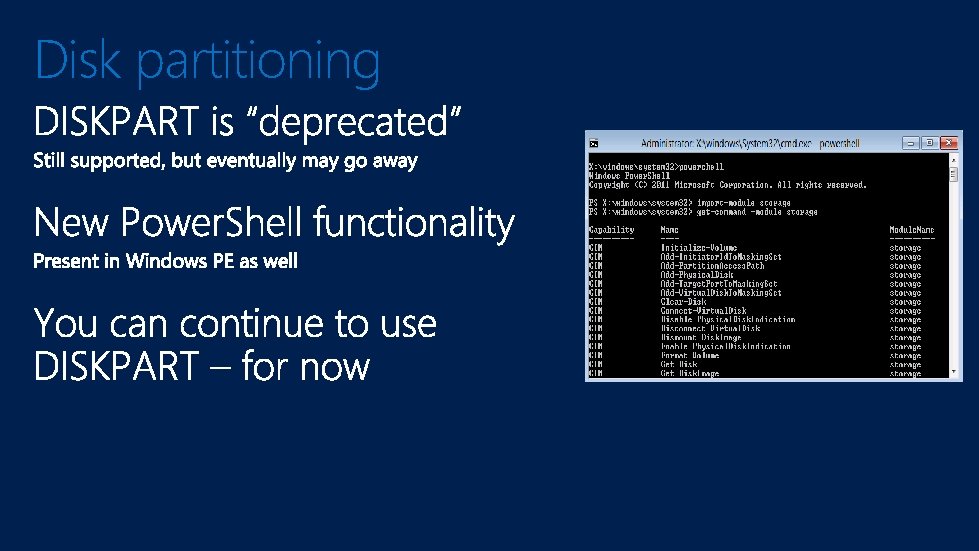

Disk partitioning

Roles and Features

MDT 2013 http: //www. microsoft. com/mdt

Configuration Manager 2012 R 2

Windows 8. 1: Call to Action http: //connect. microsoft. com http: //www. myitforum. com http: //social. technet. microsoft. com/Forums/en-US/mdt/ http: //social. technet. microsoft. com/Forums/en-US/configmgrosd/ http: //www. facebook. com/Microsoft. Deployment. Toolkit

Windows Enterprise: windows. com/enterprise windows. com/ITpro microsoft. com/mdop microsoft. com/dv microsoft. com/windows/wtg tryoutlook. com

For More Information System Center 2012 Configuration Manager http: //technet. microsoft. com/enus/evalcenter/hh 667640. aspx? wt. mc_id=TEC_105_1_33 Windows Intune http: //www. microsoft. com/en-us/windowsintune/try-and-buy Windows Server 2012 http: //www. microsoft. com/en-us/server-cloud/windows-server Windows Server 2012 VDI and Remote Desktop Services http: //technet. microsoft. com/enus/evalcenter/hh 670538. aspx? ocid=&wt. mc_id=TEC_108_1_33 http: //www. microsoft. com/en-us/server-cloud/windows-server/virtualdesktop-infrastructure. aspx More Resources: microsoft. com/workstyle microsoft. com/server-cloud/user-device-management

http: //channel 9. msdn. com/Events/Tech. Ed www. microsoft. com/learning http: //microsoft. com/technet http: //microsoft. com/msdn
