750 J 750 J Specifications Jaw Crusher 700

750 J

750 J Specifications: Jaw Crusher 700 x 500 single toggle (6 tonnes) 45 k. W drive with Vee belts and pulley Reverse crush and Jog function Hydraulic wedge and tension spring Feeder Fixed Hopper & Vibrating Grizzly Conveyor Hydraulic raise/lower & fold for transport Impact bars under crusher Full length skirts Chassis Web & flange to suit tracks Power Unit Diesel electric generator (88 kva) Dual power / mains plug-in Full operation & service access Operation Transport Overall: - 9. 9 m x 2. 3 m x 2. 6 m Feed height: - 2. 8 m Stockpile: - 3. 1 m 9. 9 m x 2. 3 m x 2. 6 m (2. 85 m Ro-Ro) 19000 kg. s 12 m High Cube shipping container / Ro-Ro Options Overband magnet Dust suppression Side belt Working lights Deflector plate Grizzly tines Variable speed feeder 2 nd platfrm

750 J Diesel generator & dual power. (On top of chassis away from loading area) Hydraulic power pack for tracking and set-up only Hardox lined hopper, grizzly feeder & inlet chute Hydraulic raise/lower on main conveyor Hopper feeding from 3 sides & clear underneath for load pile edge Optional reversible 180 degree dirt belt. Ground level controls on both sides. Simple push button electrics. Clear access under jaw for debris removal.

750 J Diesel generator & dual power. (Away from loading area) Dirt By-Pass chute 300 mm ground clearance 400 mm clearance between jaw and belt Hydraulic raise/lower on main conveyor High Discharge 3. 1 m (10’-3”) Low Feed-in 2. 8 m (9’-2”) Hardox lined hopper, grizzly feeder & inlet chute

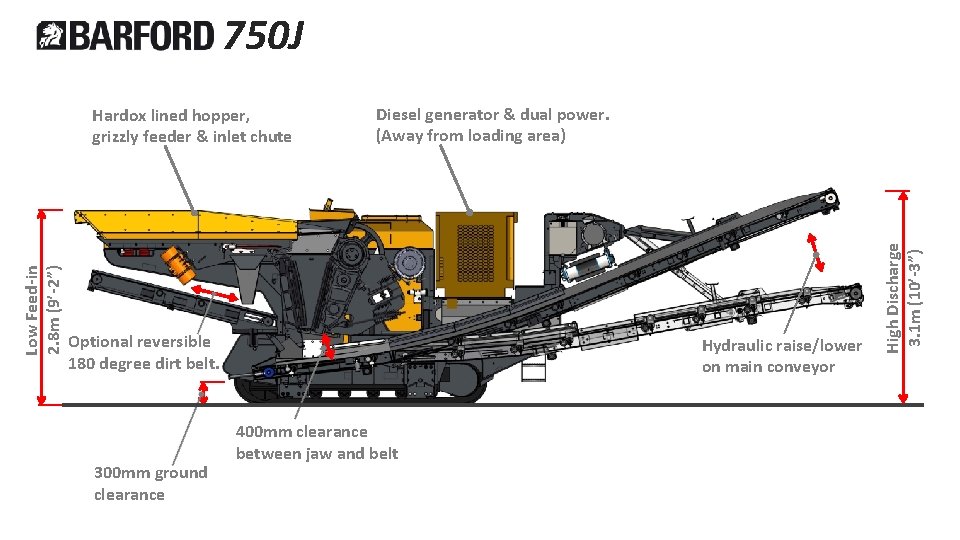

750 J Diesel generator & dual power. (Away from loading area) Optional reversible 180 degree dirt belt. 300 mm ground clearance Hydraulic raise/lower on main conveyor 400 mm clearance between jaw and belt High Discharge 3. 1 m (10’-3”) Low Feed-in 2. 8 m (9’-2”) Hardox lined hopper, grizzly feeder & inlet chute

750 J
