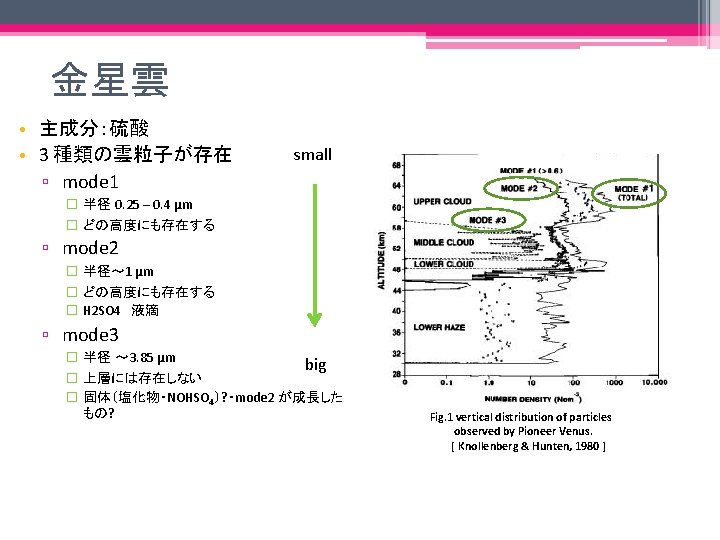

70 90 km mode 1 57 70 km Slides: 20 Download presentation 金星雲 もや層 (70 -90 km) mode 1 上層 (57 -70 km) mode 1・mode 2 中層 (50 -57 km) mode 1・mode 2・mode 3 下層 (47. 5 -50 km) 下もや層 (30 -47. 5 km) mode 1 Fig. 2 vertical distribution of particles observed by Pioneer Venus. [ Knollenberg & Hunten, 1980 ] 金星雲モデル Tab. 1 An example of Venus cloud model Alt (km) mode 1 Optical thickness mode 2 Optical thickness mode 3 Optical thickness Total Optical thickness 89 0. 013 0. 013 87 0. 020 0. 020 85 0. 033 0. 033 83 0. 052 0. 052 81 0. 082 0. 082 79 0. 011 0. 052 0. 063 ・・ ・ ・・・ ・・・ 49 0. 334 1. 268 6. 898 8. 500 • 雲モデルとは �各粒子ごとの光学的 厚さ鉛直分布 �観測された散乱特性 Mie 理論 �光学的厚さ Pollack et al. (1993) 10 • 最も広く使用されている • Pioneer Venus OCPP 観測 結果のみから構築された 表. Pioneer Venus OCPP によって観測された もや層の光学的厚さ[Crisp et al. , 1986] 1 Altitude (km) mode 1 mode 2 mode 3 -90 0. 0 90 -79 0. 20 0. 0 79 -70 0. 14 0. 66 0. 0 70 - 57 ・・ ・ ・・ ・・ ・・ END Ultrasound a-modeReset pin in 8086Different modes of operation of timer in 8051Focus mode and diffuse modeGartner mode 1 mode 2Mode địa chỉ tức thì là modePerbedaan (planning mode) dan (evolutionary mode)Real protected and virtual modes of 80386"stack mode marketing group"Define addressing modeMode pengetikanFatal trap 12: page fault while in kernel modePython aboutDisadvantages of asynchronous transfer modeFailure mode and effect analysisWhat is your favorite means of transportBasic convictions that a specific mode of conductAdmission of patientsProtected mode memory addressingTransparent vs routed firewall modeTrimble gcsflex 2d system price
