7 Speech Recognition Concepts Speech Recognition Approaches Recognition
- Slides: 60
7 -Speech Recognition Concepts Speech Recognition Approaches Recognition Theories Bayse Rule Simple Language Model P(A|W) Network Types 1
7 -Speech Recognition (Cont’d) HMM Calculating Approaches Neural Components Three Basic HMM Problems Viterbi Algorithm State Duration Modeling Training In HMM 2
Recognition Tasks Isolated Word Recognition (IWR) Connected Word (CW) , And Continuous Speech Recognition (CSR) Speaker Dependent, Multiple Speaker, And Speaker Independent Vocabulary Size – Small <20 – Medium >100 , <1000 – Large >1000, <10000 – Very Large >10000 3

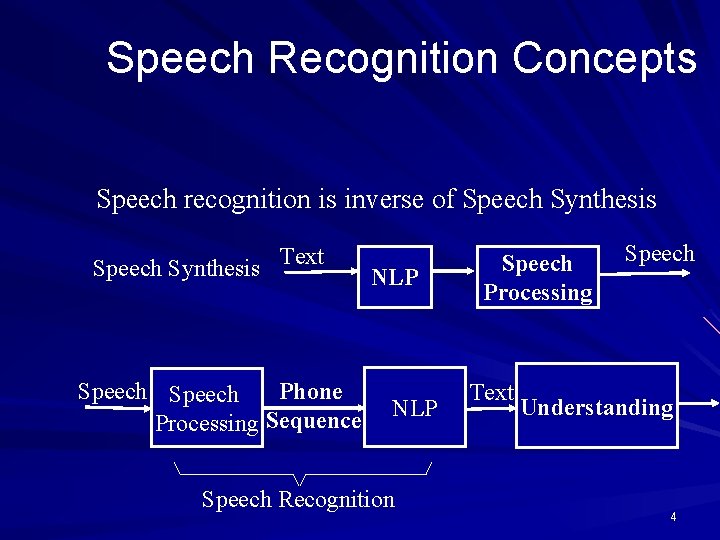

Speech Recognition Concepts Speech recognition is inverse of Speech Synthesis Text Speech Phone Processing Sequence NLP Speech Recognition Speech Processing Text Speech Understanding 4
Speech Recognition Approaches Bottom-Up Approach Top-Down Approach Blackboard Approach 5
Bottom-Up Approach Signal Processing Knowledge Sources Feature Extraction Voiced/Unvoiced/Silence Segmentation Signal Processing Sound Classification Rules Feature Extraction Phonotactic Rules Segmentation Lexical Access Language Model Segmentation Recognized Utterance 6
Top-Down Approach Inventory Word of speech Dictionary Grammar recognition units Feature Analysis Syntactic Hypo thesis Unit Matching System Lexical Hypo thesis Utterance Verifier/ Matcher Recognized Utterance Task Model Semantic Hypo thesis 7

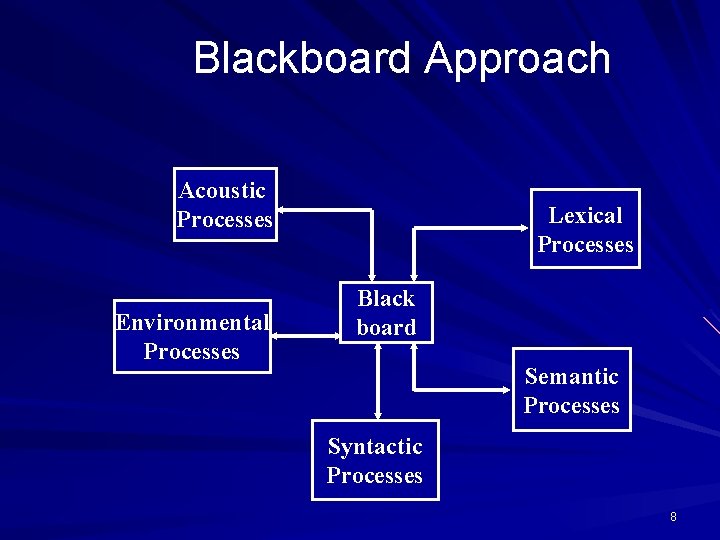

Blackboard Approach Acoustic Processes Environmental Processes Lexical Processes Black board Semantic Processes Syntactic Processes 8
Recognition Theories Articulatory Based Recognition – Use from Articulatory system for recognition – This theory is the most successful until now Auditory Based Recognition – Use from Auditory system for recognition Hybrid Based Recognition – Is a hybrid from the above theories Motor Theory – Model the intended gesture of speaker 9
Recognition Problem We have the sequence of acoustic symbols and we want to find the words that expressed by speaker Solution : Finding the most probable of word sequence by having Acoustic symbols 10
Recognition Problem A : Acoustic Symbols W : Word Sequence we should find so that 11
Bayse Rule 12
Bayse Rule (Cont’d) 13

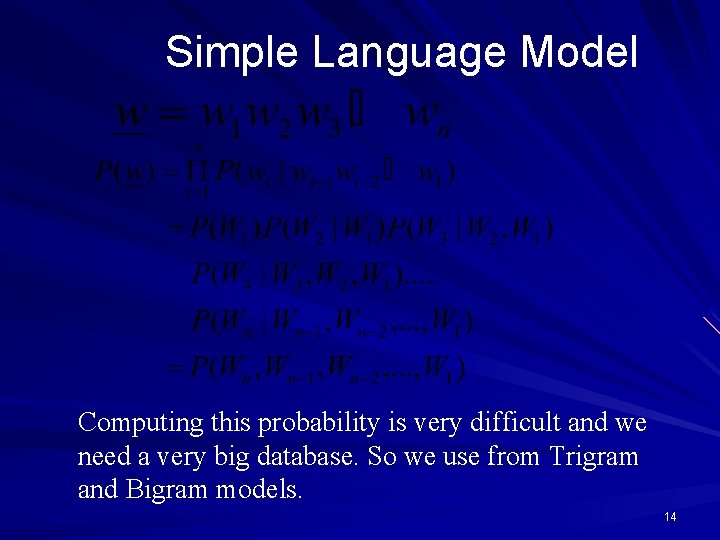

Simple Language Model Computing this probability is very difficult and we need a very big database. So we use from Trigram and Bigram models. 14
Simple Language Model (Cont’d) Trigram : Bigram : Monogram : 15
Simple Language Model (Cont’d) Computing Method : Number of happening W 3 after W 1 W 2 Total number of happening W 1 W 2 Ad. Hoc Method : 16
Error Production Factor Prosody (Recognition should be Prosody Independent) Noise (Noise should be prevented) Spontaneous Speech 17

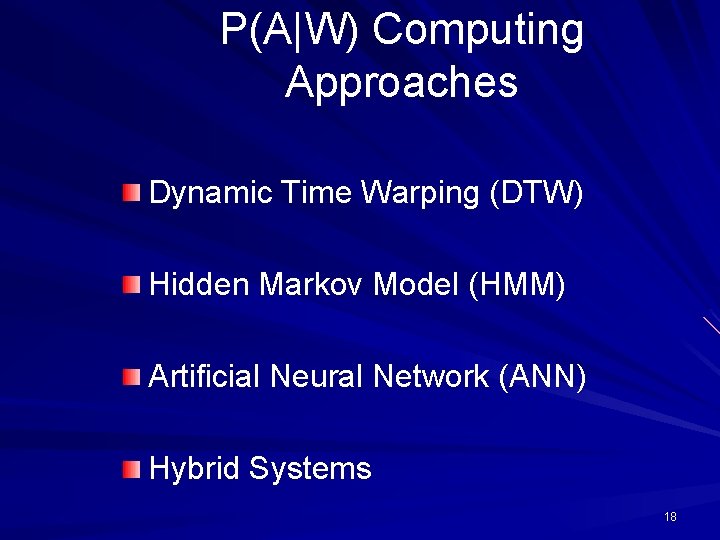

P(A|W) Computing Approaches Dynamic Time Warping (DTW) Hidden Markov Model (HMM) Artificial Neural Network (ANN) Hybrid Systems 18
Dynamic Time Warping Method (DTW) To obtain a global distance between two speech patterns a time alignment must be performed Ex : A time alignment path between a template pattern “SPEECH” and a noisy input “Ss. PEEh. H” 19
Artificial Neural Network . . . Simple Computation Element of a Neural Network 20

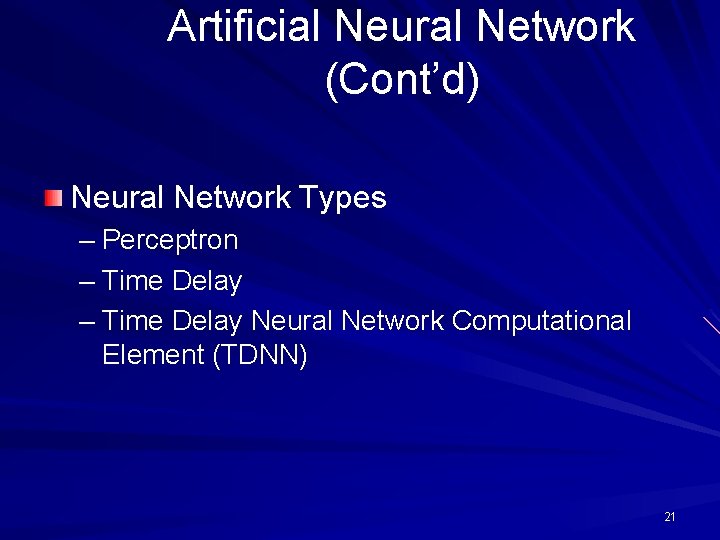

Artificial Neural Network (Cont’d) Neural Network Types – Perceptron – Time Delay Neural Network Computational Element (TDNN) 21
Artificial Neural Network (Cont’d) Single Layer Perceptron. . . 22
Artificial Neural Network (Cont’d) Three Layer Perceptron. . . 23
Hybrid Methods Hybrid Neural Network and Matched Filter For Recognition Acoustic Output Units Speech Features Delays PATTERN CLASSIFIER 24
Neural Network Properties The system is simple, But too much iteration is needed for training Doesn’t determine a specific structure Regardless of simplicity, the results are good Training size is large, so training should be offline Accuracy is relatively good 25

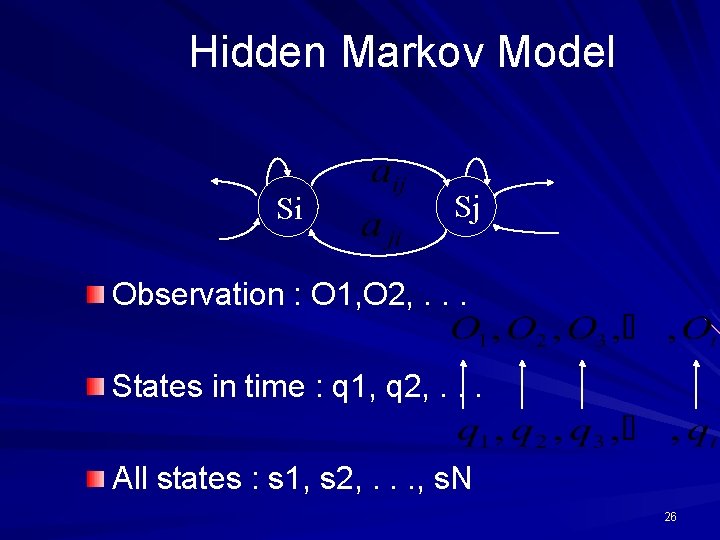

Hidden Markov Model Si Sj Observation : O 1, O 2, . . . States in time : q 1, q 2, . . . All states : s 1, s 2, . . . , s. N 26
Hidden Markov Model (Cont’d) Discrete Markov Model Degree 1 Markov Model 27
Hidden Markov Model (Cont’d) : Transition Probability from Si to Sj , 28
Discrete Markov Model Example S 1 : The weather is rainy S 2 : The weather is cloudy S 3 : The weather is sunny rainy cloudy sunny 29
Hidden Markov Model Example (Cont’d) Question 1: How much is this probability: Sunny-Sunny-Rainy-Sunny-Cloudy 30
Hidden Markov Model Example (Cont’d) The probability of being in state i in time t=1 Question 2: The probability of staying in state Si for d days if we are in state Si? d Days 31
Discrete Density HMM Components N : Number Of States M : Number Of Outputs A (Nx. N) : State Transition Probability Matrix B (Nx. M): Output Occurrence Probability in each state (1 x. N): Initial State Probability : Set of HMM Parameters 32
Three Basic HMM Problems Given an HMM and a sequence of observations O, what is the probability ? Given a model and a sequence of observations O, what is the most likely state sequence in the model that produced the observations? Given a model and a sequence of observations O, how should we adjust model parameters in order to maximize ? 33
First Problem Solution We Know That: And 34
First Problem Solution (Cont’d) Computation Order : 35
Forward Backward Approach Computing 1 (Initialization 36
Forward Backward Approach (Cont’d) 2 (Induction : 3 (Termination : Computation Order : 37
Backward Variable 1 (Initialization 2(Induction 38
Second Problem Solution Finding the most likely state sequence Individually most likely state : 39
Viterbi Algorithm Define : P is the most likely state sequence with this conditions : state i , time t and observation o 40
Viterbi Algorithm (Cont’d) 1 (Initialization Is the most likely state before state i at time t-1 41
Viterbi Algorithm (Cont’d) 2 (Recursion 42
Viterbi Algorithm (Cont’d) 3 (Termination: 4(Backtracking: 43
Third Problem Solution Parameters Estimation using Baum. Welch Or Expectation Maximization (EM) Approach Define: 44
Third Problem Solution (Cont’d) : Expectation value of the number of jumps from state i to state j 45
Third Problem Solution (Cont’d) 46
Baum Auxiliary Function By this approach we will reach to a local optimum 47
Restrictions Of Reestimation Formulas 48
Continuous Observation Density We have amounts of a PDF instead of We have Mixture Coefficients Average Variance 49

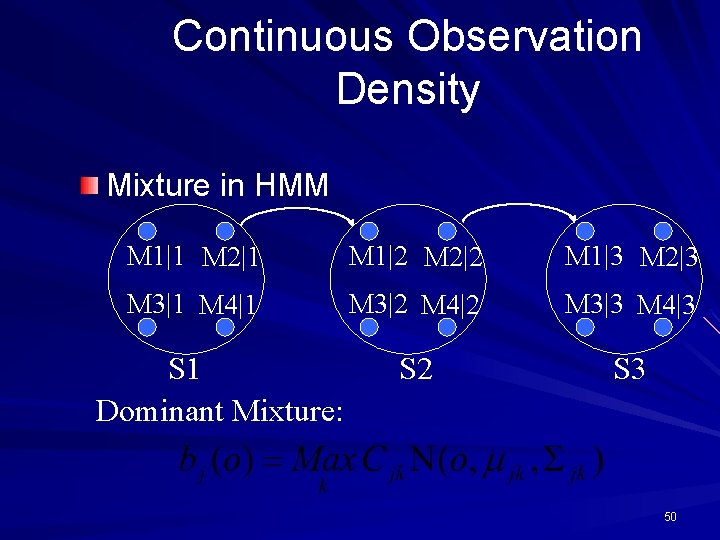

Continuous Observation Density Mixture in HMM M 1|1 M 2|1 M 1|2 M 2|2 M 1|3 M 2|3 M 3|1 M 4|1 M 3|2 M 4|2 M 3|3 M 4|3 S 2 S 3 S 1 Dominant Mixture: 50
Continuous Observation Density (Cont’d) Model Parameters: N×N 1×N N×M×K×K N : Number Of States M : Number Of Mixtures In Each State K : Dimension Of Observation Vector 51

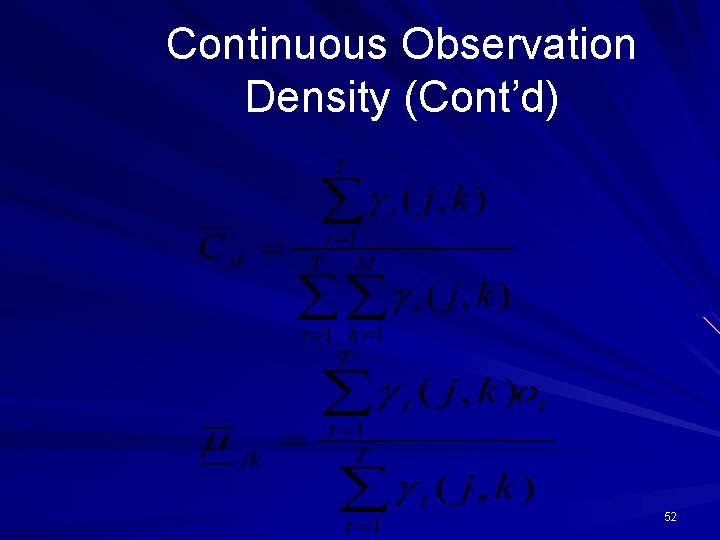

Continuous Observation Density (Cont’d) 52
Continuous Observation Density (Cont’d) Probability of event j’th state and k’th mixture at time t 53
State Duration Modeling Si Sj Probability of staying d times in state i : 54
State Duration Modeling (Cont’d) HMM With clear duration ……. Si Sj 55
State Duration Modeling (Cont’d) HMM consideration with State Duration : – – – Selecting using ‘s Selecting using Selecting Observation Sequence using in practice we assume the following independence: – Selecting next state using transition probabilities. We also have an additional constraint: 56
Training In HMM Maximum Likelihood (ML) Maximum Mutual Information (MMI) Minimum Discrimination Information (MDI) 57
Training In HMM Maximum Likelihood (ML) . . . Observation Sequence 58
Training In HMM (Cont’d) Maximum Mutual Information (MMI) Mutual Information 59
Training In HMM (Cont’d) Minimum Discrimination Information (MDI) Observation : Auto correlation : 60
