7 Conformal Coating Standards and Humiseal Laboratory Capabilities

7 - Conformal Coating Standards and Humiseal Laboratory Capabilities

Conformal Coating Standards • 5 Main Types: • International (ISO/IEC) • National (UL, ASTM, BS) • Government (MIL, DEF-Stan) • Trade Association / Industry (IPC) • Company (BMW, Bosch, Siemens)

Conformal Coating Standards International Standard National Standard Government Std Trade / Industry Company IEC 1086 UL 746 E MIL-I-46058 C IPC-CC-830 Siemens 224042001 Performance Safety Spark / Burn Performance Quality Independent Testing No Yes Independent QPL Held No Yes Test Reports Available* Yes Yes No Standards Reference Criteria Tested

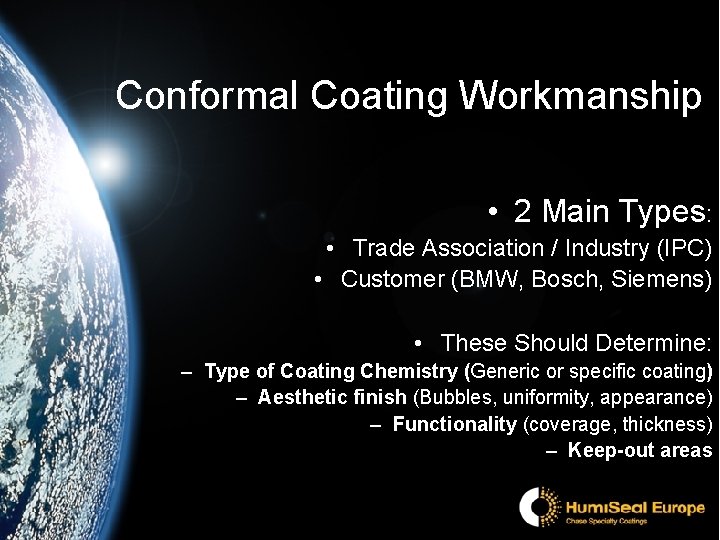

Conformal Coating Workmanship • 2 Main Types: • Trade Association / Industry (IPC) • Customer (BMW, Bosch, Siemens) • These Should Determine: – Type of Coating Chemistry (Generic or specific coating) – Aesthetic finish (Bubbles, uniformity, appearance) – Functionality (coverage, thickness) – Keep-out areas

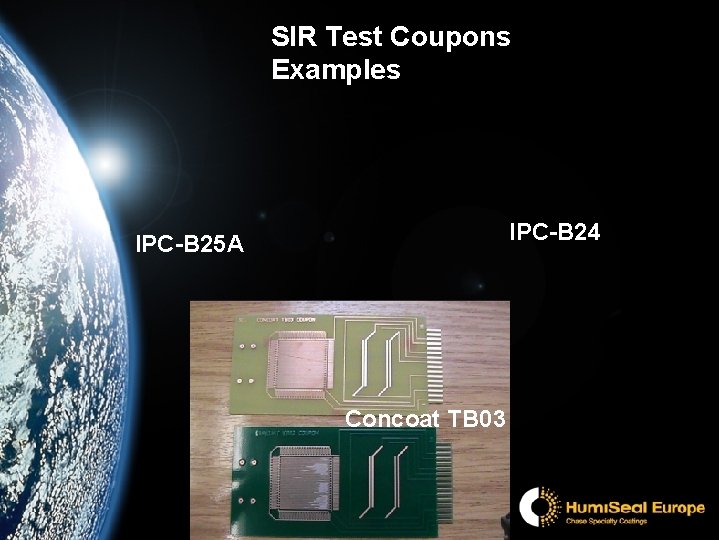

SIR Test Coupons Examples IPC-B 24 IPC-B 25 A Concoat TB 03

SIR Test coupons Examples Test coupons IPC-B 24 IPC-B 25 A Concoat TB 03 BMW Siemens Standard usage J-STD-004 JIS (Japanese) IPC-CC-830 IPC-SM-840 MIL-46058 C Humiseal Internal Use BMW Internal Use Siemens Internal Use FR 4 FR 4 Bare copper Substrate Material Substrate Metallisation Bare copper and Solder paste / Flux Solder Mask? No, but can be added Yes Yes No Lines / Spaces (microns) 400/500 300/300 ? ? Material tested Flux / Paste Coating / Solder Mask Coating / Flux, Paste Coating

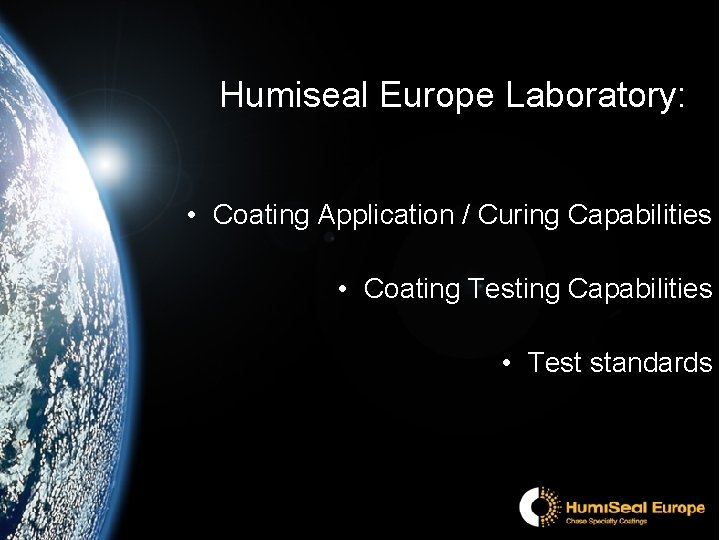

Humiseal Europe Laboratory: • Coating Application / Curing Capabilities • Coating Testing Capabilities • Test standards

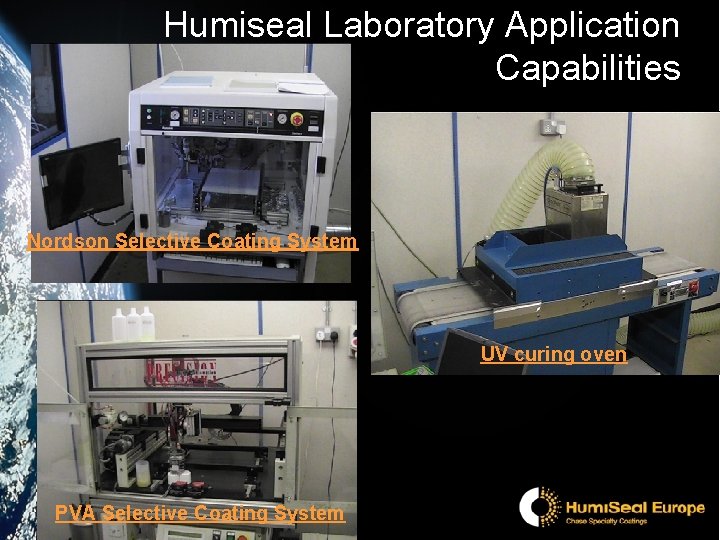

Humiseal Laboratory Application Capabilities Nordson Selective Coating System UV curing oven PVA Selective Coating System

Humiseal Laboratory Testing Capabilities Environmental Test Chamber Auto. SIR Tester Spray booth

Humiseal Laboratory Testing Capabilities Ionic Contaminometer FT-IR Spectrophotometer Karl Fisher Tester

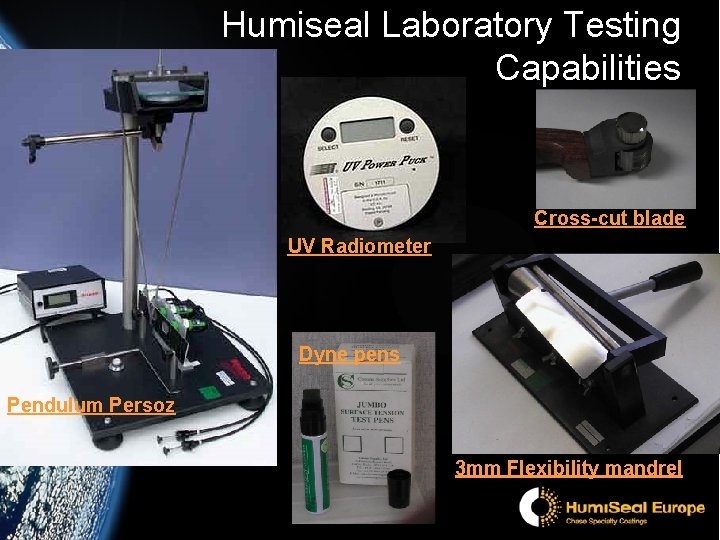

Humiseal Laboratory Testing Capabilities Cross-cut blade UV Radiometer Dyne pens Pendulum Persoz 3 mm Flexibility mandrel

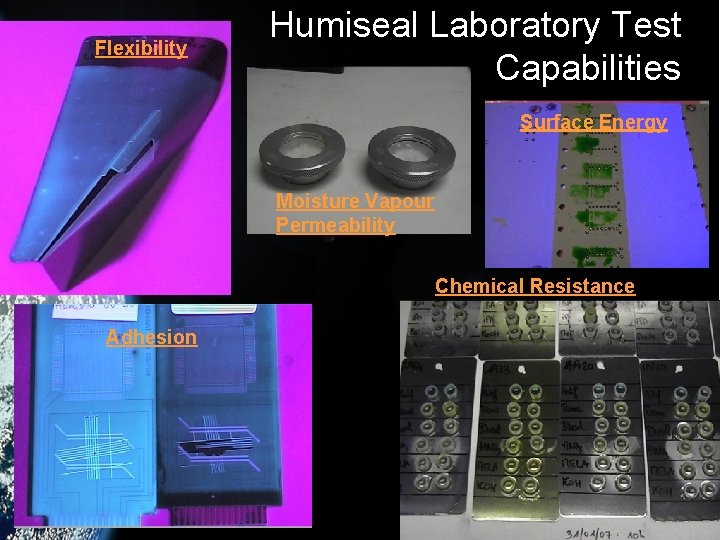

Flexibility Humiseal Laboratory Test Capabilities Surface Energy Moisture Vapour Permeability Chemical Resistance Adhesion

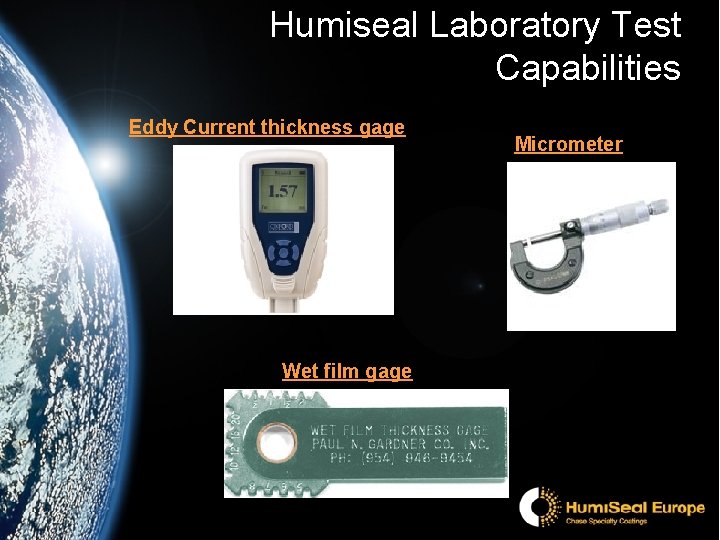

Humiseal Laboratory Test Capabilities Eddy Current thickness gage Wet film gage Micrometer

Humiseal Laboratory Test Capabilities Properties Test Description Test Method Viscosity Brookfield ASTM D-1084 Adhesion Cross-cut tape test ASTM D-3359 Flexibility 3 mm Mandrel test IPC CC-830 MIL-46058 C Hardness Persoz pendulum ASTM D-4366 Chemical Resistance Drop test Humiseal internal method Moisture Vapour Permeability Dry cup test ASTM D-1653 -03 Water content Karl Fisher ASTM E-1064 FT-IR Infra Red Spectra IPC-CC-830 Surface Energy of Substrate Dyne pen Dyne method SIR Surface Insulation Resistance IPC and others Ionic Contamination Ionic Cleanliness Level J-Std-001 UV dose (for UV curing ovens) Powerpuck log None And many others…

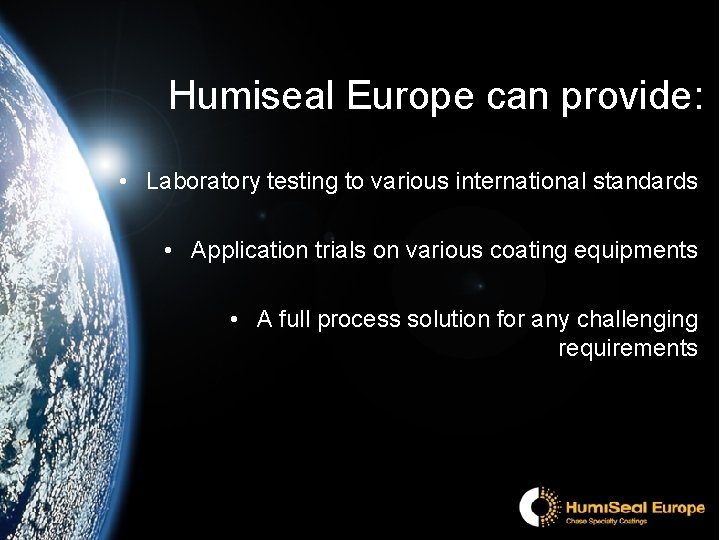

Humiseal Europe can provide: • Laboratory testing to various international standards • Application trials on various coating equipments • A full process solution for any challenging requirements

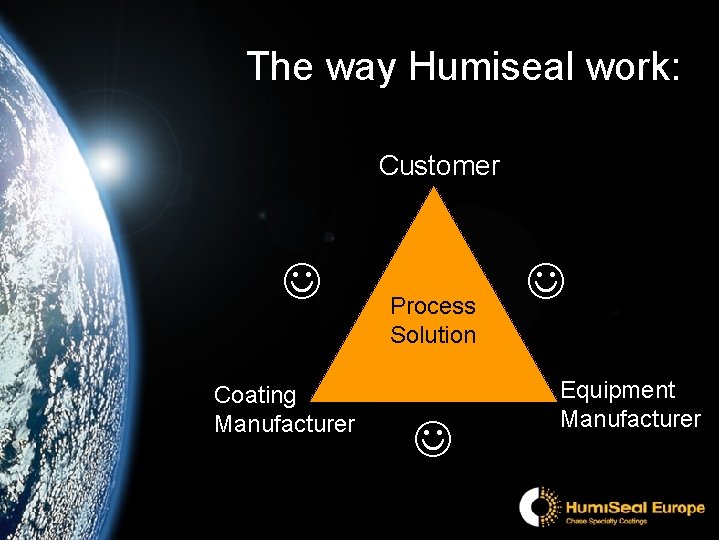

The way Humiseal work: Customer Coating Manufacturer Process Solution Equipment Manufacturer
