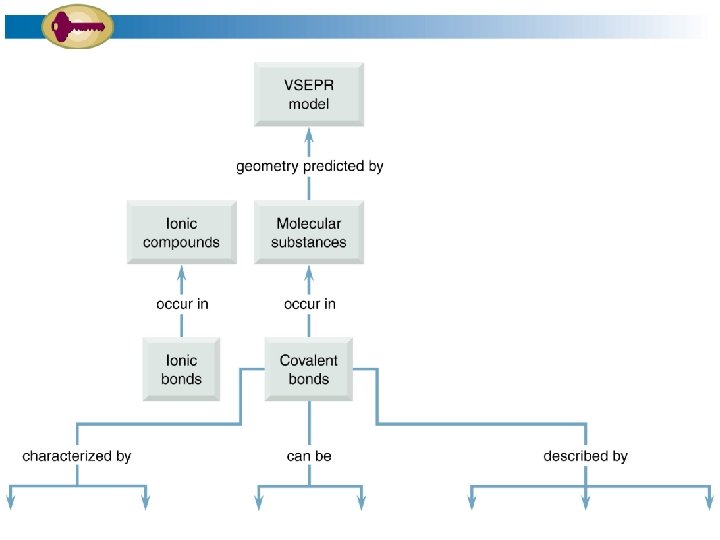

7. 31 Two electrostatic potential maps, one of methyllithium (CH 3 Li) and one of chloromethane (CH 3 Cl) are shown. Based on their polarity patterns, which do you think is which?
![7 32 What is the geometry around the central atom in each of the 7. 32 What is the geometry around the central atom in each of the](https://slidetodoc.com/presentation_image_h/bc6b9b537efc1c23be1f39e5ba14e936/image-5.jpg)
7. 32 What is the geometry around the central atom in each of the following molecular models?
![7 33 What is the geometry around the central atom in each of the 7. 33 What is the geometry around the central atom in each of the](https://slidetodoc.com/presentation_image_h/bc6b9b537efc1c23be1f39e5ba14e936/image-6.jpg)
7. 33 What is the geometry around the central atom in each of the following molecular models? (There may be a “hidden” atom in some cases. )
![7 34 Three of the following molecular models have a tetrahedral central atom and 7. 34 Three of the following molecular models have a tetrahedral central atom, and](https://slidetodoc.com/presentation_image_h/bc6b9b537efc1c23be1f39e5ba14e936/image-7.jpg)
7. 34 Three of the following molecular models have a tetrahedral central atom, and one does not. Which is the odd one? (There may be a “hidden” atom in some cases. )
![7 35 Identify each of the following sets of hybrid orbitals 7. 35 Identify each of the following sets of hybrid orbitals:](https://slidetodoc.com/presentation_image_h/bc6b9b537efc1c23be1f39e5ba14e936/image-8.jpg)
7. 35 Identify each of the following sets of hybrid orbitals:
![7 36 The following ballandstick molecular model is a representation of acetaminophen the active 7. 36 The following ball-and-stick molecular model is a representation of acetaminophen, the active](https://slidetodoc.com/presentation_image_h/bc6b9b537efc1c23be1f39e5ba14e936/image-9.jpg)
7. 36 The following ball-and-stick molecular model is a representation of acetaminophen, the active ingredient in such over-the-counter headache remedies as Tylenol (red = O, gray = C, blue = N, ivory = H): (a) What is the molecular formula of acetaminophen? (b) What is the geometry around each carbon and nitrogen? (The lines between atoms indicate connections only, not whether the bonds are single, double, or triple. ) (c) What is the hybridization of each carbon and nitrogen?
![7 37 The following ballandstick molecular model is a representation of thalidomide a drug 7. 37 The following ball-and-stick molecular model is a representation of thalidomide, a drug](https://slidetodoc.com/presentation_image_h/bc6b9b537efc1c23be1f39e5ba14e936/image-10.jpg)
7. 37 The following ball-and-stick molecular model is a representation of thalidomide, a drug that causes birth defects when taken by expectant mothers but is valuable for its use against leprosy. The lines indicate only the connections between atoms, not whether the bonds are single, double, or triple (red = O, gray = C, blue = N, ivory = H): (a) What is the molecular formula of thalidomide? (b) Indicate the positions of the multiple bonds in thalidomide. (c) What is the geometry around each carbon and each nitrogen?
