Nuclides above the band are too large decay by a. To the left b- decay occurs. Nuclides below the band have too few no, positron decay occurs. A p+ becomes a no. 3
Nucleon Mass , u • H-1 1. 007825 • H-2 1. 00705 • H-3 1. 00535 • He-4 1. 000605 • C-12 1. 00000 • Fe-58 0. 99885 4
Protons and Neutrons weigh less when bound in the nucleus. • p+ and no fall toward each other, emit a ~1 Me. V photon. • Photon has mass E = mc 2. • E lost from nucleus. 5

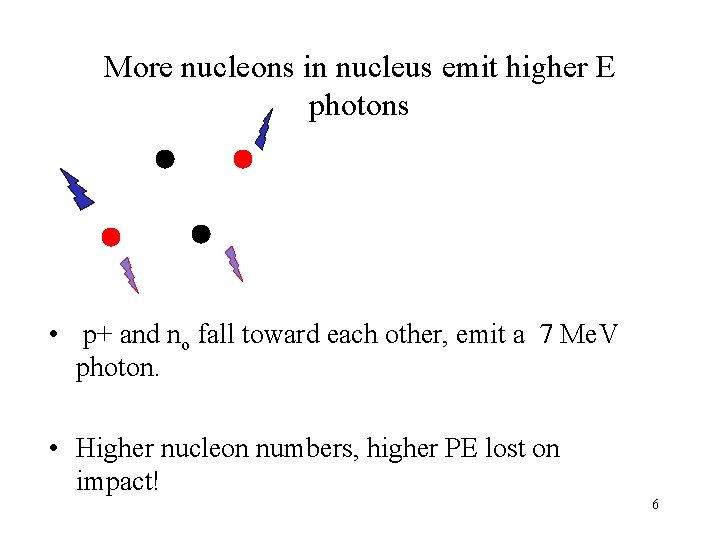

More nucleons in nucleus emit higher E photons • p+ and no fall toward each other, emit a 7 Me. V photon. • Higher nucleon numbers, higher PE lost on impact! 6
Binding E (BE) • The amount of E emitted per nucleon = amount of E needed to put in to tear nucleus apart. • BE the amount of work (e. V, J) to tear apart nucleus. 7
Nuclear Energy Well • It’s as if nucleus is a well. BE must be added to remove p+ or no from well. • PE is lost as photons/mass when nucleons fall in. • More nucleons = deeper well. 8 • More nucleons in nucleus have more strong F, more BE/nucl.
Binding E per Nucleon. Total E of Nucleus Num. Nucleons. Higher binding E per nucleon = more stable elements.

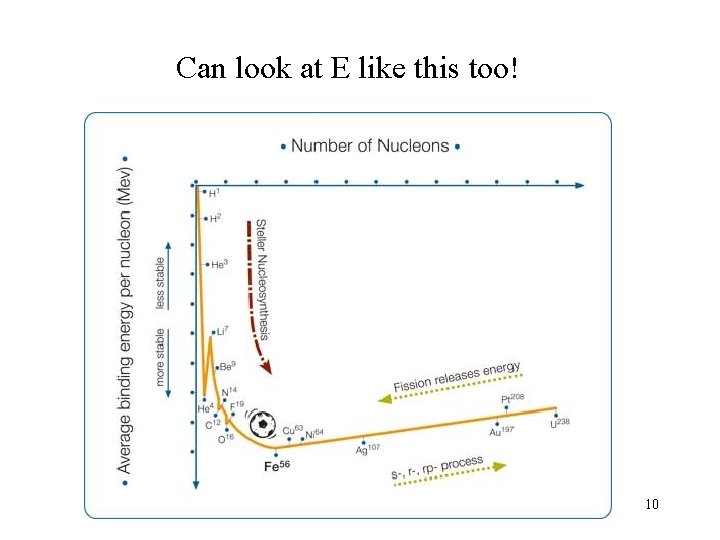

Can look at E like this too! 10
The higher the BE between nucleons, the more E/work needed to split it up, the more stable the nucleus – the less likely to decay (fall apart) Which is the most stable? 11

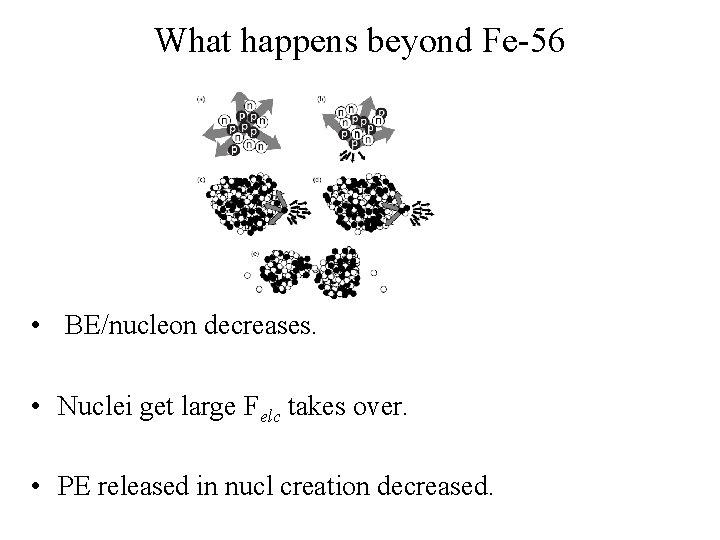

What happens beyond Fe-56 • BE/nucleon decreases. • Nuclei get large Felc takes over. • PE released in nucl creation decreased.
Film Clip 2: 45 min • BE • https: //www. youtube. com/watch? v=Uk. Lki Xi. OCWU 13

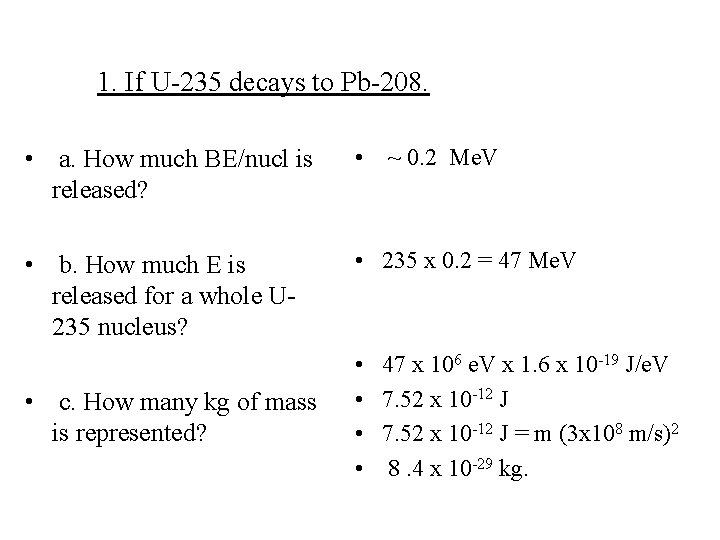

1. If U-235 decays to Pb-208. • a. How much BE/nucl is released? • ~ 0. 2 Me. V • b. How much E is released for a whole U 235 nucleus? • 235 x 0. 2 = 47 Me. V • c. How many kg of mass is represented? • • 47 x 106 e. V x 1. 6 x 10 -19 J/e. V 7. 52 x 10 -12 J = m (3 x 108 m/s)2 8. 4 x 10 -29 kg.

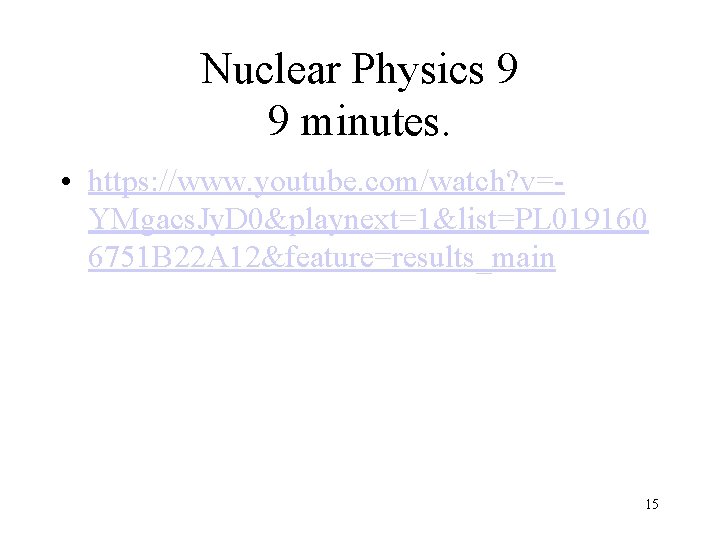

Nuclear Physics 9 9 minutes. • https: //www. youtube. com/watch? v=YMgacs. Jy. D 0&playnext=1&list=PL 019160 6751 B 22 A 12&feature=results_main 15
Do Now: A. What l of photon will be emitted for a photon released when a single 235 U nucleon when the nucleus decays to form 208 Pb assuming all the E is released as a EM radiation? • 2. 6 x 10 -14 m. B. How many AMUs is 25. 32 g of anything? • 1. 524 x 1025 u. 16
Energy from the Nucleus

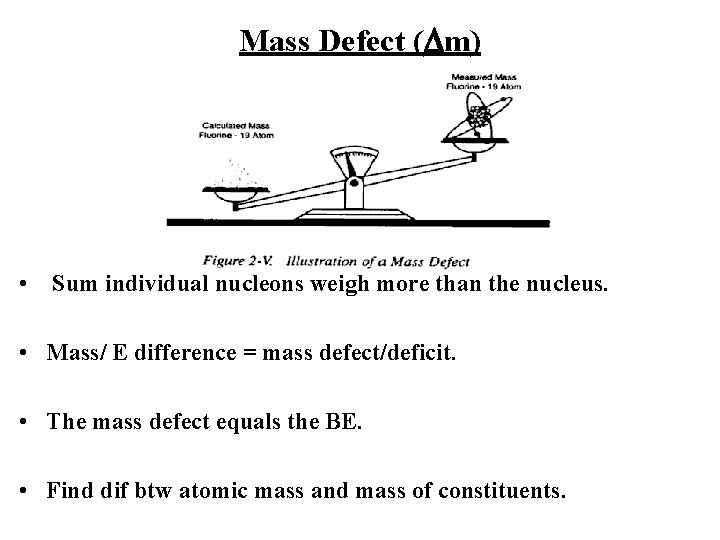

Mass Defect (Dm) • Sum individual nucleons weigh more than the nucleus. • Mass/ E difference = mass defect/deficit. • The mass defect equals the BE. • Find dif btw atomic mass and mass of constituents.

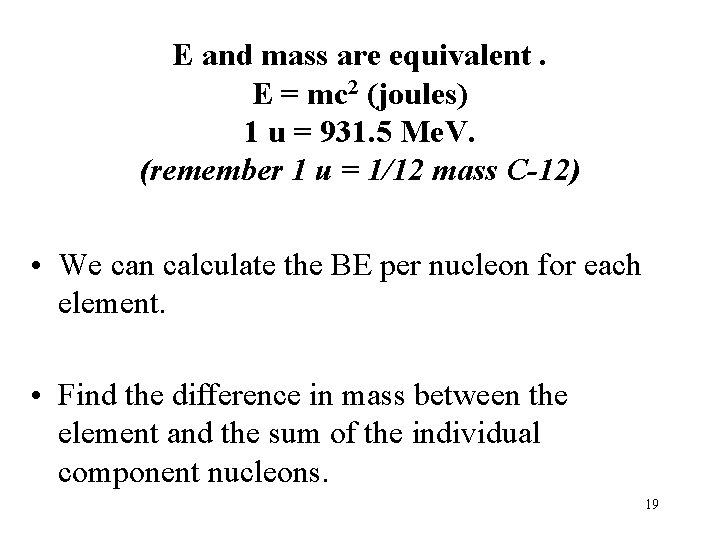

E and mass are equivalent. E = mc 2 (joules) 1 u = 931. 5 Me. V. (remember 1 u = 1/12 mass C-12) • We can calculate the BE per nucleon for each element. • Find the difference in mass between the element and the sum of the individual component nucleons. 19
Calculation of BE per nucleon 1. Calculate the BE per nucleon of 54 Fe which has an average mass of 53. 9396 u. • Mass p+ = 1. 00782 u • Mass no = 1. 00866 u • Mass e- = 0. 000549
Calculate mass defect & BE/nucleon • • 26 p+ x 1. 00782 u = 28 no x 1. 00866 u = 26 e- x 0. 000549 Mass constituents mass Fe nucl subtract Mass defect energy 26. 20332 28. 24248 0. 014274 54. 4458 u 53. 9396 u 0. 5062 u x 931. 5 Me. V/u • BE = 471. 5 Me. V ÷ 54 nucl = 8. 7 Me. V/nucl 21
2. Find the binding energy of He-4 which has a known mass of 4. 002602 u. (I’m including the e- this time). Neutral He-4 consists of 2 e-, 2 p+, and 2 no. Find the sum of the parts in u. Look up in table: e- rest mass p+ rest mass no rest mass

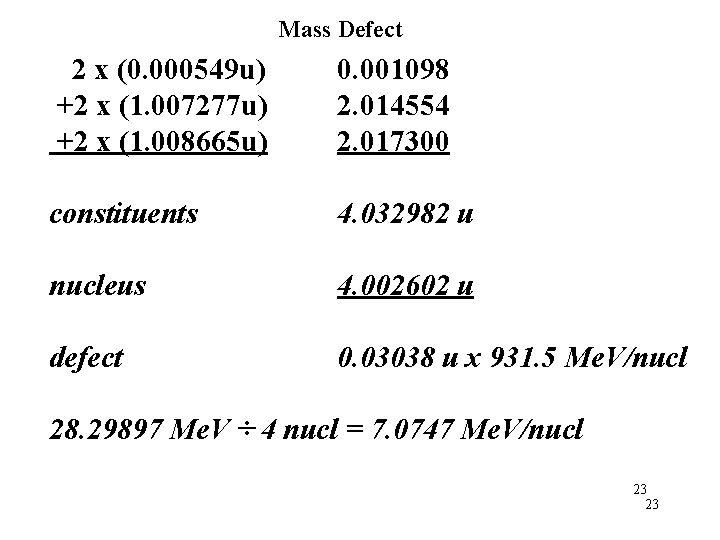

Mass Defect 2 x (0. 000549 u) +2 x (1. 007277 u) +2 x (1. 008665 u) 0. 001098 2. 014554 2. 017300 constituents 4. 032982 u nucleus 4. 002602 u defect 0. 03038 u x 931. 5 Me. V/nucl 28. 29897 Me. V ÷ 4 nucl = 7. 0747 Me. V/nucl 23 23

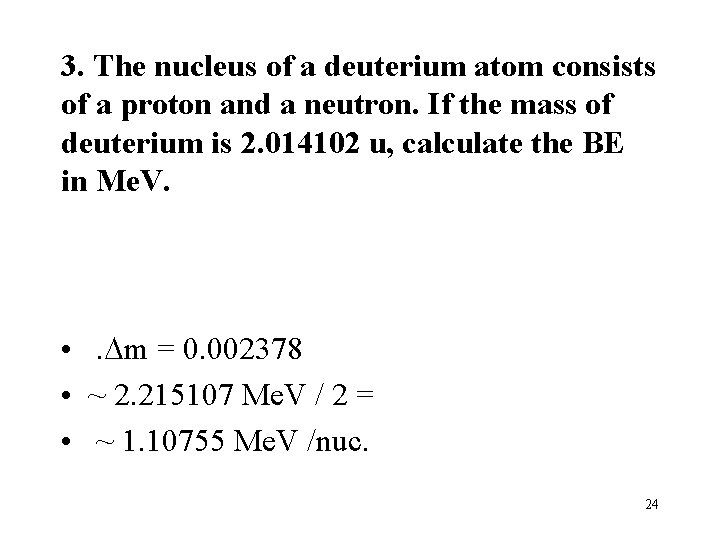

3. The nucleus of a deuterium atom consists of a proton and a neutron. If the mass of deuterium is 2. 014102 u, calculate the BE in Me. V. • . Dm = 0. 002378 • ~ 2. 215107 Me. V / 2 = • ~ 1. 10755 Me. V /nuc. 24

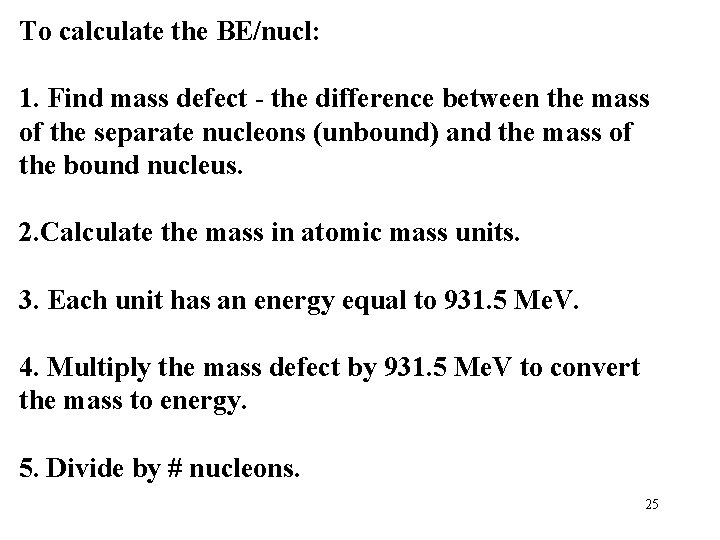

To calculate the BE/nucl: 1. Find mass defect - the difference between the mass of the separate nucleons (unbound) and the mass of the bound nucleus. 2. Calculate the mass in atomic mass units. 3. Each unit has an energy equal to 931. 5 Me. V. 4. Multiply the mass defect by 931. 5 Me. V to convert the mass to energy. 5. Divide by # nucleons. 25

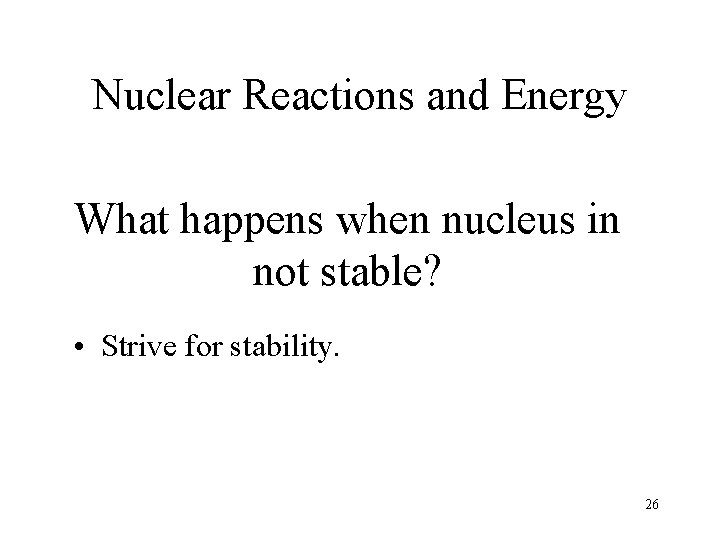

Nuclear Reactions and Energy What happens when nucleus in not stable? • Strive for stability. 26

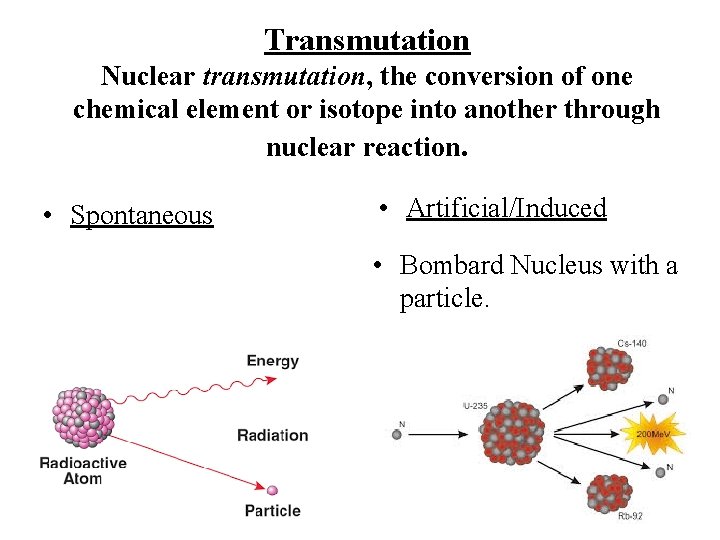

Transmutation Nuclear transmutation, the conversion of one chemical element or isotope into another through nuclear reaction. • Spontaneous • Artificial/Induced • Bombard Nucleus with a particle.

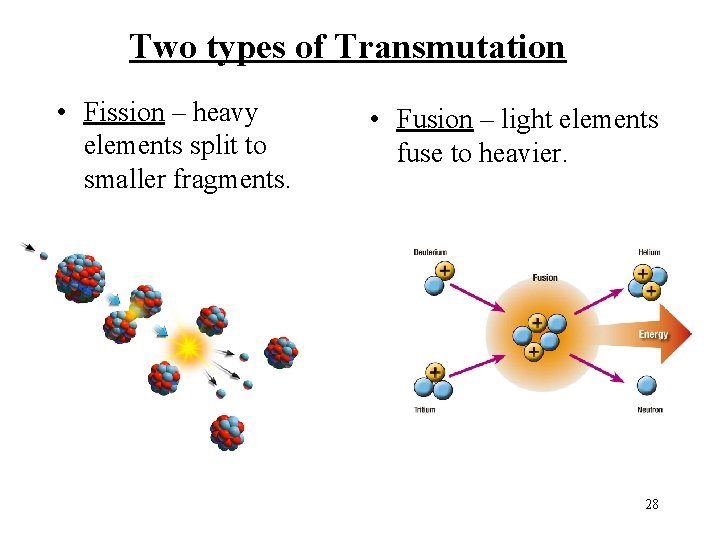

Two types of Transmutation • Fission – heavy elements split to smaller fragments. • Fusion – light elements fuse to heavier. 28
Fission We looked at fission by spontaneous radioactive decay. nucleus splits to 2 or more parts. Parent mass # decreases. Fusion material is added and “fused” to the nucleus. 29
4. Which type of reaction is this? • Fission – parent has more mass than daughter. 30

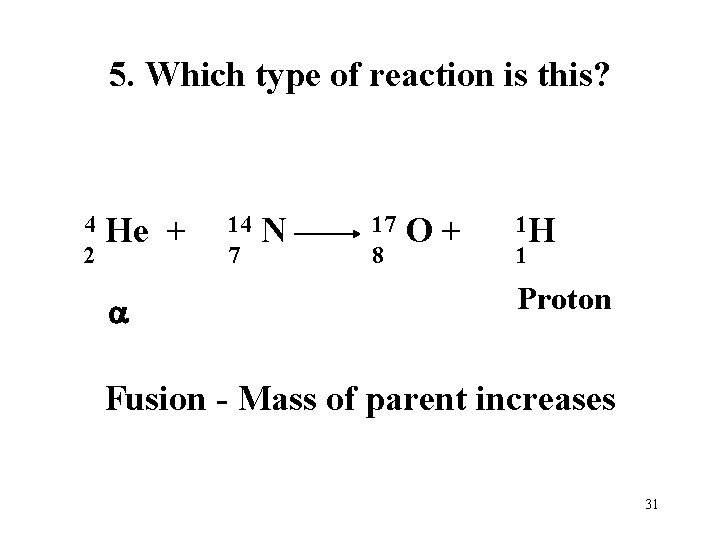

5. Which type of reaction is this? 4 He + 2 a 14 N 7 17 O + 8 1 H 1 Proton Fusion - Mass of parent increases 31
Other types of particles can be used to bombard the nucleus. Neutrons, protons, and H-2 are common. Which rx is this? 32
16 O + 1 n AX + 2 H 8 0 z 1 • Identify X if a 2 H is emitted in the reaction. • What type of reaction is it? 33

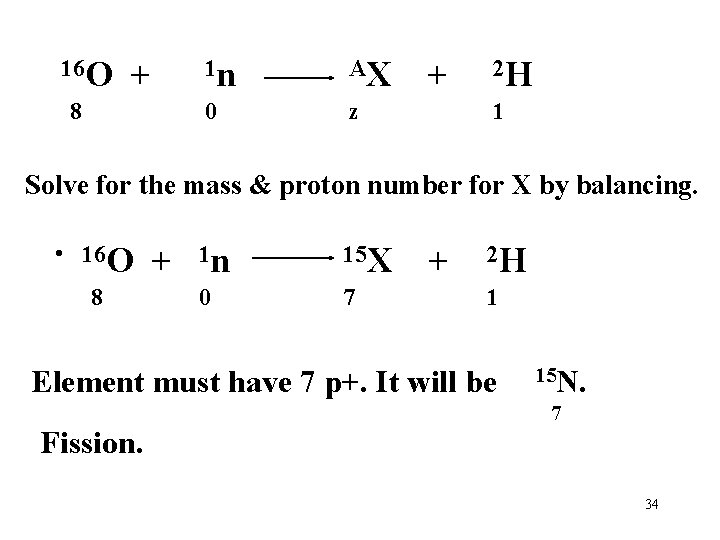

16 O + 1 n AX + 2 H 8 0 z 1 Solve for the mass & proton number for X by balancing. • 16 O + 8 1 n 15 X + 2 H 0 7 1 Element must have 7 p+. It will be Fission. 15 N. 7 34
Energy Considerations in Fission & Fusion 35

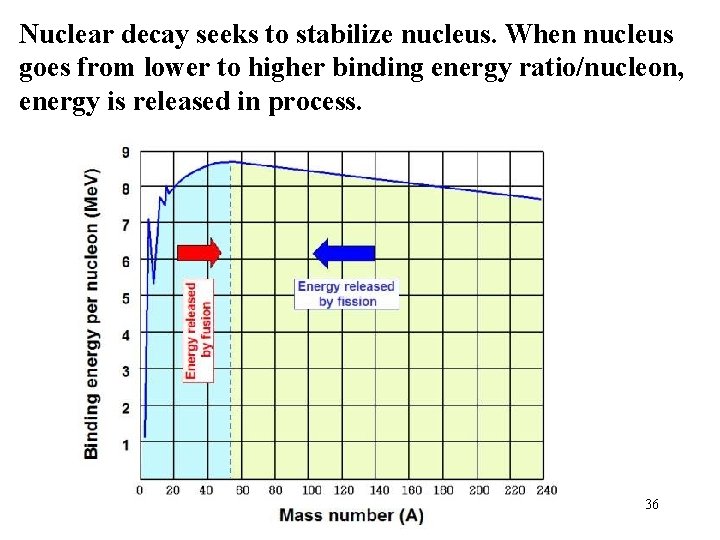

Nuclear decay seeks to stabilize nucleus. When nucleus goes from lower to higher binding energy ratio/nucleon, energy is released in process. 36

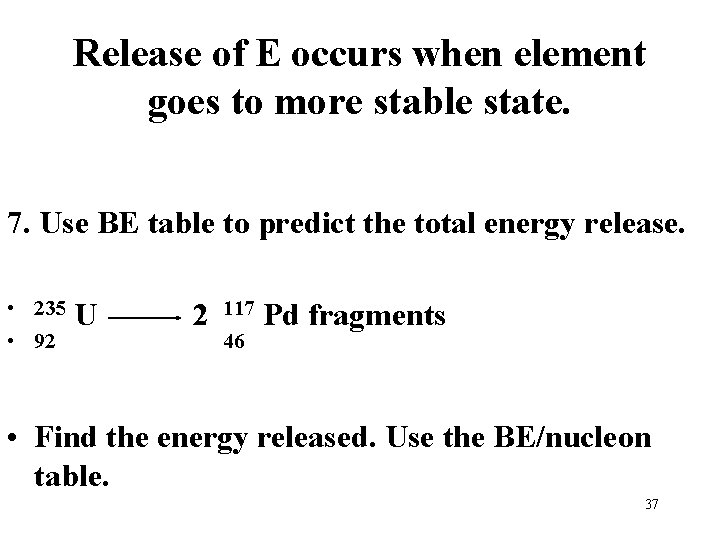

Release of E occurs when element goes to more stable state. 7. Use BE table to predict the total energy release. • 235 U 2 117 Pd fragments • 92 46 • Find the energy released. Use the BE/nucleon table. 37

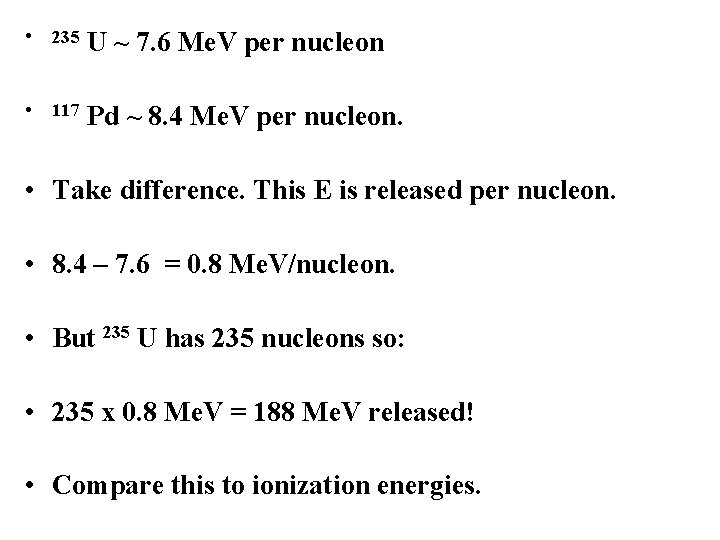

• 235 U ~ 7. 6 Me. V per nucleon • 117 Pd ~ 8. 4 Me. V per nucleon. • Take difference. This E is released per nucleon. • 8. 4 – 7. 6 = 0. 8 Me. V/nucleon. • But 235 U has 235 nucleons so: • 235 x 0. 8 Me. V = 188 Me. V released! • Compare this to ionization energies.
BE Released in Rx can be converted to KE and/or heat. 39
8: Lithium can be bombarded with no to induce the following rx: 6 Li + 1 n 3 H + 4 He 3 0 1 2 • Mass Li-6 • Mass no = 6. 015126 1. 008665 • Mass H-3 • Mass He-4 3. 016030 4. 002604 How much E is released?
Calculate mass for each side. 6 Li + 1 n 3 H + 4 He 3 0 1 2 (7. 023791 u) (7. 018634) Dm = (7. 023791 – 7. 018634) u • • Dm = 0. 005175 u x 931. 5 Me. V/u = 4. 804 Me. V Available as KE to fragments. some may be released as heat and light. 41

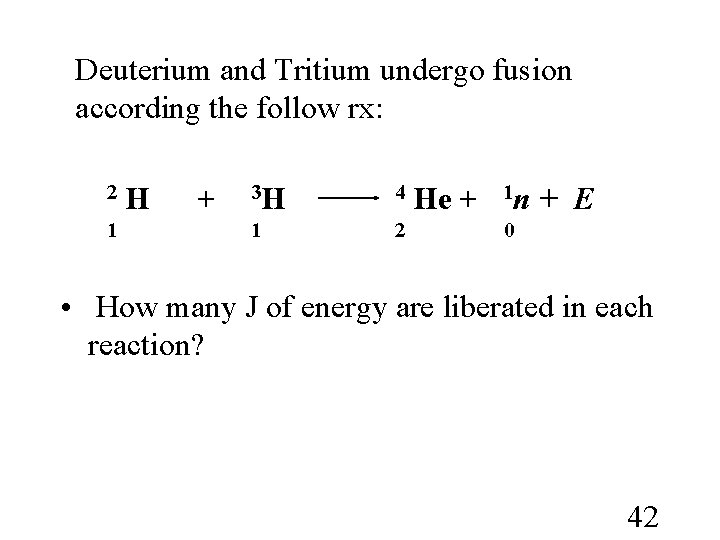

Deuterium and Tritium undergo fusion according the follow rx: 2 H + 3 H 4 He + 1 n 1 1 2 + E 0 • How many J of energy are liberated in each reaction? 42
Solution • Mass of reactants = 2. 014102 + 3. 016010 = • 5. 030152 u. • Mass Products = 4. 002603 + 1. 00665 = • 5. 011268 u. • . Dm = 0. 018884 u = • 17. 59 Me. V • 2. 81 x 10 -12 J. 43

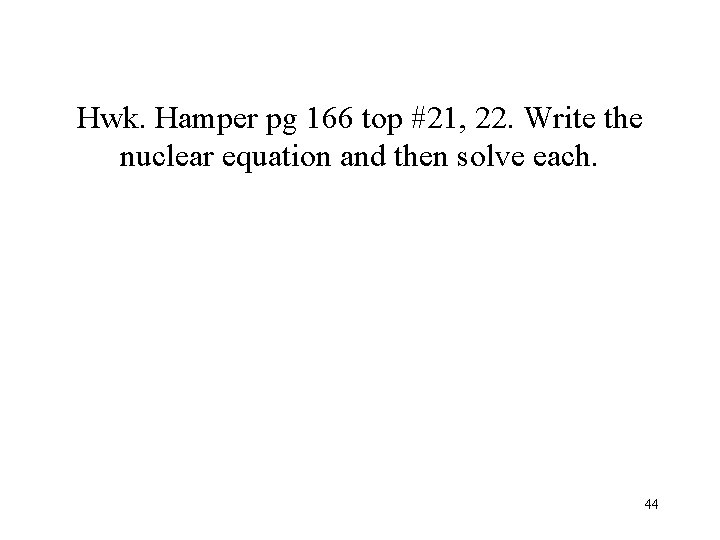

Hwk. Hamper pg 166 top #21, 22. Write the nuclear equation and then solve each. 44
Go to 7. 2 b. Nuclear Power

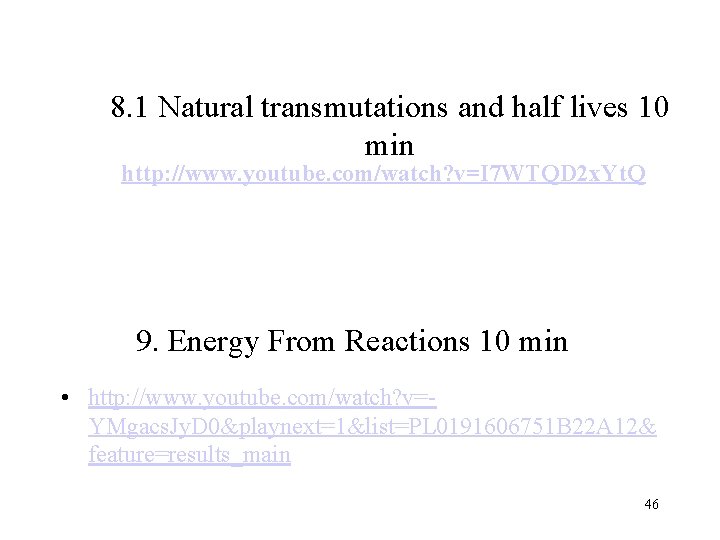

8. 1 Natural transmutations and half lives 10 min http: //www. youtube. com/watch? v=I 7 WTQD 2 x. Yt. Q 9. Energy From Reactions 10 min • http: //www. youtube. com/watch? v=YMgacs. Jy. D 0&playnext=1&list=PL 0191606751 B 22 A 12& feature=results_main 46
