7 1 Ratioand and Proportion Warm Up Lesson
- Slides: 33
7 -1 Ratioand and. Proportion Warm Up Lesson Presentation Lesson Quiz Holt. Mc. Dougal Geometry Holt
7 -1 Ratio and Proportion Warm Up Find the slope of the line through each pair of points. 1. (1, 5) and (3, 9) 2 2. (– 6, 4) and (6, – 2) Solve each equation. 3. 4 x + 5 x + 6 x = 45 x = 3 4. (x – 5)2 = 81 x = 14 or x = – 4 5. Write in simplest form. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Objectives Write and simplify ratios. Use proportions to solve problems. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Vocabulary ratio proportion extremes means cross products Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion The Lord of the Rings movies transport viewers to the fantasy world of Middle Earth. Many scenes feature vast fortresses, sprawling cities, and bottomless mines. To film these images, the moviemakers used ratios to help them build highly detailed miniature models. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion A ratio compares two numbers by division. The ratio of two numbers a and b can be written as a to b, a: b, or , where b ≠ 0. For example, the ratios 1 to 2, 1: 2, and all represent the same comparison. Holt Mc. Dougal Geometry

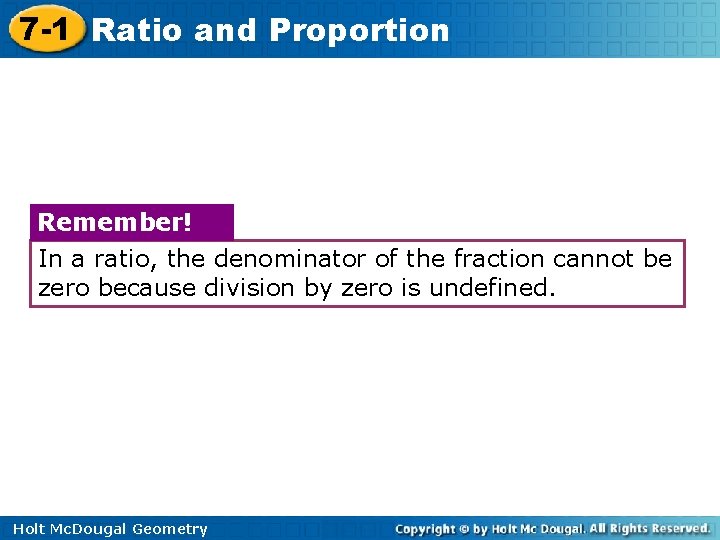

7 -1 Ratio and Proportion Remember! In a ratio, the denominator of the fraction cannot be zero because division by zero is undefined. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Example 1: Writing Ratios Write a ratio expressing the slope of l. Substitute the given values. Simplify. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Check It Out! Example 1 Given that two points on m are C(– 2, 3) and D(6, 5), write a ratio expressing the slope of m. Substitute the given values. Simplify. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion A ratio can involve more than two numbers. For the rectangle, the ratio of the side lengths may be written as 3: 7: 3: 7. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Example 2: Using Ratios The ratio of the side lengths of a triangle is 4: 7: 5, and its perimeter is 96 cm. What is the length of the shortest side? Let the side lengths be 4 x, 7 x, and 5 x. Then 4 x + 7 x + 5 x = 96. After like terms are combined, 16 x = 96. So x = 6. The length of the shortest side is 4 x = 4(6) = 24 cm. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Check It Out! Example 2 The ratio of the angle measures in a triangle is 1: 6: 13. What is the measure of each angle? x + y + z = 180° x + 6 x + 13 x = 180° 20 x = 180° x = 9° y = 6 x z = 13 x y = 6(9°) z = 13(9°) y = 54° z = 117° Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion A proportion is an equation stating that two ratios are equal. In the proportion , the values a and d are the extremes. The values b and c are the means. When the proportion is written as a: b = c: d, the extremes are in the first and last positions. The means are in the two middle positions. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion In Algebra 1 you learned the Cross Products Property. The product of the extremes ad and the product of the means bc are called the cross products. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Reading Math The Cross Products Property can also be stated as, “In a proportion, the product of the extremes is equal to the product of the means. ” Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Example 3 A: Solving Proportions Solve the proportion. 7(72) = x(56) 504 = 56 x x=9 Holt Mc. Dougal Geometry Cross Products Property Simplify. Divide both sides by 56.
7 -1 Ratio and Proportion Example 3 B: Solving Proportions Solve the proportion. (z – 4)2 = 5(20) Cross Products Property (z – 4)2 = 100 Simplify. (z – 4) = 10 Find the square root of both sides. (z – 4) = 10 or (z – 4) = – 10 Rewrite as two eqns. z = 14 or z = – 6 Holt Mc. Dougal Geometry Add 4 to both sides.
7 -1 Ratio and Proportion Check It Out! Example 3 a Solve the proportion. 3(56) = 8(x) 168 = 8 x x = 21 Holt Mc. Dougal Geometry Cross Products Property Simplify. Divide both sides by 8.
7 -1 Ratio and Proportion Check It Out! Example 3 b Solve the proportion. 2 y(4 y) = 9(8) 8 y 2 = 72 Cross Products Property Simplify. y 2 = 9 Divide both sides by 8. y = 3 Find the square root of both sides. y = 3 or y = – 3 Holt Mc. Dougal Geometry Rewrite as two equations.
7 -1 Ratio and Proportion Check It Out! Example 3 c Solve the proportion. d(2) = 3(6) 2 d = 18 d=9 Holt Mc. Dougal Geometry Cross Products Property Simplify. Divide both sides by 2.
7 -1 Ratio and Proportion Check It Out! Example 3 d Solve the proportion. (x + 3)2 = 4(9) Cross Products Property (x + 3)2 = 36 Simplify. (x + 3) = 6 Find the square root of both sides. (x + 3) = 6 or (x + 3) = – 6 x = 3 or x = – 9 Holt Mc. Dougal Geometry Rewrite as two eqns. Subtract 3 from both sides.
7 -1 Ratio and Proportion The following table shows equivalent forms of the Cross Products Property. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Example 4: Using Properties of Proportions Given that 18 c = 24 d, find the ratio of d to c in simplest form. 18 c = 24 d Divide both sides by 24 c. Simplify. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Check It Out! Example 4 Given that 16 s = 20 t, find the ratio t: s in simplest form. 16 s = 20 t Divide both sides by 20 s. Simplify. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Example 5: Problem-Solving Application Marta is making a scale drawing of her bedroom. Her rectangular room is 12 feet wide and 15 feet long. On the scale drawing, the width of her room is 5 inches. What is the length? 1 Understand the Problem The answer will be the length of the room on the scale drawing. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Example 5 Continued 2 Make a Plan Let x be the length of the room on the scale drawing. Write a proportion that compares the ratios of the width to the length. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Example 5 Continued 3 Solve 5(15) = x(12. 5) Cross Products Property 75 = 12. 5 x x=6 Simplify. Divide both sides by 12. 5. The length of the room on the scale drawing is 6 inches. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Example 5 Continued 4 Look Back Check the answer in the original problem. The ratio of the width to the length of the actual room is 12 : 15, or 5: 6. The ratio of the width to the length in the scale drawing is also 5: 6. So the ratios are equal, and the answer is correct. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Check It Out! Example 5 What if. . . ? Suppose the special-effects team made a different model with a height of 9. 2 m and a width of 6 m. What is the height of the actual tower? 1 Understand the Problem The answer will be the height of the tower. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Check It Out! Example 5 Continued 2 Make a Plan Let x be the height of the tower. Write a proportion that compares the ratios of the height to the width. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Check It Out! Example 5 Continued 3 Solve 9. 2(996) = 6(x) Cross Products Property 9163. 2 = 6 x Simplify. 1527. 2 = x Divide both sides by 6. The height of the actual tower is 1527. 2 feet. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Check It Out! Example 5 Continued 4 Look Back Check the answer in the original problem. The ratio of the height to the width of the model is 9. 2: 6. The ratio of the height to the width of the tower is 1527. 2: 996, or 9. 2: 6. So the ratios are equal, and the answer is correct. Holt Mc. Dougal Geometry
7 -1 Ratio and Proportion Lesson Quiz 1. The ratio of the angle measures in a triangle is 1: 5: 6. What is the measure of each angle? 15°, 75°, 90° Solve each proportion. 2. 3 3. 7 or – 7 4. Given that 14 a = 35 b, find the ratio of a to b in simplest form. 5. An apartment building is 90 ft tall and 55 ft wide. If a scale model of this building is 11 in. wide, how tall is the scale model of the building? 18 in. Holt Mc. Dougal Geometry
