68 th International Symposium on Molecular Spectroscopy Line shape parameters for CO 2 transitions: Accurate predictions from a physics-based model Julien Lamouroux✝ and Robert R. Gamache, University of Massachusetts Lowell, Lowell (MA) ✝current address LISA, Université Paris Est Créteil

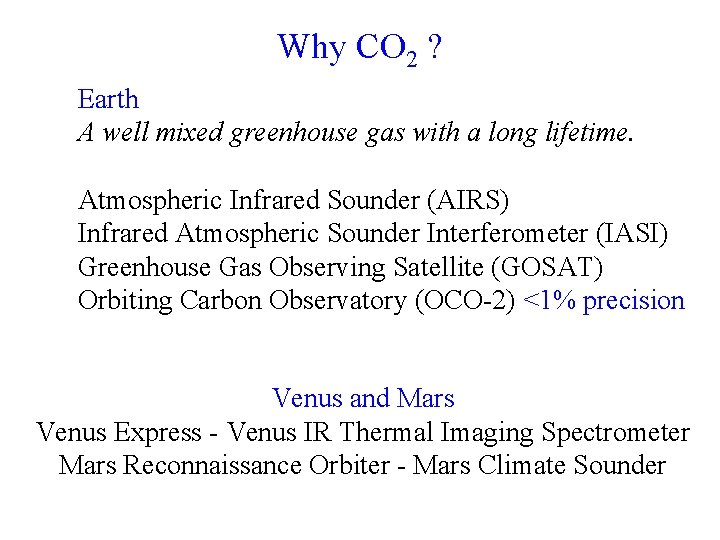

Why CO 2 ? Earth A well mixed greenhouse gas with a long lifetime. Atmospheric Infrared Sounder (AIRS) Infrared Atmospheric Sounder Interferometer (IASI) Greenhouse Gas Observing Satellite (GOSAT) Orbiting Carbon Observatory (OCO-2) <1% precision Venus and Mars Venus Express - Venus IR Thermal Imaging Spectrometer Mars Reconnaissance Orbiter - Mars Climate Sounder

Databases Database HITRAN CDSD-296 K CDSD-1000 K AMES-296 K AMES-1000 K transitions 488, 127 419, 610 ~ 4 million ~ 152 million ~ 734 million Jmax 124 128 200 200 For half-widths there are less than 500 airbroadened and less than 1000 self-broadened measured data for unique ro-vibrational transitions and J" is less than 60 and 70 respectively.

Approximate formulas for half-width and line shift Following the model proposed by Gamache and Hartmann [R. Gamache and J. -M. Hartmann, J. Quant. Spectrosc. Radiat. Transfer 83, 119 (2004)] the half-widths and line shifts for a rovibrational transition to be expressed in terms of the number of vibrational quanta exchanged in the transition raised to a power and a reference ro-vibrational transition. With pγ=2. 0 and pδ=1. 0

CRB calculations for CO 2 Calculations made following Gamache et al. [JQSRT 113, 976 (2012)] for the systems CO 2 -N 2, CO 2 -O 2, CO 2 air, and CO 2 -CO 2 • For J”=0 to 160 for P-, Q-, and R-branch transitions • For 24 vibrational bands with Δν 1=3, Δν 2=5, and Δν 3=9 • For nine temperatures from 200 – 2000 K • Extrapolated databases to J’’=200 for the high-temperature

How well do the calculations reproduce the measurements?

Validation of the CRB calculations CO 2 -CO 2, 296 K 30012 -00001

Validation of the CRB calculations Toth et al.

CRB calculations for CO 2 In general the half-widths agree with a standard deviation of 1 -3 % and the line shifts show very small deviations. See: Gamache et al. , JQSRT 113, 976 (2012) Lamouroux et al. , JQSRT 113, 991 (2012) Lamouroux et al. , JQSRT 113, 1536 (2012) Gamache and Lamouroux, JQSRT 117, 93 (2012)

CO 2 -air + P-branch x Q-branch R-branch

Determining the fit coefficients for the half-width and line shift • Adjust the powers pγ and pδ • Least-squares fit of half-width and line shift • Iterate until 1 -|R| is less than a threshold

Converged fit

Converged fit

Converged fit

Converged fit

30012 -00001

Temperature dependence of γ Power law model For CO 2 n varies strongly with temperature range. For example, comparing the temperature exponents from the Mars and Venus T-range fits give an average difference of 19% with maximum differences near 29%.

Conclusion For CO 2 the S 1 term is the dominant component in determining the vibrational dependence of the half -width and line shift. This result leads to a simple physics-based theoretical expression to model the vibrational dependence of a rotational transition. Using Complex Robert Bonamy calculations for 24 bands fits are made to determine the coefficients of the expression for 9 temperatures

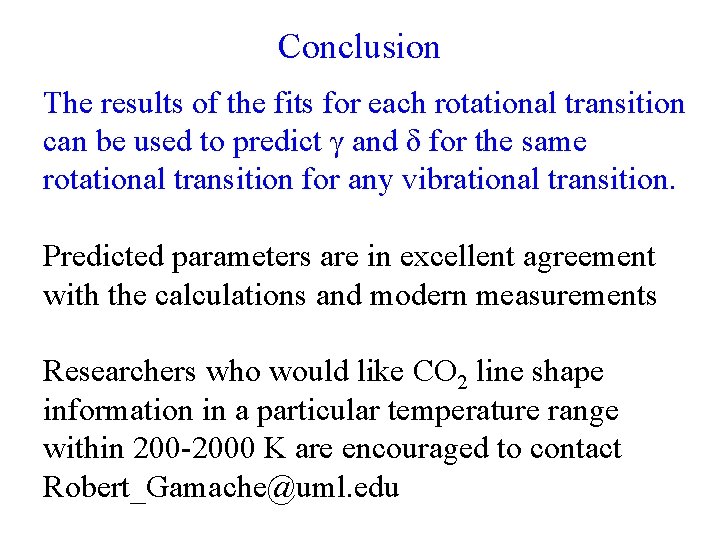

Conclusion The results of the fits for each rotational transition can be used to predict γ and δ for the same rotational transition for any vibrational transition. Predicted parameters are in excellent agreement with the calculations and modern measurements Researchers who would like CO 2 line shape information in a particular temperature range within 200 -2000 K are encouraged to contact Robert_Gamache@uml. edu

Acknowledgement The authors are pleased to acknowledge support of this research by the National Science Foundation through Grant No. AGS-1156862. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the National Science Foundation.
