# 6 5 Linear Inequalities Overview Graphing Linear Inequalities

• Slides: 14

6. 5 Linear Inequalities

Overview - - Graphing Linear Inequalities Solid or Dotted Which Side to Shade Writing Inequalities from a graph

Graphing Linear Inequalities in Two Variables How would you graph the equation x + y = 3? x+y=3 What happens -x -x if the “=“ y = -x + 3 changes to “≤” m = -1 or “≥”? b=3 We get shading!!!

= ≤ Graph x + y ≤ 3 Pick a point not on the line to find out which side to shade. If it’s true, shade same side. If not, shade the opposite side!

= ≥ Graph x + y ≥ 3 What point do you want to pick?

Solid or dashed? The lines can be graphed as a solid line or a dashed (dotted) line. When do you think it’s solid, and when is it dashed? Think about graphing points on a number line; when is it open and when is it closed? < or > is … ≤ or ≥ is …

Graphing Linear Inequalities Steps: 1. Graph the equation (solve for y) 2. Draw a Dotted or Solid line 3. Pick a point not on a line (any point) 4. Shade the correct side - True – shade the same side False – shade the opposite side

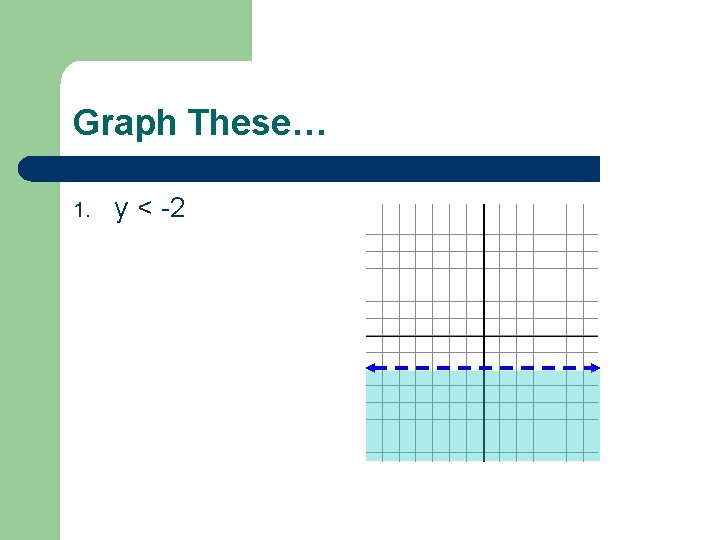

Graph These… 1. y < -2

Graph These… 2. -1 ≤ x + y

Graph These… 3. x > 4

Graph These… 4. x – 3 y ≤ 12

Writing an Inequality Write an inequality for each graph. 5. 6.

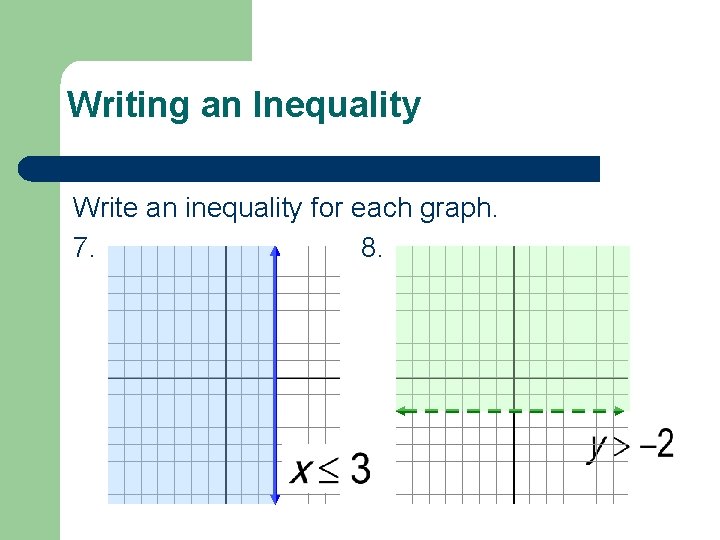

Writing an Inequality Write an inequality for each graph. 7. 8.

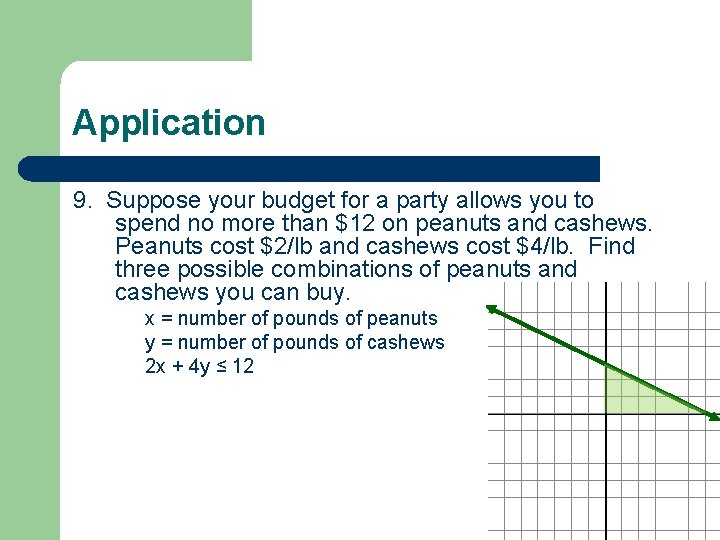

Application 9. Suppose your budget for a party allows you to spend no more than \$12 on peanuts and cashews. Peanuts cost \$2/lb and cashews cost \$4/lb. Find three possible combinations of peanuts and cashews you can buy. x = number of pounds of peanuts y = number of pounds of cashews 2 x + 4 y ≤ 12
