5Project MATLAB DSCDMA 9715242 Baseband signal generate dn

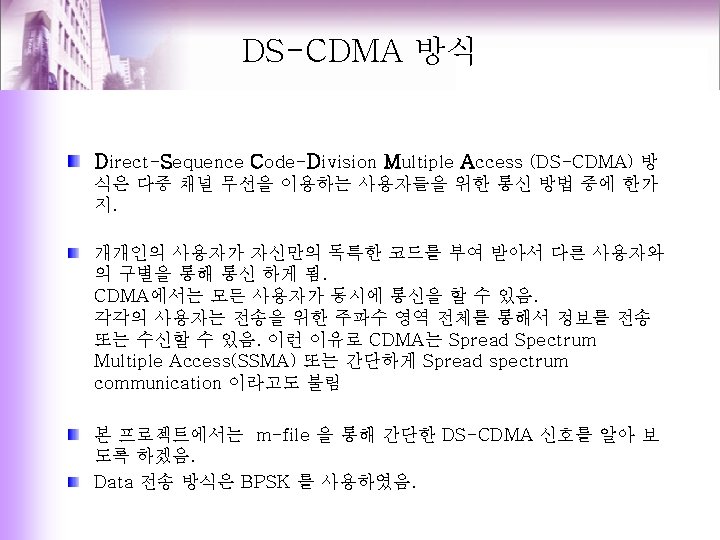

실험(5)Project MATLAB을 이용한 DS-CDMA 신호의 표현 9715242 이동주

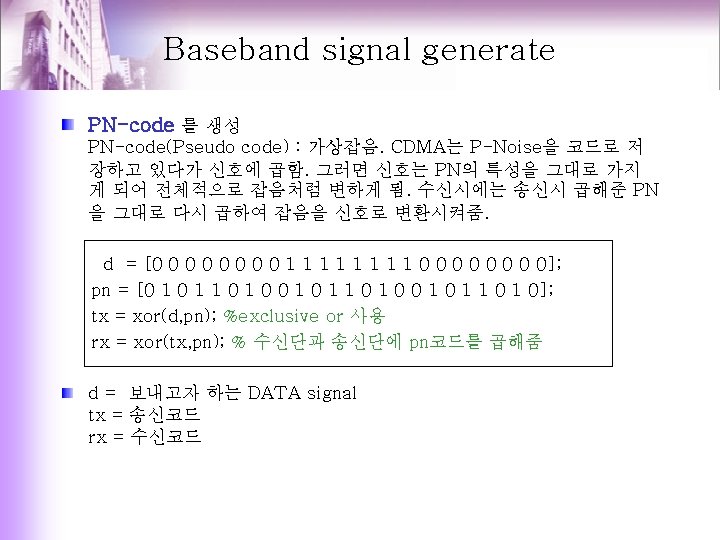

Baseband signal generate dn = (length(t)-1)/length(d); % 2진 비트 당 시간 샘플 수 % 정보코드의 baseband signal for i=1: length(d); b(: , i)=d(i)*ones(dn, 1); end base=[b(: )' b(length(t)-1)]; % 2진 비트 데이터의 신호 파형 % PN코드의 baseband signal for i=1: length(d); b_pn(: , i)=pn(i)*ones(dn, 1); end base_pn=[b_pn(: )' b_pn(length(t)-1)]; % 송신코드의 baseband signal base_tx = xor(base, base_pn); % 수신정보코드의 baseband signal for i=1: length(d); b_rx(: , i)=rx(i)*ones(dn, 1); end base_rx=[b_rx(: )' b_rx(length(t)-1)]; baseband signal generate
대역확산 signal 의 비교 subplot(4, 1, 1); plot(s); grid; axis([0 1800 -1. 5]); subplot(4, 1, 2); plot(s_ds); grid; axis([0 1800 -1. 5]); subplot(4, 1, 3); plot (base); grid; axis([1 1800 -0. 5 1. 5]); subplot(4, 1, 4); plot(base_tx); grid; axis([1 1800 -0. 5 1. 5]); 1. 2. 3. 4. 대역확산되지 않은 signal 대역확산된 signal baseband data signal baseband 송신 signal

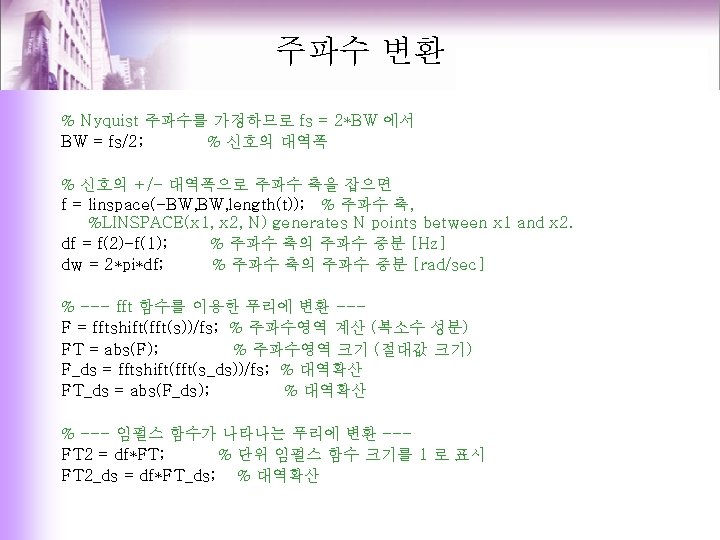

주파수 스펙트럼 & 입, 출력 signal <참 고 자 료> 최신통신이론 – 윤남일. 복두 출판사 Multi-User Detection by Using Parallel Interference Cancellation for DS-CDMA Communications. - 아주대학교 전자전기공학부, 이호상외 www. rhdh. com
