58 Port 101000 Mbps Industrial Gigabit Ethernet Switch
5/8 -Port 10/1000 Mbps Industrial Gigabit Ethernet Switch IGS-501/ IGS-801 / IGS-501 T / IGS-801 T www. planet. com. tw Copyright © PLANET Technology Corporation. All rights reserved.
Presentation Outline www. planet. com. tw
Presentation Outline u Product Overview u Product Benefits u Product Features u Application u Comparison www. planet. com. tw 3
Product Overview u Environments of Industrial Products Manufactory Building Transportation www. planet. com. tw
Product Overview u PLANET Industrial Product Classification Information Level Managed Ethernet Switch IGS-501 / IGS-501 T Control Level Unmanaged Ethernet Switch IGS-801 / IGS-801 T ISW-500 ISW-800 Media Converter Device Level www. planet. com. tw
Product Overview u PLANET 5/8 -Port Gigabit Industrial Ethernet Switch Comparison Table Model Name 10/1000 T Copper Operation Temperature Enclosure Input Power www. planet. com. tw IGS-501 IGS-801 IGS-501 T IGS-801 T 5 8 -10~60 Degree C -40~75 Degree C Slim Type IP-30 metal case 12~48 VDC
Product Overview u Front Panel of IGS-501 / IGS-501 T n 5 RJ-45 TP ports ü 10/1000 Mbps 6 -Pin Removable Terminal Block / Redundant 12~48 V DC power input Power 1, Power 2, FAULT LED ü Auto-MDI/MDI-X ü Auto Negotiation ü Supports 9 KB Jumbo Frame -10~60 Degree C Per port speed indication LED Per port LED behavior description -40~75 Degree C www. planet. com. tw 7
Product Overview u Front Panel of IGS-801 / IGS-801 T n 8 RJ-45 TP ports ü 10/1000 Mbps 6 -Pin Removable Terminal Block / Redundant 12~48 V DC power input Power 1, Power 2, FAULT LED ü Auto-MDI/MDI-X ü Auto Negotiation ü Supports 9 KB Jumbo Frame -10~60 Degree C Per port speed indication LED -40~75 Degree C Per port LED behavior description www. planet. com. tw 8
Key Benefits u Slim type with IP 30 metal shape for easily deployment in Heavy Industrial demanding environments u 9 K Jumbo packet support on each port for handle large amounts of data transmission u High Gigabit Performance / Wire-Speed Switching u DIN Rail and Wall mount Design for fill installation demand in Heavy Industrial environments u EFT protection 6 KV DC for power line u 6 KV DC Ethernet ESD protection u -10 to 60 Degree C operation temperature (IGS-501 & IGS-801) u -40 to 75 Degree C operation temperature (IGS-501 T & IGS-801 T) www. planet. com. tw 9
Product Features u Industrial Conformance n 12~48 V DC, redundant power n Polarity reverse protect function n Connective removable terminal block for master and slave power n -10 to 60 Degree C operation temperature (IGS-501 & IGS-801) n -40 to 75 Degree C operation temperature (IGS-501 T & IGS-801 T) n IP-30 metal case n Relay alarm for power failure n Stability testing with ü IEC 60068 -2 -32 (Free fall) ü IEC 60068 -2 -27 (Shock) ü IEC 60068 -2 -6 (Vibration) www. planet. com. tw
Product Features u Wide-range redundant power design n PWR 1 & PWR 2 12~48 V DC redundant power input n 1 A@24 V Relay alarm for power down and port down n Power polarity reverse protect n Connective removable terminal block for primary and backup power www. planet. com. tw
Product Features - Alarm u Real-Time Fault Relay Alarm Power 1 - Master - Power FAIL Warning Power 2 - Backup Warning Light or Speaker www. planet. com. tw
Product Features u Hardware n 5/8 -Port 10/1000 Mbps Gigabit ports with Auto negotiation feature n All Copper ports with auto MDI/MDI-X function n Per port LED Status Monitoring for system diagnostic n Store-and-Forward Switch Architecture n Back pressure for half duplex, IEEE 802. 3 x for full duplex flow control n 8 K MAC Address, auto aging/learning n 136 / 176 kilobytes on-chip frame buffer n 10/16 Gbps Switch Fabric n 9 KB Jumbo Frame support on each port n One terminal block connector within two DC power inputs www. planet. com. tw 13

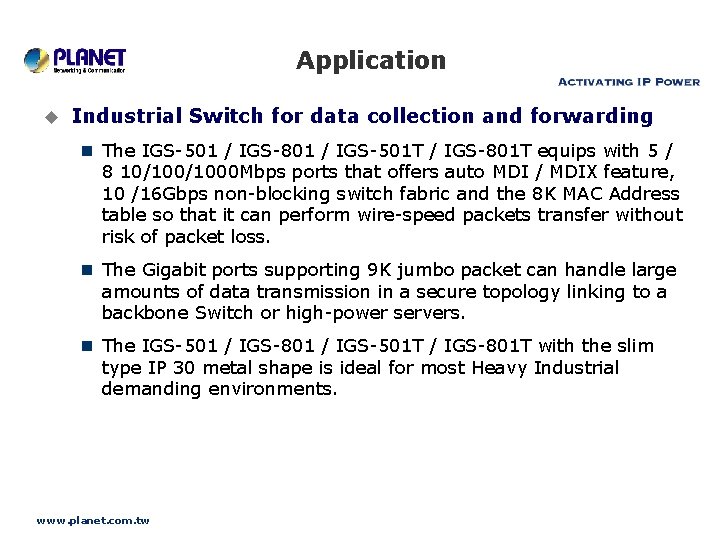

Application u Industrial Switch for data collection and forwarding n The IGS-501 / IGS-801 / IGS-501 T / IGS-801 T equips with 5 / 8 10/1000 Mbps ports that offers auto MDI / MDIX feature, 10 /16 Gbps non-blocking switch fabric and the 8 K MAC Address table so that it can perform wire-speed packets transfer without risk of packet loss. n The Gigabit ports supporting 9 K jumbo packet can handle large amounts of data transmission in a secure topology linking to a backbone Switch or high-power servers. n The IGS-501 / IGS-801 / IGS-501 T / IGS-801 T with the slim type IP 30 metal shape is ideal for most Heavy Industrial demanding environments. www. planet. com. tw
Application www. planet. com. tw 15

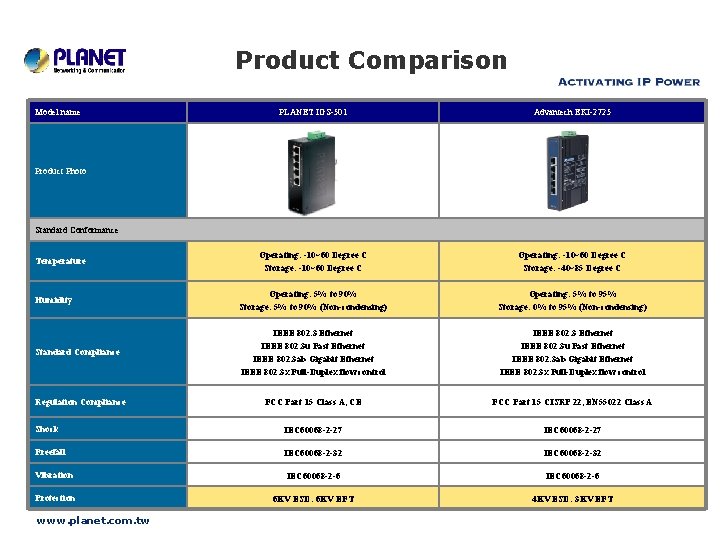

Product Comparison Model name PLANET IGS-501 Advantech EKI-2725 Unmanaged 5 5 135 mm x 87 mm x 32 mm (W x D x H) 37 mm x 140 mm x 95 mm (W x H x D) 455 g _ Power Requirement 12~48 V DC, Redundant power Installation DIN rail kit and wall mount ear IP-30 Metal Case Store-and-Forward 8 K _ 136 kilobytes _ Flow Control Back pressure for half duplex IEEE 802. 3 x Pause Frame for full duplex Switch Fabric 10 Gbps Throughput (Packet per second) 7. 4 Mpps Jumbo Frame 9 K 9 K Auto MDI / MDI-X Yes Product Photo Hardware specification Level 10/1000 Base-T ports Dimension Weight Case Switch specification Switch Processing Scheme MAC address table Buffer www. planet. com. tw
Product Comparison Model name PLANET IGS-501 Advantech EKI-2725 Operating: -10~60 Degree C Storage: -10~60 Degree C Operating: -10~60 Degree C Storage: -40~85 Degree C Humidity Operating: 5% to 90% Storage: 5% to 90% (Non-condensing) Operating: 5% to 95% Storage: 0% to 95% (Non-condensing) Standard Compliance IEEE 802. 3 Ethernet IEEE 802. 3 u Fast Ethernet IEEE 802. 3 ab Gigabit Ethernet IEEE 802. 3 x Full-Duplex flow control FCC Part 15 Class A, CE FCC Part 15 CISRP 22, EN 55022 Class A Shock IEC 60068 -2 -27 Freefall IEC 60068 -2 -32 Vibration IEC 60068 -2 -6 Protection 6 KV ESD: 6 KV EFT 4 KV ESD: 3 KV EFT Product Photo Standard Conformance Temperature Regulation Compliance www. planet. com. tw
Product Comparison Model name PLANET IGS-801 Advantech EKI-2728 MOXA EDS-G 308 Unmanaged 8 8 8 Product Photo Hardware specification Level 10/1000 Base-T ports Dimension Weight 135 mm x 87 mm x 32 mm x H) (W x D 37 mm x 140 mm x 95 mm D) (W x H x 53. 6 mm x 135 mm x 105 mm D) (W x H x 473 g _ 630 g Power Requirement 12~48 V DC, Redundant power Installation DIN rail kit and wall mount ear IP-30 Metal Case Store-and-Forward 8 K _ _ 176 kilobytes _ _ Flow Control Back pressure for half duplex, IEEE 802. 3 x Pause Frame for full duplex Switch Fabric 16 Gbps 11. 9 Mpps Jumbo Frame 9 K 9 K 9 K Auto MDI / MDI-X Yes Yes Case Switch specification Switch Processing Scheme MAC address table Buffer Throughput (Packet per second) www. planet. com. tw
Product Comparison Model name PLANET IGS-801 Advantech EKI-2728 MOXA EDS-G 308 Operating: -10~60 Degree C Storage: -10~60 Degree C Operating: -10~60 Degree C Storage: -40~85 Degree C Operating: -0~60 Degree C Storage: -40~85 Degree C Humidity Operating: 5% to 90% Storage: 5% to 90% (Non-condensing) Operating: 5% to 95% Storage: 0% to 95% (Non-condensing) Operating: 5% to 95% Storage: 5% to 95% (Non-condensing) Standard Compliance IEEE 802. 3 Ethernet IEEE 802. 3 u Fast Ethernet IEEE 802. 3 ab Gigabit Ethernet IEEE 802. 3 x Full-Duplex flow control FCC Part 15 Class A, CE FCC Part 15 CISRP 22, EN 55022 Class A FCC Part 15 CISRP (EN 55022) Class A Shock IEC 60068 -2 -27 Freefall IEC 60068 -2 -32 Vibration IEC 60068 -2 -6 Protection 6 KV ESD: 6 KV EFT 4 KV ESD: 3 KV EFT _ Product Photo Standard Conformance Temperature Regulation Compliance www. planet. com. tw
Product Comparison Model name PLANET IGS-501 T Advantech EKI-2725 Unmanaged 5 5 135 mm x 87 mm x 32 mm (W x D x H) 37 mm x 140 mm x 95 mm (W x H x D) 455 g _ Power Requirement 12~48 V DC, Redundant power Installation DIN rail kit and wall mount ear IP-30 Metal Case Store-and-Forward 8 K _ 136 kilobytes _ Flow Control Back pressure for half duplex, IEEE 802. 3 x Pause Frame for full duplex Switch Fabric 10 Gbps Throughput (Packet per second) 7. 4 Mpps Jumbo Frame 9 K 9 K Auto MDI / MDI-X Yes Product Photo Hardware specification Level 10/1000 Base-T ports Dimension Weight Case Switch specification Switch Processing Scheme MAC address table Buffer www. planet. com. tw
Product Comparison Model name PLANET IGS-501 T Advantech EKI-2725 Operating: -40~75 Degree C Storage: -40~75 Degree C Operating: -10~60 Degree C Storage: -40~85 Degree C Humidity Operating: 5% to 90% Storage: 5% to 90% (Non-condensing) Operating: 5% to 95% Storage: 0% to 95% (Non-condensing) Standard Compliance IEEE 802. 3 Ethernet IEEE 802. 3 u Fast Ethernet IEEE 802. 3 ab Gigabit Ethernet IEEE 802. 3 x Full-Duplex flow control FCC Part 15 Class A, CE FCC Part 15 CISRP 22, EN 55022 Class A Shock IEC 60068 -2 -27 Freefall IEC 60068 -2 -32 Vibration IEC 60068 -2 -6 Protection 6 KV ESD: 6 KV EFT 4 KV ESD: 3 KV EFT Product Photo Standard Conformance Temperature Regulation Compliance www. planet. com. tw
Product Comparison Model name PLANET IGS-801 T Advantech EKI-2728 MOXA EDS-G 308 T Unmanaged 8 8 8 Product Photo Hardware specification Level 10/1000 Base-T ports Dimension Weight 135 mm x 87 mm x 32 mm H) (W x D x 37 mm x 140 mm x 95 mm D) (W x H x 53. 6 mm x 135 mm x 105 mm D) (W x H x 473 g _ 630 g Power Requirement 12~48 V DC, Redundant power Installation DIN rail kit and wall mount ear IP-30 Metal Case Store-and-Forward 8 K _ _ 176 kilobytes _ _ Flow Control Back pressure for half duplex, IEEE 802. 3 x Pause Frame for full duplex Switch Fabric 16 Gbps 11. 9 Mpps Jumbo Frame 9 K 9 K 9 K Auto MDI / MDI-X Yes Yes Case Switch specification Switch Processing Scheme MAC address table Buffer Throughput (Packet per second) www. planet. com. tw
Product Comparison Model name PLANET IGS-801 T Advantech EKI-2728 MOXA EDS-G 308 T Operating: -40~75 Degree C Storage: -40~75 Degree C Operating: -10~60 Degree C Storage: -40~85 Degree C Operating: -40~75 Degree C Storage: -40~85 Degree C Humidity Operating: 5% to 90% Storage: 5% to 90% (Non-condensing) Operating: 5% to 95% Storage: 0% to 95% (Non-condensing) Operating: 5% to 95% Storage: 5% to 95% (Non-condensing) Standard Compliance IEEE 802. 3 Ethernet IEEE 802. 3 u Fast Ethernet IEEE 802. 3 ab Gigabit Ethernet IEEE 802. 3 x Full-Duplex flow control FCC Part 15 Class A, CE FCC Part 15 CISRP 22, EN 55022 Class A FCC Part 15 CISRP (EN 55022) Class A Shock IEC 60068 -2 -27 Freefall IEC 60068 -2 -32 Vibration IEC 60068 -2 -6 Protection 6 KV ESD: 6 KV EFT 4 KV ESD: 3 KV EFT _ Product Photo Standard Conformance Temperature Regulation Compliance www. planet. com. tw
Appendix Sales Target u Target Markets n Tender Market (Public construction) n System Integrator n IE Distributor n Manufactory n Transportation n Hospital / Bank u Target Customers n Who buys our 5/8 -Port 10/100 Mbps Industrial Fast Ethernet Switch ü ISW-500, ISW-800 n Upgrade Industrial Fast Ethernet to Industrial Gigabit Ethernet n Industrial area Switch for non-stop data collect and forward n Need stable Gigabit operate performance under Industrial environments www. planet. com. tw
