5713 Education is Power Obj SWBAT apply properties
5/7/13 Education is Power! Obj: SWBAT apply properties of periodic functions Bell Ringer: Construct a sinusoid with amplitude 2, period 3π, point 0, 0 HW Requests: Pg 395 #72 -75, 79, 80 WS Amplitude, Period, Phase Shift. Dignity without compromise! In class: 61 -68 Homework: Study for Quiz, Bring your Unit Circle Read Section 5. 1 Project Due Wed. 5/8 Each group staple all projects together
To find the phase or horizontal shift of a sinusoid Go to phase shift pdf http: //www. analyzemath. com/trigonometry/sine. htm
To find the phase or horizontal shift of a sinusoid Go to phase shift pdf http: //www. analyzemath. com/trigonometry/sine. htm
Horizontal Shift and Phase Shift (use Regent) Go to phase shift pdf
Determining the Period and Amplitude of y = a sin bx Given the function y = 3 sin 4 x, determine the period and the amplitude. . The period of the function is Therefore, the period is . The amplitude of the function is | a |. Therefore, the amplitude is 3. y = 3 sin 4 x 4. 3. 10
Graphing a Periodic Function Graph y = sin x. 1 Period: 2 p Amplitude: 1 Domain: all real numbers Range: y-intercept: 0 x-intercepts: 0, ±p, ± 2 p, . . . -1 ≤ y ≤ 1 4. 3. 3
Graphing a Periodic Function Graph y = cos x. 1 Period: 2 p Amplitude: 1 y-intercept: 1 x-intercepts: Domain: all real numbers Range: -1 ≤ y ≤ 1 , . . . 4. 3. 4
Graphing a Periodic Function Graph y = tan x. Asymptotes: Domain: Range: all real numbers Period: p 4. 3. 5
Determining the Period and Amplitude of y = a sin bx Sketch the graph of y = 2 sin 2 x. The period is p. The amplitude is 2. 4. 3. 11
Determining the Period and Amplitude of y = a sin bx Sketch the graph of y = 3 sin 3 x. The period is . The amplitude is 3. 4. 3. 12
Writing the Equation of the Periodic Function Period Amplitude p =2 b=2 Therefore, the equation as a function of sine is y = 2 sin 2 x. 4. 3. 13
Writing the Equation of the Periodic Function Period Amplitude 4 p =3 b = 0. 5 Therefore, the equation as a function of cosine is y = 3 cos 0. 5 x. 4. 3. 14
Summary of Transformations • • • a = vertical stretch or shrink amplitude b = horizontal stretch or shrink period/frequency c = horizontal shift (phase shift) phase h = horizontal shift (phase shift) phase d = vertical translation/shift k = vertical translation/shift Exit Ticket pg 439 #61 -64
Horizontal Shift and Phase Shift (use Regent)
Domain: Range: Continuity: Increasing/Decreasing Symmetry: Bounded: Max. /Min. Horizontal Asymptotes Vertical Asymptotes End Behavior

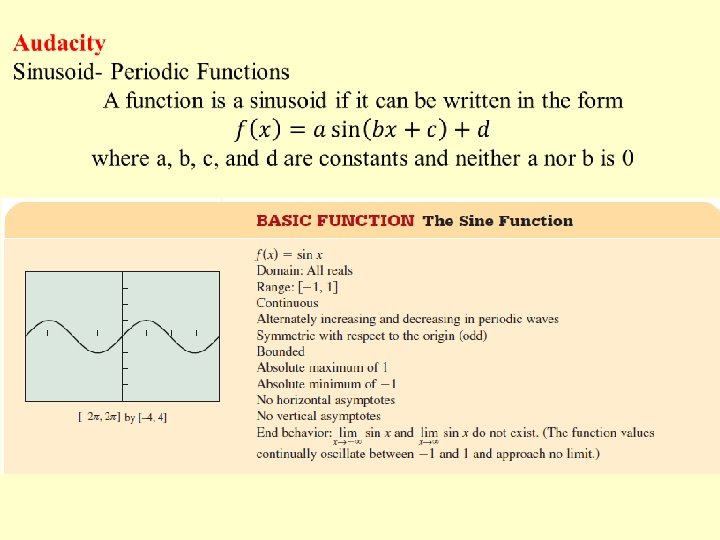

Sinusoid – a function that can be written in the form below. Sine and Cosine are sinusoids. The applet linked below can help demonstrate how changes in these parameters affect the sinusoidal graph: http: //www. analyzemath. com/trigonometry/sine. htm
For each sinusoid answer the following questions. What is the midline? X = What is the amplitude? A = What is the period? T = (radians and degrees) What is the phase? ϴ =
Definition: A function y = f(t) is periodic if there is a positive number c such that f(t+c) = f(t) for all values of t in the domain of f. The smallest number c is called the period of the function. - a function whose value is repeated at constant intervals
http: //curvebank. calstatela. edu/unit. htm
Read page 388 – last paragraph Vertical Stretch and Shrink baseline On your calculator
Vertical Stretch and Shrink baseline Amplitude of a graph Abs(max value – min value) 2 For graphing a sinusoid: To find the baseline or middle line on a graph y = max value – min value 2 Use amplitude to graph.
Vertical Stretch and Shrink baseline Amplitude of a graph Abs(max value – min value) 2 For graphing a sinusoid: To find the baseline or middle line on a graph y = max value – amplitude
Horizontal Stretch and Shrink b = number complete cycles in 2π rad. On your calculator Horizontal Stretch/Shrink y = f(cx) stretch if c< 1 factor = 1/c shrink if c > 1 factor = 1/c
See if you can write the equation for the Ferris Wheel
We can use these values to modify the basic cosine or sine function in order to model our Ferris wheel situation.
http: //curvebank. calstatela. edu/unit. htm
Read page 388 – last paragraph Vertical Stretch and Shrink On your calculator 28
Horizontal Stretch and Shrink On your calculator Horizontal Stretch/Shrink y = f(bx) stretch if |b| < 1 shrink if |b |> 1 Both cases factor = 1/|b|
Periodic Functions that repeat themselves over a particular interval of their domain are periodic functions. The interval is called the period of the function. In the interval there is one complete cycle of the function. To graph a periodic function such as sin x, use the exact values of the angles of 300, 450, and 600. In particular, keep in mind the quadrantal angles of the unit circle. http: //curvebank. calstatela. edu/unit. htm http: //www. analyzemath. com/trigonometry/sine. htm (0, 1) (-1, 0) (0, -1) The points on the unit circle are in the form (cosine, sine). 4. 3. 2
Determining the Amplitude of y = a sin x Graph y = 2 siny x= 2 sin x and y = 0. 5 sin x. sinxx yy==sin y = 0. 5 sin x 4. 3. 6
Comparing the Graphs of y = a sin x y = sin x Period Amplitude Domain Range y = 2 sin x y = 0. 5 sin x 2 p 2 p 2 p 1 2 0. 5 all real numbers -1 ≤ y ≤ 1 -2 ≤ y ≤ 2 -0. 5 ≤ y ≤ 0. 5 The amplitude of the graph of y = a sin x is | a |. When a > 1, there is a vertical stretch by a factor of a. When 0 < a < 1, there is a vertical shrink by a factor of a. 4. 3. 7
Determining the Period for y = sin bx, b > 0 Graph y = sin 2 x y = sin x 4. 3. 8
Comparing the Graphs of y = sin bx y = sin x Period Amplitude Domain Range y = sin 2 x y = sin 0. 5 x 2 p p 4 p 1 1 1 all real numbers -1 ≤ y ≤ 1 The period for y = sin bx is When b > 1, there is a horizontal shrink. When 0 < b < 1, there is a horizontal stretch. 4. 3. 9
