Maxxseal 200 The Answer for Soil Stabilization

Maxxseal 200 INTRODUCTION • Controls dust and erosion creating extremely durable roads, trails or paths from soil • Provides resistance to water penetration, wear and weathering • Can be used as a carrier for hydro-seeding operations on freeway embankments and shoulders, construction sites and dusty roads • Environmentally friendly, non-toxic, and non-polluting • Extremely economical compared to traditional soil stabilizing or sealing methods

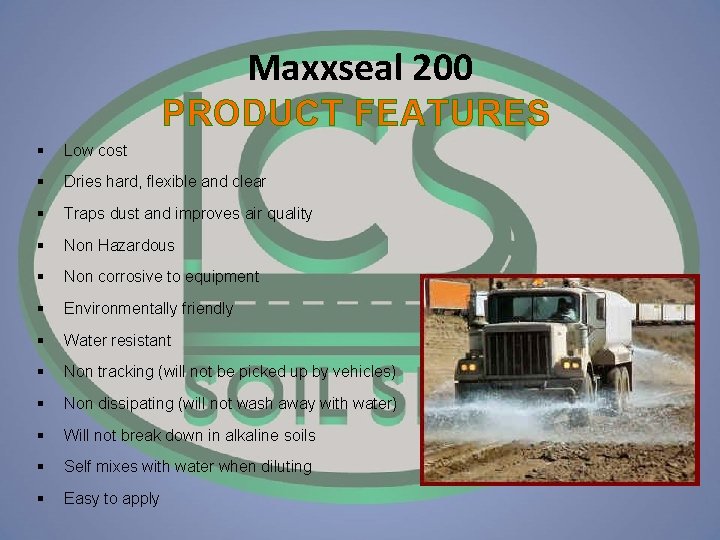

Maxxseal 200 PRODUCT FEATURES § Low cost § Dries hard, flexible and clear § Traps dust and improves air quality § Non Hazardous § Non corrosive to equipment § Environmentally friendly § Water resistant § Non tracking (will not be picked up by vehicles) § Non dissipating (will not wash away with water) § Will not break down in alkaline soils § Self mixes with water when diluting § Easy to apply

Maxxseal 200 Applications Unpaved Dirt Roads Land Development Construction Sites Forestry Roads Event Parking Lots Agricultural Roads Defense Compounds Military Operations Slopes and Berms Road Base and Sub Base Heavy Hall Roads Parks & Rec Trail ways Road Shoulders Airport Taxiways Construction Parking Lots Helipads and FARPs Unpaved Driveways Aircraft Runways Border Patrol Roads Mines

Maxxseal 200 Application Road, Roadbed and Shoulder

Maxxseal 200 COST SAVINGS for Road, Roadbed and Shoulder Applications • Replaces traditional road and pad building materials as well as shoulder materials with an environmentally friendly liquid polymer-resin product that can reduce road construction and maintenance costs. • When used in the base, Maxx. Seal 200 provides roads, pads and shoulders that are highly impermeable, durable and cost-effective.

PROCESS Building a Maxxseal 200 Road • Mixing Rate – 10 to 15 gallons of water for each gallon of Maxxseal 200 (based on amount or moisture in the soil, climate and type of soil at time of application) • Application Rate – 1 gallon of Maxxseal 200 for each 40 to 66 square feet of project area (based on soil composition - Benchmark 66 sq. ft. ) • Cure Time – 24 to 72 hours without rain and temperature above 40°F (preferably with exposure to sunshine) • Equipment – – Traveling mixer, disc or equivalent Motor Grader with rippers (Caterpillar 12 G or equivalent) Water truck (two preferably) - 3, 000 gal. capacity Double drum roller - vibratory, 10 -12 tons (Hyster C-754 A or equivalent)

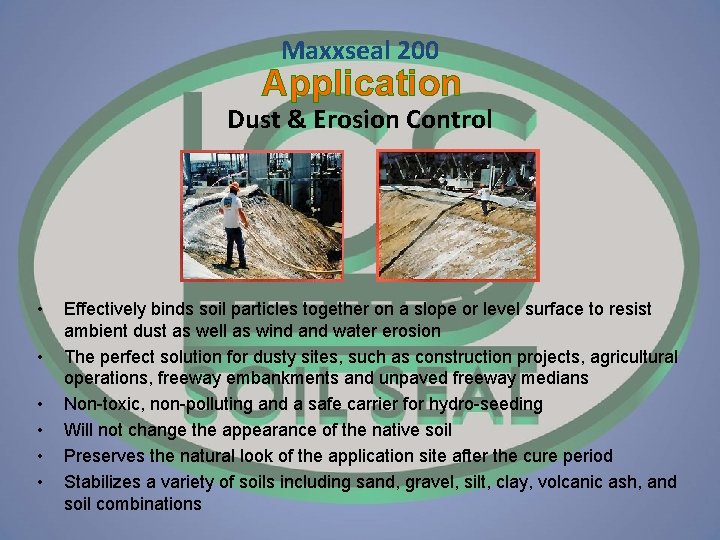

Maxxseal 200 Application Dust & Erosion Control • • • Effectively binds soil particles together on a slope or level surface to resist ambient dust as well as wind and water erosion The perfect solution for dusty sites, such as construction projects, agricultural operations, freeway embankments and unpaved freeway medians Non-toxic, non-polluting and a safe carrier for hydro-seeding Will not change the appearance of the native soil Preserves the natural look of the application site after the cure period Stabilizes a variety of soils including sand, gravel, silt, clay, volcanic ash, and soil combinations

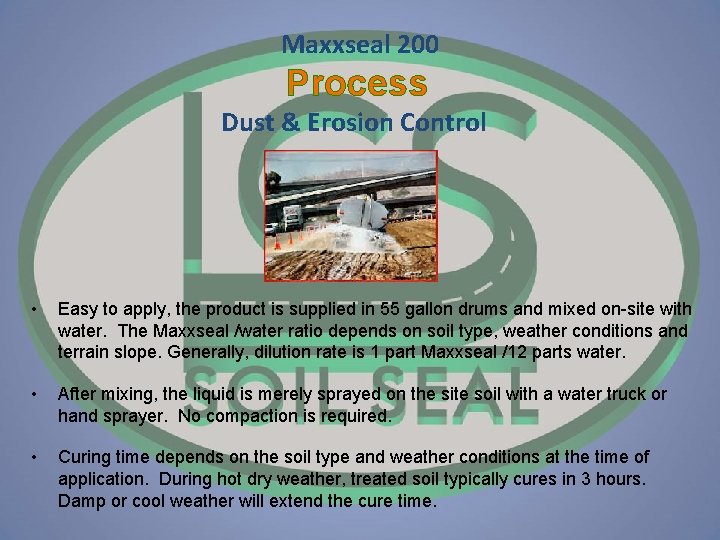

Maxxseal 200 Process Dust & Erosion Control • Easy to apply, the product is supplied in 55 gallon drums and mixed on-site with water. The Maxxseal /water ratio depends on soil type, weather conditions and terrain slope. Generally, dilution rate is 1 part Maxxseal /12 parts water. • After mixing, the liquid is merely sprayed on the site soil with a water truck or hand sprayer. No compaction is required. • Curing time depends on the soil type and weather conditions at the time of application. During hot dry weather, treated soil typically cures in 3 hours. Damp or cool weather will extend the cure time.

Maxxseal 200 Packaging § § § 55 Gallon Drums IBC Tote (275 Gallons) Bulk Container (5000 Gal. ) Box Truck (drums or totes) Ocean Containers 475 Pounds 2, 400 Pounds 45, 000 Pounds 5, 000 Gallons

Maxxseal 200 Dilution Rates APPLICATION Road Sealer Base Aircraft Runways Water Retention Basin & Pond Lining Helicopter Landing Pads Heavy Haul Roads & Mining Roads Military Convoy & Supply Roads (High Traffic) Residential Driveways Parking Lots Roads (Light Traffic) Golf Course Bunker Liner Golf Course Cart Paths Walking Trails and Paths Temporary Parking Lots Temporary Roads & Detours Road Shoulders Slope Erosion Control (Steep Slope) Slope Erosion Control (Average Slope) Slope Erosion Control (Light Slope) Stock Pile Dust Capping (Steep Slope) Stock Pile Dust Capping (Average Slope) Stock Pile Dust Capping (Light Slope) Coal Rail Car Capping Dust Control Hydro seed & Hydro mulch Tackifier * Parts Water to Maxxseal 200 DILUTION RATE* GALLONS PER ACRE 4: 1 2: 1 8: 1 6: 1 6: 1 5: 1 8: 1 10: 1 15: 1 10: 1 15: 1 8: 1 10: 1 15: 1 20: 1 40: 1 2, 178 6, 223 6, 534 5, 808 5, 082 4, 691 4, 691 4, 978 5, 227 4, 901 4, 792 3, 993 4, 066 4, 084 2, 614 2, 662 2, 574 1, 980 2, 097 2, 042 1, 307 1, 225 1, 026

Maxxseal 200 Application Equipment • • • • Highway Accessible Water Trucks All Wheel Drive Water Trucks Truck Mounted Hydro seeders Trailer Mounted Hydro seeders Water Trucks with Gravity Feed Spray Bars Water Wagons "Water Pulls” Military “DAV" Dust Abatement Vehicle ATV Towable Tank Sprayers ATV Mounted Tank Sprayers Pick-up Trucks with IBC Tote & Pumps Truck bed Water Tanks "Skid Sprayers" Standard Hose & Pump Hand Spraying Towable Spray Tanks Handheld Sprayer or Water Can

The Results A dust-free stabilized road that will hold up to heavy haul traffic. This road will hold up to severe weather, haul trucks, and heavy construction equipment. With proper maintenance you can expect this road to last indefinitely.
