5 HEAVY TIMBER FRAME CONSTRUCTION 1 Chapter 5

5. HEAVY TIMBER FRAME CONSTRUCTION 1

Chapter 5 Heavy Timber Frame Construction 2

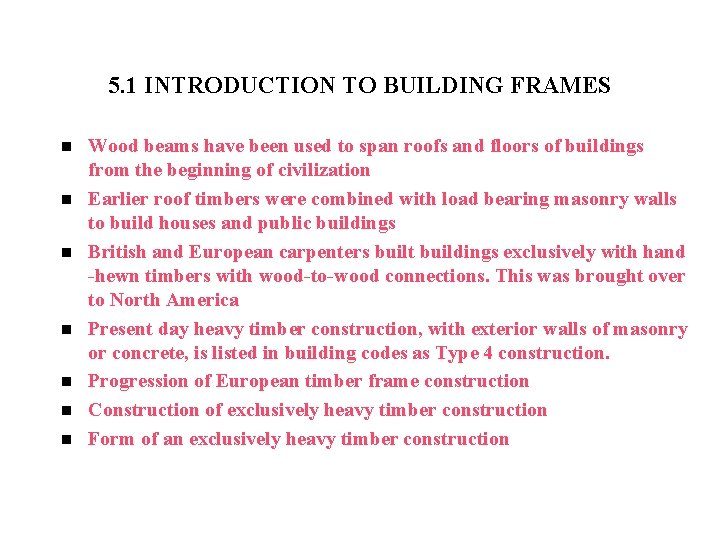

5. 1 INTRODUCTION TO BUILDING FRAMES n n n n Wood beams have been used to span roofs and floors of buildings from the beginning of civilization Earlier roof timbers were combined with load bearing masonry walls to build houses and public buildings British and European carpenters built buildings exclusively with hand -hewn timbers with wood-to-wood connections. This was brought over to North America Present day heavy timber construction, with exterior walls of masonry or concrete, is listed in building codes as Type 4 construction. Progression of European timber frame construction Construction of exclusively heavy timber construction Form of an exclusively heavy timber construction 3

Timber Construction History n Till the Late 1800 s most – Construction was Timber (and/or masonry) with – Wood to Wood Connections WHY? Timer (Trees) Plentiful n Craftsman Available n Nails & Fasteners Rare & Expensive n Few Alternatives n 4

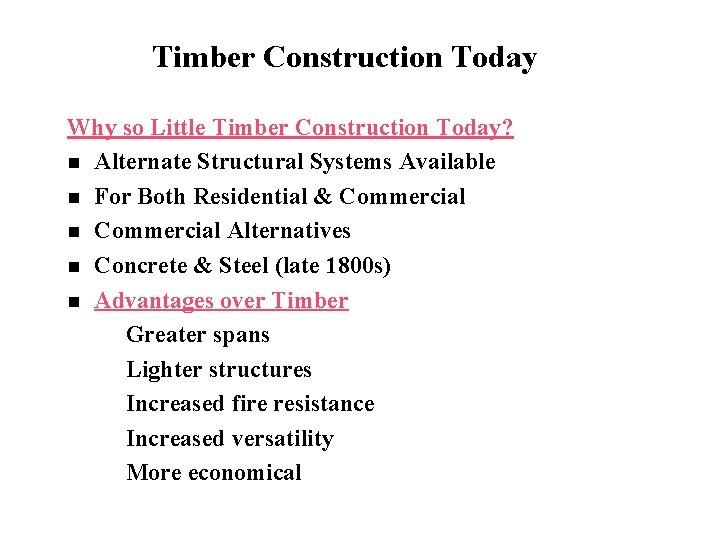

Timber Construction Today Why so Little Timber Construction Today? n Alternate Structural Systems Available n For Both Residential & Commercial n Commercial Alternatives n Concrete & Steel (late 1800 s) n Advantages over Timber – Greater spans – Lighter structures – Increased fire resistance – Increased versatility – More economical 5

Commercial Alternatives Concrete & Steel (late 1800 s) Advantages over Timber – Greater spans – Lighter structures – Increased fire resistance – Increased versatility – More economical 6

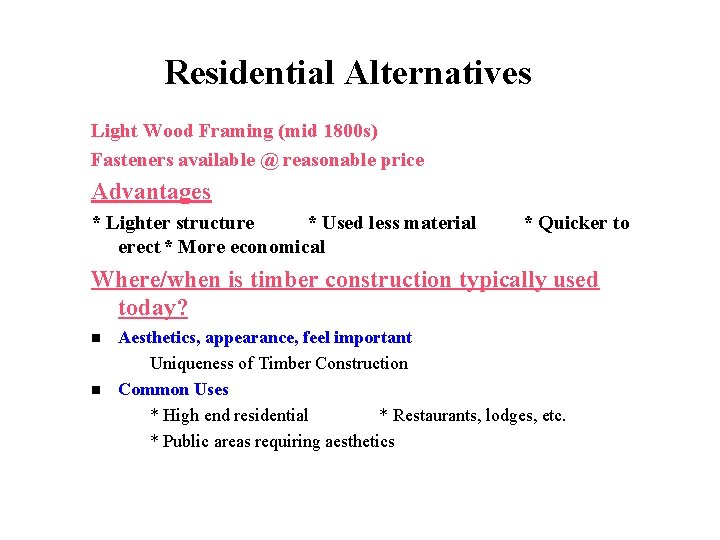

Residential Alternatives Light Wood Framing (mid 1800 s) Fasteners available @ reasonable price Advantages * Lighter structure * Used less material erect * More economical * Quicker to Where/when is timber construction typically used today? n n Aesthetics, appearance, feel important – Uniqueness of Timber Construction Common Uses – * High end residential * Restaurants, lodges, etc. – * Public areas requiring aesthetics 7

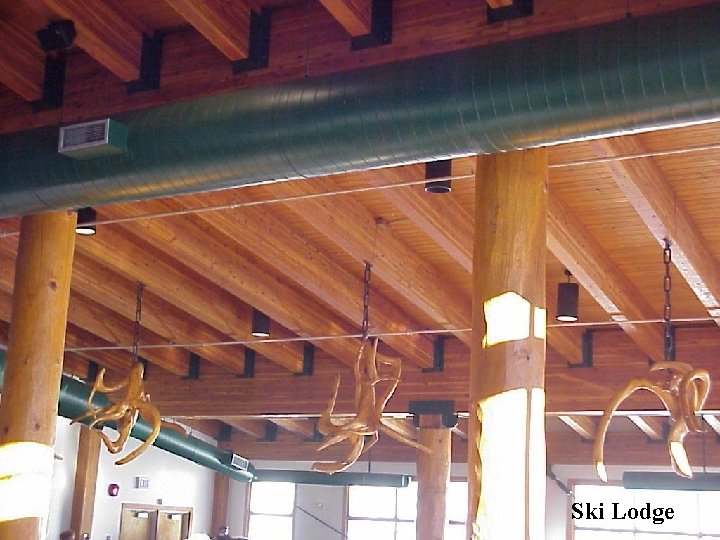

8 Ski Lodge

9

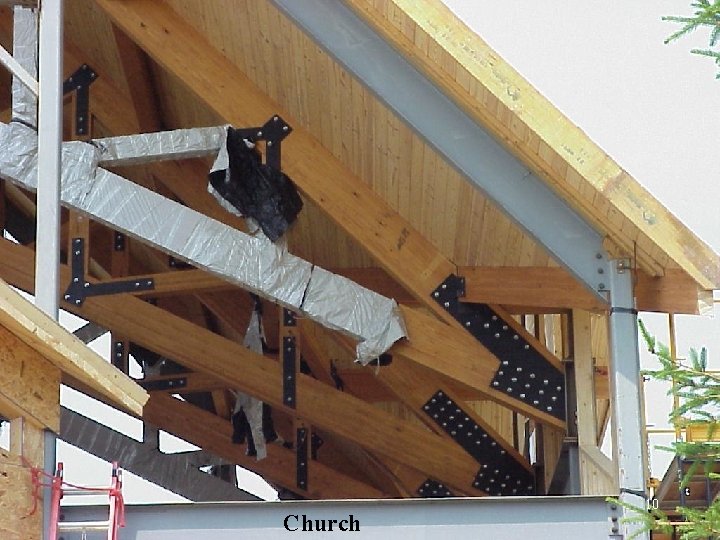

Church 10

11

5. 2 HEAVY TIMBER FRAME CONSTRUCTION ADVANTAGES n n n With masonry all around, the building catches fire very slowly Supports the load even after heavy charring Code recognizes the fire resistance properties of heavy timber construction - Type 4 construction in Table 1. 1 - Type 5 - Light Wood Framing While unprotected steel beam collapses much earlier during a fire, a heavy timber beam can be sandblasted after a fire and left in service (after normal fire damage) Minimum timber sizes are specified in building codes for heavy timber frame constructions Edges must be chamfered for better fire resistance 12

5. 3 PRECAUTIONS TO BE TAKEN IN HEAVY TIMBER CONSTRUCTION n Wood shrinkage: Wood is subjected to large amounts of expansion and contraction caused by seasonal changes in moisture content, particularly in the direction perpendicular to the direction of its grain fiber. These effects must be minimized by proper detailing. Beams and girders must be allowed to shrink without causing the floors and roof to sag n Anchorage of heavy timber beams to masonry walls: First the beam must be protected from decay due to moisture seepage through the masonry walls - Achieved by leaving a ventilating airspace of at least 1/2” between masonry and all sides of beam; this can be eliminated if the beam was chemically treated to prevent decay. The beam must be securely anchored to the wall so that it does not pull away from the wall during normal services; but it must be able to rotate freely, without prying the wall apart, as it burns during a heavy fire - Methods of attachment must allow rotation of the support after the beam falls apart due to fire damage 13

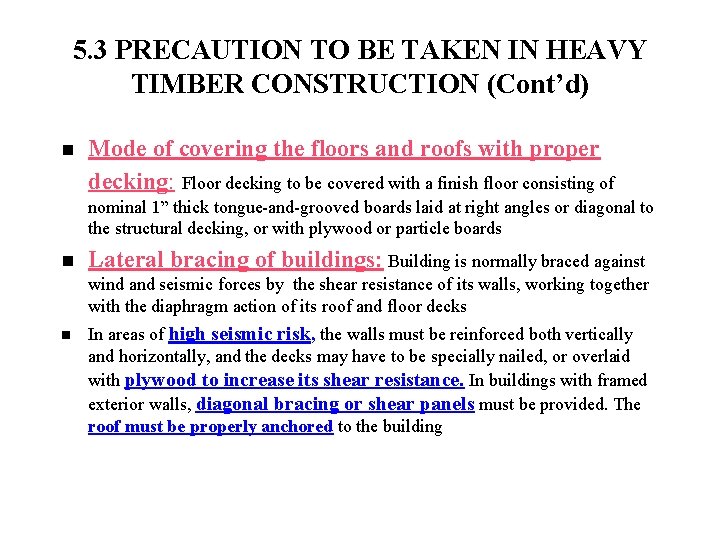

5. 3 PRECAUTION TO BE TAKEN IN HEAVY TIMBER CONSTRUCTION (Cont’d) n Mode of covering the floors and roofs with proper decking: Floor decking to be covered with a finish floor consisting of nominal 1” thick tongue-and-grooved boards laid at right angles or diagonal to the structural decking, or with plywood or particle boards n Lateral bracing of buildings: Building is normally braced against wind and seismic forces by the shear resistance of its walls, working together with the diaphragm action of its roof and floor decks n In areas of high seismic risk, the walls must be reinforced both vertically and horizontally, and the decks may have to be specially nailed, or overlaid with plywood to increase its shear resistance. In buildings with framed exterior walls, diagonal bracing or shear panels must be provided. The roof must be properly anchored to the building 14

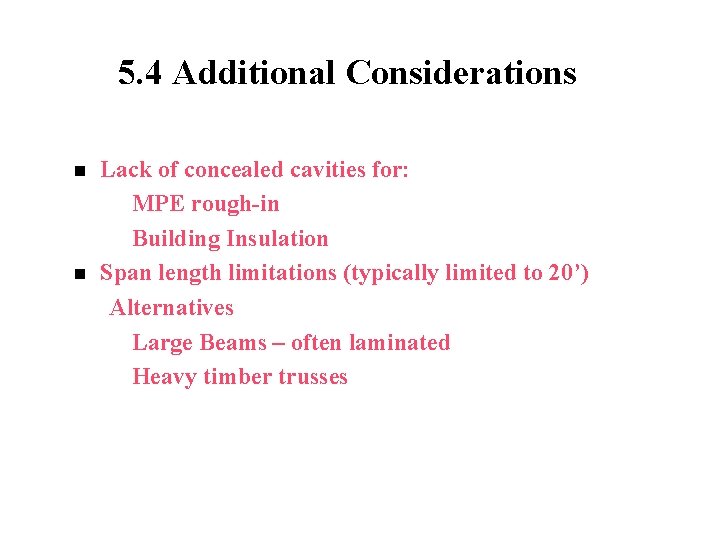

5. 4 Additional Considerations n n Lack of concealed cavities for: – MPE rough-in – Building Insulation Span length limitations (typically limited to 20’) Alternatives – Large Beams – often laminated – Heavy timber trusses 15
