5 4 The Triangle Midsegment Theorem Objective Use
5 -4 The Triangle Midsegment Theorem Objective Use properties of triangle midsegments. Holt Mc. Dougal Geometry

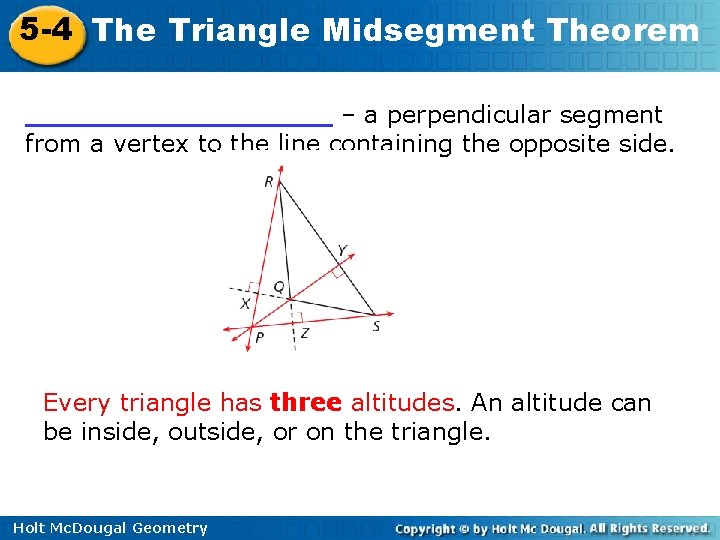

5 -4 The Triangle Midsegment Theorem _________ – a perpendicular segment from a vertex to the line containing the opposite side. Every triangle has three altitudes. An altitude can be inside, outside, or on the triangle. Holt Mc. Dougal Geometry
5 -4 The Triangle Midsegment Theorem ________– a segment whose endpoints are a vertex of the triangle and the midpoint of the opposite side. Every triangle has three medians. Holt Mc. Dougal Geometry

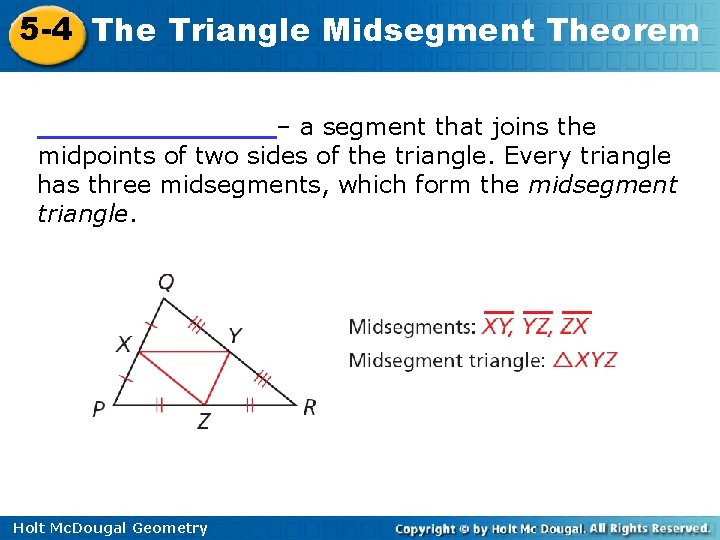

5 -4 The Triangle Midsegment Theorem _______– a segment that joins the midpoints of two sides of the triangle. Every triangle has three midsegments, which form the midsegment triangle. Holt Mc. Dougal Geometry

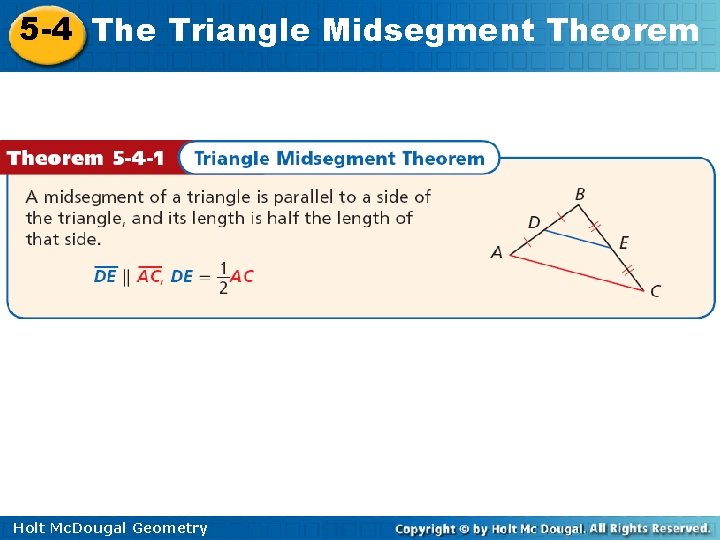

5 -4 The Triangle Midsegment Theorem Holt Mc. Dougal Geometry

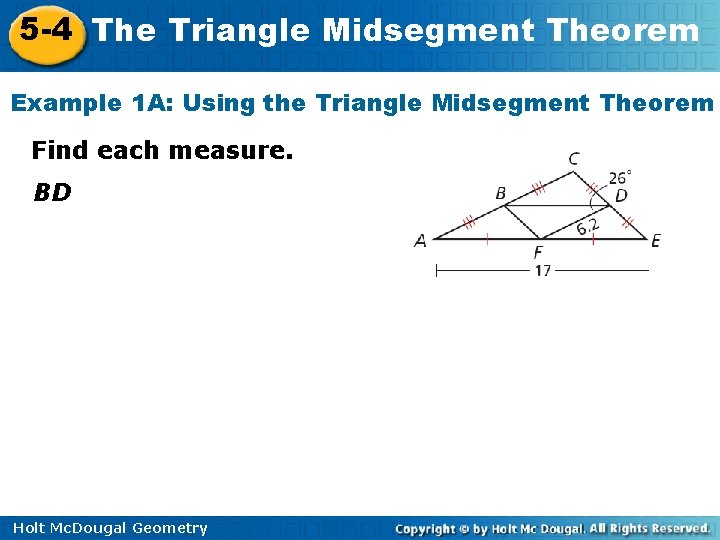

5 -4 The Triangle Midsegment Theorem Example 1 A: Using the Triangle Midsegment Theorem Find each measure. BD Holt Mc. Dougal Geometry
5 -4 The Triangle Midsegment Theorem Example 1 B: Using the Triangle Midsegment Theorem Find each measure. m CBD Holt Mc. Dougal Geometry

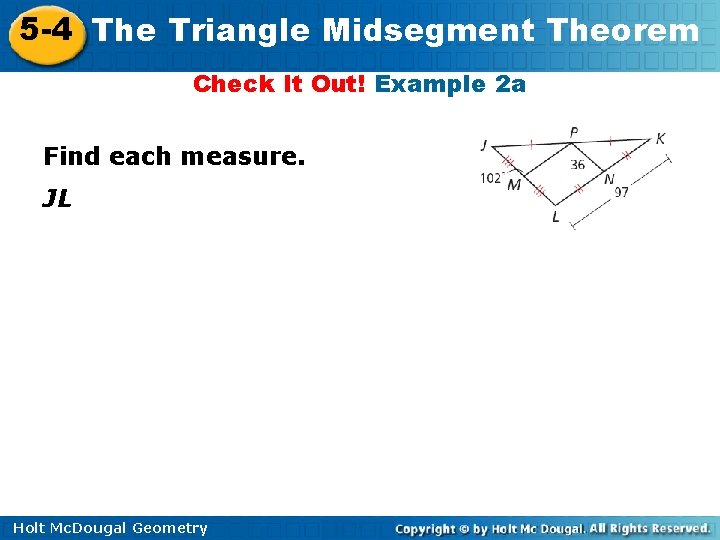

5 -4 The Triangle Midsegment Theorem Check It Out! Example 2 a Find each measure. JL Holt Mc. Dougal Geometry

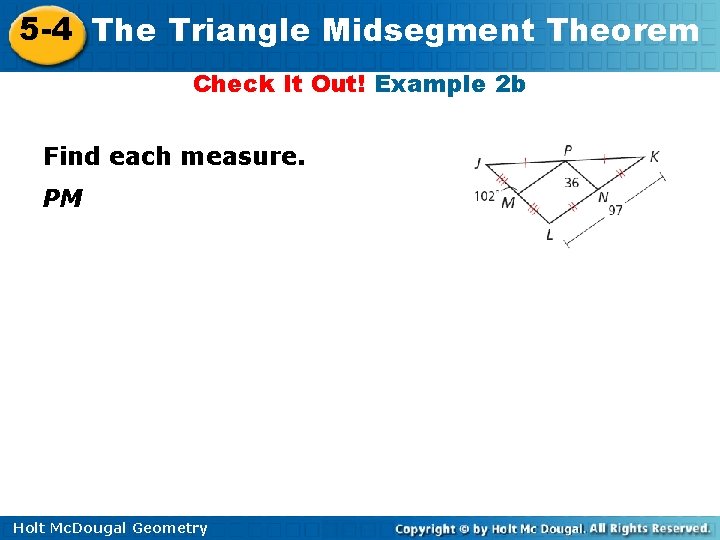

5 -4 The Triangle Midsegment Theorem Check It Out! Example 2 b Find each measure. PM Holt Mc. Dougal Geometry

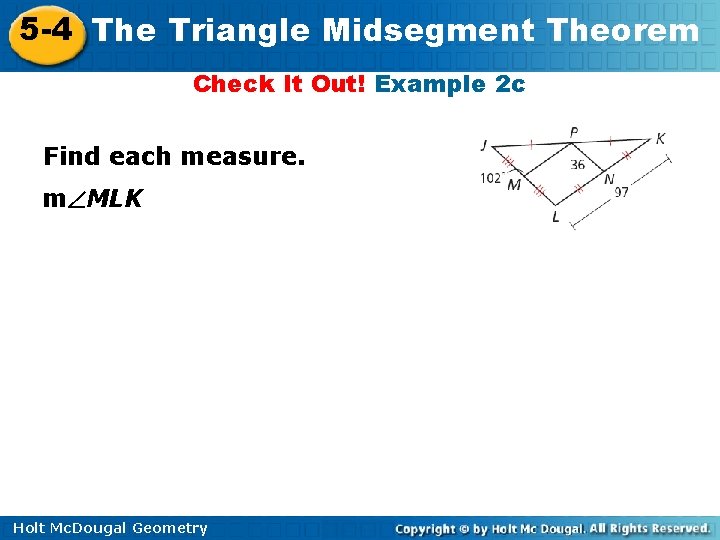

5 -4 The Triangle Midsegment Theorem Check It Out! Example 2 c Find each measure. m MLK Holt Mc. Dougal Geometry
5 -4 The Triangle Midsegment Theorem Example 3: Indirect Measurement Application In an A-frame support, the distance PQ is 46 inches. What is the length of the support ST if S and T are at the midpoints of the sides? Holt Mc. Dougal Geometry
