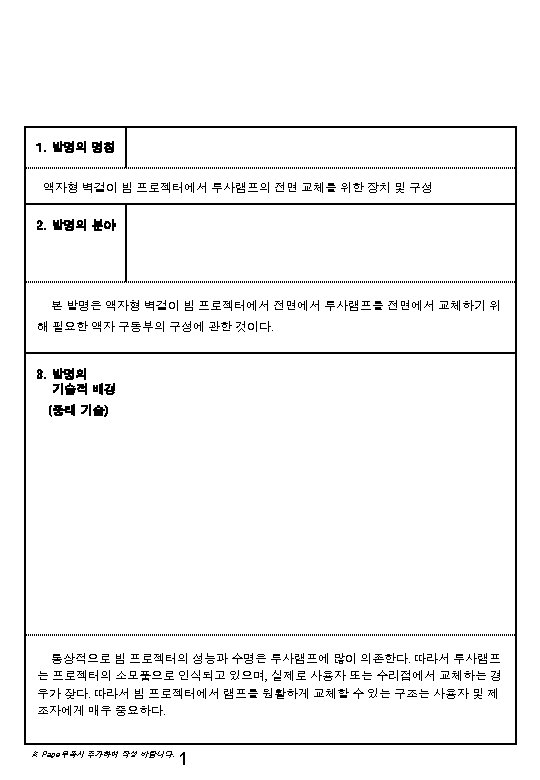

5 1 2 3 picture frame assembly openclose

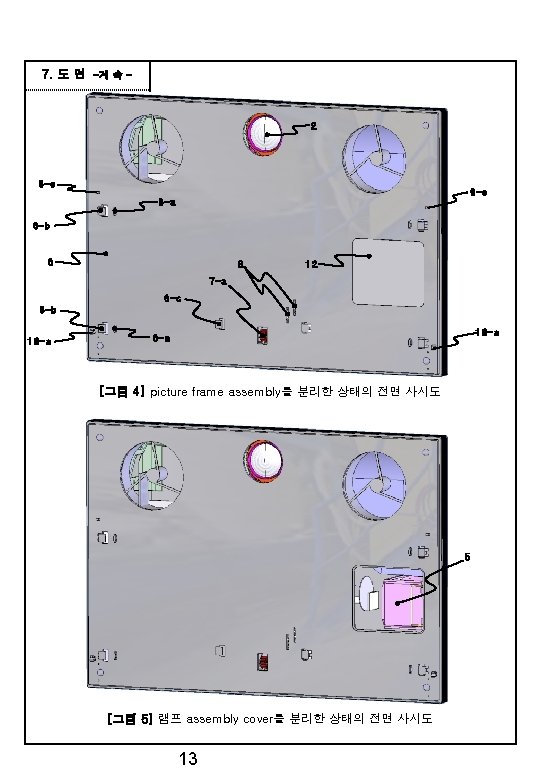

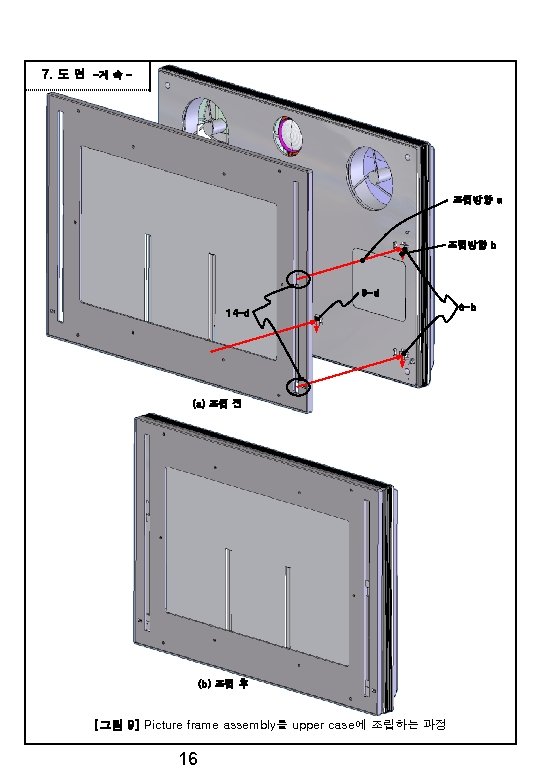

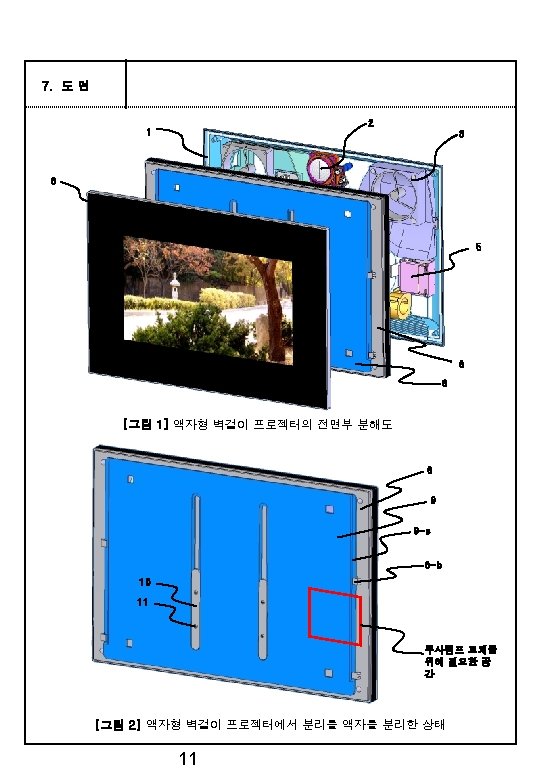

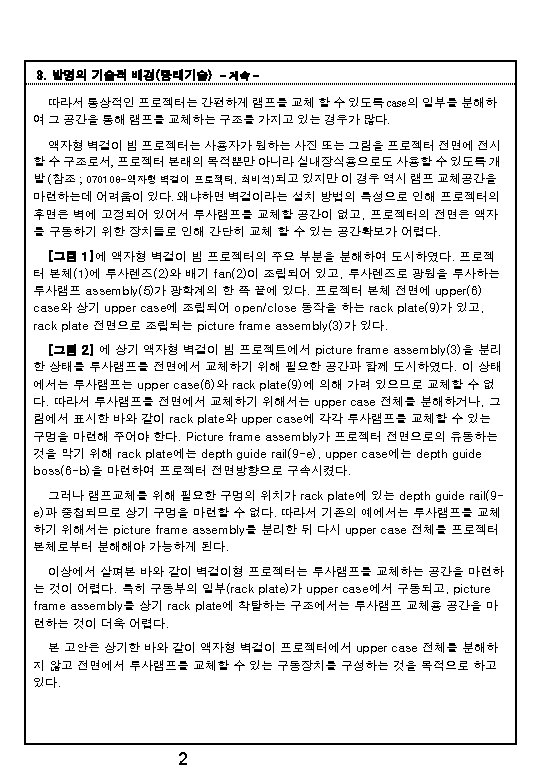

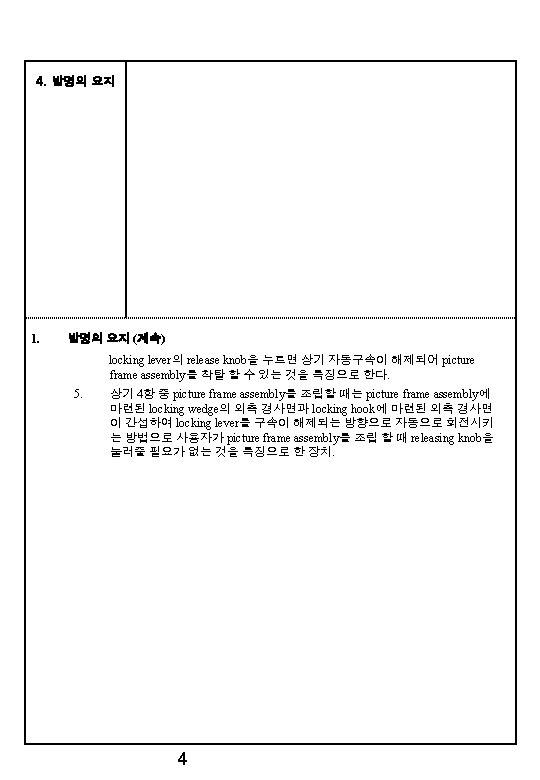

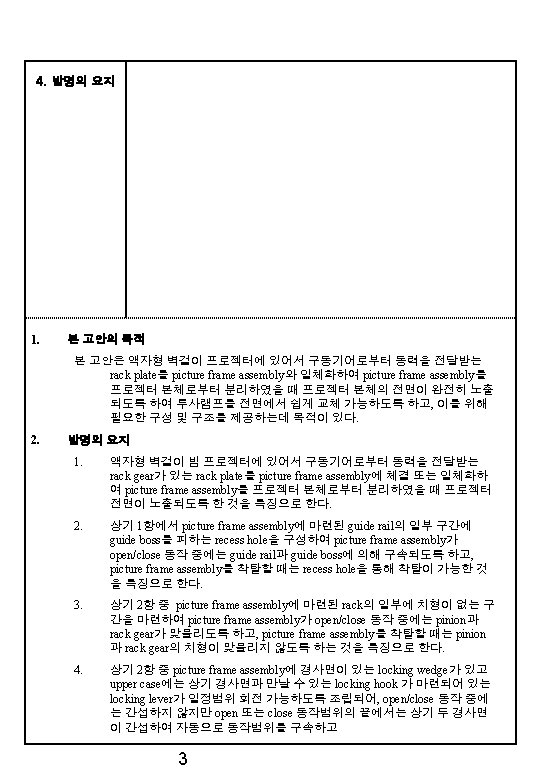

5. 발명의 상세한 설명 (구성/동작) ► 도면의 간단한 설명 [그림 1] 액자형 벽걸이 프로젝터의 전면부 분해도 [그림 2] 액자형 벽걸이 프로젝터에서 액자를 분리한 상태 [그림 3] picture frame assembly의 open/close상태 [그림 4] picture frame assembly를 분리한 상태의 전면 사시도 [그림 5] 램프 assembly cover를 분리한 상태의 전면 사시도 [그림 6] picture frame assembly의 구조와 분해도 [그림 7] picture frame assembly 후면 [그림 8] Upper case assembly 후면 [그림 9] picture frame assembly를 upper case에 조립하는 과정 [그림 10] picture frame assembly의 조립과정(locking lever와 self-locking wedge 단면) [그림 11] picture frame assembly의 조립과정(pinion과 rack gear 단면) [그림 12] picture frame assembly의 분해과정(locking lever와 self-locking wedge 단면) [그림 11] picture frame assembly의 분해과정(pinion과 rack gear 단면) 5
5. 발명의 상세한 설명 (구성 및 동작) - 계속 - ► 부품의 설명 1. 프로젝터 본체 13. transparent plate 2. 투사렌즈 14. Picture frame 3. 배기 fan 14 -a. Vertical guide rail 4. Picture Frame assembly 14 -b. Depth guide rail 5. 투사램프 assembly 14 -c. Self-locking wedge 6. Upper Case 14 -d. Guide Recess hole 6 -a. Vertical guide boss 14 -e. Open stopping wall 6 -b. Depth guide boss 15. Picture 6 -c. Locking recess hole 16. Picture cover 6 -d. Releasing recess hole 17. Nut 6 -e. Open stopper 18. Locking Lever 7. 18 -a. locking hook Open/Close Gear Box 7 -a. Pinion 18 -b. releasing knob 7 -b. Open/Close Motor 19. Locking Lever Bracket 8. Open/Close Switch 20. Locking Lever Spring 9. Rack Plate 21. Locking Lever Shaft 9 -a. Rack Gear 9 -b. Switch trigger 9 -c. Guide recess hole 9 -d. Auxiliary guide rail 9 -e. Toothless region of rack 10. Center Rack Guide 11. Screw 12. 램프 Assembly Cover 6

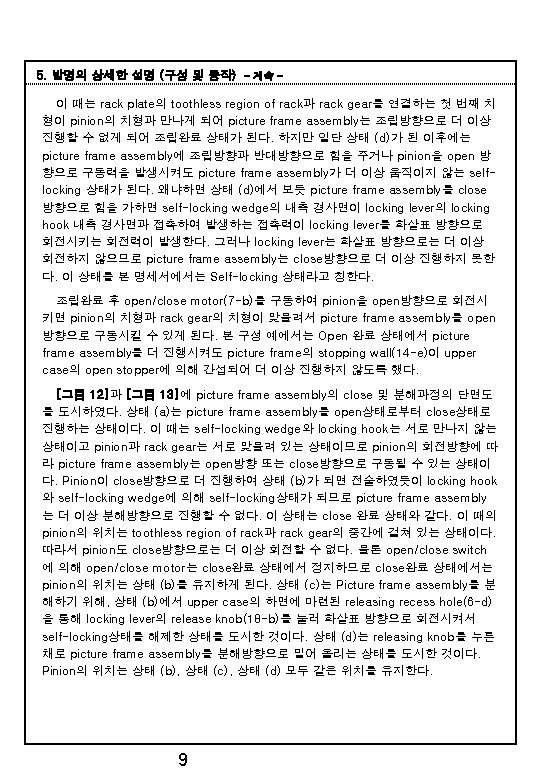

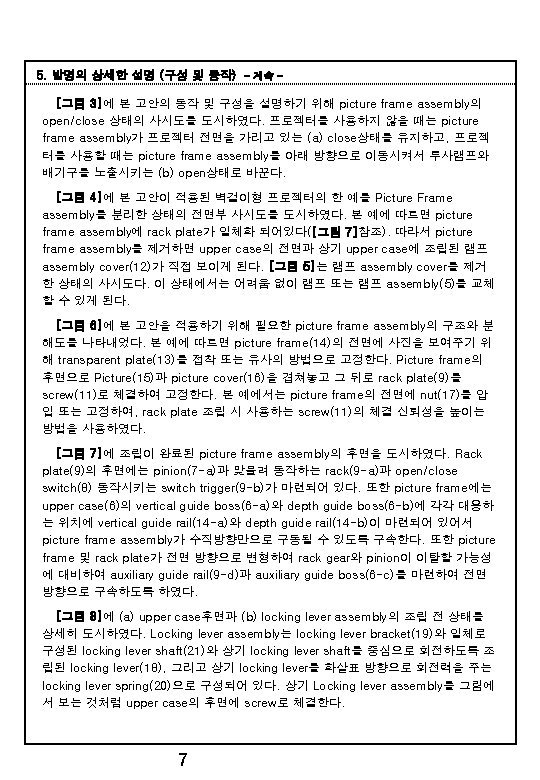

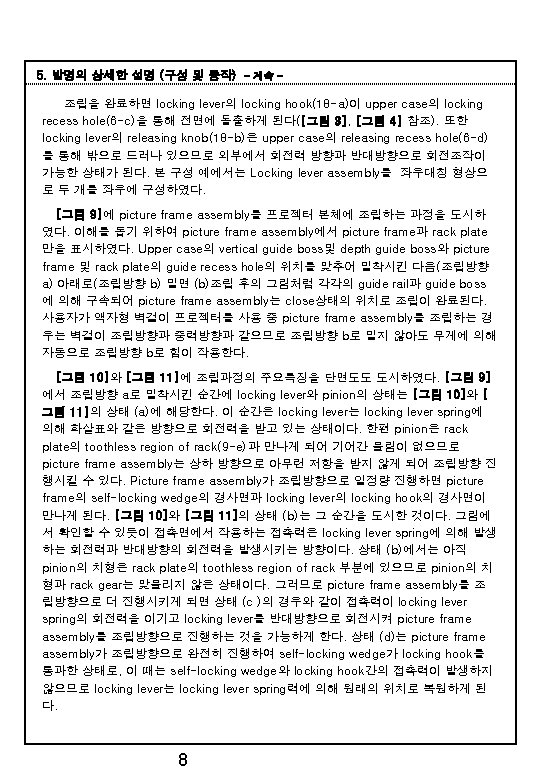

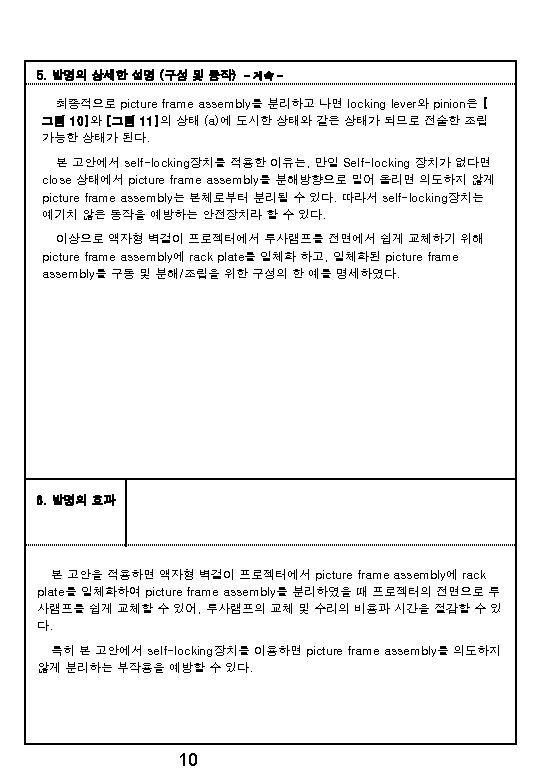

7. 도 면 -계 속 - (a) Close 상태 (a) Open 상태 [그림 3] Picture frame assembly의 open/close상태 12
7. 도 면 -계 속 - 9 13 14 15 16 10 17 [그림 6] Picture frame assembly의 구조와 분해도 14 -e 11 9 14 -a 14 -b 9 -b 14 -a 9 -a 14 -d 9 -d 14 -d 9 -b 9 -c 14 -b 14 -c 9 -e 14 -c [그림 7] Picture frame assembly 후면 14 14

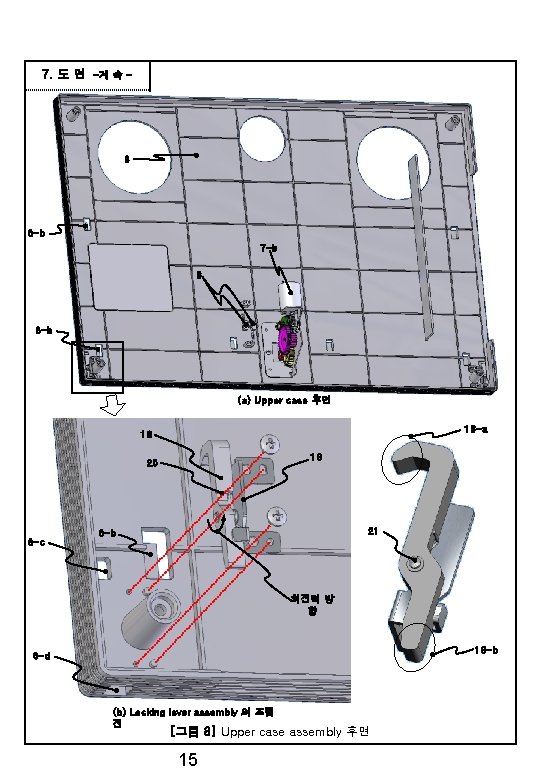

7. 도 면 -계 속 - 6 6 -b 7 -b 8 6 -b (a) Upper case 후면 18 -a 18 19 20 6 -c 21 6 -b 회전력 방 향 18 -b 6 -d (b) Locking lever assembly 의 조립 전 [그림 8] Upper case assembly 후면 15
7. 도 면 -계 속 Close 방향 14 -c 18 -a 18 접촉력 조립 방향 상태 (a) 상태 (b) 접촉력 조립 방향 상태 (c) Open 상태 (d) 방향 [그림 10] Picture frame assembly의 조립과정(locking lever와 self-locking wedge 단면) 9 -e 7 -a 9 -a Open 방향 9 -e Close 방향 9 상태 (a) 상태 (b) 상태 (c) 상태 (d) [그림 11] Picture frame assembly의 조립과정(pinion과 rack gear 단면) 17
7. 도 면 -계 속 Close 방향 상태 (a) 분해 방향 상태 (b) 분해 방향 상태 (c) 상태 (d) [그림 12] Picture frame assembly의 분해과정(locking lever와 self-locking wedge 단면) Close 방향 상태 (a) 상태 (b) 상태 (c) 상태 (d) [그림 13] Picture frame assembly의 분해과정(pinion과 rack gear 단면) 18
