PH 421: Oscillations – lecture 1 Reading: Taylor 4. 6 (Thornton and Marion 2. 6) (Knight 10. 7) 6
Goals for the pendulum module: (1) CALCULATE the period of oscillation if we know the potential energy; specific example is the pendulum (2) MEASURE the period of oscillation as a function of oscillation amplitude (3) COMPARE the measured period to models that make different assumptions about the potential (4) PRESENT the data and a discussion of the models in a coherent form consistent with the norms in physics writing (5) CALCULATE the (approximate) motion of a pendulum by solving Newton's F=ma equation 7
How do you calculate how long it takes to get from one point to another? But what if v is not constant? Separation of x and t variables! 8
The case of a conservative force Suppose total energy is CONSTANT (we have to know it, or be able to find out what it is) 9
Example: U(x) = ½ kx 2 , the harmonic oscillator B x. L x 0 x. R Classical turning points 10

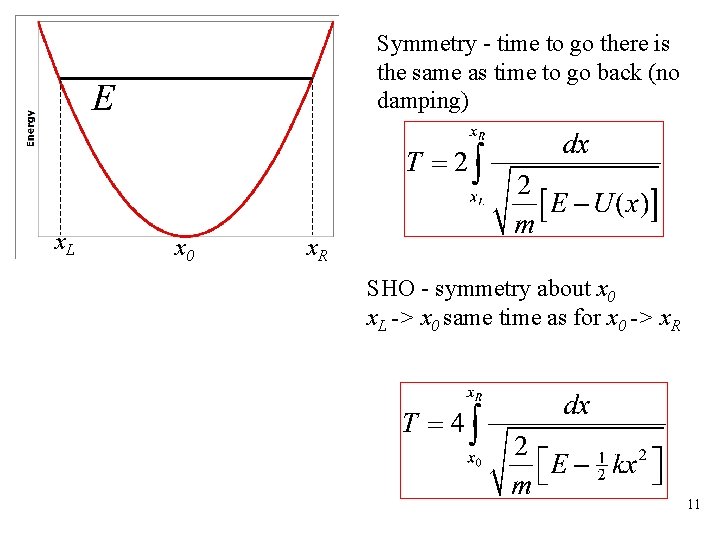

Symmetry - time to go there is the same as time to go back (no damping) x. L x 0 x. R SHO - symmetry about x 0 x. L -> x 0 same time as for x 0 -> x. R 11
SHO - do we get what we expect? x. L=-A 0 x 0 x=0 x. R=A Another way to specify E is via the amplitude A Independent of A! 12
x. L=-A x 0 You have seen this before in intro PH, but you didn't derive it this way. x. R=A 13
Period of SHO is INDEPENDENT OF AMPLITUDE Why is this surprising or interesting? As A increases, the distance and velocity change. How does this affect the period for ANY potential? A increases -> further to travel -> distance increases > period increases A increases -> more energy -> velocity increases -> period decreases Which one wins, or is it a tie? 14
Period increases because v(x) is smaller at every x (why? ) in the trajectory. Effect is magnified for larger amplitudes.
B x. L x 0 “Everything is a SHO!” x. R 16
Equivalent angular version? 17
Integrate both sides E and U(q) are known - put them in Resulting integral • do approximately by hand using series expansion (pendulum period worksheet on web page) OR • do numerically with Mathematica (notebook on 18 web page)
Look at example of simple pendulum (point mass on massless string). This is still a 1 -dimensional problem in the sense that the motion is specified by one variable, q Your lab example is a plane pendulum. You will have to generalize: 19 what length does L represent in this case?
q L mg 20
Plot these to compare to SHO to pendulum…… 21
Displacement (degrees) Nyquist theorem; sampling rate is critical if the sampling rate < 1/(2 T), results cannot be interpreted Time (s)
