40 Gb Infini Band Switch Card 10 Gb
40 Gb Infini. Band Switch, Card 및 10 Gb Ethernet Switch, Card 제품 소개자료 ㈜삼부시스템
회사 소개 § 회사명: Mellanox Technologies § 설립년도: 1999년 § 본 사: Yokneam, Israel(R&D and Operations) Sunnyvale, California(Business) • Global sales offices and support §NASDAQ; TASE: MLNX Price at 1/25/10 $17. 93 §Customers include Cisco, Dawning, Dell, Fujitsu-Siemens, HP, IBM, NEC, Net. App, Sun, Voltaire © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - 3
Mellanox 제품 Linu-up Storage Front / Back-End Switch / Gateway Server / Compute VPI 40 G IB 10 Gig. E FCo. X FC Mellanox 제품 ICs © 2009 MELLANOX TECHNOLOGIES Adapters - CONFIDENTIAL - Switches/Gateway Cables 4
Mellanox IB Edge Switch 제품 Features IS 5022 IS 5023 IS 5025 IS 5030 Ports 8 QDR 18 QDR 36 QDR Management None - External Chassis and Fabric, up to 108 nodes - RJ 45 Management port - USB Port - Single LED/ port - Low Power / port - Self Adj Fan speed - Reversed Airflow - Status LED on FRUs © 2009 MELLANOX TECHNOLOGIES Edge Switches - CONFIDENTIAL -
Mellanox IB Director Switch Features Ports Height 관리 Director Switches IS 5100 IS 5200 108 ports 216 ports QSFP 72 ports CXP 36 port CXP 10 U 6 U IS 5300 324 Ports QSFP 108 ports CXP 14 U IS 5600 648 ports QSFP 216 ports CXP 29 U Fully Managed 6 -leaf, 3 -spine 12 -leaf, 6 -spine 18 -leaf, 9 -spine 36 -leaf, 18 -spine © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL -
IB Gateway 스위치
MBX 4010 IB Gateway System • 1 RU a Bridge. X devices and a management CPU • 2 QDR/DDR IB CX 4 Internal Ports • SFP+ External ports configurable – Up to 8 2/4/8 G Fibre Channel – Up to 6 1/10 Gig. E © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - 9
MBX 5020 IB Gateway System • 1 RU with Two Bridge. X devices and a management CPU • 4 QDR/DDR IB QSFP Internal Ports • SFP+ External ports configurable – Up to 16 2/4/8 G Fibre Channel – Up to 12 1/10 Gig. E © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - 10
Bridge. X 구성 Storage Bridges Switches Adapters Servers 40 G IB IB to Ethernet IB Storage 40 Gb/s Infini. Band IB to FC 10 Gb/s Ethernet Storage Fibre Channel SAN © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - FC Storage 11
FCo. IB and Eo. IB Gateway Deployment … Virtual NICs and HBAs Infini. Band Switch (QDR) Virtualized Ethernet and FC Ports (IOEV) MBX 5020 Ethernet/IP LAN and WAN © 2009 MELLANOX TECHNOLOGIES Infini. Band 10/20/40 Gb/s Unified I/O Fibre Channel Network Attached Storage or i. SCSI SAN - CONFIDENTIAL - NPIV ports Fibre Channel SAN 12
Ethernet Gateway 스위치
MBX 1020 FCo. E Gateway System • 1 RU with Two Bridge. X devices and a management CPU (PPC) • 12 1/10 Gig. E SFP+ Internal ports • 16 SFP+ 2/4/8 G Fibre Channel External ports © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - 14
Convergence over Ethernet Storage Switches Bridges Adapters Servers 10 Gb/s Ethernet to FC Ethernet Storage Fibre Channel SAN © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - FC Storage 15
FCo. E Gateway: NPIV model § v. NPIVs FCo. E CNA … … N-port ID virtualization (NPIV) • A FC standard used by FC HBAs • Multiple N port IDs share a single physical N port • Similar to having multiple v. NICs to one physical port FCo. E CNA § Virtual NPIVs Ethernet Switch • Instantiated in the hosts § BX 1000 Doberman MBX 1020 NPIV port Fibre Channel © 2009 MELLANOX TECHNOLOGIES Bridge. X and EN switch are invisible • Hosts see FC-SAN cloud • FC-SAN sees the hosts § § T 11 FIP Discovery based Requires external FC switch - CONFIDENTIAL - 16
Gateway System Model Ports Power BX 4010 -Uplink 4 Ports (10/20/40 Gbs Infini. Band) -Downlink 1/10 Gb. E 12 Ports 2/4/8 G FC 16 Ports Dual © 2009 MELLANOX TECHNOLOGIES MBX 5020 MBX 1020 -Internal Ports 4 Ports (QDR/DDR IB QSFP) - Internal Ports 12 Ports (1/10 Gig. E SFP) - External Ports 1/10 Gb. E 12 Ports 2/4/8 G FC 16 Ports - External Ports 16 Ports (SFP+ 2/4/8 G Fibre Channel) Dual - CONFIDENTIAL - Dual
Infini. Band HCA 제품 © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL -
10 Gigabit Ethernet 카드 제품 © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL -
VPI(Virtual Protoc 0 l Interconnect) 카드 Infini. Band Port Ethernet Port © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL -

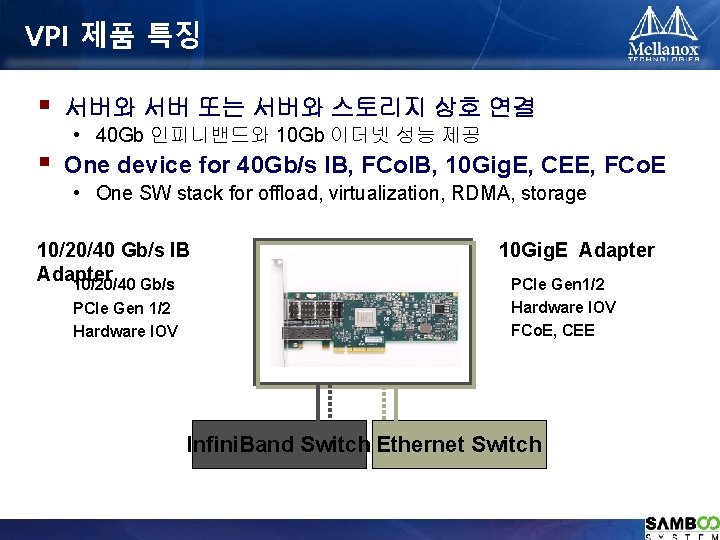

VPI 제품 특징 § § 서버와 서버 또는 서버와 스토리지 상호 연결 • 40 Gb 인피니밴드와 10 Gb 이더넷 성능 제공 One device for 40 Gb/s IB, FCo. IB, 10 Gig. E, CEE, FCo. E • One SW stack for offload, virtualization, RDMA, storage 10/20/40 Gb/s IB Adapter 10/20/40 Gb/s 10 Gig. E Adapter PCIe Gen 1/2 Hardware IOV FCo. E, CEE PCIe Gen 1/2 Hardware IOV Infini. Band Switch Ethernet Switch © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL -
Mellanox Technology testing; Ohio State University; QLogic, Myricom, Quadrics, and Chelsio websites Mellanox IPo. IB 속도 © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - 23
Mellanox IB Multi-Core 확장시 Lantency Time §Multi-Core 확장시 Lantency Time 는 동일 © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - 24
10 Gb. E 성능 비교 © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - 25
10 Gb. E Bandwidth 비교 © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - 26
10 Gb. E CPU 사용률 비교 © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL - 27
케이블 제품 § § © 2009 MELLANOX TECHNOLOGIES CX 4 to CX 4 copper CX 4 to QSFP copper § QSFP to QSFP fibre optic - CONFIDENTIAL - 29
1. 국내 구축사례 ( H 대학) MPI를 이용한 병렬 컴퓨팅 구축 © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL -
2. 국내 구축사례 ( S 대학) © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL -
결론 Mellanox 는 Infini. Band market과 performance leader - 세계 최초로 IB 40 Gb/s HCA 및 120 Gb/s switches 생산 - Roadmap : 2011년 100 Gb/s HCA 생산 예정 Mellanox 는 Gateways market과 performance leader Mellanox 는 10 Gb Ethernet market과 performance leader -PCIe 2. 0 지원 10 Gig. E adapter Dual-port 생산 -10 Gig. E w/FCo. E with hardware offload -40 Gig. E converged network adapters -Technology Leadership Industry’s lowest latency Ethernet ~ 3 us 3 X performance jump for high transaction applications © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL -
감사합니다. © 2009 MELLANOX TECHNOLOGIES - CONFIDENTIAL -
