4 Wave Optics Spherical Wave Image Formation and
- Slides: 59
4. Wave Optics
Spherical Wave, Image Formation, and Huygens’ Principle Wavefront: a surface over which the phase of a wave is constant Huygens’ Principle

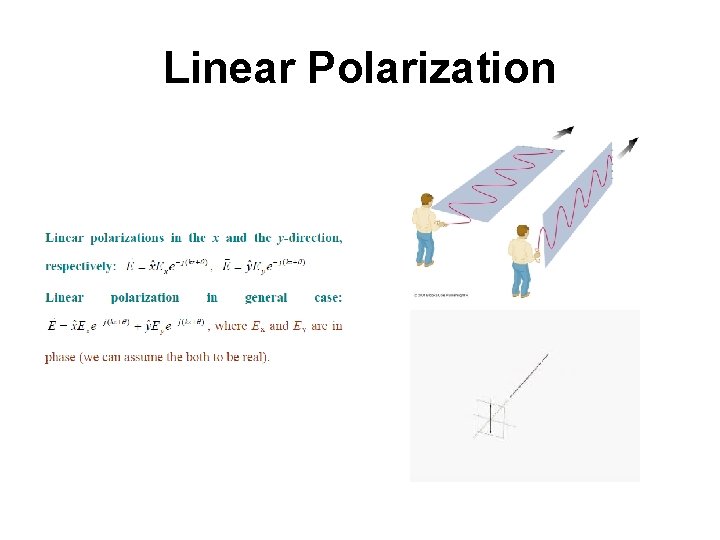

Linear Polarization
Circular/Elliptical Polarization
Unpolarized Light and Polarizer

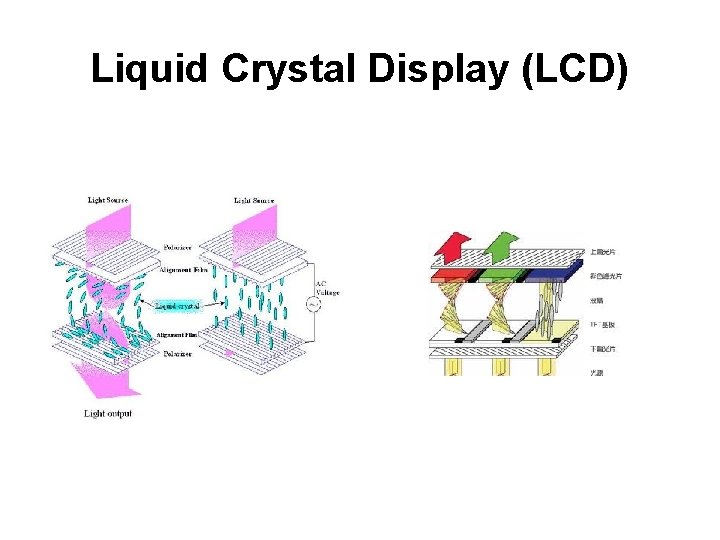

Liquid Crystal Display (LCD)
3 D Imaging by Polarizers

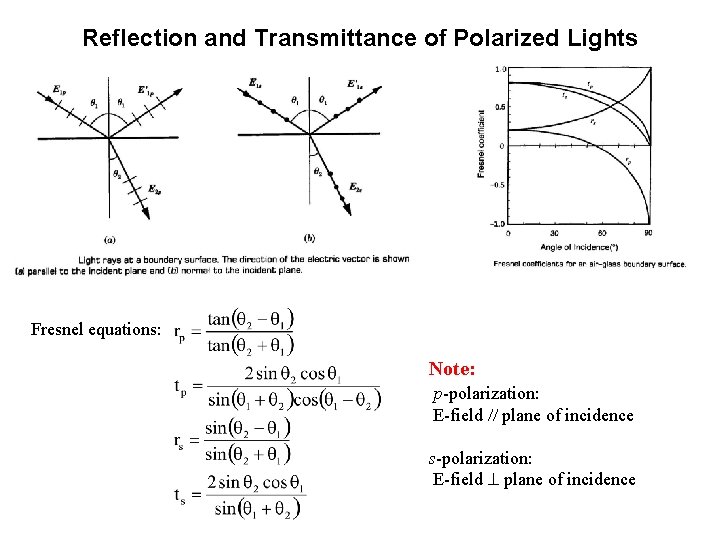

Reflection and Transmittance of Polarized Lights Fresnel equations: Note: p-polarization: E-field plane of incidence s-polarization: E-field plane of incidence
Goos-Haenchen Shift
Optical Transfer Matrix to Analyze Three-layer Film
Optical Transfer Matrix to Analyze Three-layer Film (Cont’)

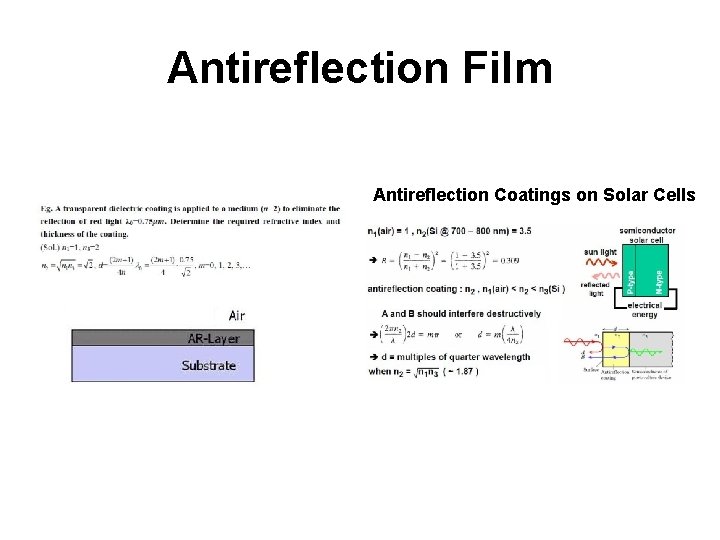

Antireflection Film Antireflection Coatings on Solar Cells
High-reflectance Film
High-reflectance Film (Cont’)
Interference Young’s Experiment Interference — superposition of two light wave result in bright and dark fringes Conditions for Interference: • same polarization • same frequency • constant phase relationship (coherence)
Conditions for Interference If 1 = 2 = Bright fringes: = 0, 2 , 4 , …(in phase) Dark fringes: = , 3 , 5 , …(out of phase)
Interferences of Coherent/Incoherent Waves • Coherence: All component electromagnetic waves are in phase or in the same phase difference. • Interference of coherent waves: Waves of different frequencies interfere to form a pulse if they are coherent. • Interference of incoherent waves: Spectrally incoherent light interferes to form continuous light with a randomly varying phase and amplitude.

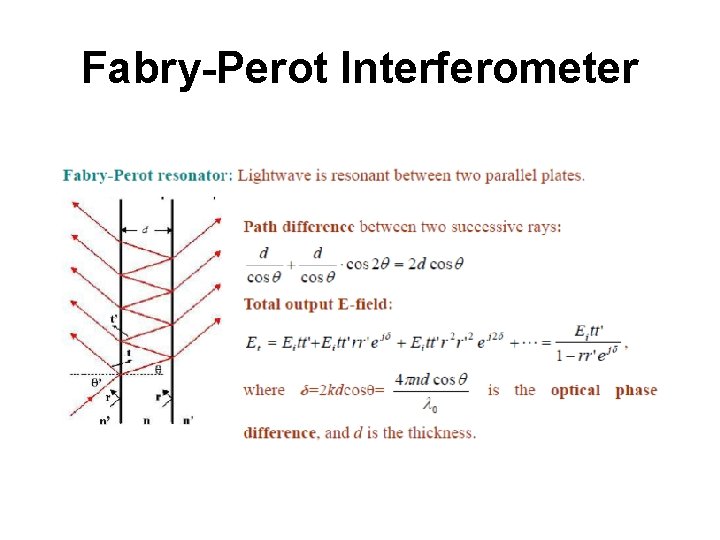

Fabry-Perot Interferometer
Fabry-Perot Interferometer (Cont’)
Fabry-Perot Interferometer (Cont’) Ga. As’s natural cleavage plane is (1, 1, 0)-plane. Si’s and Ge’s natural cleavage plane are (1, 1, 1)-plane.
Mach-Zehnder Interferometer

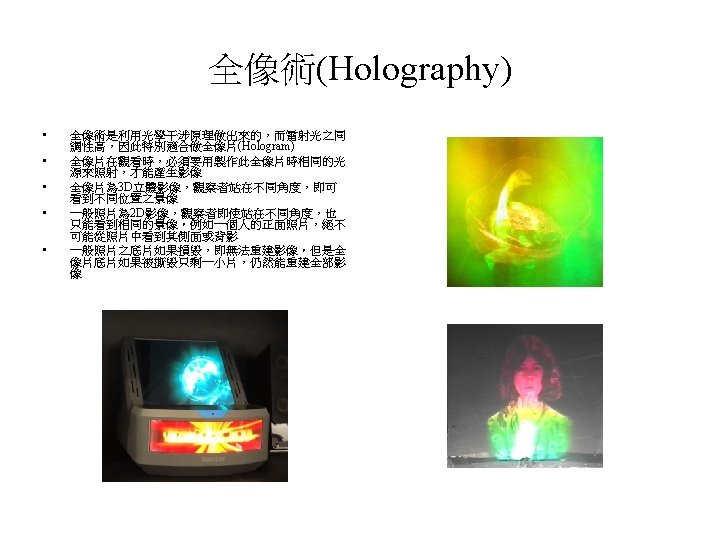

Holography/Hologram Recording process Reconstruction process
Approximate 3 D Hologram Videos

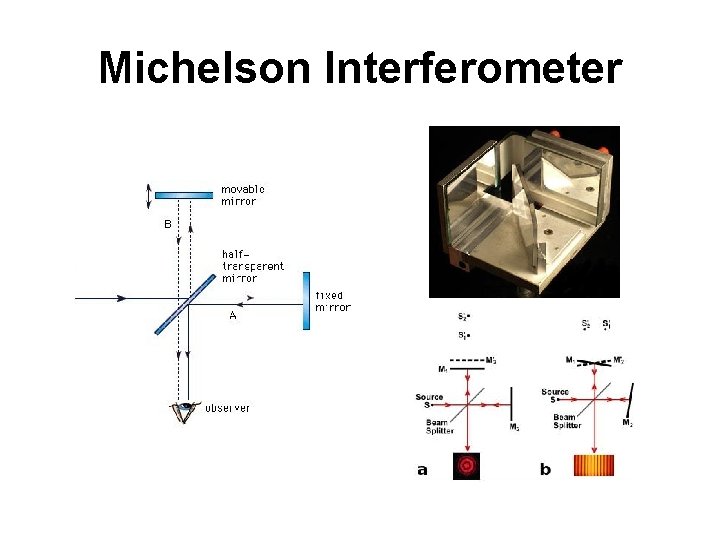

Michelson Interferometer

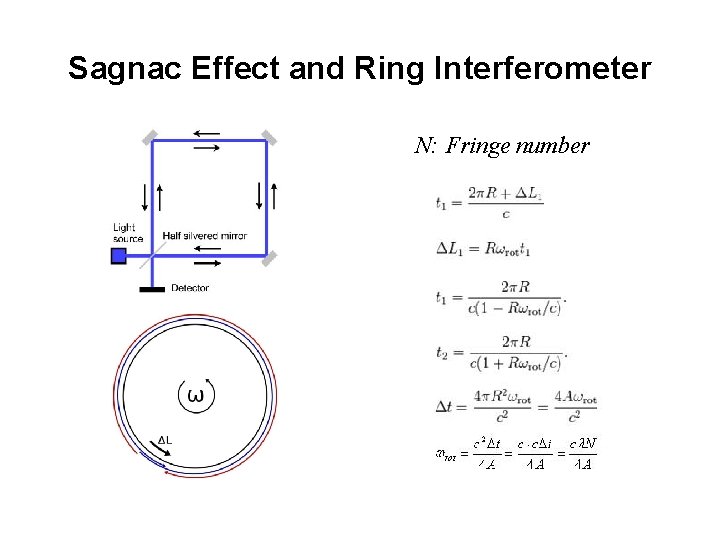

Sagnac Effect and Ring Interferometer N: Fringe number
Fresnel (Near-field) Diffraction
Fraunhofer (Far-field) Diffraction

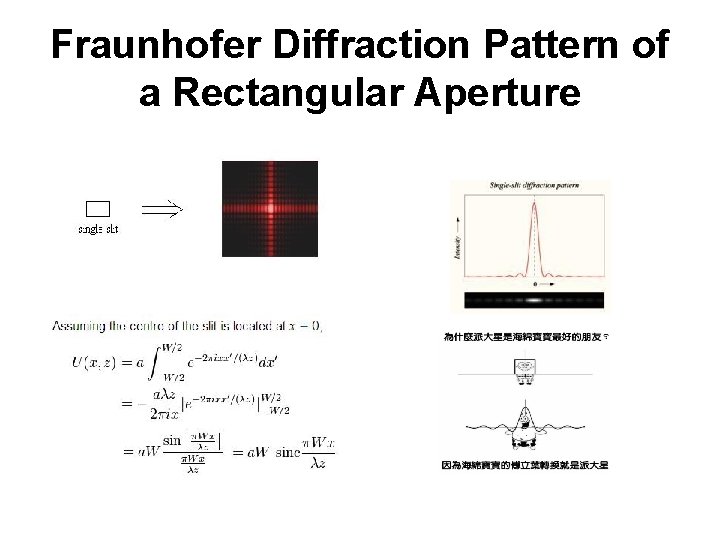

Fraunhofer Diffraction Pattern of a Rectangular Aperture
Fraunhofer Diffraction Pattern of a Circular Aperture
Resolving Power of Imaging Systems Rayleigh criterion

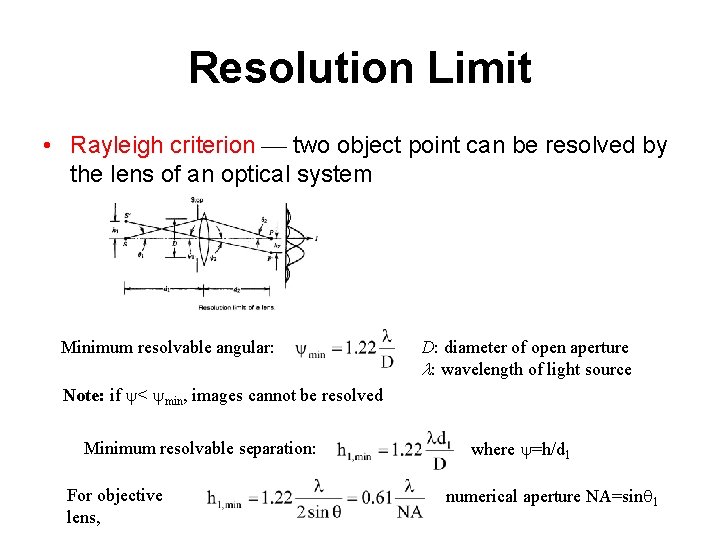

Resolution Limit • Rayleigh criterion two object point can be resolved by the lens of an optical system Minimum resolvable angular: D: diameter of open aperture : wavelength of light source Note: if < min, images cannot be resolved Minimum resolvable separation: For objective lens, where =h/d 1 numerical aperture NA=sin 1
Resolution of Human Eye Resolving power of human eye 0. 3 mrad Resolution limit of human eye 0. 075 mm

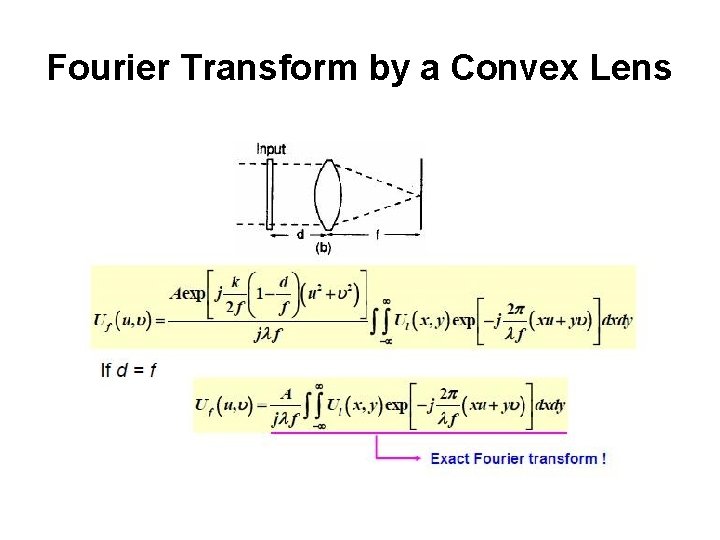

Fourier Transform by a Convex Lens
Optical Fourier Transform Input Plane a(x, y) Fourier Plane FTL f f A(u, v)
Optical Signal Processing
Examples of Optical Signal Processing
Examples of Optical Signal Processing (Cont’)

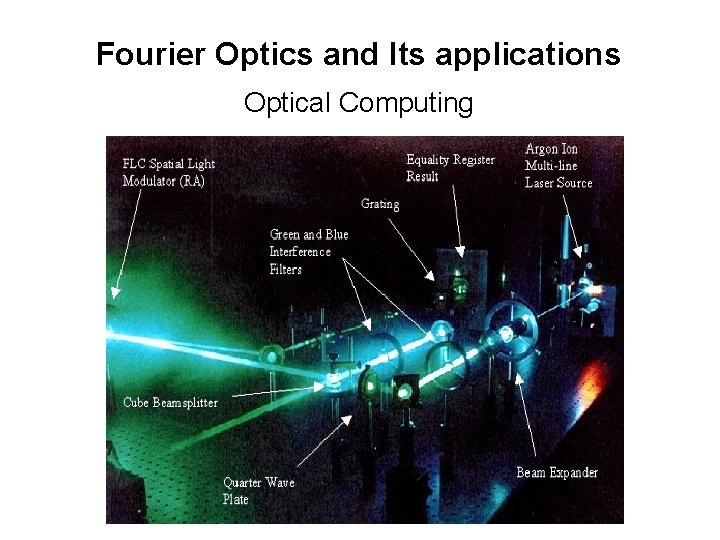

Fourier Optics and Its applications Optical Computing

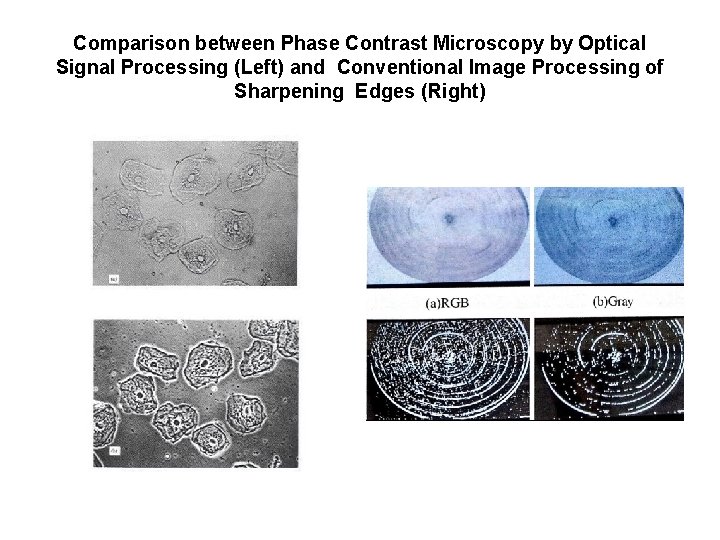

Comparison between Phase Contrast Microscopy by Optical Signal Processing (Left) and Conventional Image Processing of Sharpening Edges (Right)

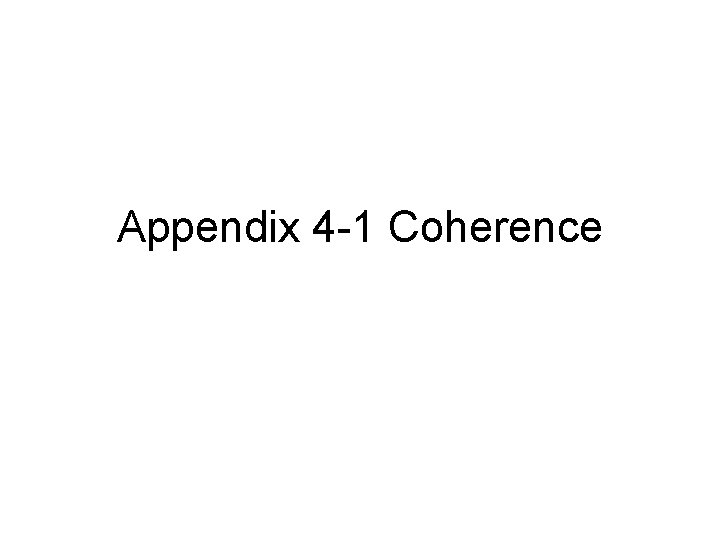

Appendix 4 -1 Coherence
Coherence Function Mutually coherent: point sources u 1(t 1, x 1, y 1, z 1) and u 2(t 1, x 2, y 2, z 2 ) maintain a fixed phase relation Mutual coherence function: Normalized mutual coherence function: (complex degree of coherence or degree of correlation) where 11( ) and 22( ) are the self-coherence functions of u 1(t) and u 2(t)

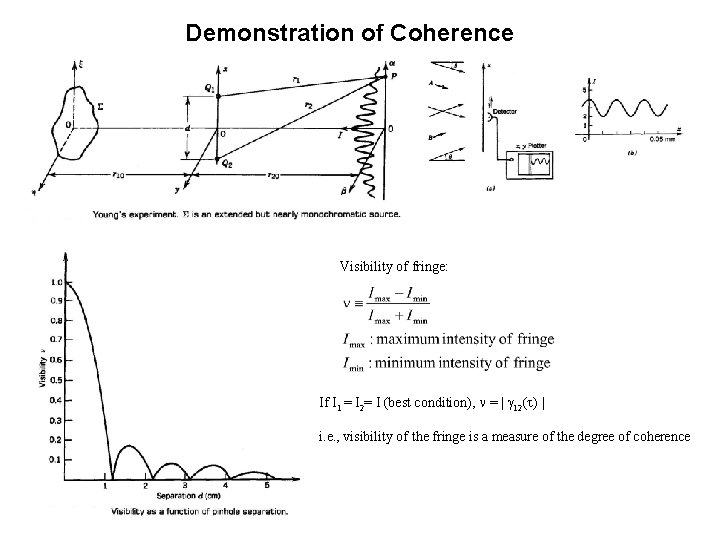

Demonstration of Coherence extended source interference pattern Visibility of fringe: If I 1 = I 2= I (best condition), = 12( ) i. e. , visibility of the fringe is a measure of the degree of coherence
Spatial Coherence extended source Intensity distribution of the resultant fringe of two points on the extended source: extended source
Measurement of Spatial Coherence
Temporal Coherence Visibility of the fringe is a measure of the degree of temporal coherence 11( ) at same point Coherence length of the light source

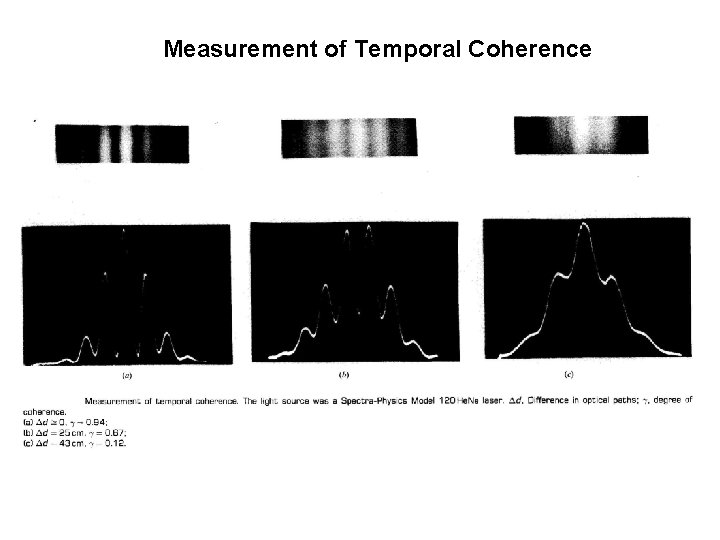

Measurement of Temporal Coherence
Appendix 4 -2 Fourier Transform

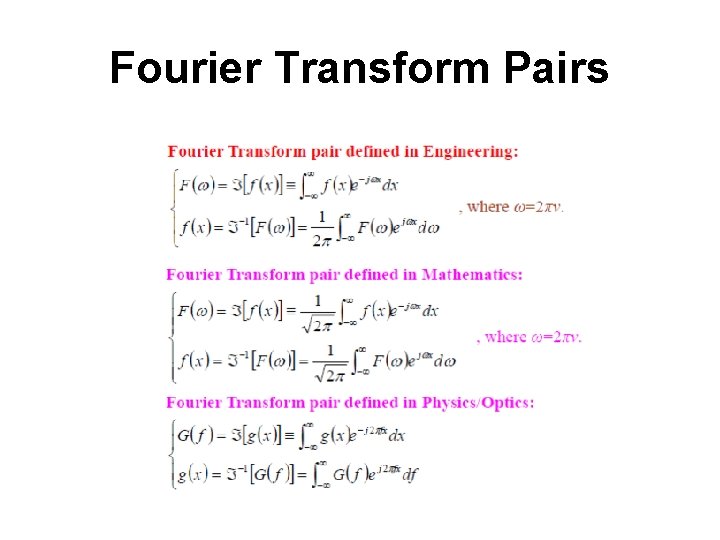

Fourier Transform Pairs
Basic Theorems of Fourier Transforms

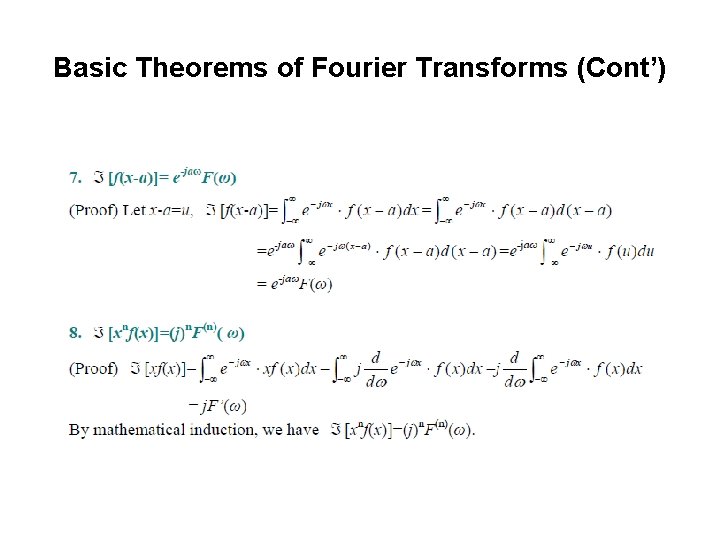

Basic Theorems of Fourier Transforms (Cont’)

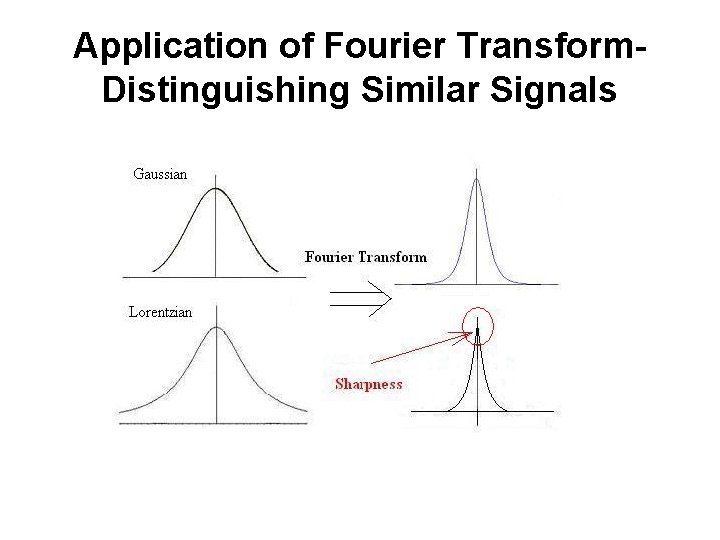

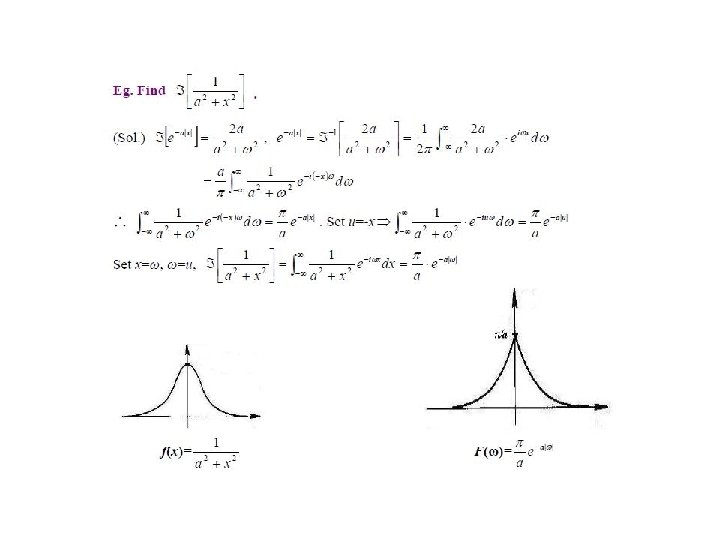

Application of Fourier Transform. Distinguishing Similar Signals
Appendix 4 -3 Phase Transform Function of a Lens
Usage of a Thin Lens Phase Transformation Phase transform function: T(x, y)=exp[j (x, y)] and Phase variation: (x, y)=knt(x, y) where t(x, y): thickness function of lens To find thickness function t(x, y)

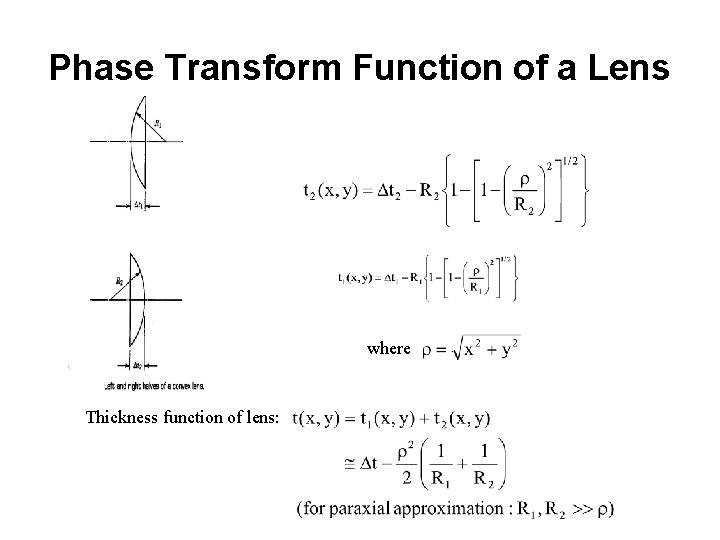

Phase Transform Function of a Lens where Thickness function of lens:
Phase Transform Function of a Lens Phase transform function: Note: f > 0, convergent effect f < 0, divergent effect
