4 UW Series Bellows Valve BPVC ASME III
4 UW Series Bellows Valve • BPVC ASME III Classes 1, 2, 3 • Canada N 285 • Piping Class 1500 • Pressure rating increased to 3, 600 psig • Proven bellows and seat cycle life • 1/4” and 3/8” end connections • Swagelok, NPT, and weld ends Swagelok confidential. For internal use only. © Swagelok Company, 2003

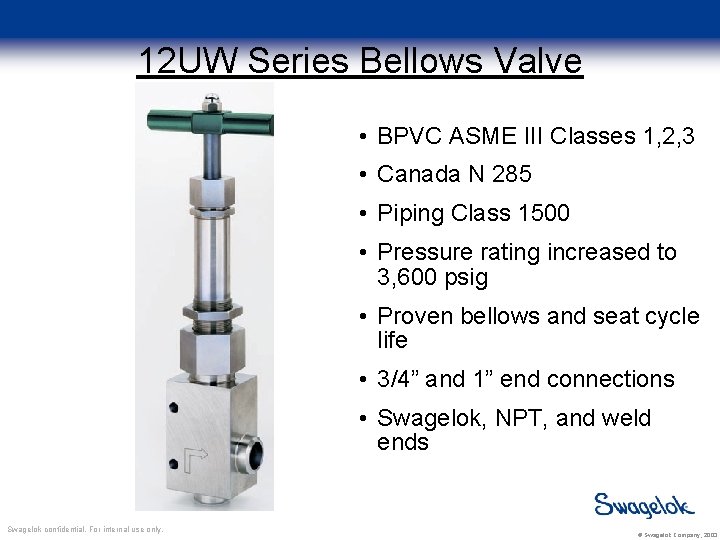

12 UW Series Bellows Valve • BPVC ASME III Classes 1, 2, 3 • Canada N 285 • Piping Class 1500 • Pressure rating increased to 3, 600 psig • Proven bellows and seat cycle life • 3/4” and 1” end connections • Swagelok, NPT, and weld ends Swagelok confidential. For internal use only. © Swagelok Company, 2003

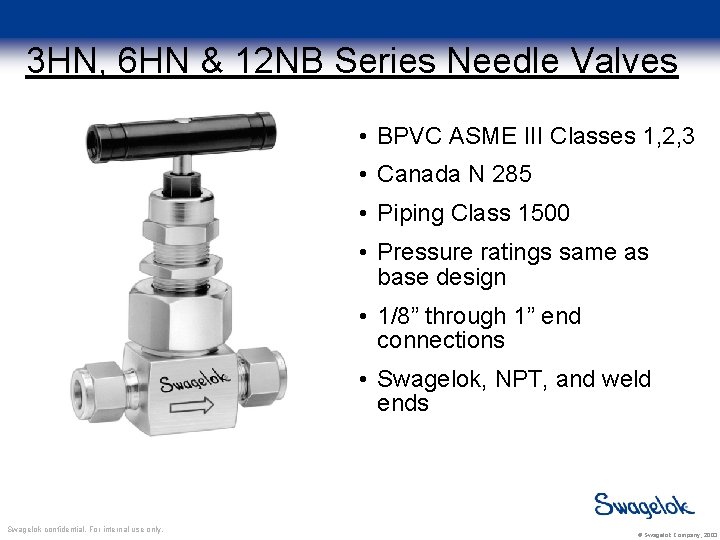

3 HN, 6 HN & 12 NB Series Needle Valves • BPVC ASME III Classes 1, 2, 3 • Canada N 285 • Piping Class 1500 • Pressure ratings same as base design • 1/8” through 1” end connections • Swagelok, NPT, and weld ends Swagelok confidential. For internal use only. © Swagelok Company, 2003

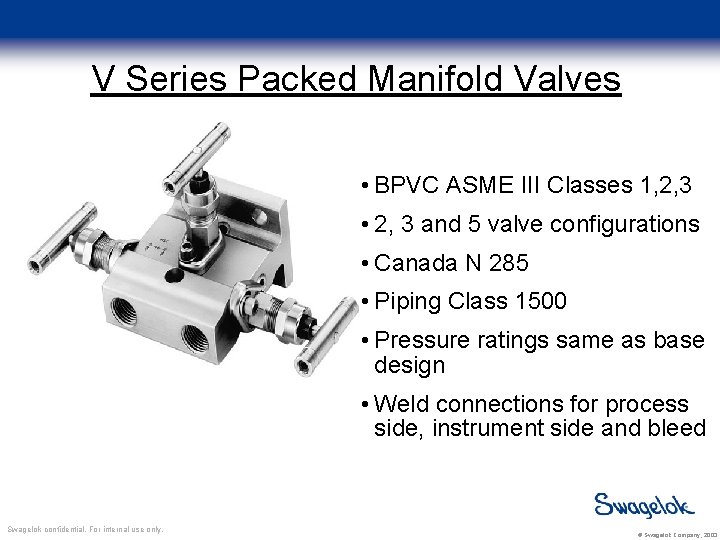

V Series Packed Manifold Valves • BPVC ASME III Classes 1, 2, 3 • 2, 3 and 5 valve configurations • Canada N 285 • Piping Class 1500 • Pressure ratings same as base design • Weld connections for process side, instrument side and bleed Swagelok confidential. For internal use only. © Swagelok Company, 2003

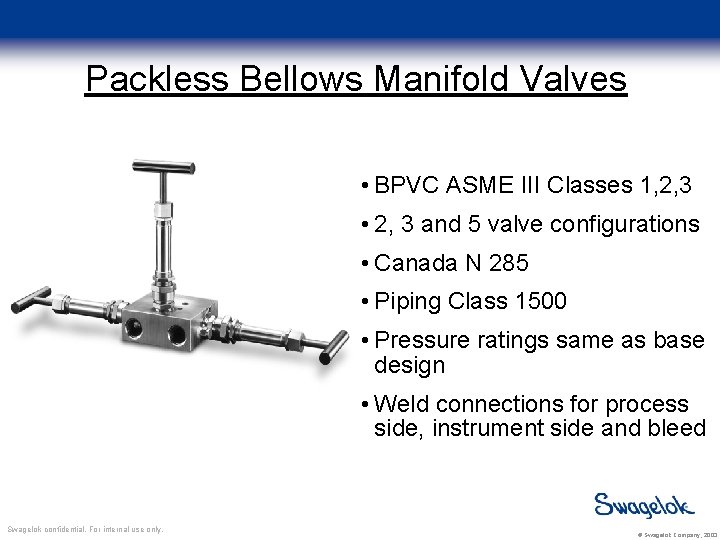

Packless Bellows Manifold Valves • BPVC ASME III Classes 1, 2, 3 • 2, 3 and 5 valve configurations • Canada N 285 • Piping Class 1500 • Pressure ratings same as base design • Weld connections for process side, instrument side and bleed Swagelok confidential. For internal use only. © Swagelok Company, 2003

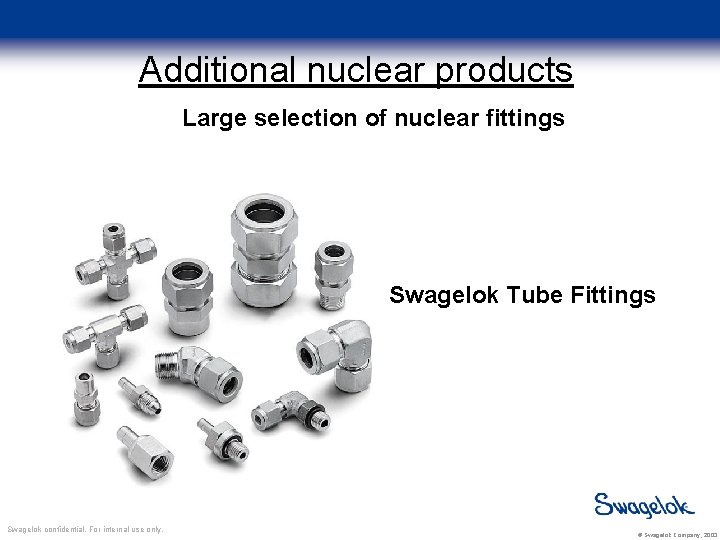

Additional nuclear products Large selection of nuclear fittings Swagelok Tube Fittings Swagelok confidential. For internal use only. © Swagelok Company, 2003

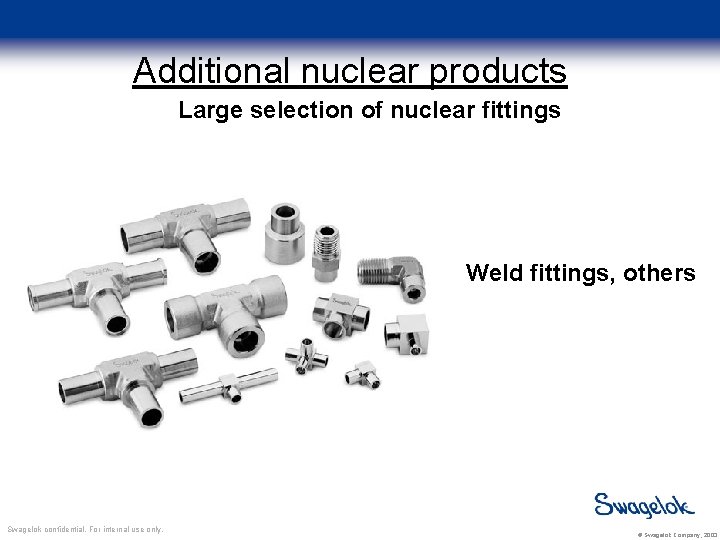

Additional nuclear products Large selection of nuclear fittings Weld fittings, others Swagelok confidential. For internal use only. © Swagelok Company, 2003
