4 occipital 8 cervical 12 thoracic 5 lumbar

4 occipital & 8 cervical & 12 thoracic & 5 lumbar & 5 sacral & 8 – 10 coccygeal The parietal layer is lined by Methothelium derived from somatic Mesoderm. & the visceral layer is Covered by mesothelium derived from. Splanchnic mesoderm

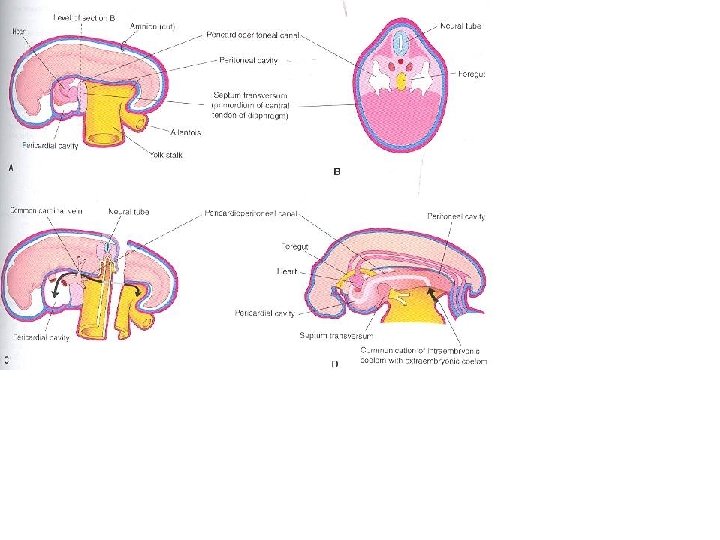

Early in the 4 th week, the intraembryonic coelom appears as a horseshoe-shaped cavity. The curve at the cranial end of the embryo represents the future pericardial cavity & limbs indicate future pleural ; peritoneal cavities. The distal part of each limb of intraembryonic coelom is continuous with extraembryonic coelom at lateral edges of embryonic disc. This communication is important to midgut development. At 6 th W herniation occure withen the umblical cord. And at 10 th week this connection is lost. The intraembryonic coelom becomes the embryonic body cavity during 4 th week ( 22 -28 days ) 1. Pericardial cavity 2. two pericardioperitoneal canals 3. peritoneal cavity.

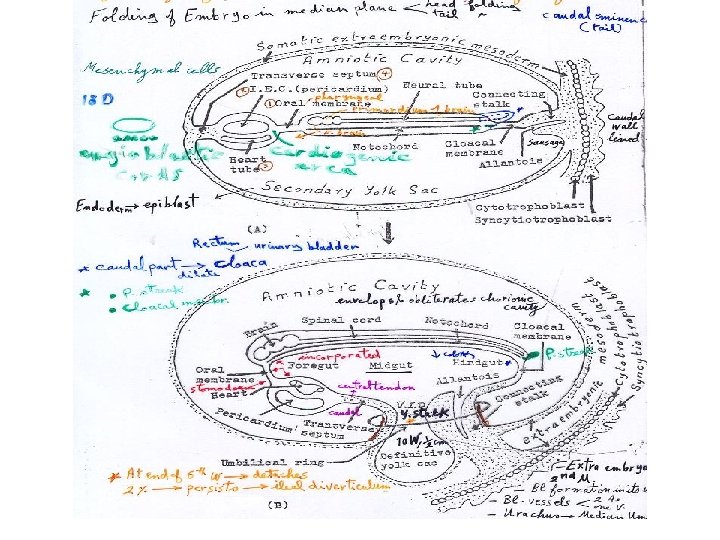

During formation of the head fold , the heart& pericardial cavity move ventrocaudally, anter. to the foregut As a result , the pericardial cavity opens into pericardioperitoneal canals, which pass dorsal to the foregut & on each side of it ( future esophagus ) and dorsal to septum transversum ( a thick plate of mesodermal tissue ) that occupies the space between Partitions is formed in each pericardioperitoneal canal that thoracic cavity & yolk separate pericardial cavity from pleural cavities & pleural stalk ) cavities from peritoneal cavity. These partition are pair of membranous ridges that is produced in the lateral wall of each canal. The cranial ridges: pleuropericardial folds, located superior to lungs. Caudal ridges: pleuroperitoneal folds are located inferior to developing lungs.

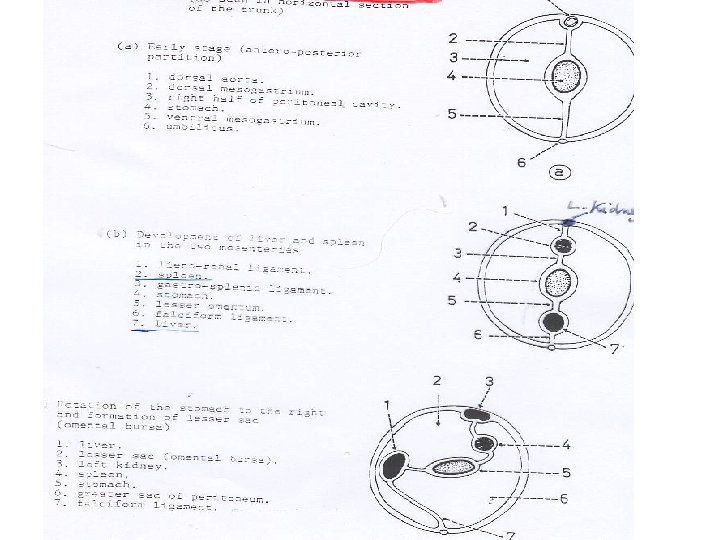

An extention of the visceral peritoneum covering an organ form the mesentery. So , the mesentery is a double layer of the peritonium. It connect the organ to the body wall & conveys vessels & nerves to it. The ventral and dorsal mesenteries divide the cavity into R & L halves The venteral mesentere. Disappears , except where it is attached to the caudal part of the foregut ( primordium of terminal part of esophagus , stomach & 1 st part of duodenum). After this level the peritoneum cavity becomes continuous space

The venteral • mesentery degenerates , resulting in a large embryonic peritoneal cavity extending from the heart to the pelvic region.

Pleuropericardial Mermbranes They project into the cranial ends of the pericardioperitoneal canal The bronchial buds grow laterally from the caudal end of the trachea into pericardioperitoneal canals ( future pleural canals). As the primordial pleural cavities expand ventrally around the heart, they extend into the body wall , spilitting the mesenchyme into : An outer layer that becomes the thoracic wall. & They contain the common cardinal veins & phrenic Ns. They become mesentery like folds ( extending from the lateral wall of thoracic wall ). This is due to 1. Growth of common cardinal v. , descend of heart ; expansion of pleural cavities An inner layer (pleuropericardial membrane), that becomes the fibrous pericardium. ( the outer layer of the pericardial sac enclosing the heart )

The right pleuropericardial opening closes earlier than the left one , probably because the right common cardinal vein is larger than the left one, and produces a larger pleuropericardial membrane. By the 7 th week , the pleuropericardial membranes fuse with mesenchyme ventral to esophagus, forming the primordium of mediastinum , separating the pericardial cavity from the pleural cavities. The primordial mediastinum consists of a mass of mesenchym ( embryonic connective tissue ) that extendes from the sternum to the vertebral column, separating the developing lungs.

Pleuroperitoneal Membrane As the pleuroperitoneal folds enlarge , they project into the pericardioperitoneal canals. Gradually , the folds become membranous. . They are attached dorsolaterally to abdominal wall and their crescentic free edges project into the caudal ends of the canals. During the 6 th week these memberanes extend ventromedially until their free edges fuse with the dorsal mesentery of esophagus & septum transversum. This process separates pleural cavities from peritoneal cavity Closure of the pleuroperitoneal openings is assisted by the migration of myoblasts (primordial muscle cells ) into the membranes. The right opening closes before the left one. This may be due to large size of the right lobe of the liver

Development of the Diaphragm 1 - septum transversum 2 - pleuroperitoneal membranes. 3 - Dorsal mesentery of esophagus 4 - Muscular ingrowth from lateral body walls Septum Transversum This septum is the primordium of the central tendon of the diaphragm. It does not separate thoracic & abdominal cavities completely. Because there is pericardioperitoneal canal. It expands and fuses with the mesenchyme ventral to esophagus & pleuroperitoneal memberanes It is first identifiable at the end of the third week as a mass of mesodermal tissue cranial to the pericardial cavity. After head folds at 4 th week, it forms a thick incomplete partition between pericardial & abdominal cavities. There is a large opening on each side of the esophagus ( pericardioperitoneal canal ).

The transverse septum grows dorsally from the ventrolateral body wall and forms a semicircular shelf which separates the heart from the liver. A large part of the liver is embeded in the septum. It is located caudal to the pericardial cavity and partially separates it from the developing peritoneal cavity

Pleuroperitoneal Memberanes It forms the primordial diaphragm It forms large portion of fetal diaphragm. But they form small portion of the newborn infant’s diaphragm. At the end of the 6 th week it fuse with the other 2 components( 9 to 12 ws ). Dorsal Mesentry of esophagus It forms the median portion of the diaphragm. The crura. ( a leglike pair of muscle bundles that cross in the median plane anterior to the aorta. It develop from myoblasts that grow into the dorsal mesentery of esophagus.

As the 4 parts of the diaphragm fuse mesenchyme in the septum transversum extends into the other 3 parts It forms myoblasts that differentiate into the skeletal. muscle of the diaphragm muscular ingrowth from lateral body walls During 10 th to 12 th weeks, the lungs and pleural cavities enlarge, into the lateral body walls. During this process the body- wall tissue is split into 2 layers : An external layer that becomes part of the definitive abdominal wall. An internal layer that contributes to peripheral parts of the diaphragm , external to the parts derived from the pleuroperitoneal membranes.

Positional Changes Durind the 4 th week ( A ) & At 6 week it is at the level of the thoracic somites & by the beginning of the 8 th week , the dorsal part of the diaphragm lies at the level of the 1 st lumbar vertebra Innervation of the diaphragm During the 5 th week , myoblasts from 3, 4; 5 somites migrate into the developing diaphragm ( S. T. ) bringing their nerve fibers with them ( phrenic n. ) which arise from the venteral primary rami of the 3 rd, 4 th; 5 th cervical spinal nerves. The embryonic phrenic ns. Enter the diaphragm by passing through the pleuropericardial membranes. This explain why phrenic ns. Lie on the fibruos pericardium. Hence it is motor to diaphragm and also sensory , but the costal rim receives sensory supply from the lower intercostal ns. Because of the origin of the peripheral part of the diaphragm from the lateral body walls.

Posterolateral defect of the diaphragm is a common congenital anomaly of it. It occurs about once in 2200. In congenital diaphragmatic hernia , CDH, herniation of stomach, spleen; most of intestines herniate. Usually, unilateral CDH results from devective formation and or fusion of the pleuroperitoneal membrane with other 3 parts of the diaphragm. CDH, occurs on the left side in 85 to 90 % of cases This may be due to earlier closure of the right In severe lung hypoplasia , some primordial alveoli pleuroperitoneal opening. rupture, causing air to enter the pleural cavity , . pneumothorax, Also, fetal lung maturation may be delayed CDH, is the most common Prenatal diagnosis of CDH: ultrasound& magnetic cause of polyhydramnios & pulmonary hypoplasia that resonance imaging. It can repair prenatally between 22 & because the lug is. 28 Ws. But there is risk to fetus and mother copressed
