4 Multirate Systems and their Applications Inefficient Implementation

4. Multirate Systems and their Applications

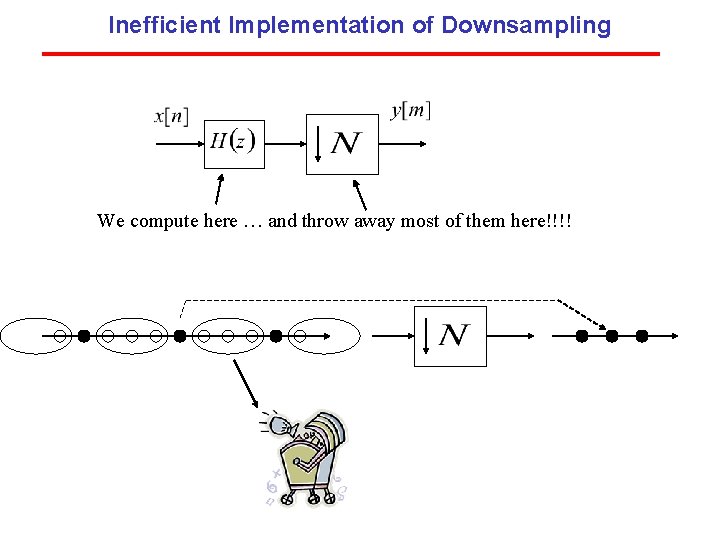

Inefficient Implementation of Downsampling We compute here … and throw away most of them here!!!!

Inefficient Implementation of Upsampling Most terms here are zero … and waste time to process them here!!!! $$ $$

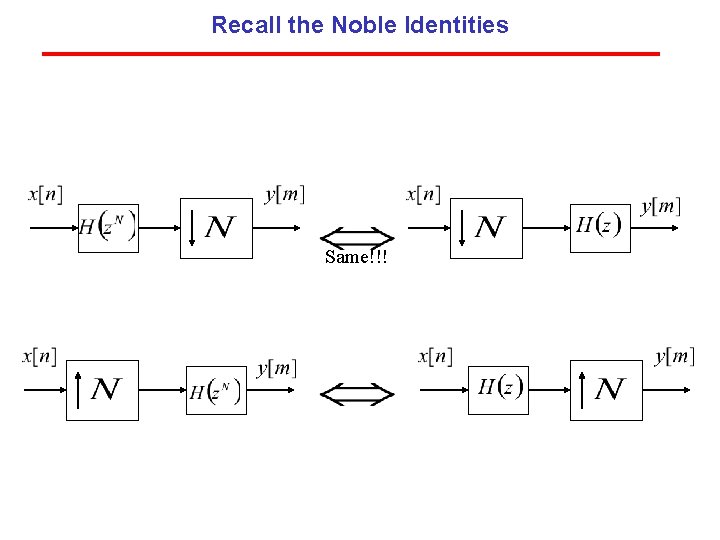

Recall the Noble Identities Same!!!

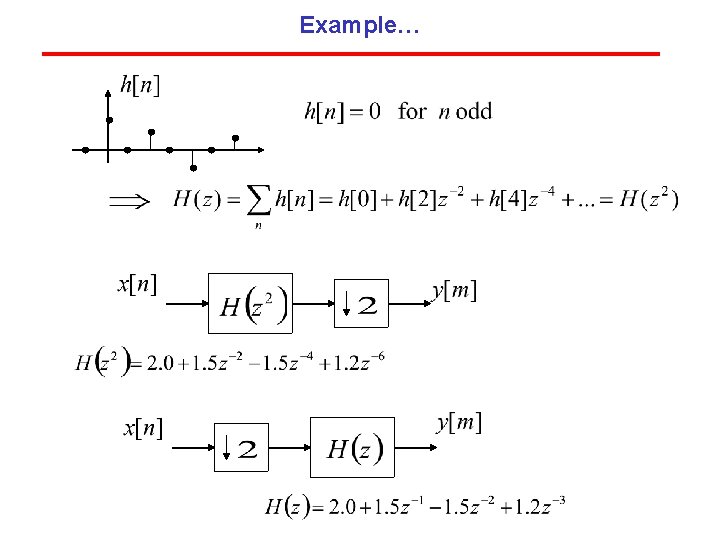

Example…

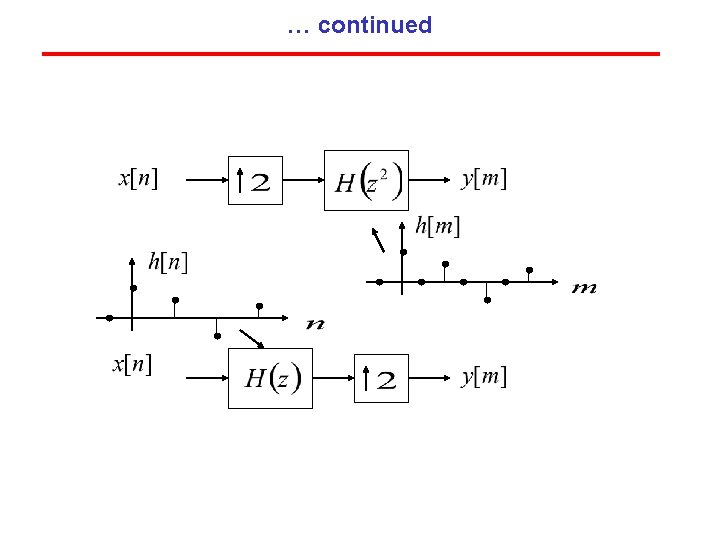

… continued

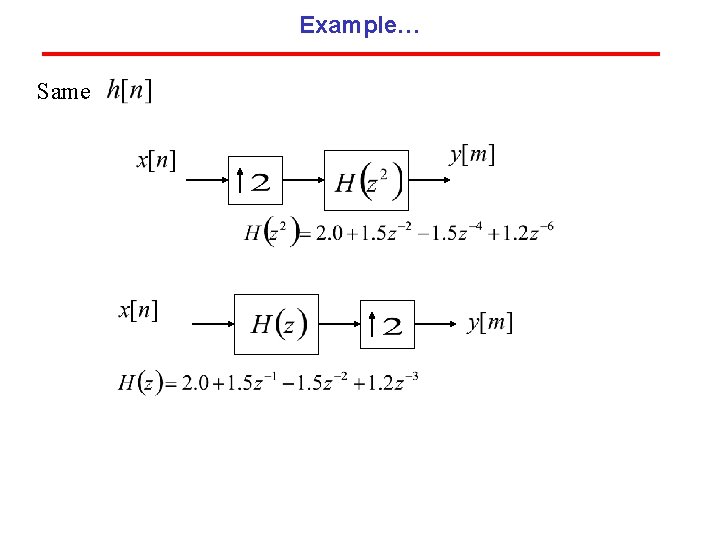

Example… Same

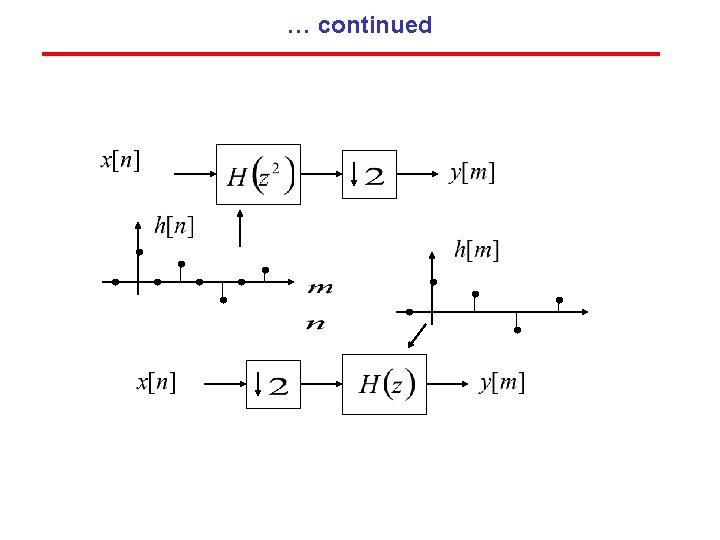

… continued

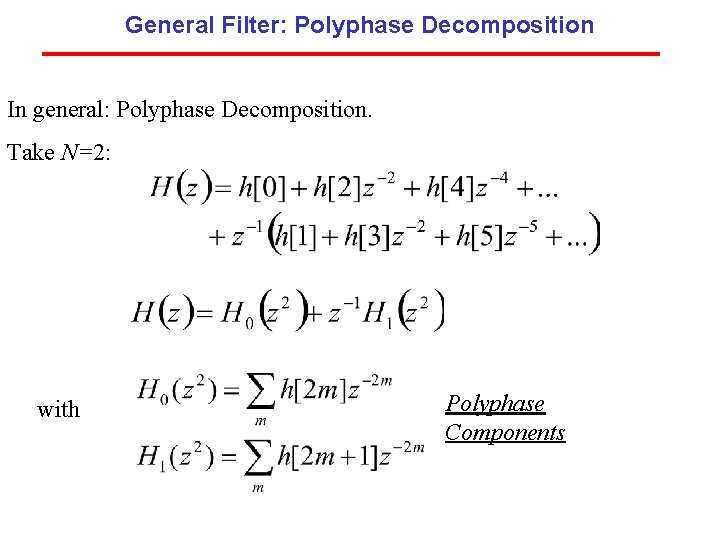

General Filter: Polyphase Decomposition In general: Polyphase Decomposition. Take N=2: with Polyphase Components

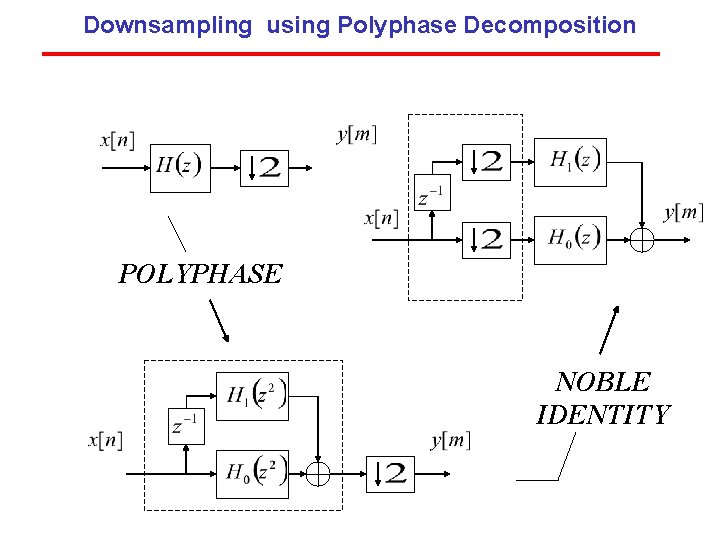

Downsampling using Polyphase Decomposition POLYPHASE NOBLE IDENTITY

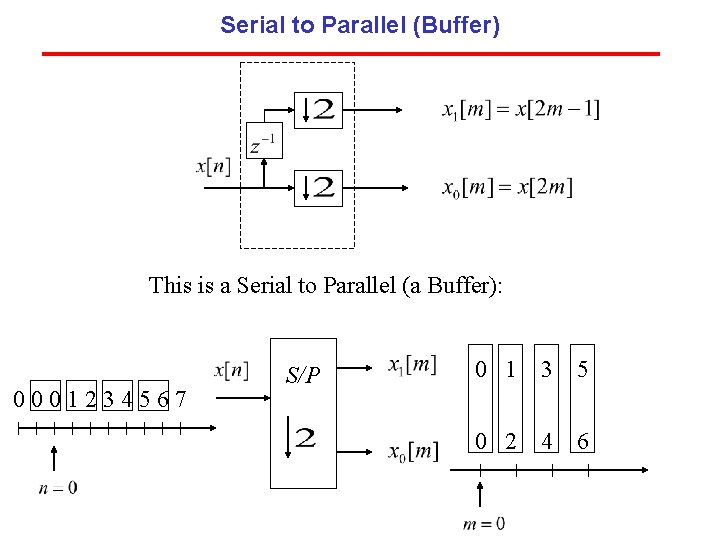

Serial to Parallel (Buffer) This is a Serial to Parallel (a Buffer): 0001234567 S/P 0 1 3 5 0 2 4 6

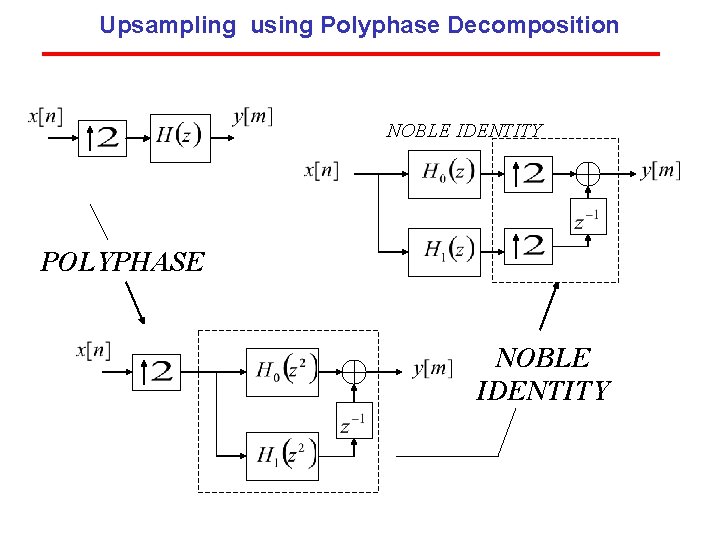

Upsampling using Polyphase Decomposition NOBLE IDENTITY POLYPHASE NOBLE IDENTITY

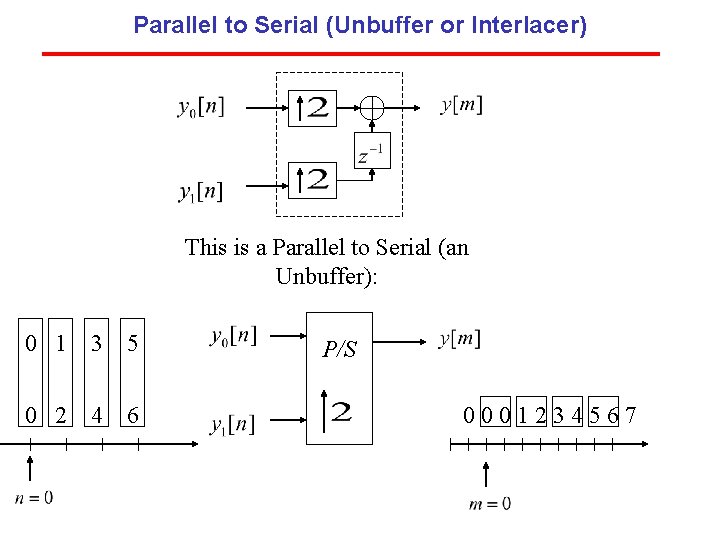

Parallel to Serial (Unbuffer or Interlacer) This is a Parallel to Serial (an Unbuffer): 0 1 3 5 0 2 4 6 P/S 0001234567

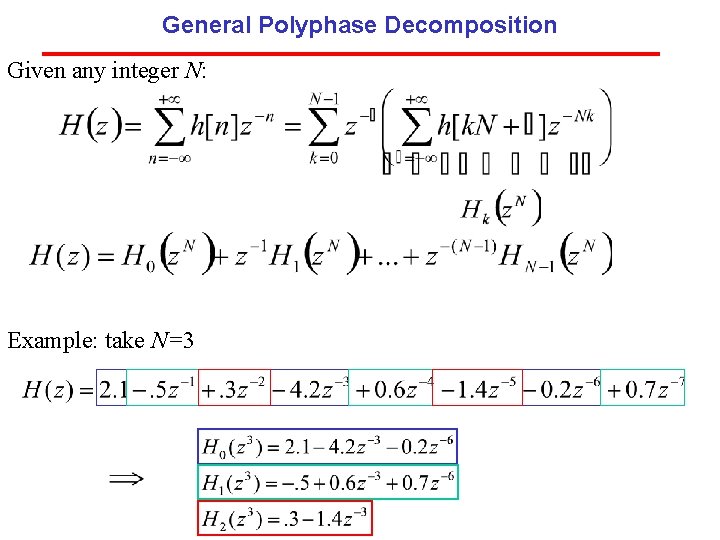

General Polyphase Decomposition Given any integer N: Example: take N=3

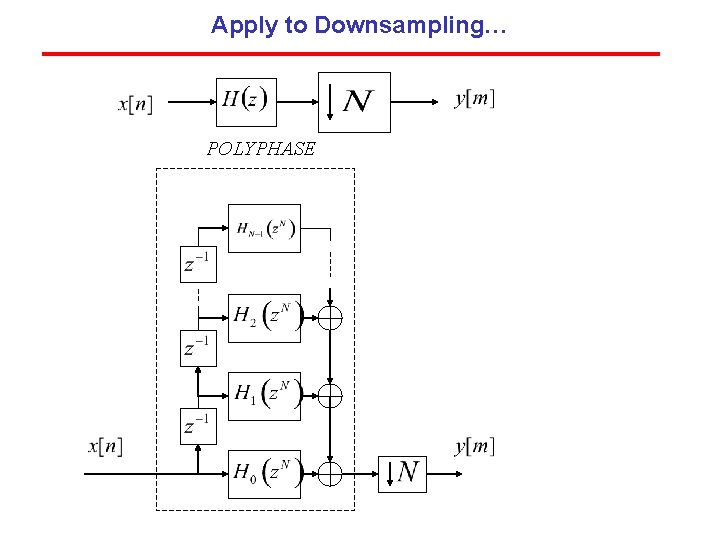

Apply to Downsampling… POLYPHASE

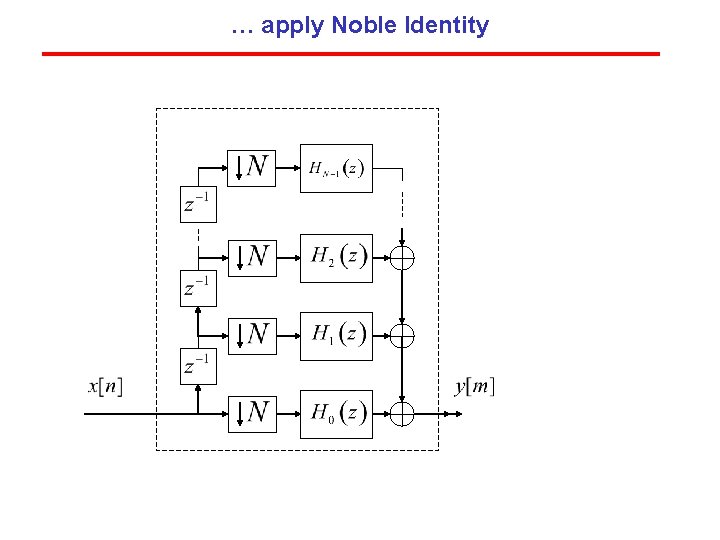

… apply Noble Identity

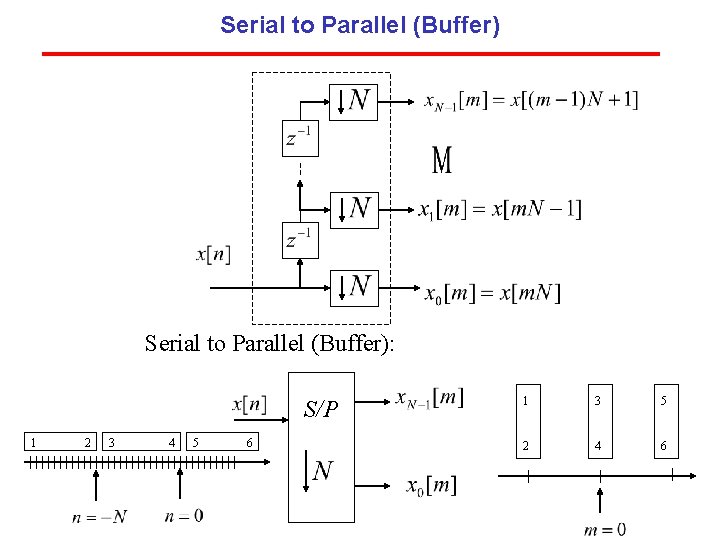

Serial to Parallel (Buffer): S/P 1 2 3 4 5 6 1 3 5 2 4 6

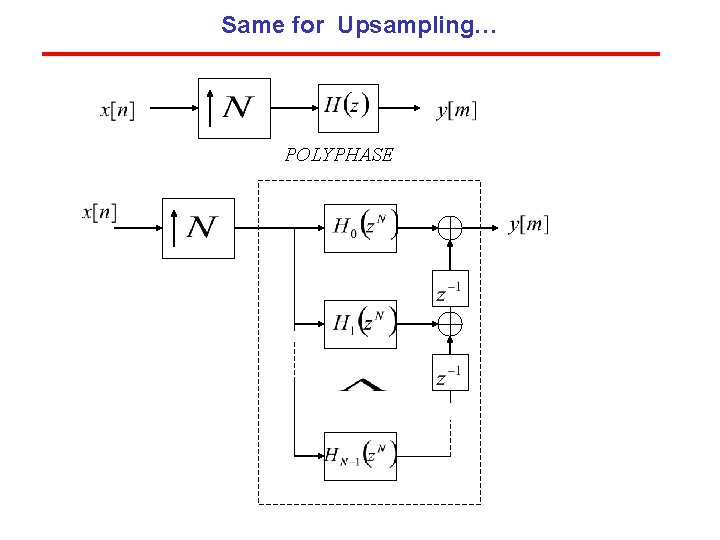

Same for Upsampling… POLYPHASE

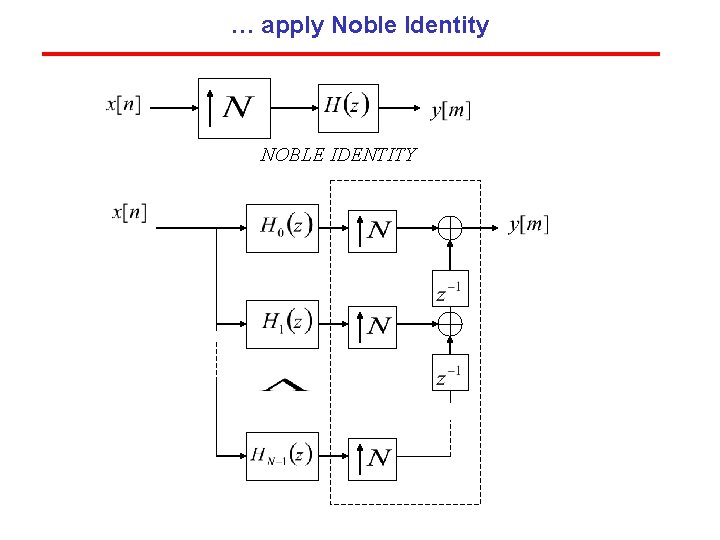

… apply Noble Identity NOBLE IDENTITY

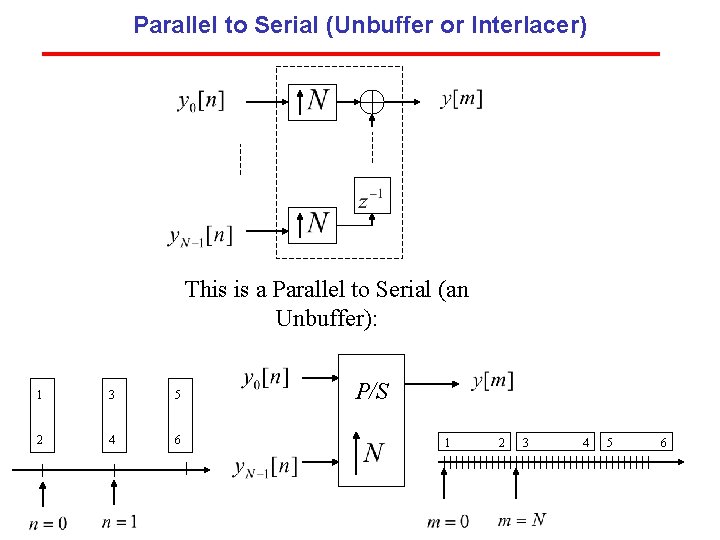

Parallel to Serial (Unbuffer or Interlacer) This is a Parallel to Serial (an Unbuffer): 1 3 5 2 4 6 P/S 1 2 3 4 5 6

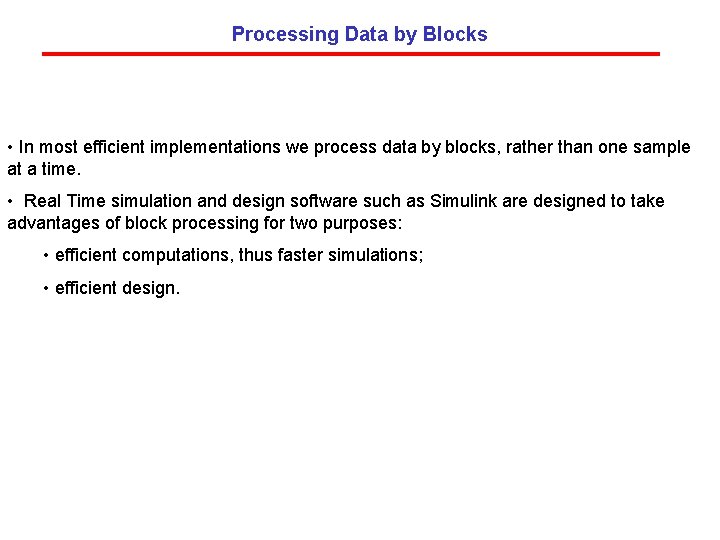

Processing Data by Blocks • In most efficient implementations we process data by blocks, rather than one sample at a time. • Real Time simulation and design software such as Simulink are designed to take advantages of block processing for two purposes: • efficient computations, thus faster simulations; • efficient design.

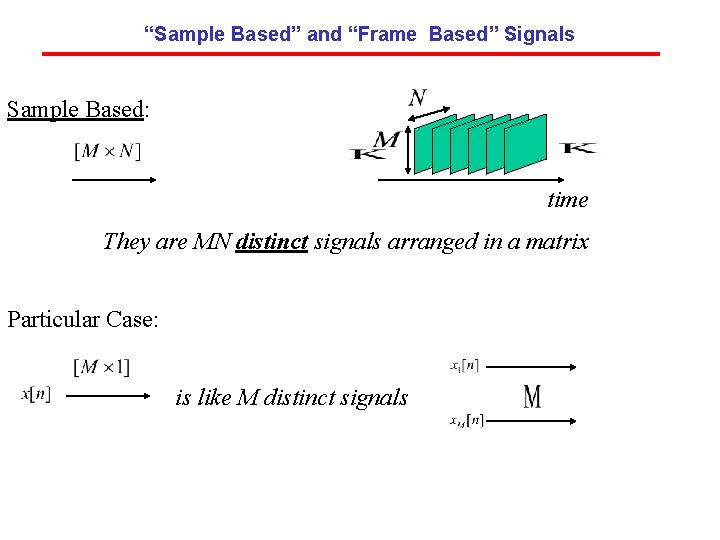

“Sample Based” and “Frame Based” Signals Sample Based: time They are MN distinct signals arranged in a matrix Particular Case: is like M distinct signals

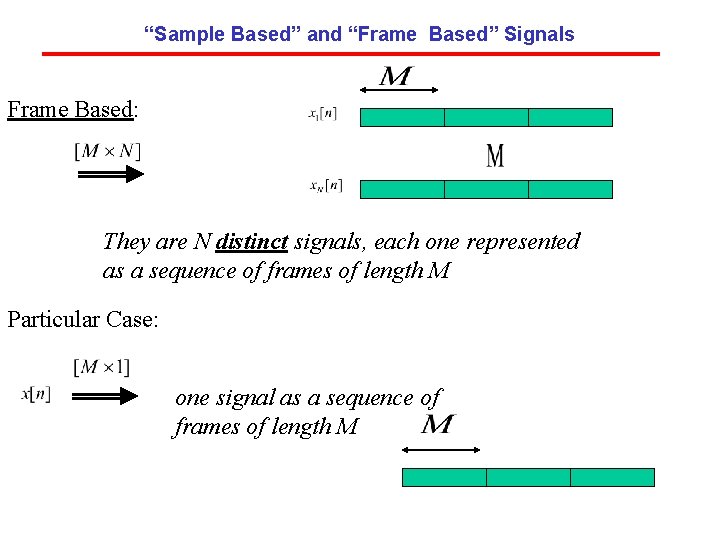

“Sample Based” and “Frame Based” Signals Frame Based: They are N distinct signals, each one represented as a sequence of frames of length M Particular Case: one signal as a sequence of frames of length M

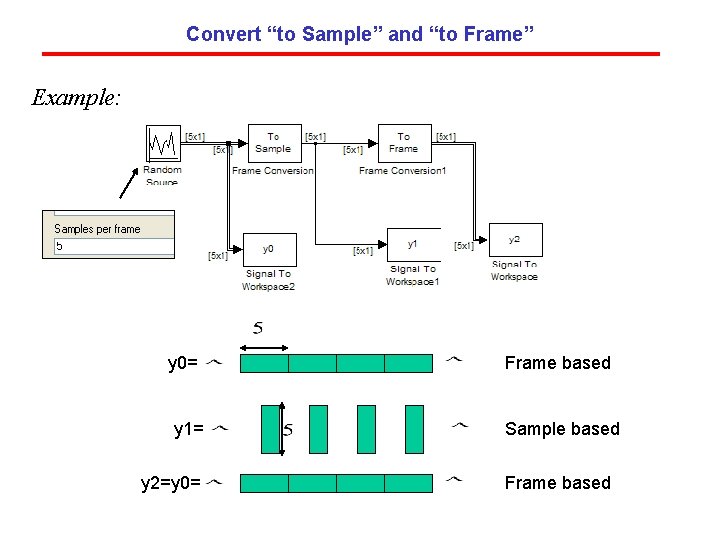

Convert “to Sample” and “to Frame” Example: y 0= y 1= y 2=y 0= Frame based Sample based Frame based

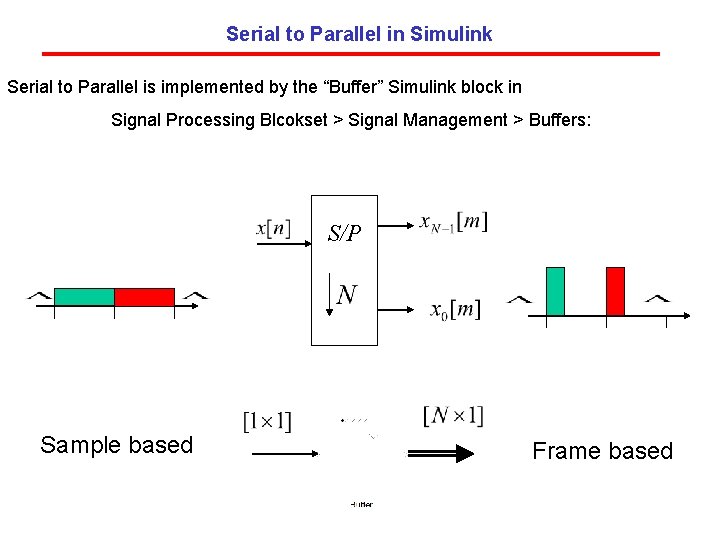

Serial to Parallel in Simulink Serial to Parallel is implemented by the “Buffer” Simulink block in Signal Processing Blcokset > Signal Management > Buffers: S/P Sample based Frame based

Example of Downsampling

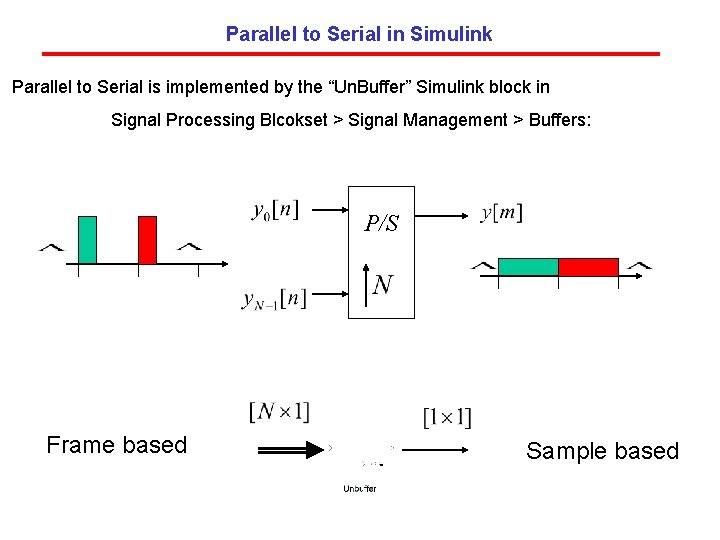

Parallel to Serial in Simulink Parallel to Serial is implemented by the “Un. Buffer” Simulink block in Signal Processing Blcokset > Signal Management > Buffers: P/S Frame based Sample based

Example of Upsampling
