4 E 1 + Ethernet PDH Optical Multiplexer Valiant Communications Limited Telecom Transmission Solutions 4 E 1 + Ethernet PDH Optical Multiplexer Product Presentation Updated: April, 2010 Copyright : Valiant Communications Limited. - 2010 Slide 1

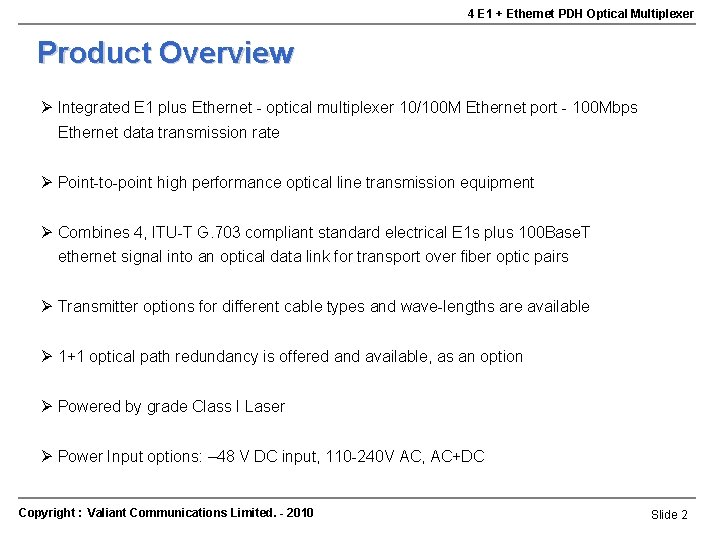

4 E 1 + Ethernet PDH Optical Multiplexer Product Overview Ø Integrated E 1 plus Ethernet - optical multiplexer 10/100 M Ethernet port - 100 Mbps Ethernet data transmission rate Ø Point-to-point high performance optical line transmission equipment Ø Combines 4, ITU-T G. 703 compliant standard electrical E 1 s plus 100 Base. T ethernet signal into an optical data link for transport over fiber optic pairs Ø Transmitter options for different cable types and wave-lengths are available Ø 1+1 optical path redundancy is offered and available, as an option Ø Powered by grade Class I Laser Ø Power Input options: – 48 V DC input, 110 -240 V AC, AC+DC Copyright : Valiant Communications Limited. - 2010 Slide 2

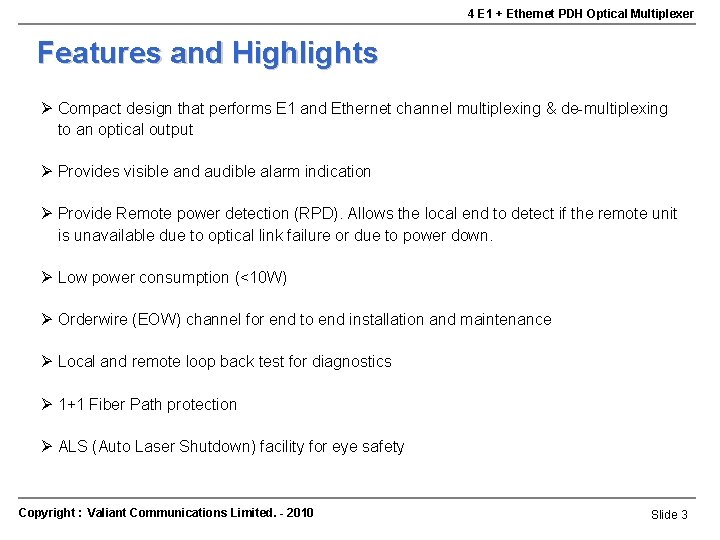

4 E 1 + Ethernet PDH Optical Multiplexer Features and Highlights Ø Compact design that performs E 1 and Ethernet channel multiplexing & de-multiplexing to an optical output Ø Provides visible and audible alarm indication Ø Provide Remote power detection (RPD). Allows the local end to detect if the remote unit is unavailable due to optical link failure or due to power down. Ø Low power consumption (<10 W) Ø Orderwire (EOW) channel for end to end installation and maintenance Ø Local and remote loop back test for diagnostics Ø 1+1 Fiber Path protection Ø ALS (Auto Laser Shutdown) facility for eye safety Copyright : Valiant Communications Limited. - 2010 Slide 3

4 E 1 + Ethernet PDH Optical Multiplexer Application Diagram Copyright : Valiant Communications Limited. - 2010 Slide 4

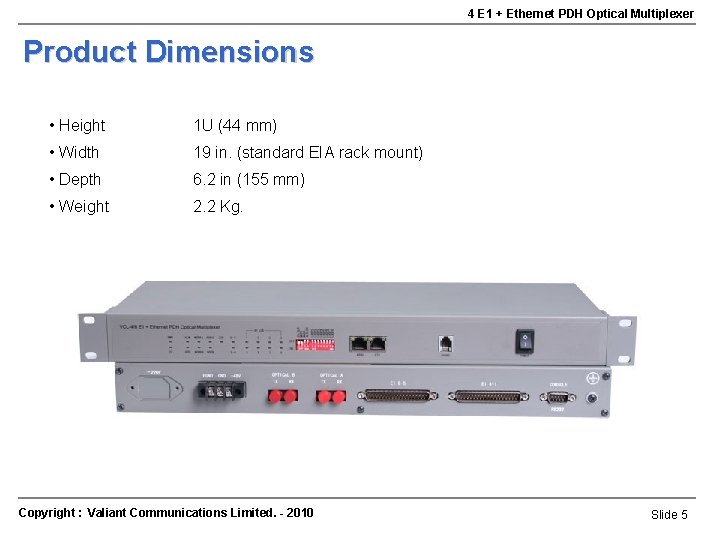

4 E 1 + Ethernet PDH Optical Multiplexer Product Dimensions • Height 1 U (44 mm) • Width 19 in. (standard EIA rack mount) • Depth 6. 2 in (155 mm) • Weight 2. 2 Kg. Copyright : Valiant Communications Limited. - 2010 Slide 5

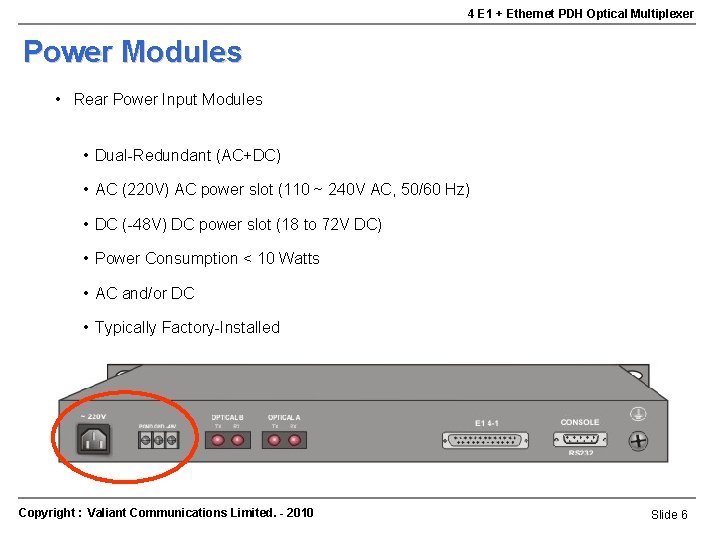

4 E 1 + Ethernet PDH Optical Multiplexer Power Modules • Rear Power Input Modules • Dual-Redundant (AC+DC) • AC (220 V) AC power slot (110 ~ 240 V AC, 50/60 Hz) • DC (-48 V) DC power slot (18 to 72 V DC) • Power Consumption < 10 Watts • AC and/or DC • Typically Factory-Installed Copyright : Valiant Communications Limited. - 2010 Slide 6

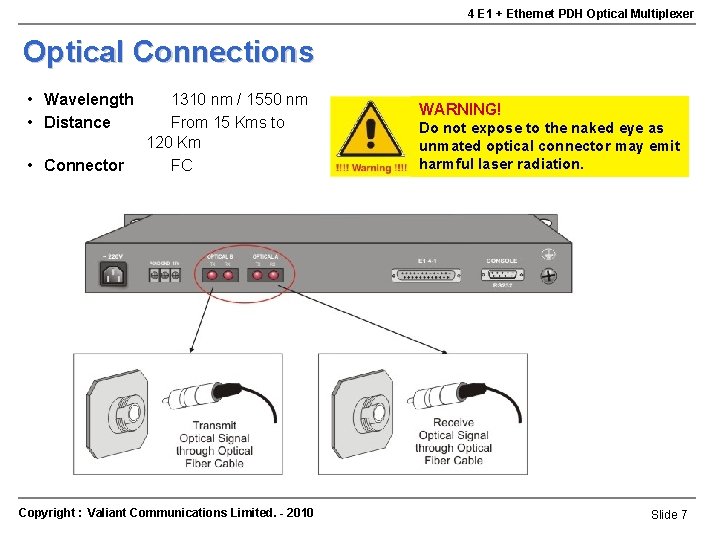

4 E 1 + Ethernet PDH Optical Multiplexer Optical Connections • Wavelength • Distance • Connector 1310 nm / 1550 nm From 15 Kms to 120 Km FC Copyright : Valiant Communications Limited. - 2010 WARNING! Do not expose to the naked eye as unmated optical connector may emit harmful laser radiation. Slide 7

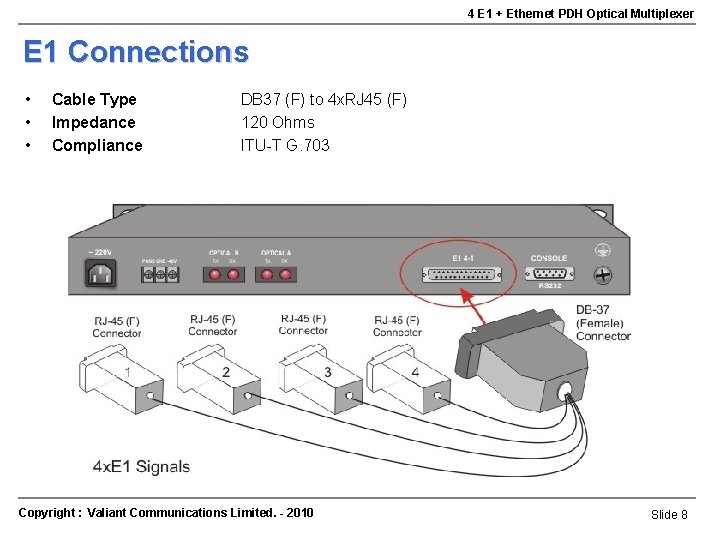

4 E 1 + Ethernet PDH Optical Multiplexer E 1 Connections • • • Cable Type Impedance Compliance DB 37 (F) to 4 x. RJ 45 (F) 120 Ohms ITU-T G. 703 Copyright : Valiant Communications Limited. - 2010 Slide 8

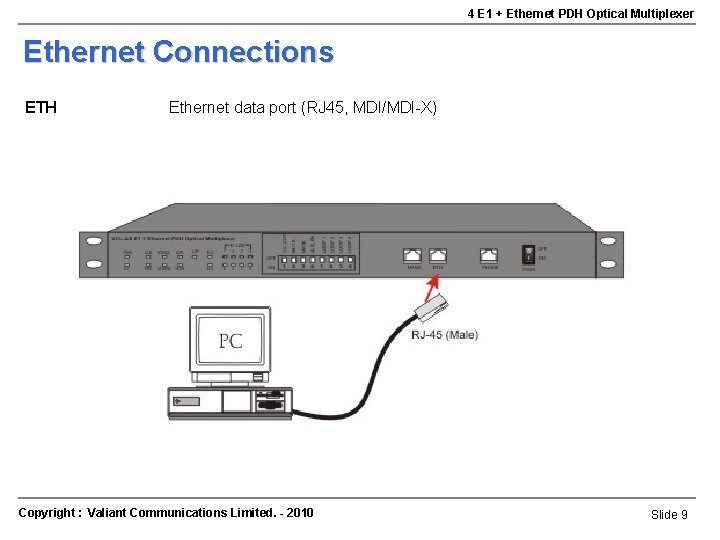

4 E 1 + Ethernet PDH Optical Multiplexer Ethernet Connections ETH Ethernet data port (RJ 45, MDI/MDI-X) Copyright : Valiant Communications Limited. - 2010 Slide 9

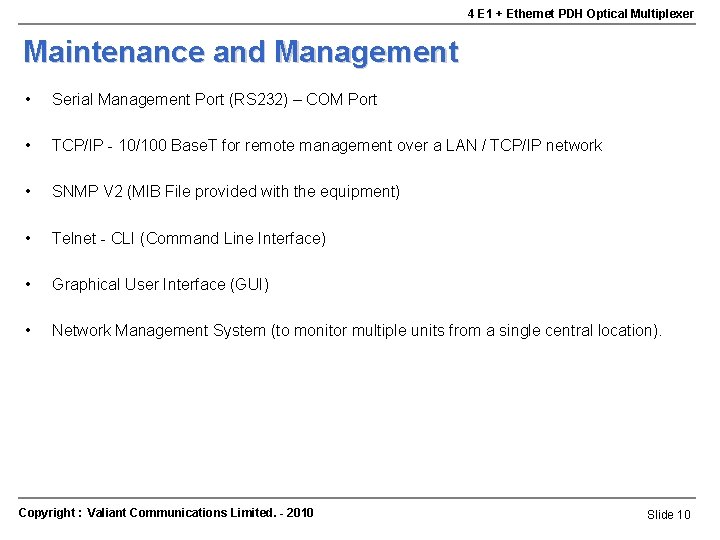

4 E 1 + Ethernet PDH Optical Multiplexer Maintenance and Management • Serial Management Port (RS 232) – COM Port • TCP/IP - 10/100 Base. T for remote management over a LAN / TCP/IP network • SNMP V 2 (MIB File provided with the equipment) • Telnet - CLI (Command Line Interface) • Graphical User Interface (GUI) • Network Management System (to monitor multiple units from a single central location). Copyright : Valiant Communications Limited. - 2010 Slide 10

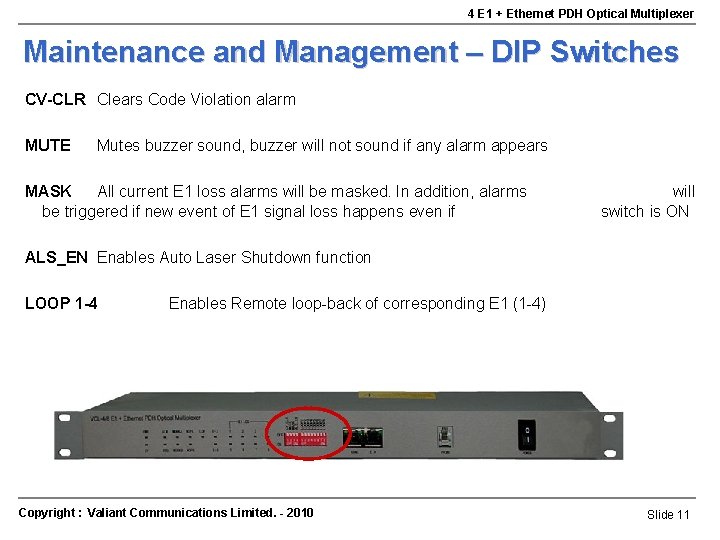

4 E 1 + Ethernet PDH Optical Multiplexer Maintenance and Management – DIP Switches CV-CLR Clears Code Violation alarm MUTE Mutes buzzer sound, buzzer will not sound if any alarm appears MASK All current E 1 loss alarms will be masked. In addition, alarms be triggered if new event of E 1 signal loss happens even if will switch is ON ALS_EN Enables Auto Laser Shutdown function LOOP 1 -4 Enables Remote loop-back of corresponding E 1 (1 -4) Copyright : Valiant Communications Limited. - 2010 Slide 11

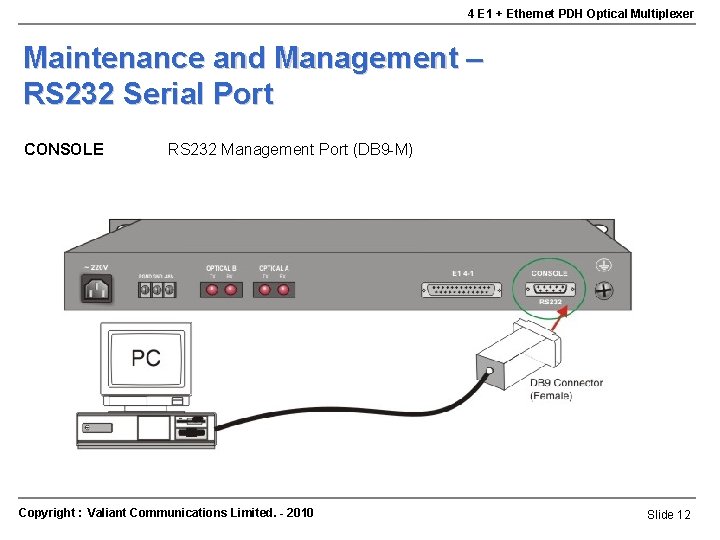

4 E 1 + Ethernet PDH Optical Multiplexer Maintenance and Management – RS 232 Serial Port CONSOLE RS 232 Management Port (DB 9 -M) Copyright : Valiant Communications Limited. - 2010 Slide 12

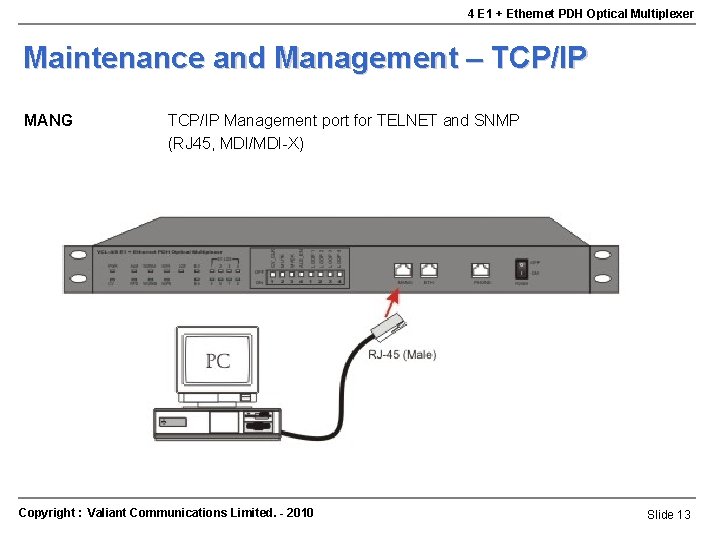

4 E 1 + Ethernet PDH Optical Multiplexer Maintenance and Management – TCP/IP MANG TCP/IP Management port for TELNET and SNMP (RJ 45, MDI/MDI-X) Copyright : Valiant Communications Limited. - 2010 Slide 13

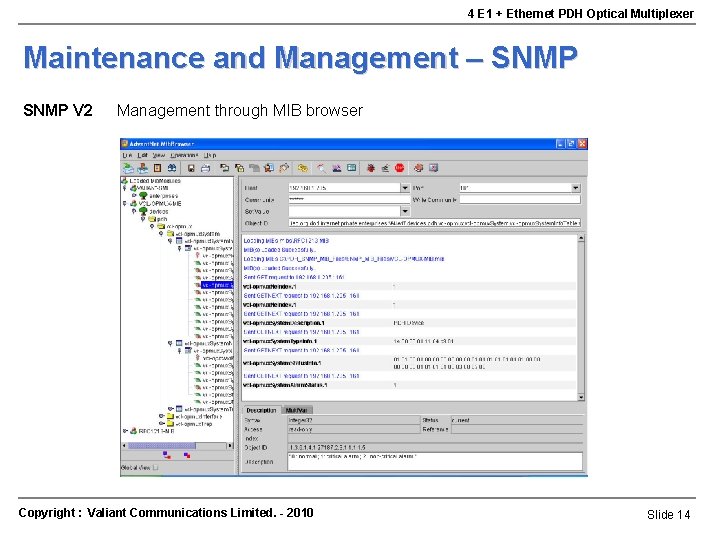

4 E 1 + Ethernet PDH Optical Multiplexer Maintenance and Management – SNMP V 2 Management through MIB browser Copyright : Valiant Communications Limited. - 2010 Slide 14

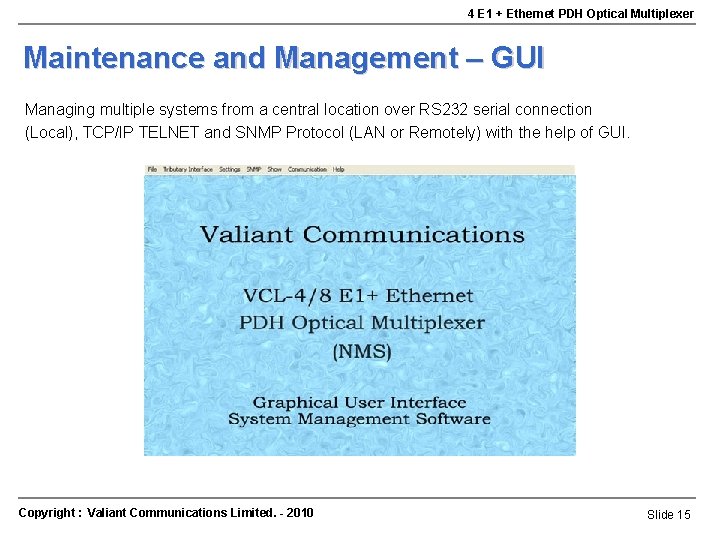

4 E 1 + Ethernet PDH Optical Multiplexer Maintenance and Management – GUI Managing multiple systems from a central location over RS 232 serial connection (Local), TCP/IP TELNET and SNMP Protocol (LAN or Remotely) with the help of GUI. Copyright : Valiant Communications Limited. - 2010 Slide 15

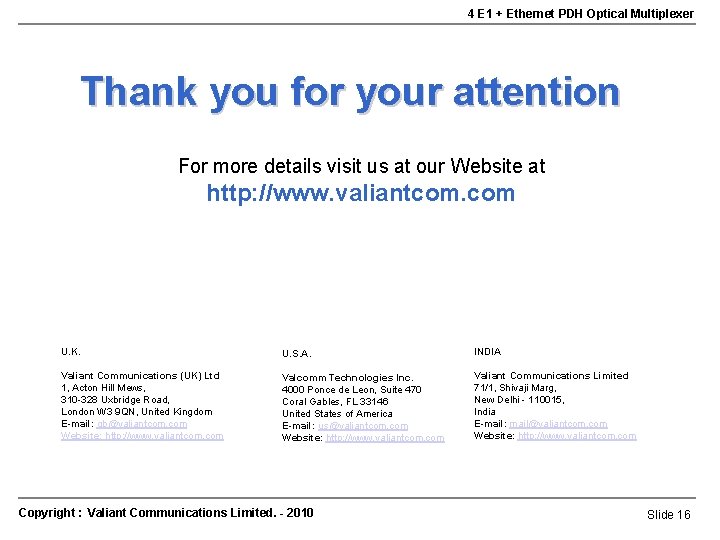

4 E 1 + Ethernet PDH Optical Multiplexer Thank you for your attention For more details visit us at our Website at http: //www. valiantcom. com U. K. U. S. A. INDIA Valiant Communications (UK) Ltd 1, Acton Hill Mews, 310 -328 Uxbridge Road, London W 3 9 QN, United Kingdom E-mail: gb@valiantcom. com Website: http: //www. valiantcom. com Valcomm Technologies Inc. 4000 Ponce de Leon, Suite 470 Coral Gables, FL 33146 United States of America E-mail: us@valiantcom. com Website: http: //www. valiantcom. com Valiant Communications Limited 71/1, Shivaji Marg, New Delhi - 110015, India E-mail: mail@valiantcom. com Website: http: //www. valiantcom. com Copyright : Valiant Communications Limited. - 2010 Slide 16
