4 D-VAR chemical data assimilation of ENVISAT chemical products (BASCOE): validation support issues Authors: D. Fonteyn, S. Bonjean, S. Chabrillat, F. Daerden, Q. Errera BIRA-IASB bascoe. oma. be (soon) Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 1

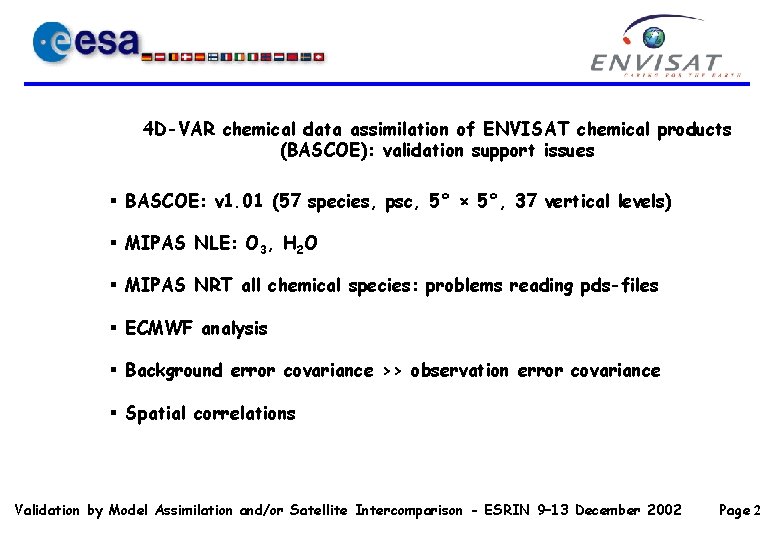

4 D-VAR chemical data assimilation of ENVISAT chemical products (BASCOE): validation support issues § BASCOE: v 1. 01 (57 species, psc, 5° × 5°, 37 vertical levels) § MIPAS NLE: O 3, H 2 O § MIPAS NRT all chemical species: problems reading pds-files § ECMWF analysis § Background error covariance ›› observation error covariance § Spatial correlations Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 2

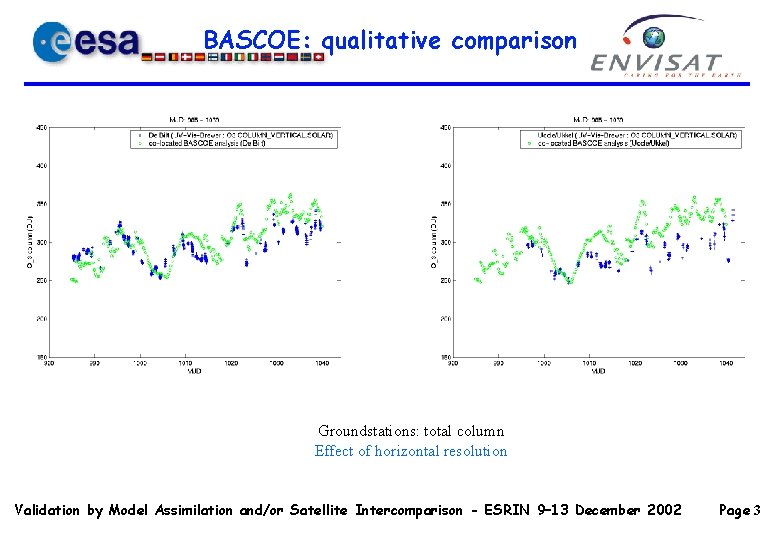

BASCOE: qualitative comparison Groundstations: total column Effect of horizontal resolution Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 3

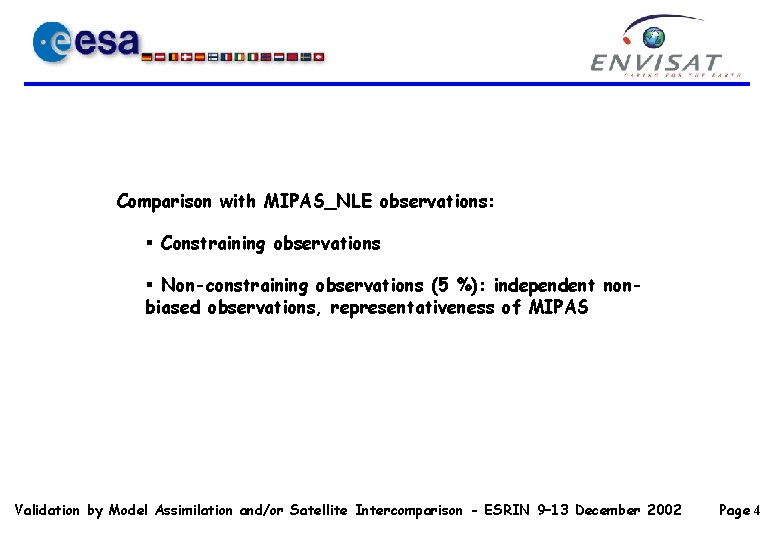

Comparison with MIPAS_NLE observations: § Constraining observations § Non-constraining observations (5 %): independent nonbiased observations, representativeness of MIPAS Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 4

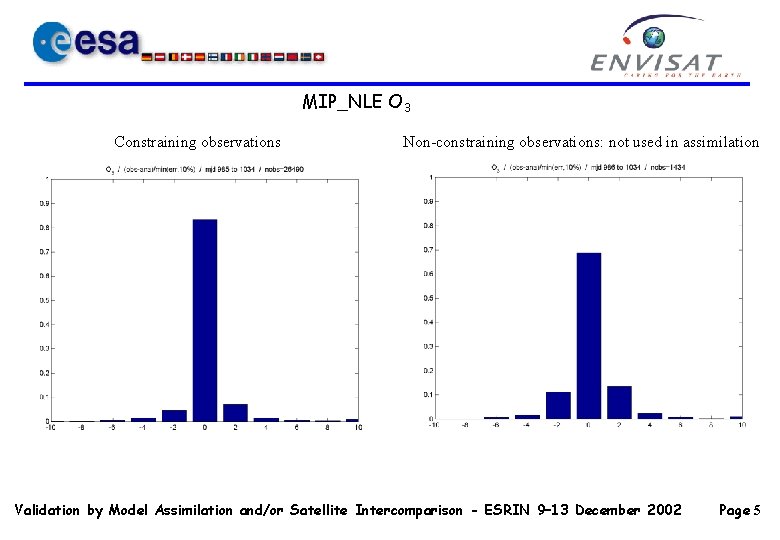

MIP_NLE O 3 Constraining observations Non-constraining observations: not used in assimilation Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 5

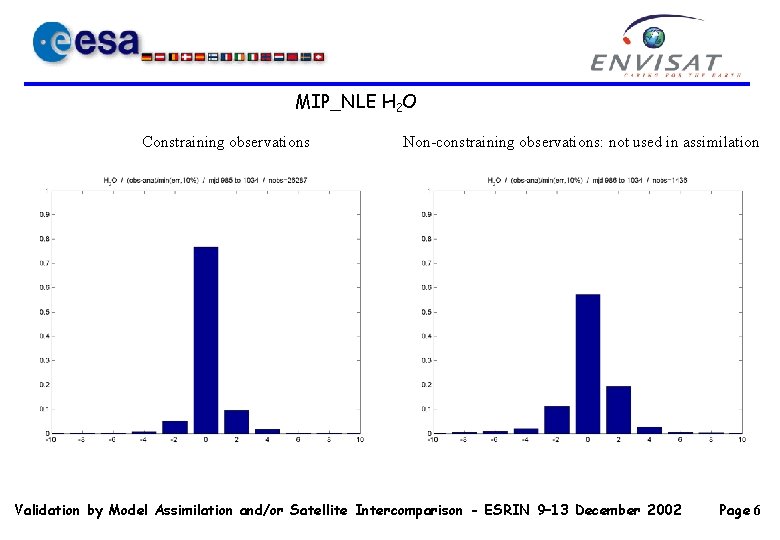

MIP_NLE H 2 O Constraining observations Non-constraining observations: not used in assimilation Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 6

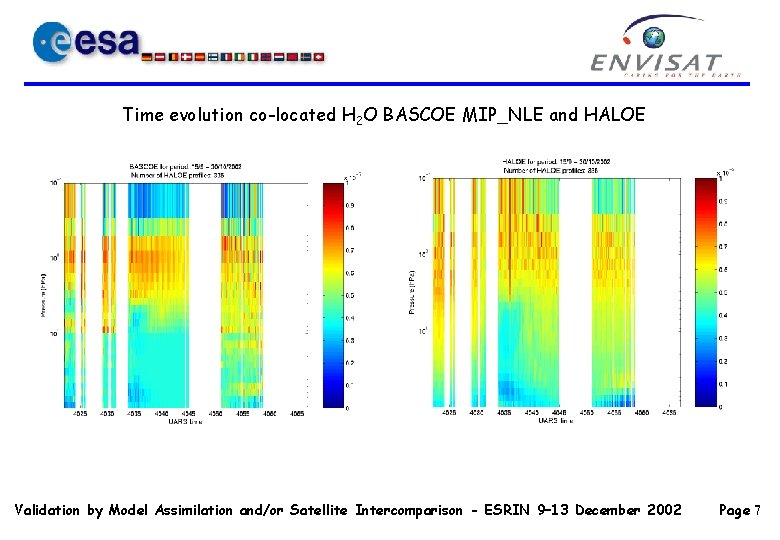

Time evolution co-located H 2 O BASCOE MIP_NLE and HALOE Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 7

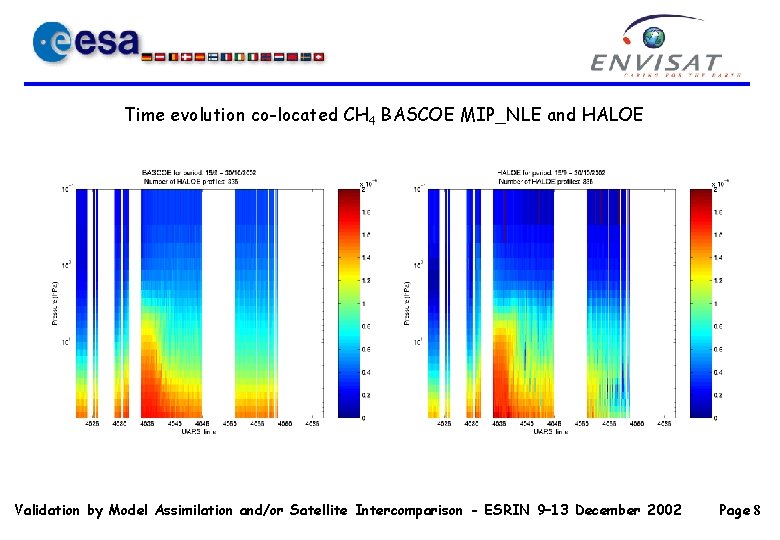

Time evolution co-located CH 4 BASCOE MIP_NLE and HALOE Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 8

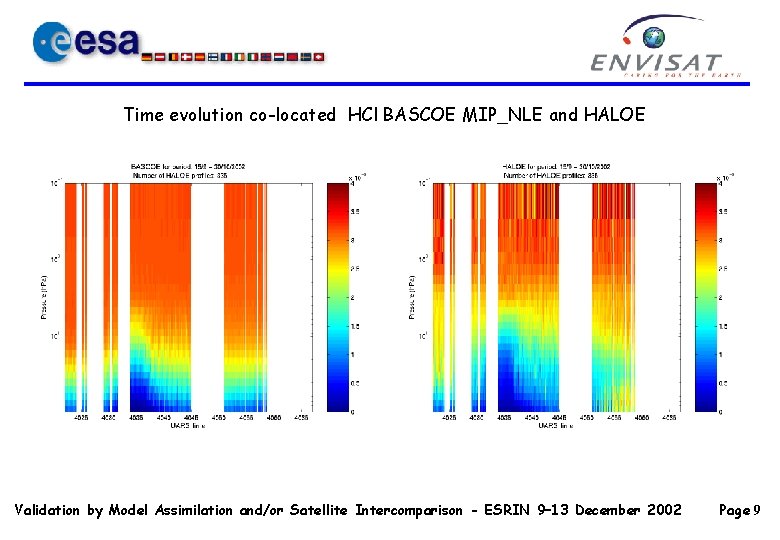

Time evolution co-located HCl BASCOE MIP_NLE and HALOE Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 9

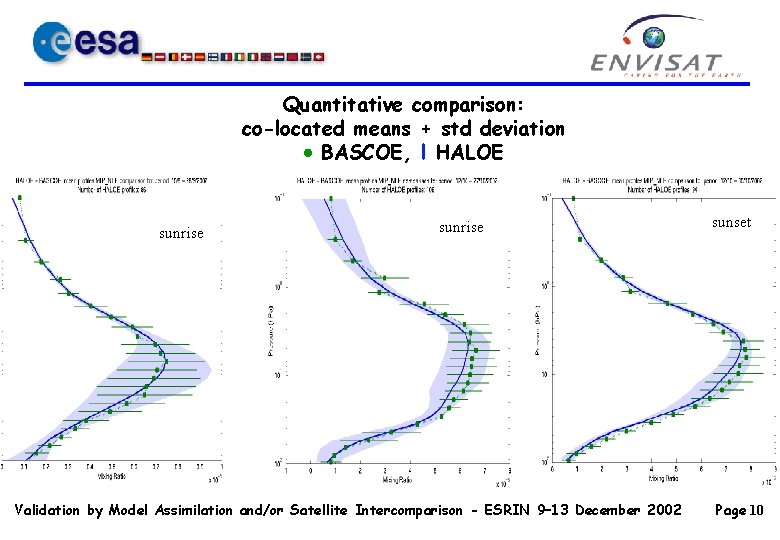

Quantitative comparison: co-located means + std deviation BASCOE, l HALOE sunrise Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 sunset Page 10

Quantitative comparison HALOE – BASCOE MIP_NLE: co-located mean difference + std deviation sunrise Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 sunset Page 11

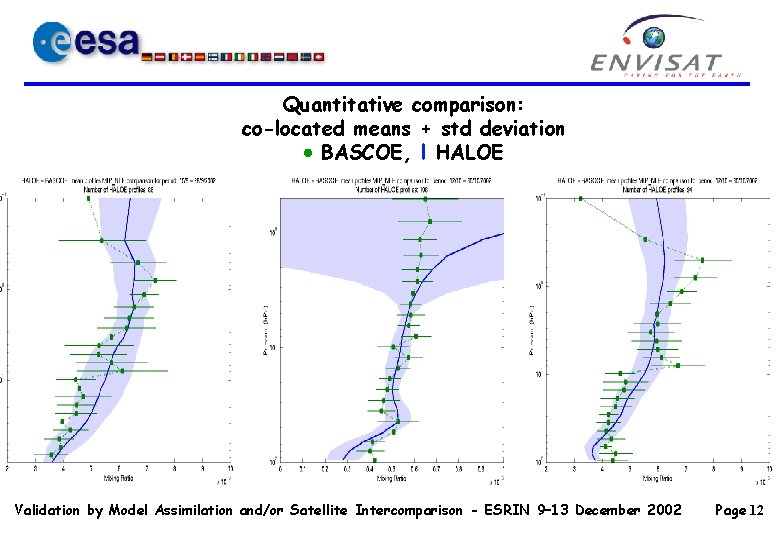

Quantitative comparison: co-located means + std deviation BASCOE, l HALOE Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 12

Quantitative comparison HALOE – BASCOE MIP_NLE: co-located mean difference + std deviation Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 13

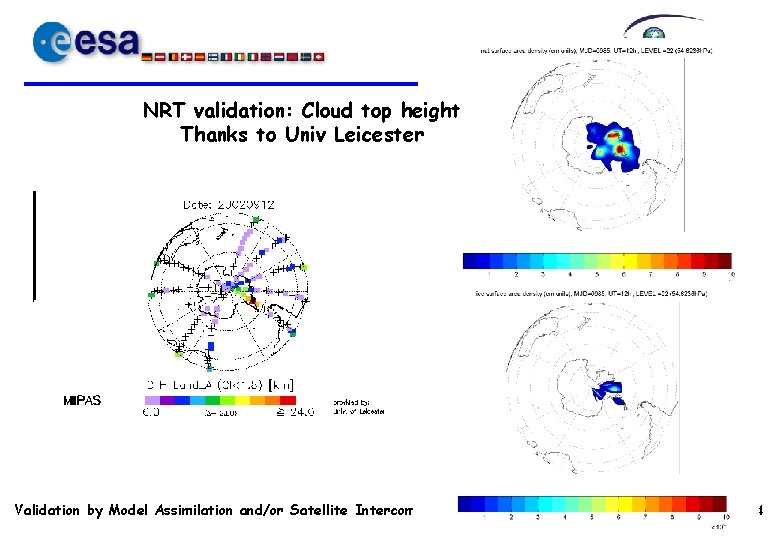

NRT validation: Cloud top height Thanks to Univ Leicester Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 14

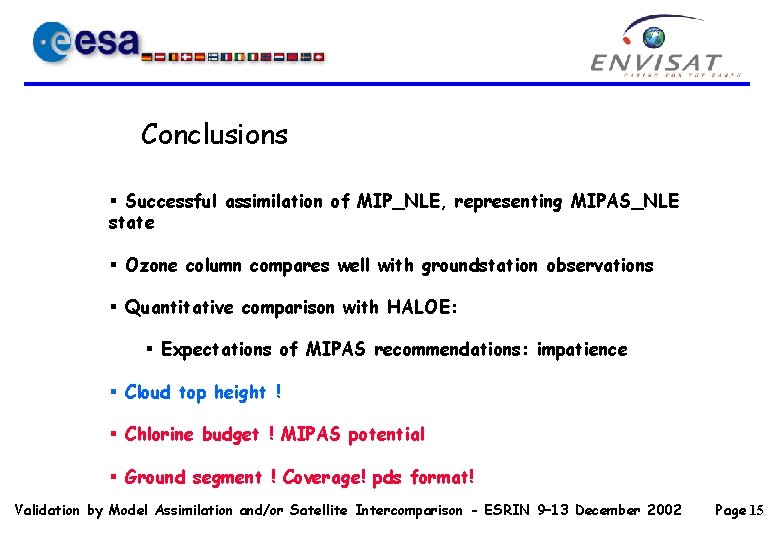

Conclusions § Successful assimilation of MIP_NLE, representing MIPAS_NLE state § Ozone column compares well with groundstation observations § Quantitative comparison with HALOE: § Expectations of MIPAS recommendations: impatience § Cloud top height ! § Chlorine budget ! MIPAS potential § Ground segment ! Coverage! pds format! Validation by Model Assimilation and/or Satellite Intercomparison - ESRIN 9– 13 December 2002 Page 15
