4 -3 Angle. Relationshipsinin. Triangles Holt. Geometry Mc. Dougal Geometry

4 -3 Angle. Relationshipsinin. Triangles Holt. Geometry Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Warm Up 1. Find the measure of exterior

4 -3 Angle Relationships in Triangles Warm Up 1. Find the measure of exterior DBA of BCD, if m DBC = 30°, m C= 70°, and m D = 80°. 150° 2. What is the complement of an angle with measure 17°? 73° 3. How many lines can be drawn through N parallel to MP? Why? 1; Parallel Post. Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Learning Targets I will find the measures of

4 -3 Angle Relationships in Triangles Learning Targets I will find the measures of interior and exterior angles of triangles. I will apply theorems about the interior and exterior angles of triangles. Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Vocabulary auxiliary line corollary interior exterior interior angle

4 -3 Angle Relationships in Triangles Vocabulary auxiliary line corollary interior exterior interior angle exterior angle remote interior angle Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Holt Mc. Dougal Geometry

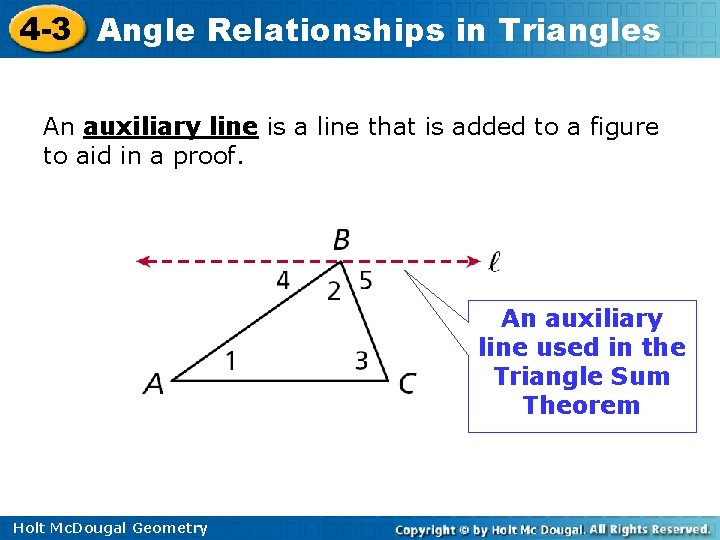

4 -3 Angle Relationships in Triangles An auxiliary line is a line that is

4 -3 Angle Relationships in Triangles An auxiliary line is a line that is added to a figure to aid in a proof. An auxiliary line used in the Triangle Sum Theorem Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Example 1 A: Application After an accident, the

4 -3 Angle Relationships in Triangles Example 1 A: Application After an accident, the positions of cars are measured by law enforcement to investigate the collision. Use the diagram drawn from the information collected to find m XYZ + m YZX + m ZXY = 180° m XYZ + 40 + 62 = 180 m XYZ + 102 = 180 m XYZ = 78° Holt Mc. Dougal Geometry Sum. Thm Substitute 40 for m YZX and 62 for m ZXY. Simplify. Subtract 102 from both sides.

4 -3 Angle Relationships in Triangles Example 1 B: Application After an accident, the

4 -3 Angle Relationships in Triangles Example 1 B: Application After an accident, the positions of cars are measured by law enforcement to investigate the collision. Use the diagram drawn from the information collected to find m YWZ. 118° Step 1 Find m WXY. m YXZ + m WXY = 180° 62 + m WXY = 180 m WXY = 118° Holt Mc. Dougal Geometry Lin. Pair Thm. and Add. Post. Substitute 62 for m YXZ. Subtract 62 from both sides.

4 -3 Angle Relationships in Triangles Example 1 B: Application Continued After an accident,

4 -3 Angle Relationships in Triangles Example 1 B: Application Continued After an accident, the positions of cars are measured by law enforcement to investigate the collision. Use the diagram drawn from the information collected to find m YWZ. 118° Step 2 Find m YWZ. m YWX + m WXY + m XYW = 180° Sum. Thm m YWX + 118 + 12 = 180 Substitute 118 for m WXY and 12 for m XYW. m YWX + 130 = 180 Simplify. m YWX = 50° Subtract 130 from both sides. Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles A corollary is a theorem whose proof follows

4 -3 Angle Relationships in Triangles A corollary is a theorem whose proof follows directly from another theorem. Here are two corollaries to the Triangle Sum Theorem. Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Example 2: Finding Angle Measures in Right Triangles

4 -3 Angle Relationships in Triangles Example 2: Finding Angle Measures in Right Triangles One of the acute angles in a right triangle measures 2 x°. What is the measure of the other acute angle? Let the acute angles be A and B, with m A = 2 x°. m A + m B = 90° 2 x + m B = 90 Acute s of rt. are comp. Substitute 2 x for m A. m B = (90 – 2 x)° Subtract 2 x from both sides. Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Check It Out! The measure of one of

4 -3 Angle Relationships in Triangles Check It Out! The measure of one of the acute angles in a right triangle is x°. What is the measure of the other acute angle? Let the acute angles be A and B, with m A = x°. m A + m B = 90° x + m B = 90 m B = (90 – x)° Holt Mc. Dougal Geometry Acute s of rt. are comp. Substitute x for m A. Subtract x from both sides.

4 -3 Angle Relationships in Triangles The interior is the set of all points

4 -3 Angle Relationships in Triangles The interior is the set of all points inside the figure. The exterior is the set of all points outside the figure. Exterior Interior Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles An interior angle is formed by two sides

4 -3 Angle Relationships in Triangles An interior angle is formed by two sides of a triangle. An exterior angle is formed by one side of the triangle and extension of an adjacent side. 4 is an exterior angle. Exterior Interior 3 is an interior angle. Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Each exterior angle has two remote interior angles.

4 -3 Angle Relationships in Triangles Each exterior angle has two remote interior angles. A remote interior angle is an interior angle that is not adjacent to the exterior angle. 4 is an exterior angle. Exterior Interior The remote interior angles of 4 are 1 and 2. 3 is an interior angle. Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Example 3: Applying the Exterior Angle Theorem Find

4 -3 Angle Relationships in Triangles Example 3: Applying the Exterior Angle Theorem Find m B. m A + m B = m BCD Ext. Thm. 15 + 2 x + 3 = 5 x – 60 Substitute 15 for m A, 2 x + 3 for m B, and 5 x – 60 for m BCD. 2 x + 18 = 5 x – 60 78 = 3 x Simplify. Subtract 2 x and add 60 to both sides. Divide by 3. 26 = x m B = 2 x + 3 = 2(26) + 3 = 55° Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Check It Out! Example 3 Find m ACD

4 -3 Angle Relationships in Triangles Check It Out! Example 3 Find m ACD = m A + m B Ext. Thm. 6 z – 9 = 2 z + 1 + 90 Substitute 6 z – 9 for m ACD, 2 z + 1 for m A, and 90 for m B. 6 z – 9 = 2 z + 91 Simplify. 4 z = 100 Subtract 2 z and add 9 to both sides. Divide by 4. z = 25 m ACD = 6 z – 9 = 6(25) – 9 = 141° Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Example 4: Applying the Third Angles Theorem Find

4 -3 Angle Relationships in Triangles Example 4: Applying the Third Angles Theorem Find m K and m J. K J m K = m J Third s Thm. Def. of s. 4 y 2 = 6 y 2 – 40 Substitute 4 y 2 for m K and 6 y 2 – 40 for m J. – 2 y 2 = – 40 y 2 = 20 Subtract 6 y 2 from both sides. Divide both sides by -2. So m K = 4 y 2 = 4(20) = 80°. Since m J = m K, m J = 80°. Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Check It Out! Example 4 Find m P

4 -3 Angle Relationships in Triangles Check It Out! Example 4 Find m P and m T. P T m P = m T Third s Thm. Def. of s. 2 x 2 = 4 x 2 – 32 Substitute 2 x 2 for m P and 4 x 2 – 32 for m T. – 2 x 2 = – 32 x 2 = 16 Subtract 4 x 2 from both sides. Divide both sides by -2. So m P = 2 x 2 = 2(16) = 32°. Since m P = m T, m T = 32°. Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Homework Pg 236 -237, #16 – 22, 29

4 -3 Angle Relationships in Triangles Homework Pg 236 -237, #16 – 22, 29 – 32 Holt Mc. Dougal Geometry

4 -3 Angle Relationships in Triangles Lesson Quiz: Part I 1. The measure of

4 -3 Angle Relationships in Triangles Lesson Quiz: Part I 1. The measure of one of the acute angles in a right triangle is 56 2 °. What is the measure of the other 3 1 acute angle? 33 3 ° 2. Find m ABD. 3. Find m N and m P. 124° Holt Mc. Dougal Geometry 75°; 75°

4 -3 Angle Relationships in Triangles Lesson Quiz: Part II 4. The diagram is

4 -3 Angle Relationships in Triangles Lesson Quiz: Part II 4. The diagram is a map showing John's house, Kay's house, and the grocery store. What is the angle the two houses make with the store? 30° Holt Mc. Dougal Geometry
