4. 12 Data Representation Two’s Complement & Binary Arithmetic 1/29/2022 1

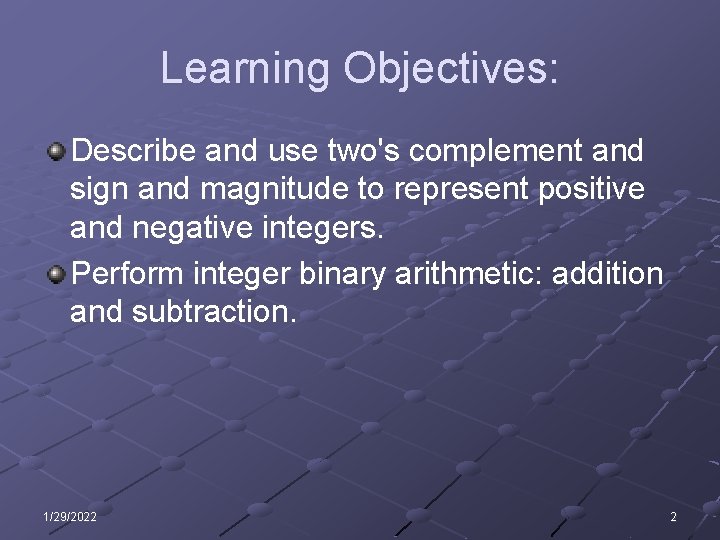

Learning Objectives: Describe and use two's complement and sign and magnitude to represent positive and negative integers. Perform integer binary arithmetic: addition and subtraction. 1/29/2022 2

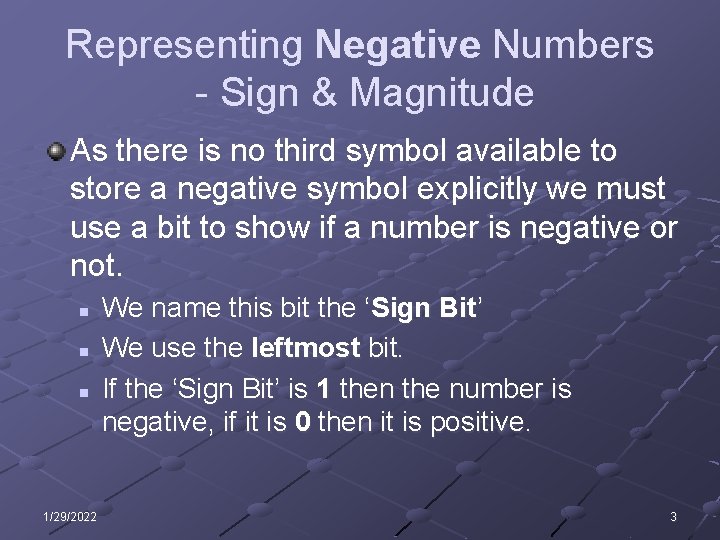

Representing Negative Numbers - Sign & Magnitude As there is no third symbol available to store a negative symbol explicitly we must use a bit to show if a number is negative or not. n n n 1/29/2022 We name this bit the ‘Sign Bit’ We use the leftmost bit. If the ‘Sign Bit’ is 1 then the number is negative, if it is 0 then it is positive. 3

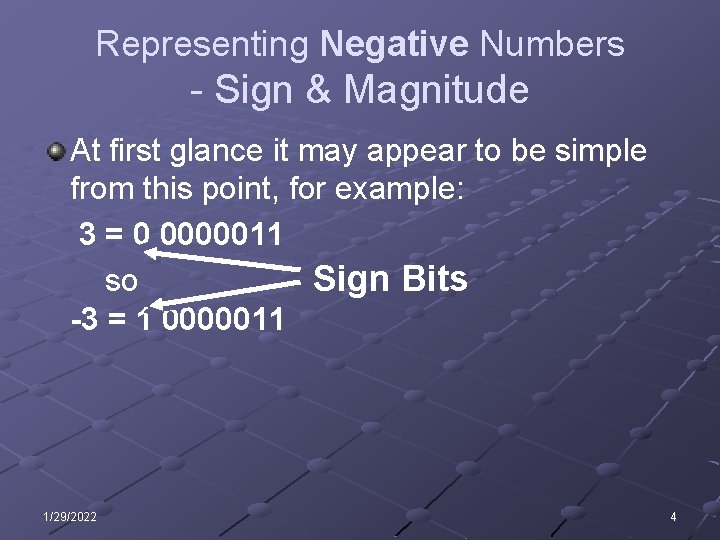

Representing Negative Numbers - Sign & Magnitude At first glance it may appear to be simple from this point, for example: 3 = 0 0000011 Sign Bits so -3 = 1 0000011 1/29/2022 4

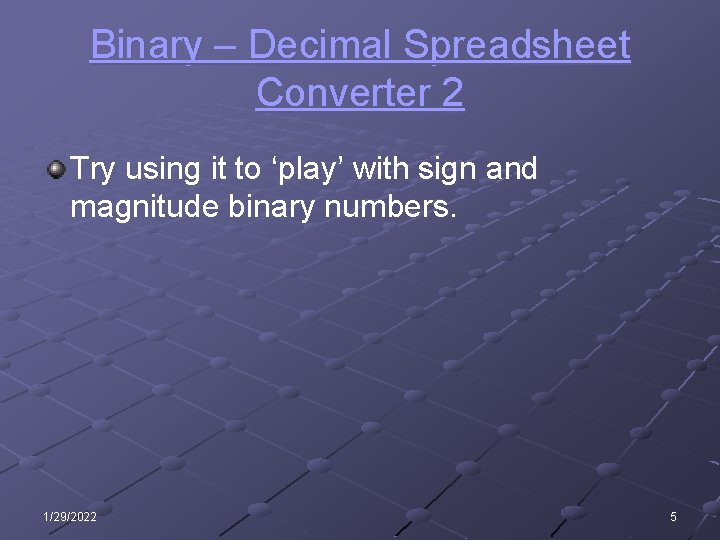

Binary – Decimal Spreadsheet Converter 2 Try using it to ‘play’ with sign and magnitude binary numbers. 1/29/2022 5

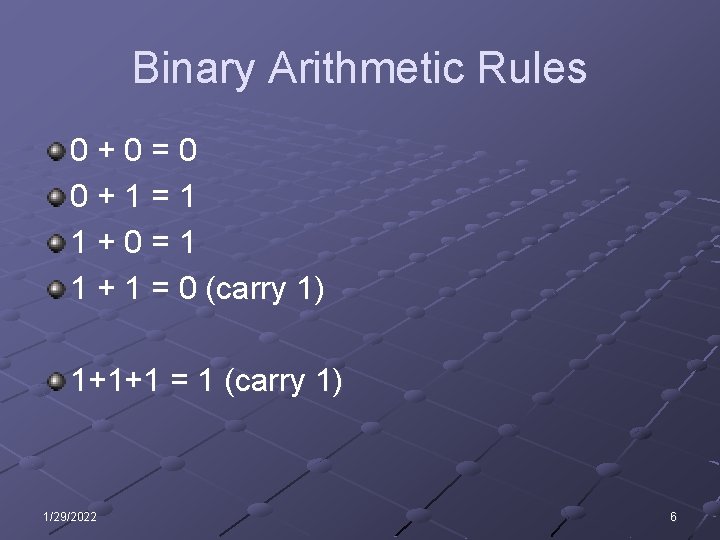

Binary Arithmetic Rules 0+0=0 0+1=1 1+0=1 1 + 1 = 0 (carry 1) 1+1+1 = 1 (carry 1) 1/29/2022 6

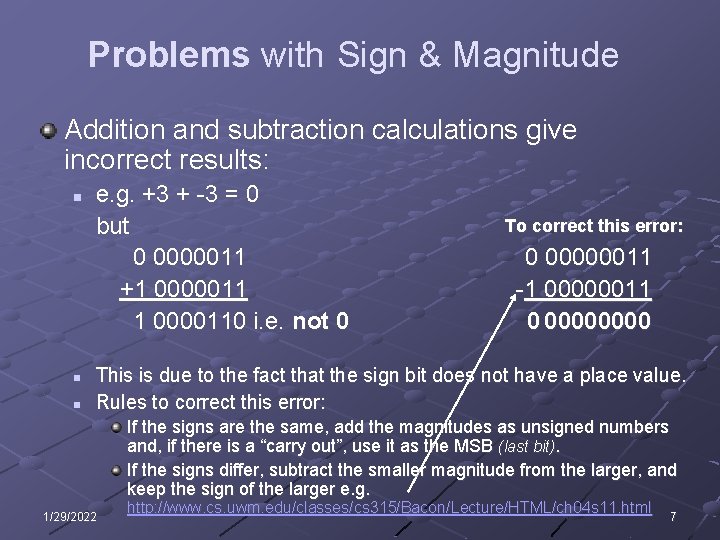

Problems with Sign & Magnitude Addition and subtraction calculations give incorrect results: n n n e. g. +3 + -3 = 0 but 0 0000011 +1 0000011 1 0000110 i. e. not 0 To correct this error: 0 00000011 -1 00000011 0 0000 This is due to the fact that the sign bit does not have a place value. Rules to correct this error: If the signs are the same, add the magnitudes as unsigned numbers and, if there is a “carry out”, use it as the MSB (last bit). If the signs differ, subtract the smaller magnitude from the larger, and keep the sign of the larger e. g. 1/29/2022 http: //www. cs. uwm. edu/classes/cs 315/Bacon/Lecture/HTML/ch 04 s 11. html 7

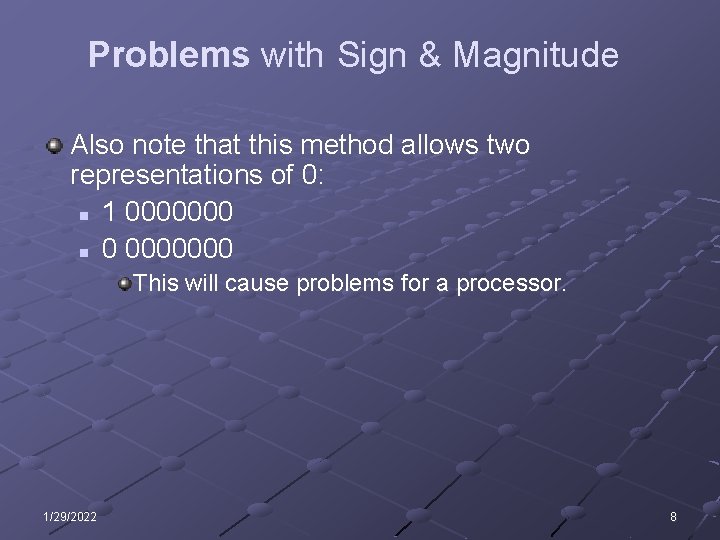

Problems with Sign & Magnitude Also note that this method allows two representations of 0: n 1 0000000 n 0 0000000 This will cause problems for a processor. 1/29/2022 8

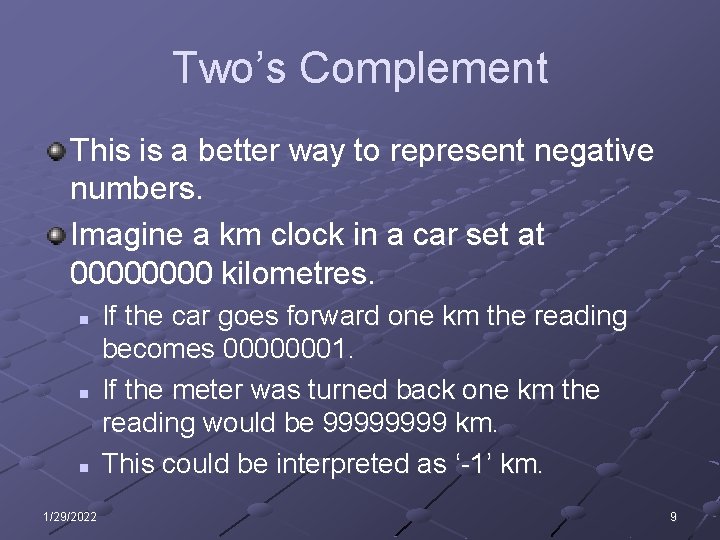

Two’s Complement This is a better way to represent negative numbers. Imagine a km clock in a car set at 0000 kilometres. n n n 1/29/2022 If the car goes forward one km the reading becomes 00000001. If the meter was turned back one km the reading would be 9999 km. This could be interpreted as ‘-1’ km. 9

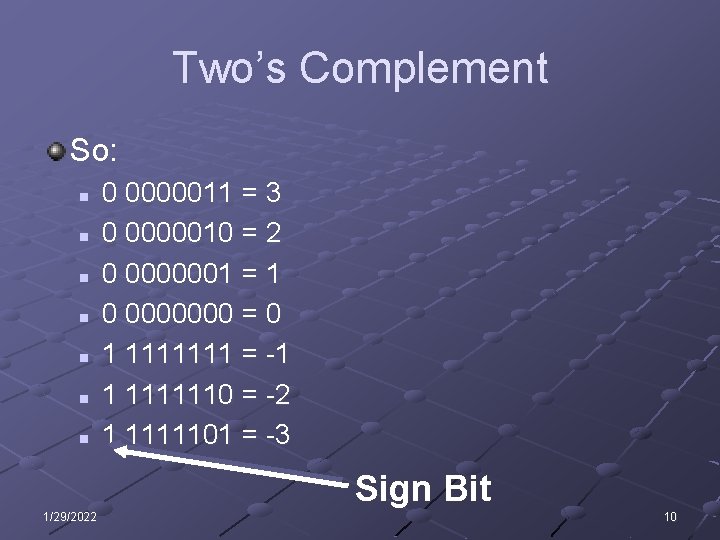

Two’s Complement So: n n n n 0 0000011 = 3 0 0000010 = 2 0 0000001 = 1 0 0000000 = 0 1 1111111 = -1 1 1111110 = -2 1 1111101 = -3 Sign Bit 1/29/2022 10

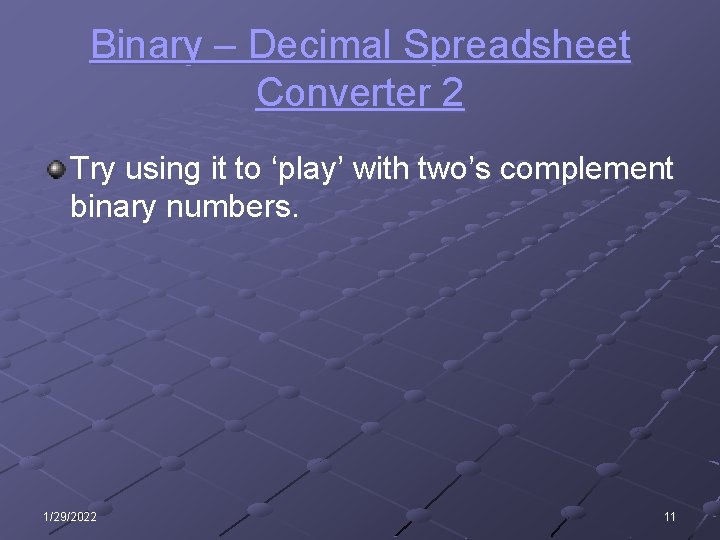

Binary – Decimal Spreadsheet Converter 2 Try using it to ‘play’ with two’s complement binary numbers. 1/29/2022 11

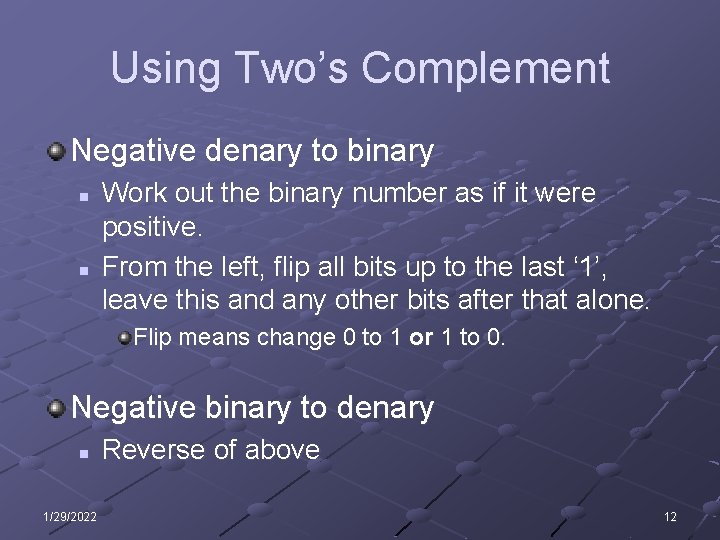

Using Two’s Complement Negative denary to binary n n Work out the binary number as if it were positive. From the left, flip all bits up to the last ‘ 1’, leave this and any other bits after that alone. Flip means change 0 to 1 or 1 to 0. Negative binary to denary n 1/29/2022 Reverse of above 12

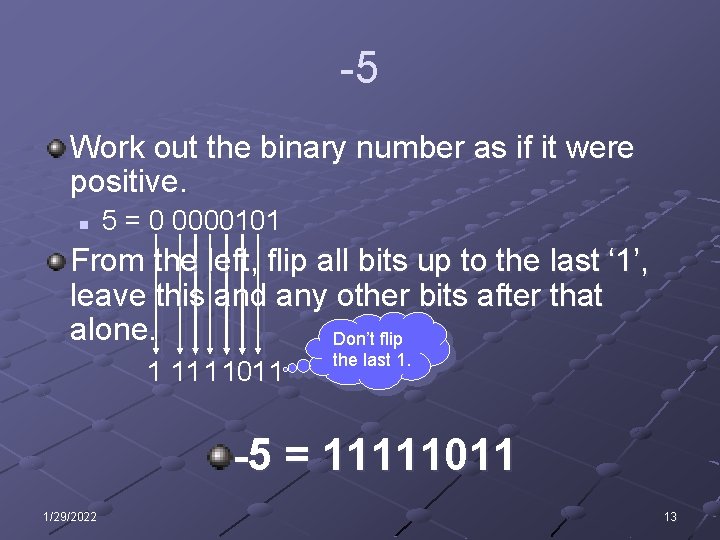

-5 Work out the binary number as if it were positive. n 5 = 0 0000101 From the left, flip all bits up to the last ‘ 1’, leave this and any other bits after that alone. Don’t flip 1 11 1 101 1 the last 1. -5 = 11111011 1/29/2022 13

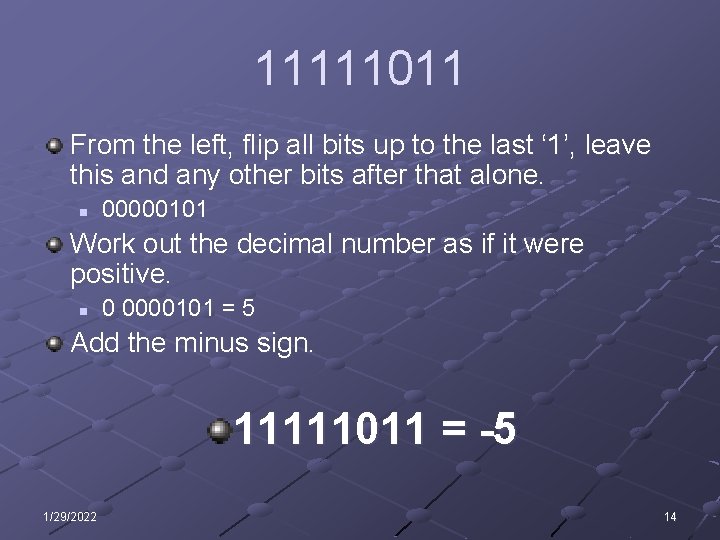

11111011 From the left, flip all bits up to the last ‘ 1’, leave this and any other bits after that alone. n 00000101 Work out the decimal number as if it were positive. n 0 0000101 = 5 Add the minus sign. 11111011 = -5 1/29/2022 14

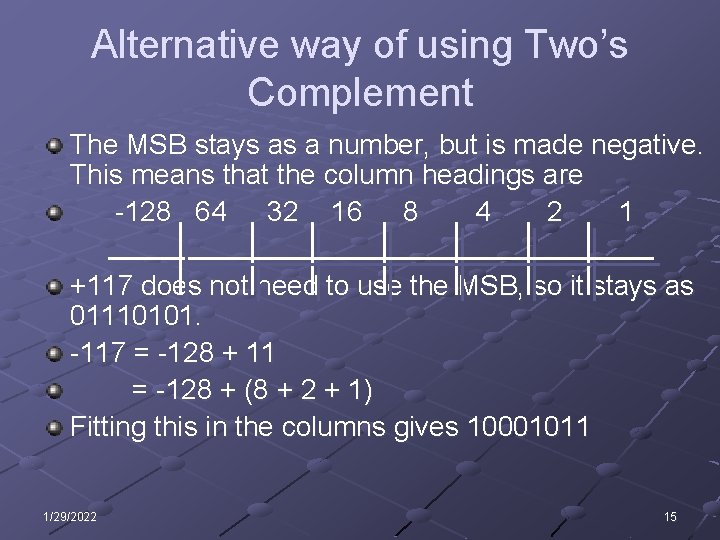

Alternative way of using Two’s Complement The MSB stays as a number, but is made negative. This means that the column headings are -128 64 32 16 8 4 2 1 +117 does not need to use the MSB, so it stays as 01110101. -117 = -128 + 11 = -128 + (8 + 2 + 1) Fitting this in the columns gives 10001011 1/29/2022 15

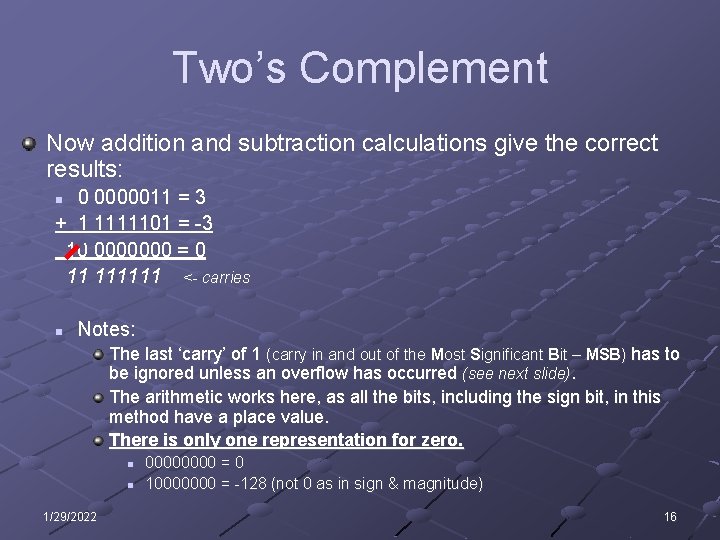

Two’s Complement Now addition and subtraction calculations give the correct results: 0 0000011 = 3 + 1 1111101 = -3 10 0000000 = 0 11 111111 <- carries n n Notes: The last ‘carry’ of 1 (carry in and out of the Most Significant Bit – MSB) has to be ignored unless an overflow has occurred (see next slide). The arithmetic works here, as all the bits, including the sign bit, in this method have a place value. There is only one representation for zero. n n 1/29/2022 0000 = 0 10000000 = -128 (not 0 as in sign & magnitude) 16

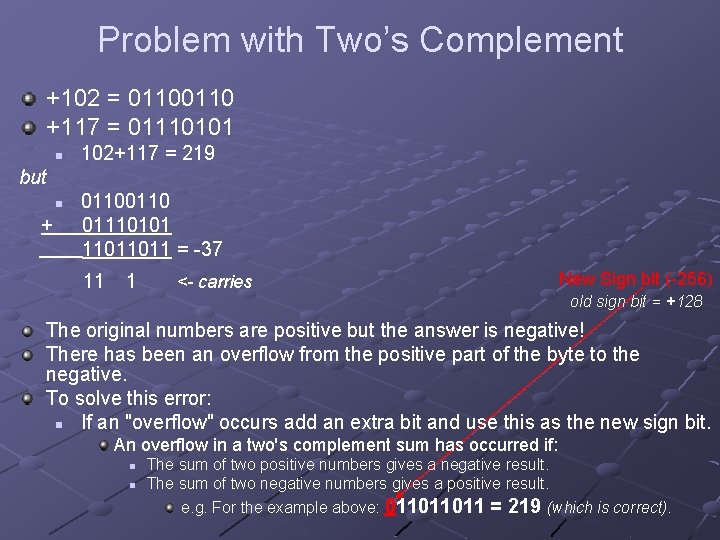

Problem with Two’s Complement +102 = 0110 +117 = 01110101 n 102+117 = 219 but n + 0110 01110101 11011011 = -37 11 1 <- carries New Sign bit (-256) old sign bit = +128 The original numbers are positive but the answer is negative! There has been an overflow from the positive part of the byte to the negative. To solve this error: n If an "overflow" occurs add an extra bit and use this as the new sign bit. An overflow in a two's complement sum has occurred if: n n The sum of two positive numbers gives a negative result. The sum of two negative numbers gives a positive result. e. g. For the example above: 011011011 = 219 (which is correct).

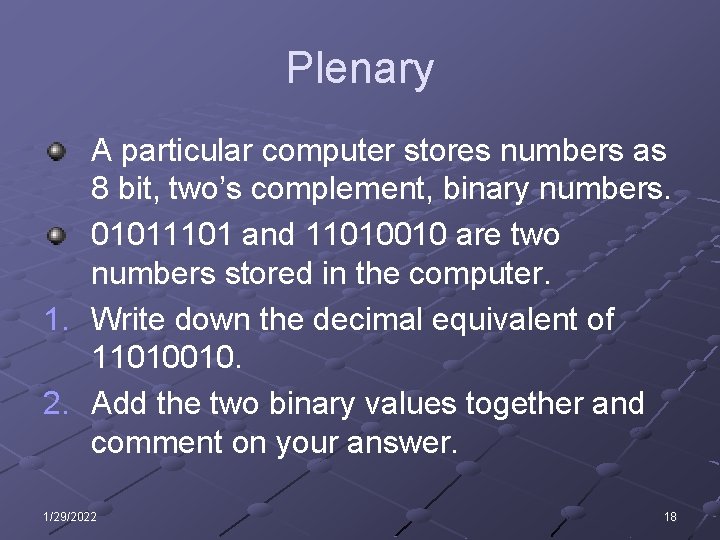

Plenary A particular computer stores numbers as 8 bit, two’s complement, binary numbers. 01011101 and 11010010 are two numbers stored in the computer. 1. Write down the decimal equivalent of 11010010. 2. Add the two binary values together and comment on your answer. 1/29/2022 18

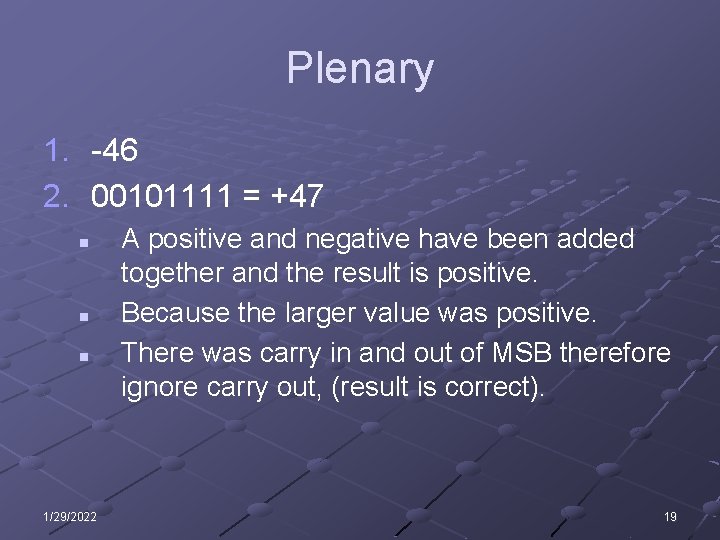

Plenary 1. -46 2. 00101111 = +47 n n n 1/29/2022 A positive and negative have been added together and the result is positive. Because the larger value was positive. There was carry in and out of MSB therefore ignore carry out, (result is correct). 19
