4 0 PI Process Book Copyright 2010 OSIsoft

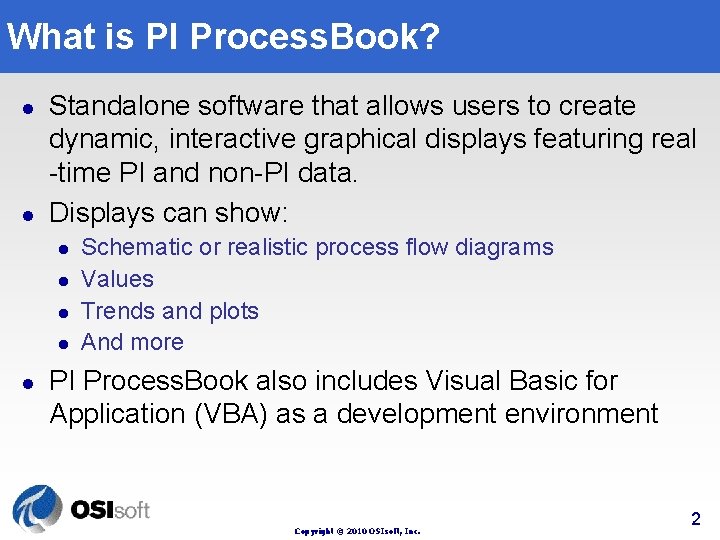

What is PI Process. Book? l l Standalone software that allows users to create dynamic, interactive graphical displays featuring real -time PI and non-PI data. Displays can show: l l l Schematic or realistic process flow diagrams Values Trends and plots And more PI Process. Book also includes Visual Basic for Application (VBA) as a development environment Copyright © 2010 OSIsoft, Inc. 2

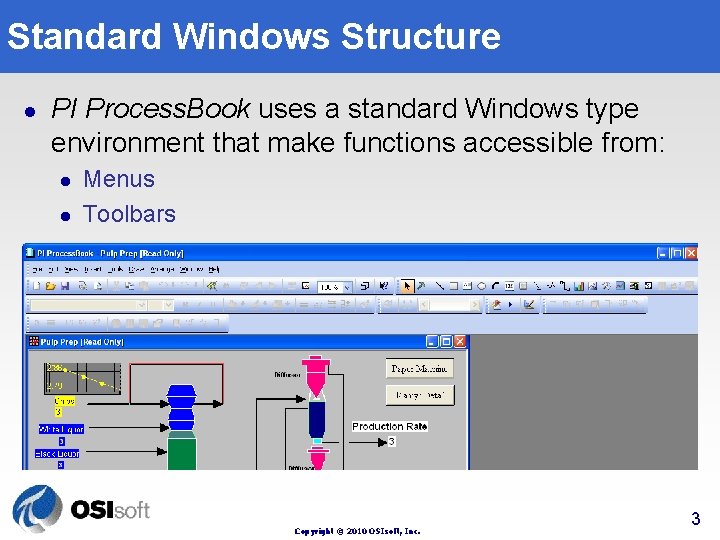

Standard Windows Structure l PI Process. Book uses a standard Windows type environment that

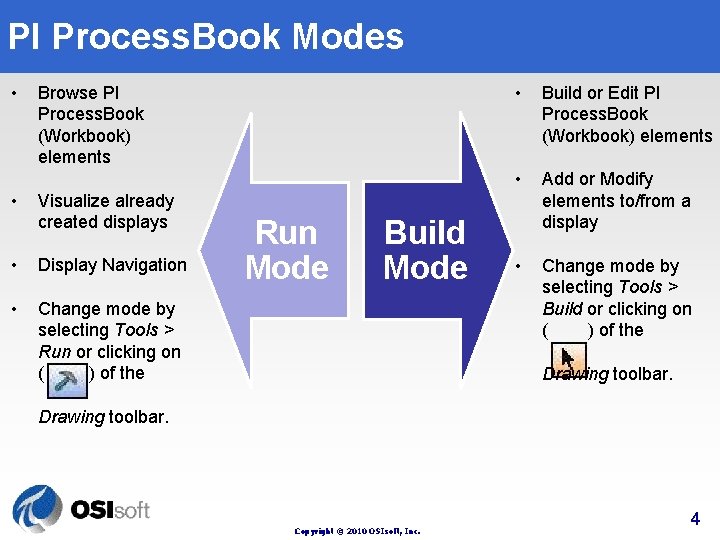

PI Process. Book Modes • • Browse PI Process. Book (Workbook) elements Visualize already created displays • Display Navigation • Change mode by selecting Tools > Run or clicking on ( ) of the Run Mode Build Mode • Build or Edit PI Process. Book (Workbook) elements • Add or Modify elements to/from a display • Change mode by selecting Tools > Build or clicking on ( ) of the Drawing toolbar. Copyright © 2010 OSIsoft, Inc. 4

3. 2. 1 Trend Navigation Copyright © 2010 OSIsoft, Inc.

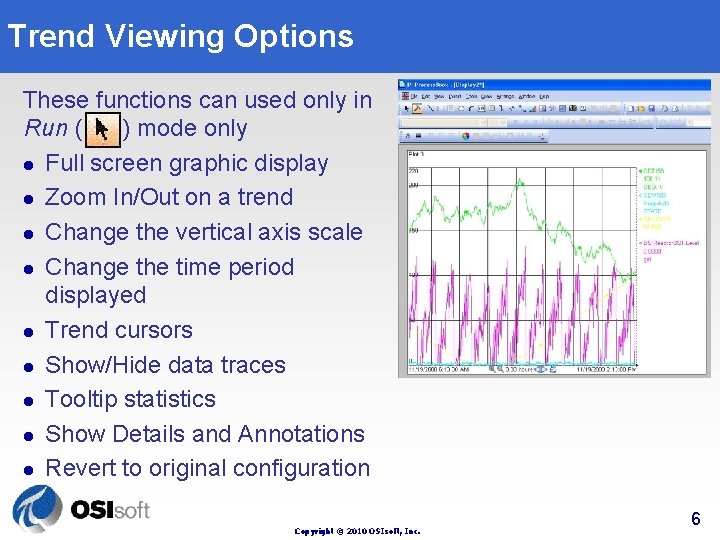

Trend Viewing Options These functions can used only in Run ( ) mode only l Full screen graphic display l Zoom In/Out on a trend l Change the vertical axis scale l Change the time period displayed l Trend cursors l Show/Hide data traces l Tooltip statistics l Show Details and Annotations l Revert to original configuration Copyright © 2010 OSIsoft, Inc. 6

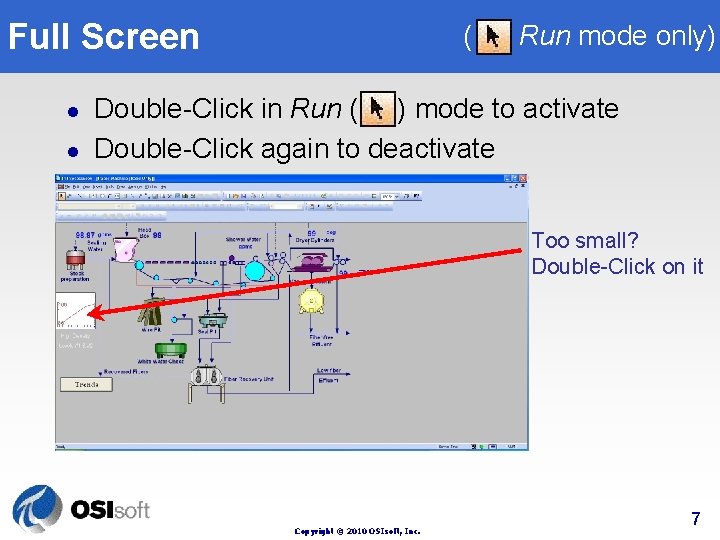

Full Screen l l ( Run mode only) Double-Click in Run ( ) mode

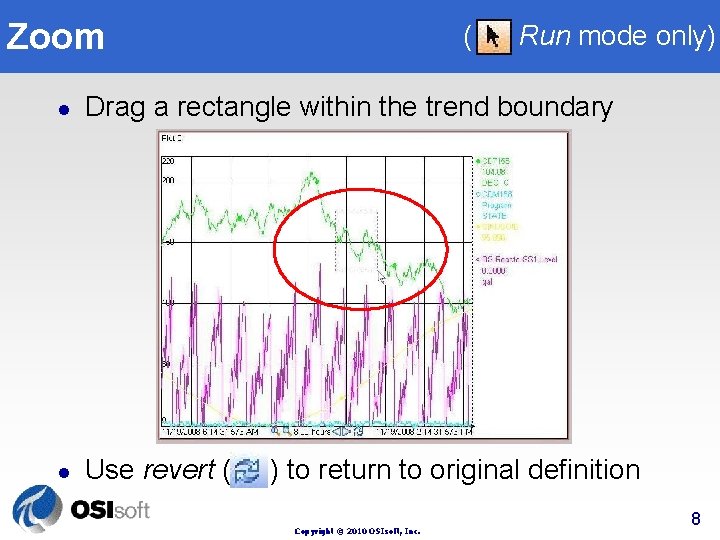

Zoom ( Run mode only) l Drag a rectangle within the trend boundary l

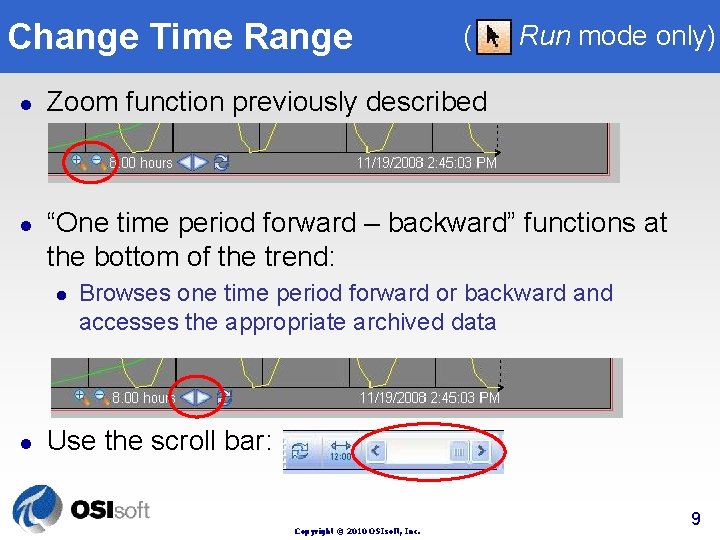

Change Time Range l l Run mode only) Zoom function previously described “One time period forward – backward” functions at the bottom of the trend: l l ( Browses one time period forward or backward and accesses the appropriate archived data Use the scroll bar: Copyright © 2010 OSIsoft, Inc. 9

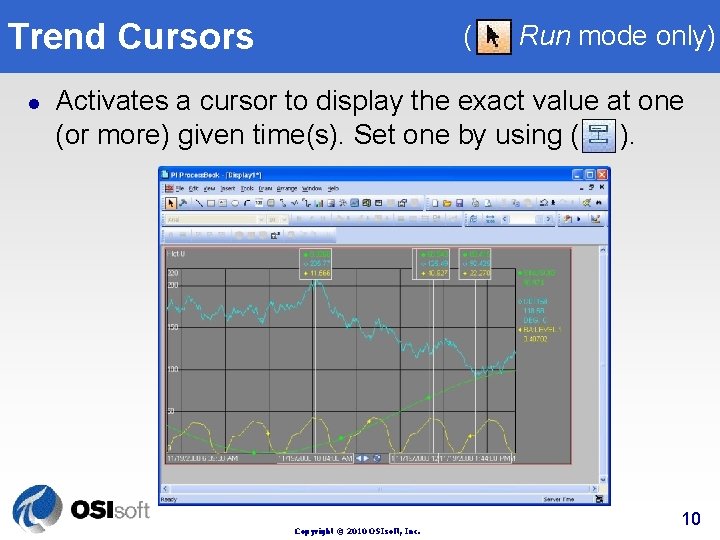

Trend Cursors l ( Run mode only) Activates a cursor to display the exact

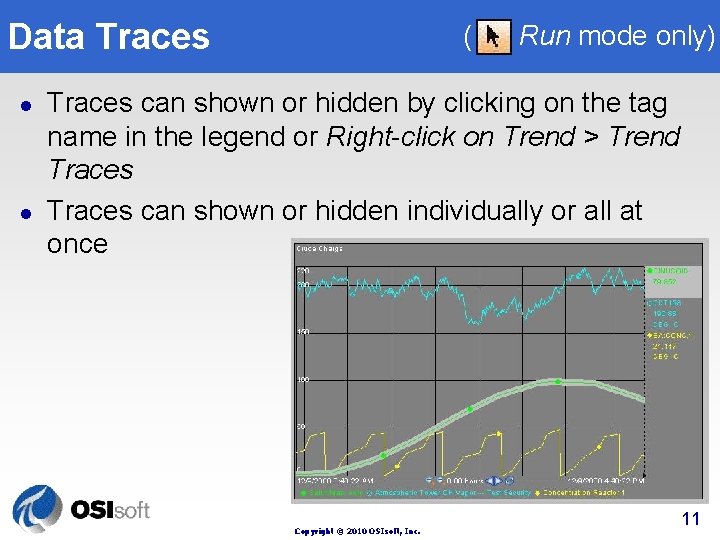

Data Traces l l ( Run mode only) Traces can shown or hidden by clicking on the tag name in the legend or Right-click on Trend > Trend Traces can shown or hidden individually or all at once Copyright © 2010 OSIsoft, Inc. 11

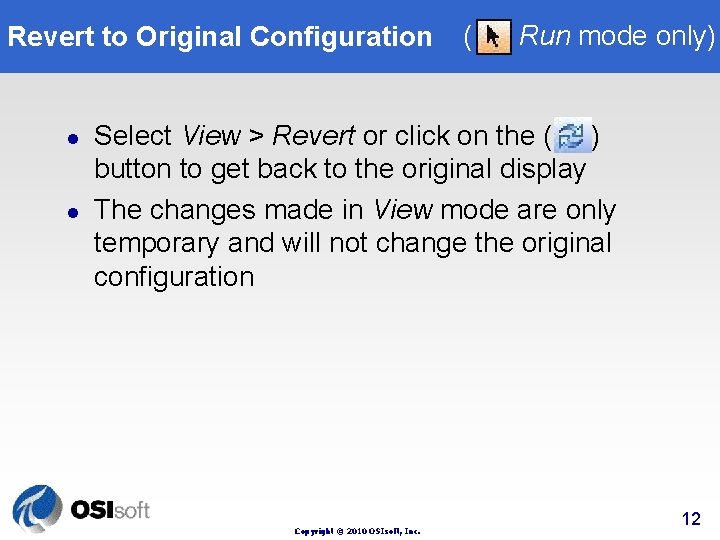

Revert to Original Configuration l l ( Run mode only) Select View > Revert or click on the ( ) button to get back to the original display The changes made in View mode are only temporary and will not change the original configuration Copyright © 2010 OSIsoft, Inc. 12

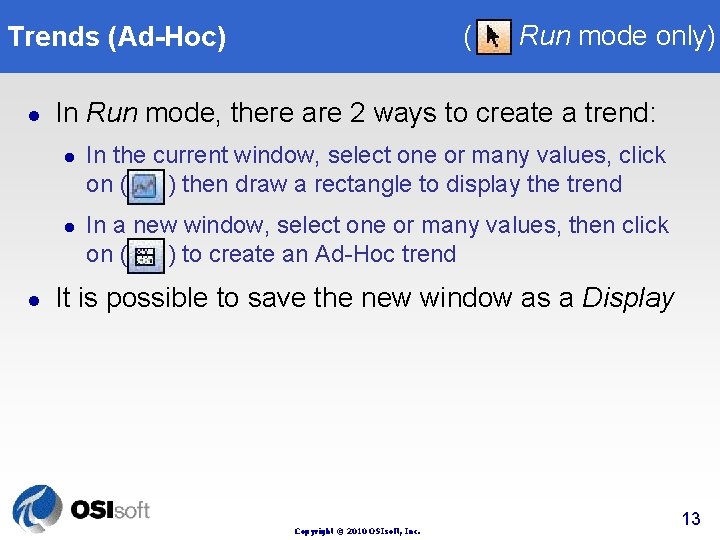

( Trends (Ad-Hoc) l In Run mode, there are 2 ways to create a trend: l l l Run mode only) In the current window, select one or many values, click on ( ) then draw a rectangle to display the trend In a new window, select one or many values, then click on ( ) to create an Ad-Hoc trend It is possible to save the new window as a Display Copyright © 2010 OSIsoft, Inc. 13

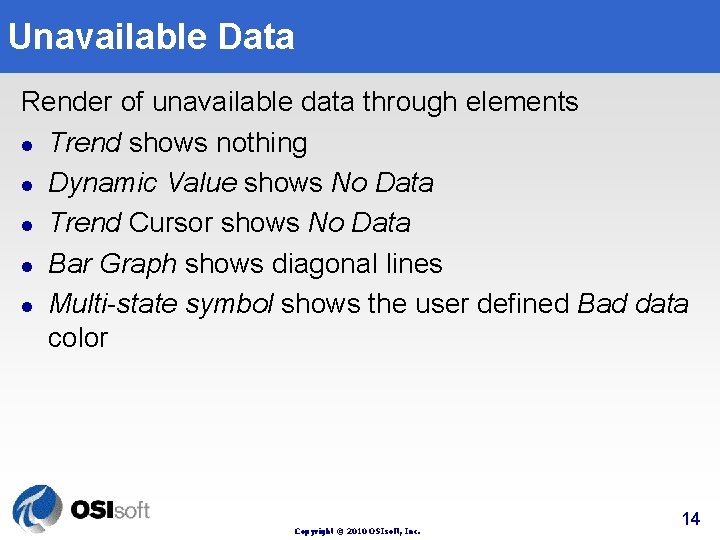

Unavailable Data Render of unavailable data through elements l Trend shows nothing l Dynamic Value shows No Data l Trend Cursor shows No Data l Bar Graph shows diagonal lines l Multi-state symbol shows the user defined Bad data color Copyright © 2010 OSIsoft, Inc. 14

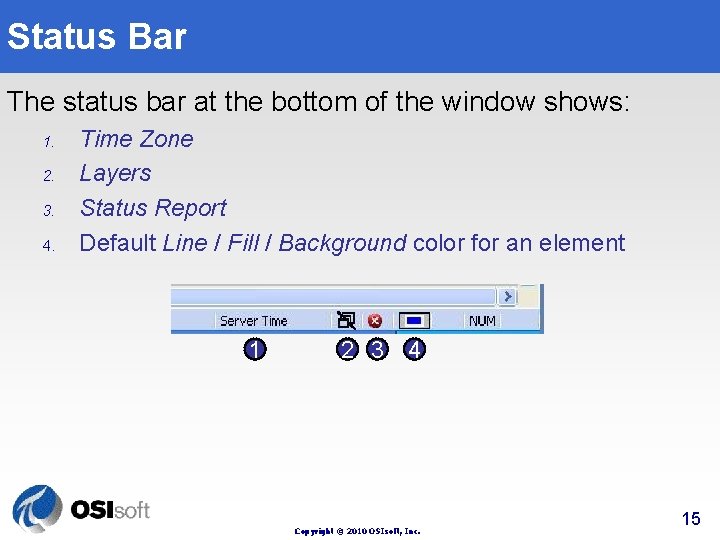

Status Bar The status bar at the bottom of the window shows: 1. 2.

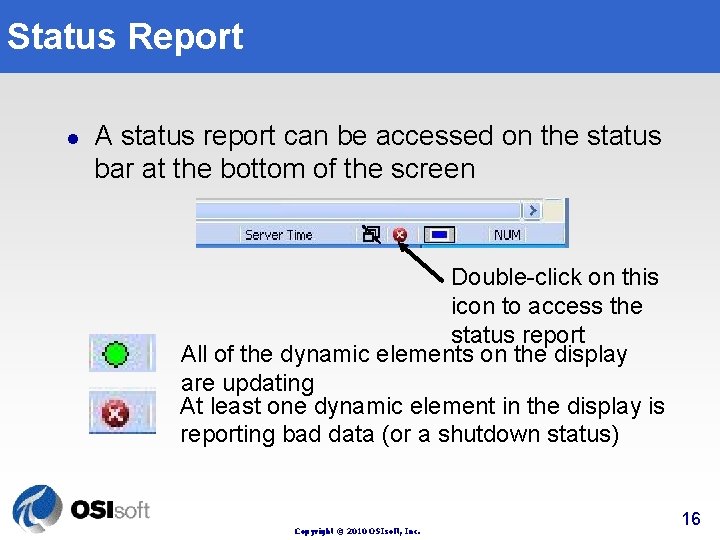

Status Report l A status report can be accessed on the status bar at the bottom of the screen Double-click on this icon to access the status report All of the dynamic elements on the display are updating At least one dynamic element in the display is reporting bad data (or a shutdown status) Copyright © 2010 OSIsoft, Inc. 16

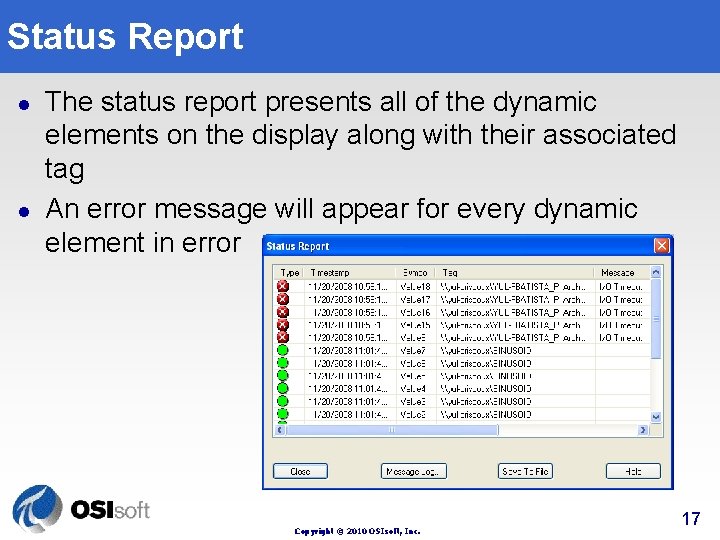

Status Report l l The status report presents all of the dynamic elements on the display along with their associated tag An error message will appear for every dynamic element in error Copyright © 2010 OSIsoft, Inc. 17

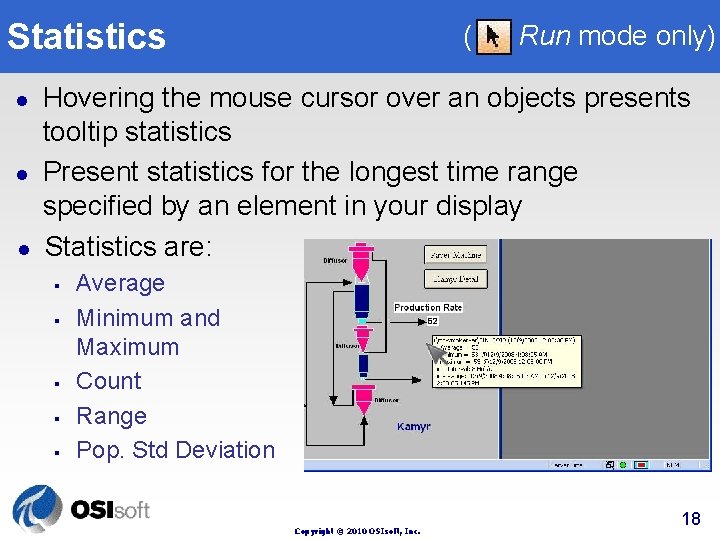

Statistics l l l ( Run mode only) Hovering the mouse cursor over an objects presents tooltip statistics Present statistics for the longest time range specified by an element in your display Statistics are: § § § Average Minimum and Maximum Count Range Pop. Std Deviation Copyright © 2010 OSIsoft, Inc. 18

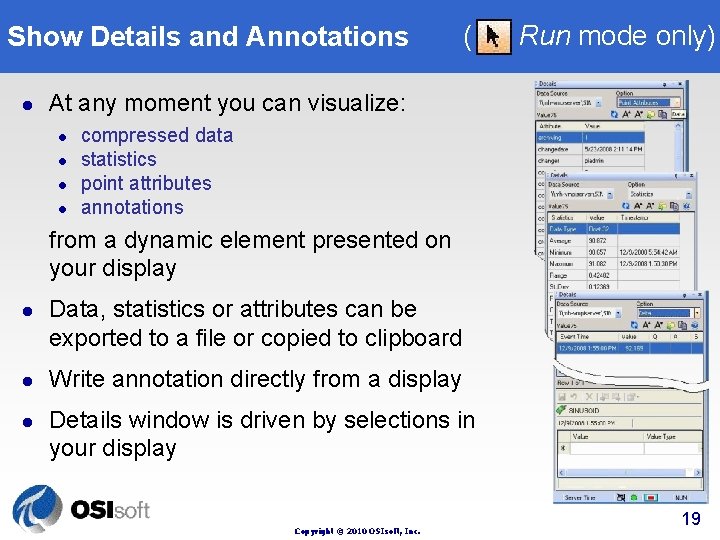

Show Details and Annotations l ( Run mode only) At any moment you can visualize: l l compressed data statistics point attributes annotations from a dynamic element presented on your display l l l Data, statistics or attributes can be exported to a file or copied to clipboard Write annotation directly from a display Details window is driven by selections in your display Copyright © 2010 OSIsoft, Inc. 19

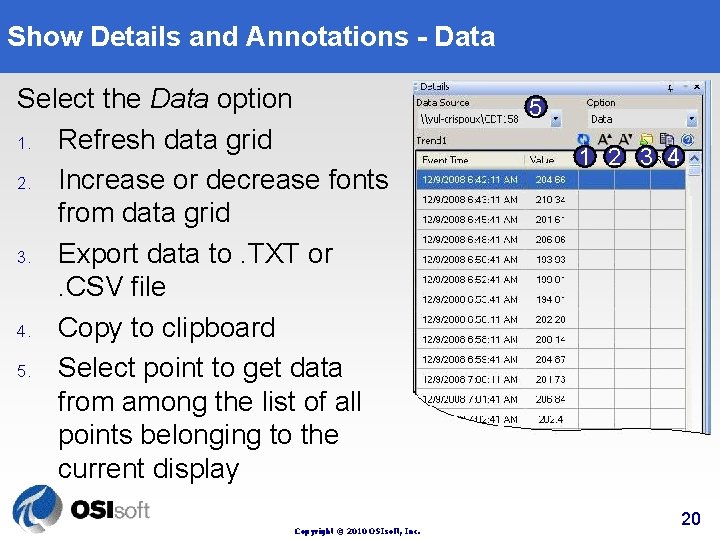

Show Details and Annotations - Data Select the Data option 1. Refresh data grid 2. Increase or decrease fonts from data grid 3. Export data to. TXT or. CSV file 4. Copy to clipboard 5. Select point to get data from among the list of all points belonging to the current display Copyright © 2010 OSIsoft, Inc. 5 1 2 3 4 20

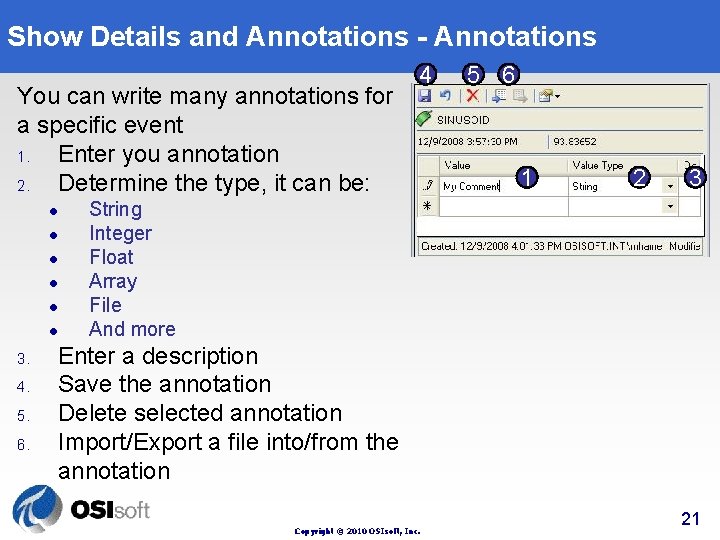

Show Details and Annotations - Annotations You can write many annotations for a specific event 1. Enter you annotation 2. Determine the type, it can be: l l l 3. 4. 5. 6. 4 5 6 1 2 3 String Integer Float Array File And more Enter a description Save the annotation Delete selected annotation Import/Export a file into/from the annotation Copyright © 2010 OSIsoft, Inc. 21

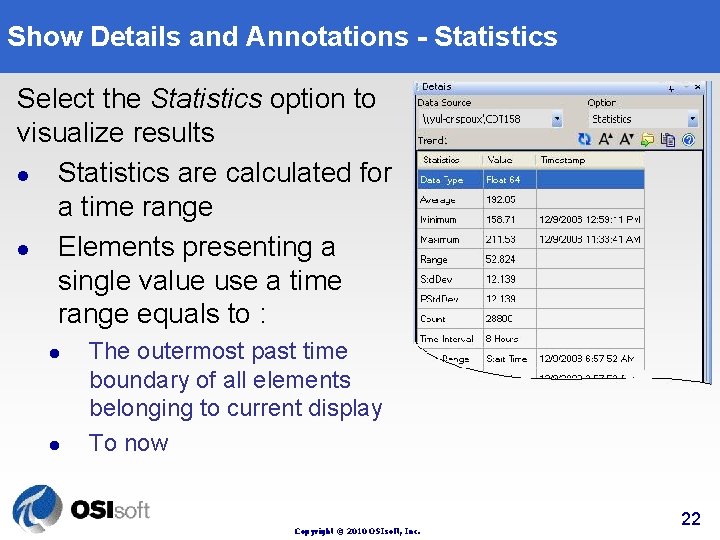

Show Details and Annotations - Statistics Select the Statistics option to visualize results l Statistics are calculated for a time range l Elements presenting a single value use a time range equals to : l l The outermost past time boundary of all elements belonging to current display To now Copyright © 2010 OSIsoft, Inc. 22

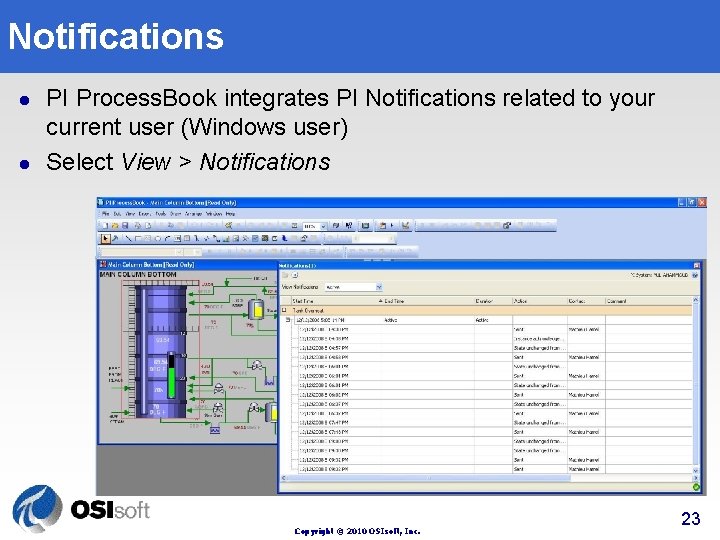

Notifications l l PI Process. Book integrates PI Notifications related to your current user

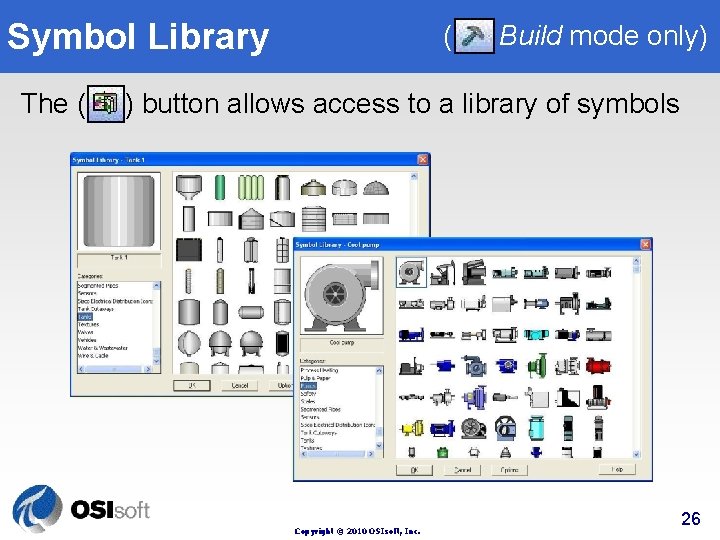

Symbol Library The ( ( Build mode only) ) button allows access to a

Dynamic elements Copyright © 2010 OSIsoft, Inc.

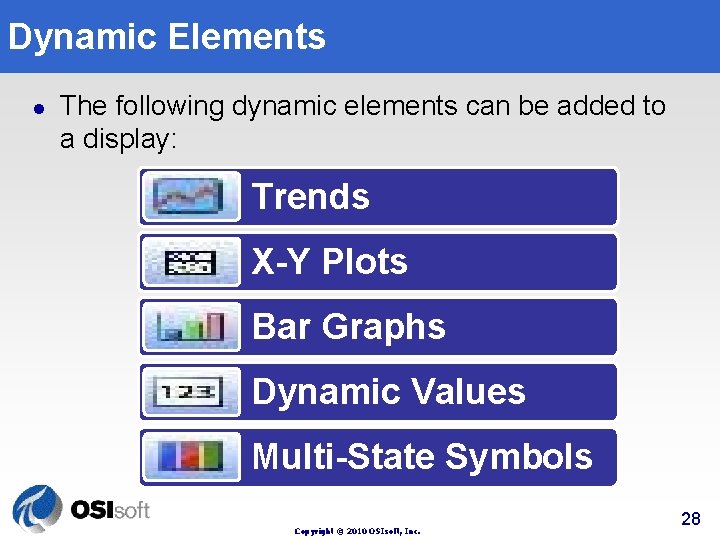

Dynamic Elements l The following dynamic elements can be added to a display: Trends

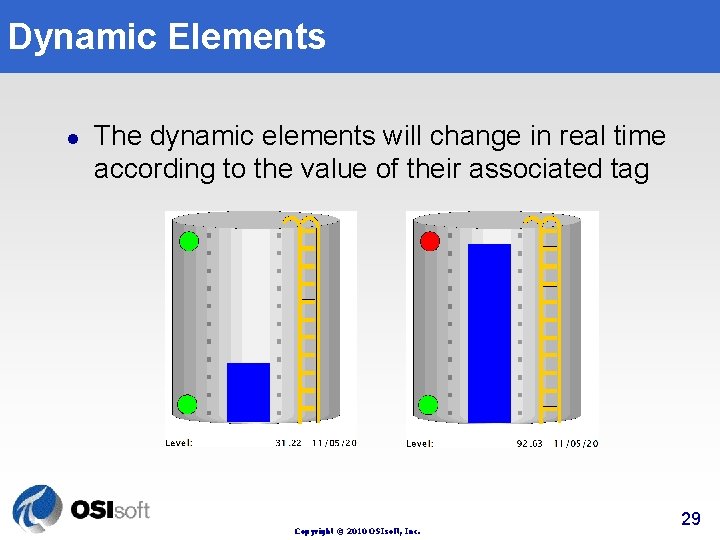

Dynamic Elements l The dynamic elements will change in real time according to the

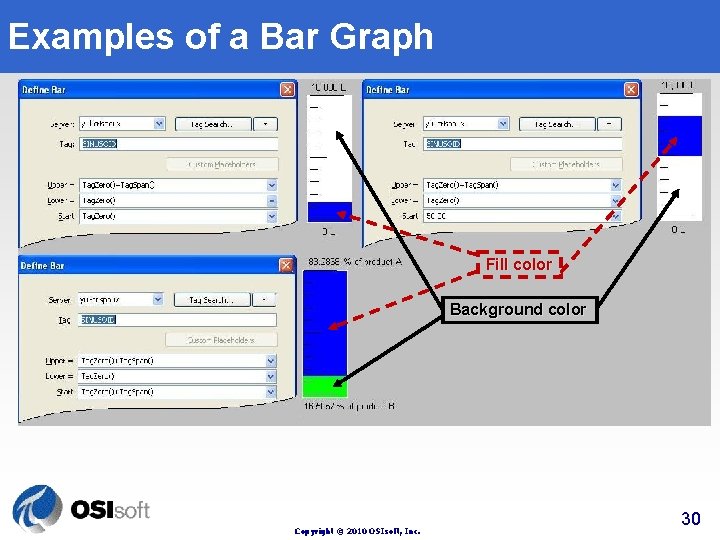

Examples of a Bar Graph Fill color Background color Copyright © 2010 OSIsoft, Inc.

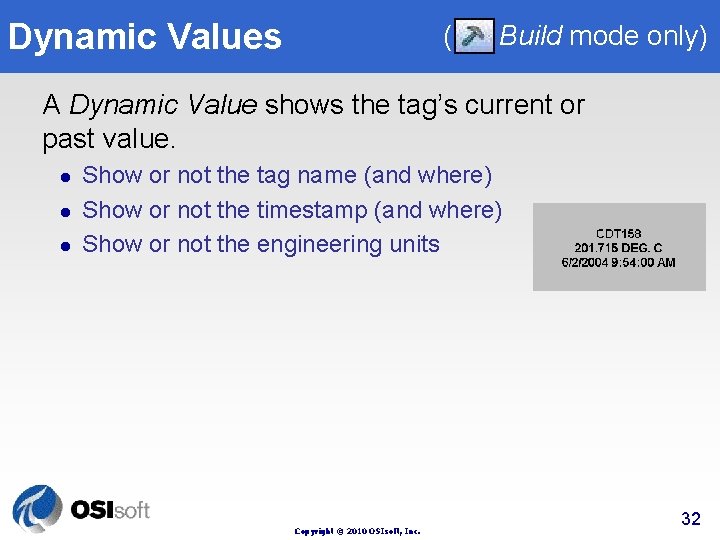

Dynamic Values ( Build mode only) A Dynamic Value shows the tag’s current or past value. l l l Show or not the tag name (and where) Show or not the timestamp (and where) Show or not the engineering units Copyright © 2010 OSIsoft, Inc. 32

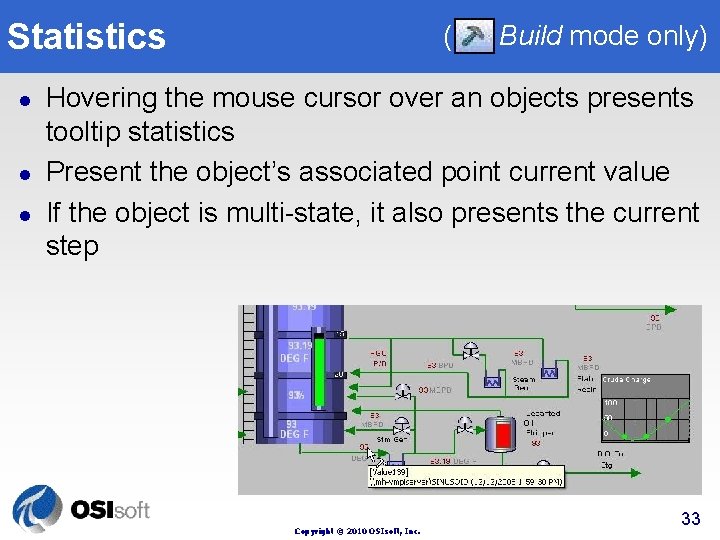

Statistics l l l ( Build mode only) Hovering the mouse cursor over an objects presents tooltip statistics Present the object’s associated point current value If the object is multi-state, it also presents the current step Copyright © 2010 OSIsoft, Inc. 33

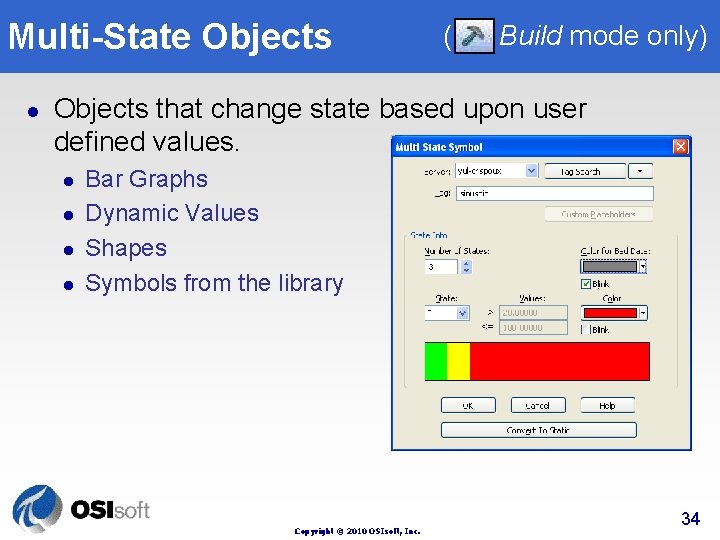

Multi-State Objects l ( Build mode only) Objects that change state based upon user

3. 5. 1 PI Calculation Copyright © 2010 OSIsoft, Inc.

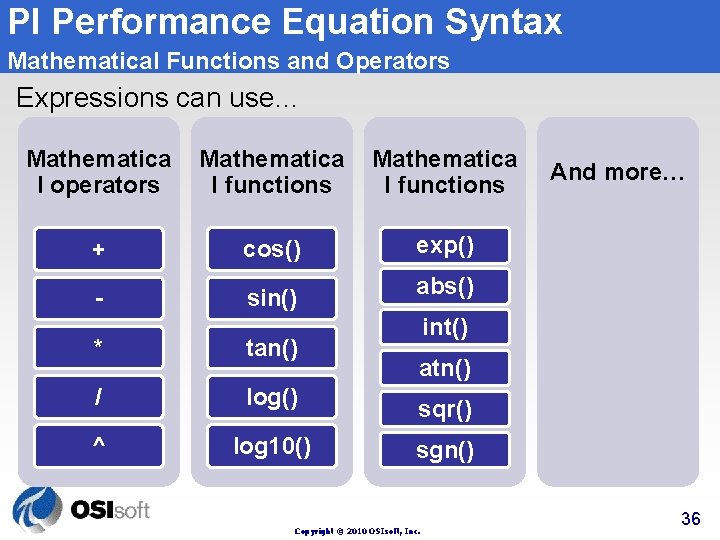

PI Performance Equation Syntax Mathematical Functions and Operators Expressions can use… Mathematica l operators Mathematica l functions + cos() exp() - sin() * tan() / log() ^ log 10() And more… abs() int() atn() sqr() sgn() Copyright © 2010 OSIsoft, Inc. 36

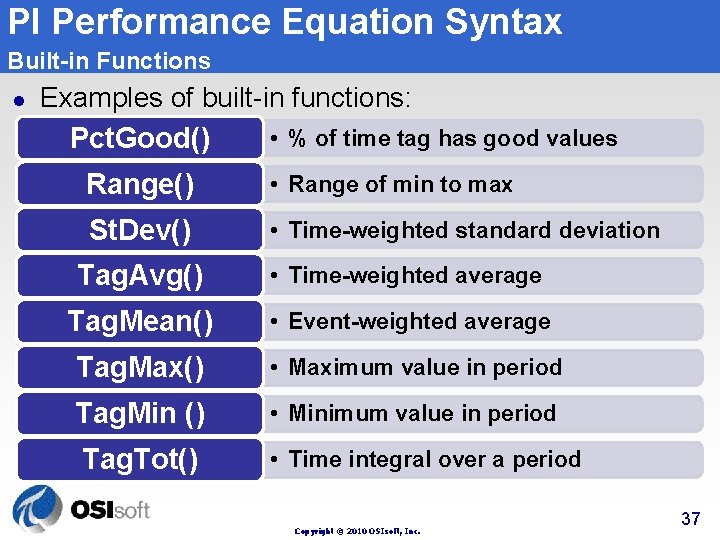

PI Performance Equation Syntax Built-in Functions l Examples of built-in functions: • % of time tag has good values Pct. Good() Range() • Range of min to max St. Dev() • Time-weighted standard deviation Tag. Avg() • Time-weighted average Tag. Mean() • Event-weighted average Tag. Max() • Maximum value in period Tag. Min () • Minimum value in period Tag. Tot() • Time integral over a period Copyright © 2010 OSIsoft, Inc. 37

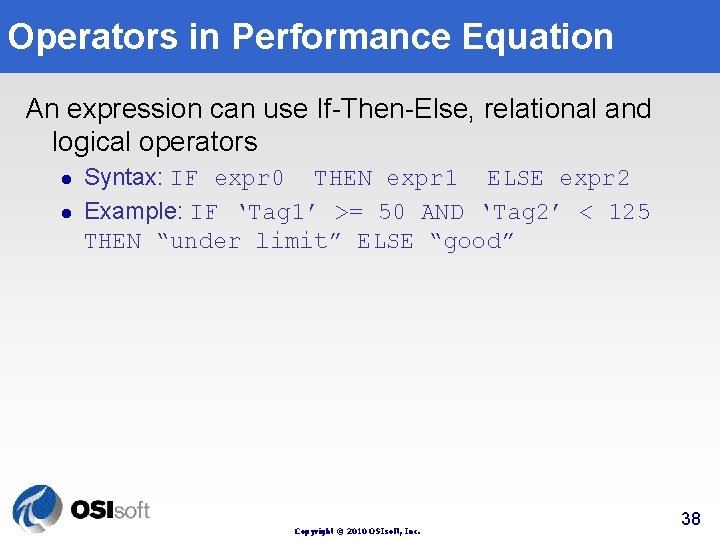

Operators in Performance Equation An expression can use If-Then-Else, relational and logical operators l l Syntax: IF expr 0 THEN expr 1 ELSE expr 2 Example: IF ‘Tag 1’ >= 50 AND ‘Tag 2’ < 125 THEN “under limit” ELSE “good” Copyright © 2010 OSIsoft, Inc. 38

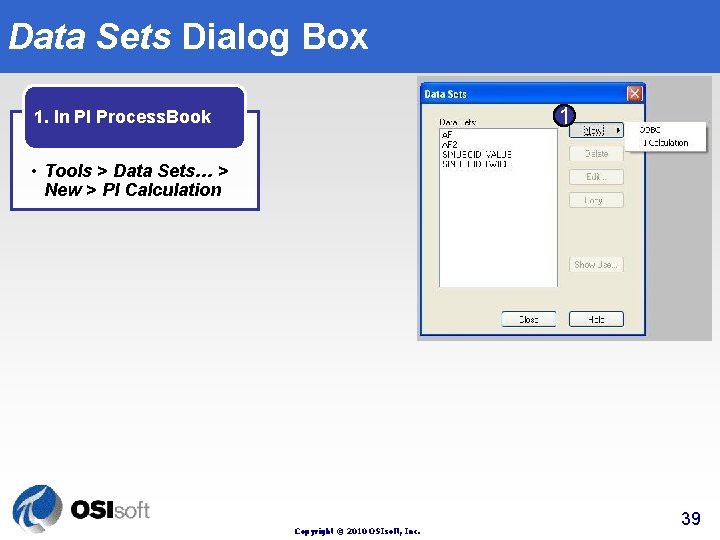

Data Sets Dialog Box 1 1. In PI Process. Book • Tools > Data

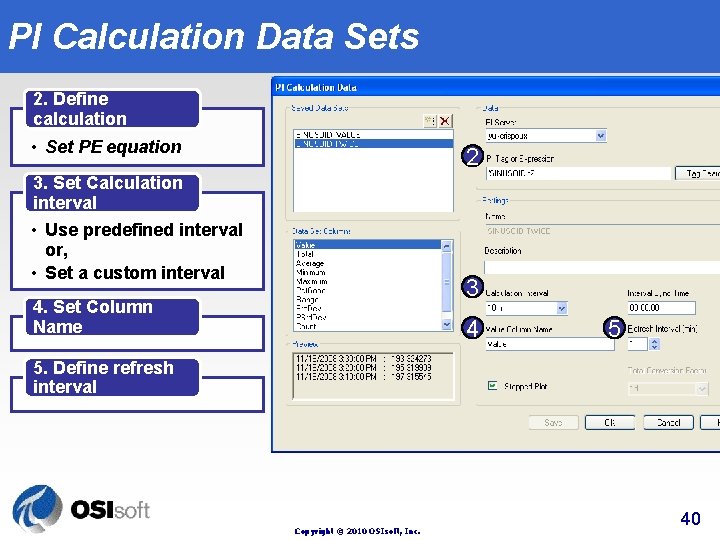

PI Calculation Data Sets 2. Define calculation • Set PE equation 2 3. Set Calculation interval • Use predefined interval or, • Set a custom interval 3 4. Set Column Name 4 5 5. Define refresh interval Copyright © 2010 OSIsoft, Inc. 40

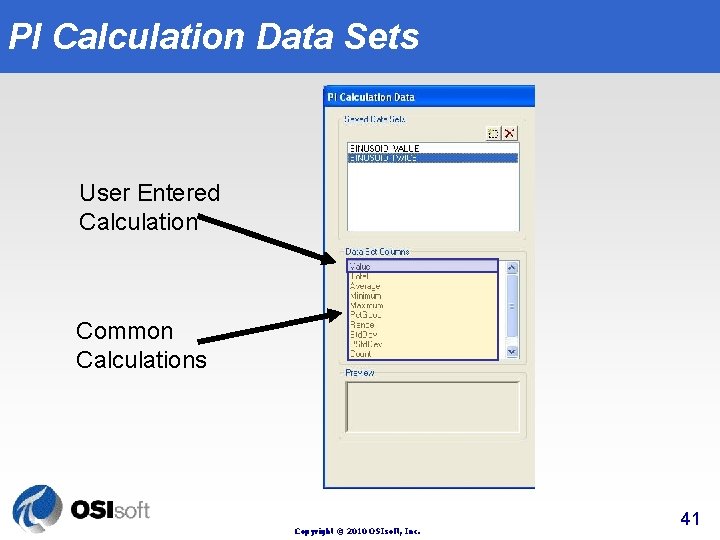

PI Calculation Data Sets User Entered Calculation Common Calculations Copyright © 2010 OSIsoft, Inc.

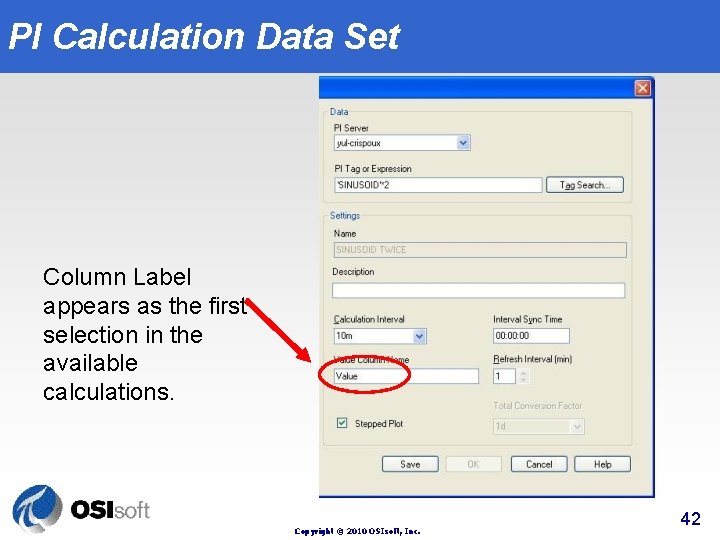

PI Calculation Data Set Column Label appears as the first selection in the available

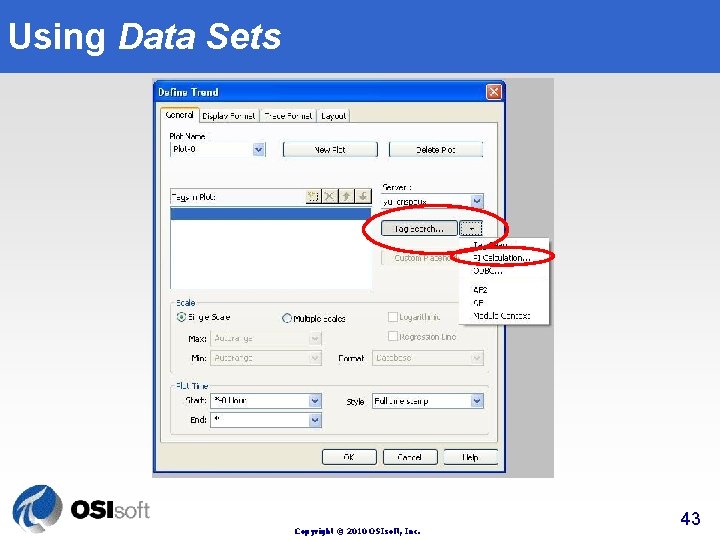

Using Data Sets Copyright © 2010 OSIsoft, Inc. 43

3. 5. 3 AF 2 Data Set Copyright © 2010 OSIsoft, Inc.

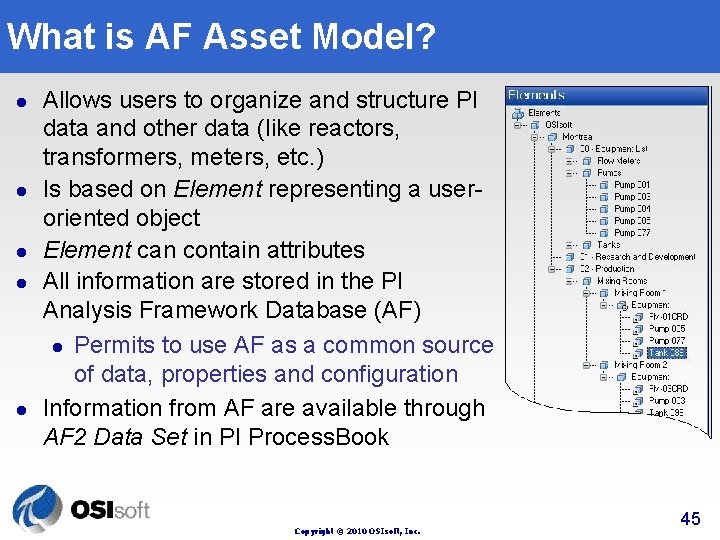

What is AF Asset Model? l l l Allows users to organize and structure PI data and other data (like reactors, transformers, meters, etc. ) Is based on Element representing a useroriented object Element can contain attributes All information are stored in the PI Analysis Framework Database (AF) l Permits to use AF as a common source of data, properties and configuration Information from AF are available through AF 2 Data Set in PI Process. Book Copyright © 2010 OSIsoft, Inc. 45

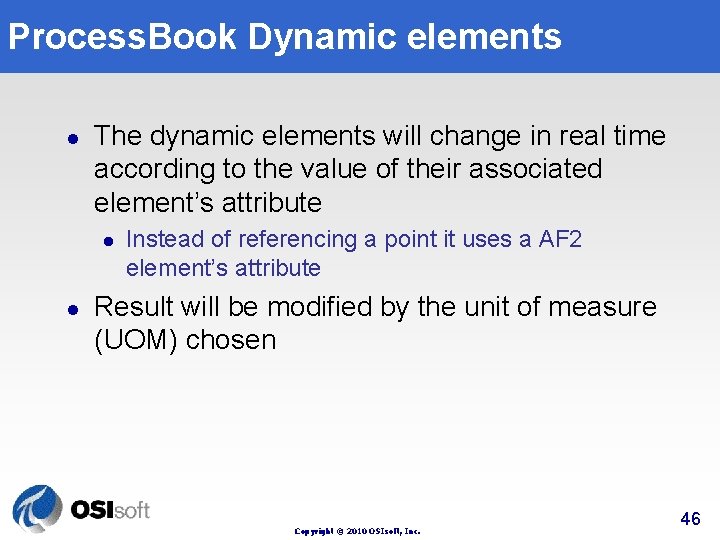

Process. Book Dynamic elements l The dynamic elements will change in real time according to the value of their associated element’s attribute l l Instead of referencing a point it uses a AF 2 element’s attribute Result will be modified by the unit of measure (UOM) chosen Copyright © 2010 OSIsoft, Inc. 46

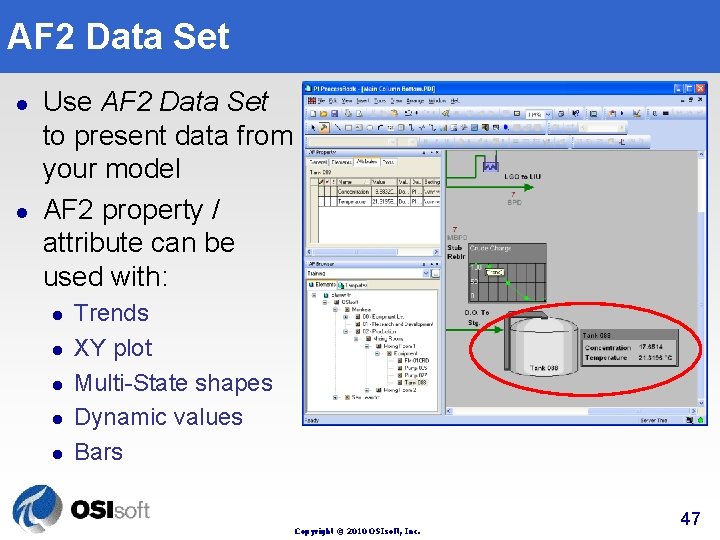

AF 2 Data Set l l Use AF 2 Data Set to present data from your model AF 2 property / attribute can be used with: l l l Trends XY plot Multi-State shapes Dynamic values Bars Copyright © 2010 OSIsoft, Inc. 47

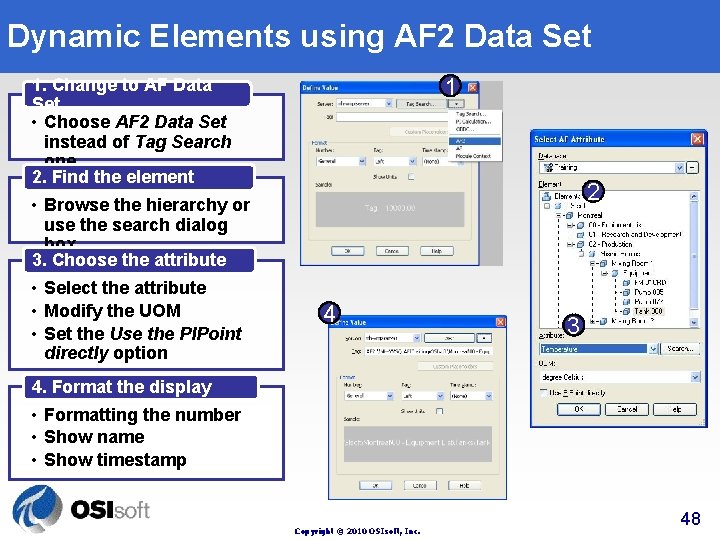

Dynamic Elements using AF 2 Data Set 1 1. Change to AF Data Set • Choose AF 2 Data Set instead of Tag Search one 2. Find the element 2 • Browse the hierarchy or use the search dialog box 3. Choose the attribute • Select the attribute • Modify the UOM • Set the Use the PIPoint directly option 4 3 4. Format the display • Formatting the number • Show name • Show timestamp Copyright © 2010 OSIsoft, Inc. 48

Conclusion “By using PI, we have been able to see what we guessed was happening. We have been able to validate our ideas and turn them into substantive savings. In our case, 10% of our operations budget. ” Chilkoot Ward Director of Utilities University of Alaska (Power Generation) Copyright © 2010 OSIsoft, Inc. 49
