350 350 XL 1 Modification Overview Production of

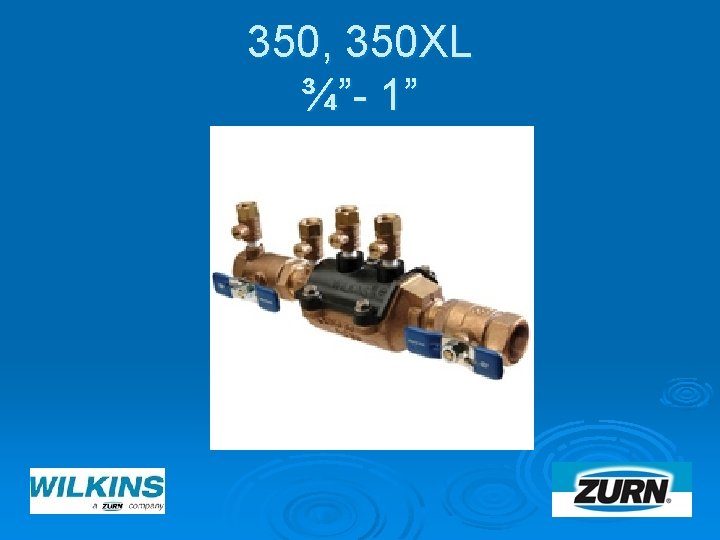

350, 350 XL ¾”- 1”

Modification Overview Ø Production of the ¾”-1” 350 began in 2004 and is current. Ø The lead free version 350 XL was introduced in 2010.

Check Housing Removal The plastic housing (vessel) must be removed for service. Ø There is no spring load. Ø Housing is bolted and o-ring sealed. Ø Remove the four housing bolts. Ø Lift the vessel up and out. Ø

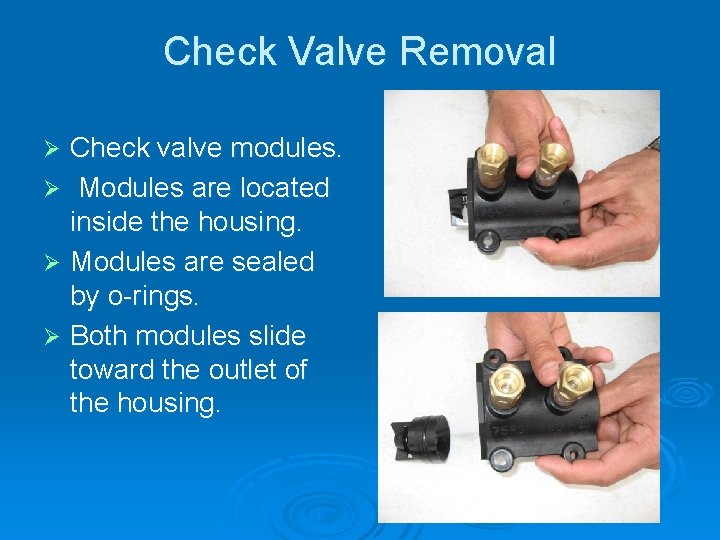

Check Valve Removal Check valve modules. Ø Modules are located inside the housing. Ø Modules are sealed by o-rings. Ø Both modules slide toward the outlet of the housing. Ø

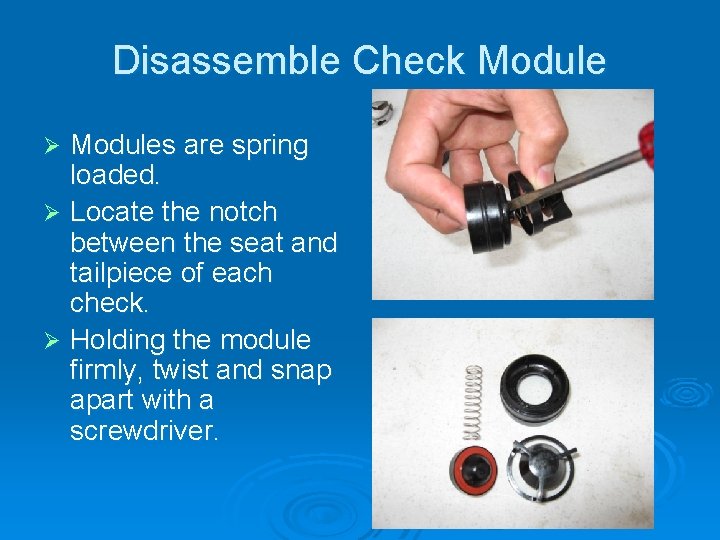

Disassemble Check Modules are spring loaded. Ø Locate the notch between the seat and tailpiece of each check. Ø Holding the module firmly, twist and snap apart with a screwdriver. Ø

Check Seat Removal The check seat is free once the module has been disassembled. Ø If seat is damaged, the entire module must be replaced. Ø

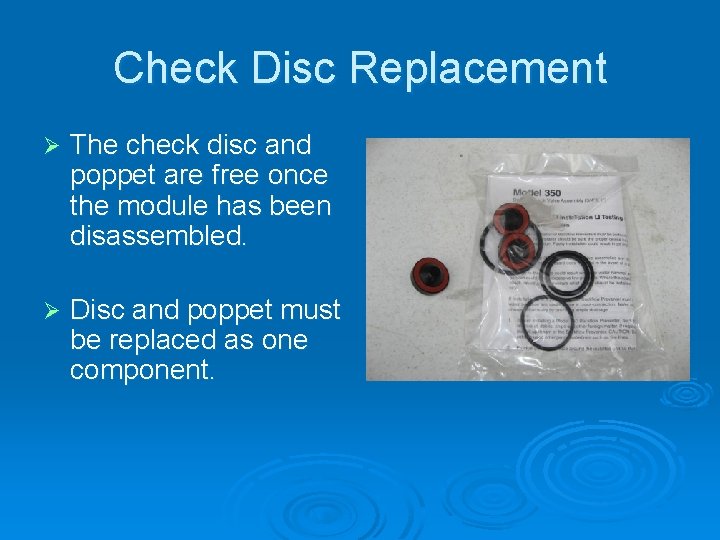

Check Disc Replacement Ø The check disc and poppet are free once the module has been disassembled. Ø Disc and poppet must be replaced as one component.

Check Valve Reassembly Notes Reassemble in reverse order. Ø Lubricate o-rings on check modules and slide back into vessel. Ø Make sure checks are in the correct order and facing the correct direction. Ø

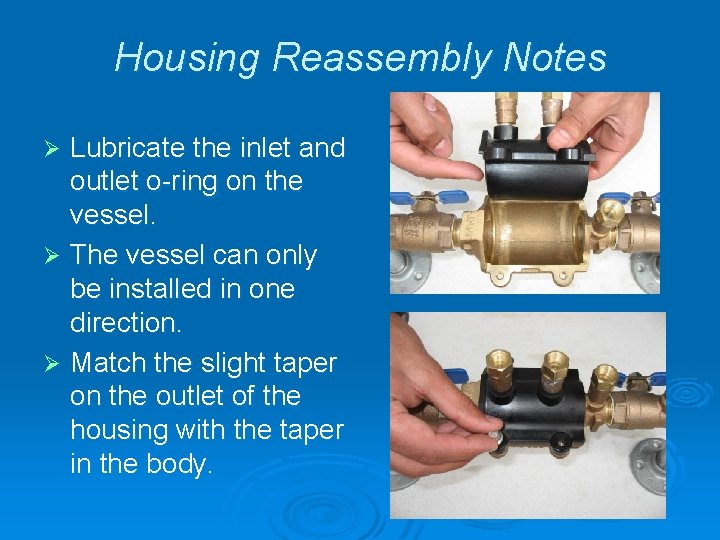

Housing Reassembly Notes Lubricate the inlet and outlet o-ring on the vessel. Ø The vessel can only be installed in one direction. Ø Match the slight taper on the outlet of the housing with the taper in the body. Ø
