34 Years of Biosolids Lee Jacobs Department of

34 Years of Biosolids Lee Jacobs Department of Crop and Soil Sciences Michigan State University presented at MWEA Biosolids Conference Bay City, Michigan February 21, 2008

Some Background on Me 1) grew up on a small dairy & grain farm in Manteno, IL 2) B. S. at U. of Illinois, 1967; M. S. and Ph. D at U. of Wisconsin – Madison, 1969 & 1973 3) came to MSU, October, 1973, as Asst. Professor, Dept. of Crop and Soil Sciences 4) my professional activities have involved Extension (or Outreach) and applied research What I plan to do is: 1 st, describe my Extension activities involving biosolids; (Includes State, Regional, National, and one International) 2 nd, describe several research projects involving biosolids in which I have participated during my tenure at MSU.

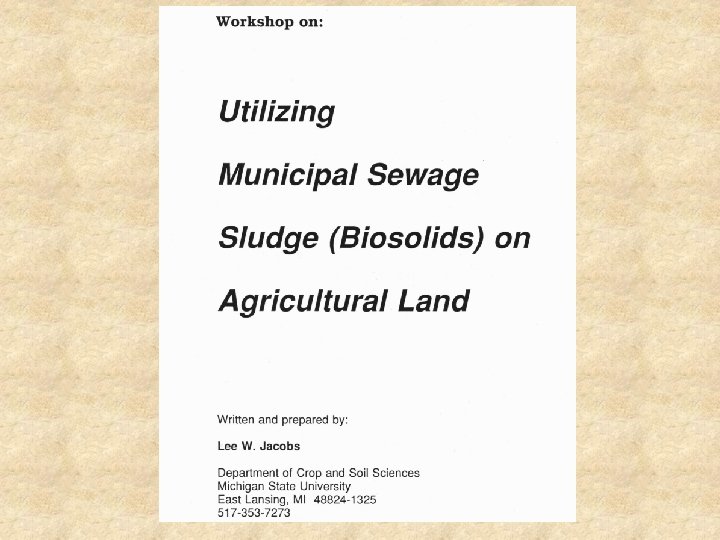

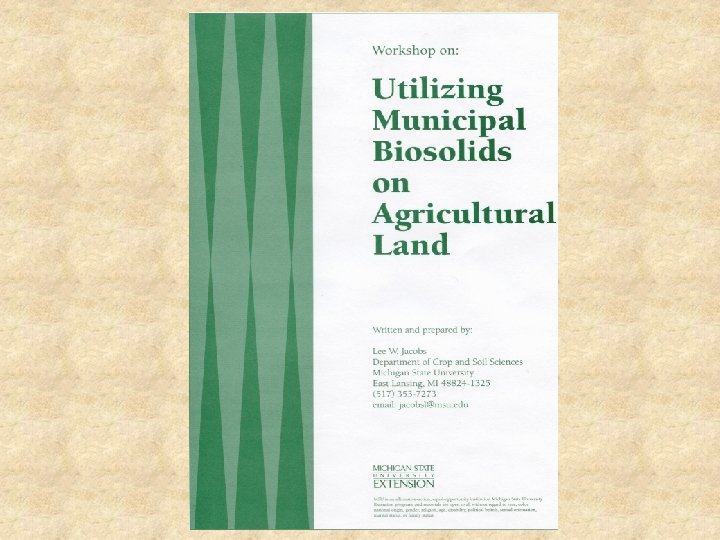

Extension Activities -- State 1978 – began teaching a 2 -day workshop on “Utilizing Municipal Sewage Sludge on Agricultural Land”

Extension Activities -- State 1978 – began teaching a 2 -day workshop on “Utilizing Municipal Sewage Sludge on Agricultural Land” Topics covered: 1) 2) 3) 4) 5) 6) 7) 8) basic soil science and plant nutrition soil sampling/testing, fertilizer recommendations biosolids handling & application to crop and forest land problem on quantities of biosolids that are possible to apply health concerns & public acceptability of applying biosolids factors that determine acceptable application rates of biosolids problem on how to calculate proper application rates of biosolids state rules and federal regulations governing application of biosolids

Locations of workshops: 1978 3/28 East Lansing 4/4 Gaylord 4/6 East Lansing 1979 3/15 Flint 3/27 Traverse City 4/3 Kalamazoo 4/10 Escanaba 1980 2/12 East Lansing 2/14 East Lansing 1981 3/10 Grand Rapids 3/17 Grayling 4/7 East Lansing 1982 2/23 Kalamazoo 3/2 Grayling 3/9 Escabana 1983 3/8 East Lansing 3/15 Grayling 1984 2/21 Frankenmuth 3/6 Grayling 1985 3/19 Grayling 4/10 East Lansing 1986 3/4 Grayling 4/8 Escanaba 1987 3/12 Grayling 1988 3/24 Grayling 1989 3/30 Grayling 1990 4/3 Grayling 1991 4/2 Grayling 1992 6/2 Grayling 1993 7/29 Grayling 1994 5/24 Grayling 1995 cancelled 1997 11/4 Grayling 1998 3/25 East Lansing 2000 3/14 Grayling 2002 3/26 Grayling 2004 3/2 Lansing 2006 2/28 Traverse City 2008 2/19 Bay City 38 total workshops taught on 24 years across a 31 -year time period

Invited Speaker for MWPCA & MWEA MWPCA 1975 – Application of sewage sludge to agricultural land 1983 – Management of chemicals present in sewage sludge 1990 – Proposed Federal 503 rule for use or disposal of sewage sludge MWEA Biosolids Seminar/Conference 1998 – Biosolids program origins (Dick Sprague, Dan O’Neil -- SWQD) 2000 – Nutrient management: Managing application rates for N and P 2002 – The role of MSU Extension in the MI Biosolids Team 2003 – Evaluation of N-Viro products for environmental impact 2008 – Micronutrients needed by crops

In-State Presentations at U. of MI 1980 A seminar on Sludge and Its Ultimate Disposal, Jan. 30 -31 & Feb. 1 “Agricultural Application of Sewage Sludge” Became Chapter 9 of a book published under the same seminar name

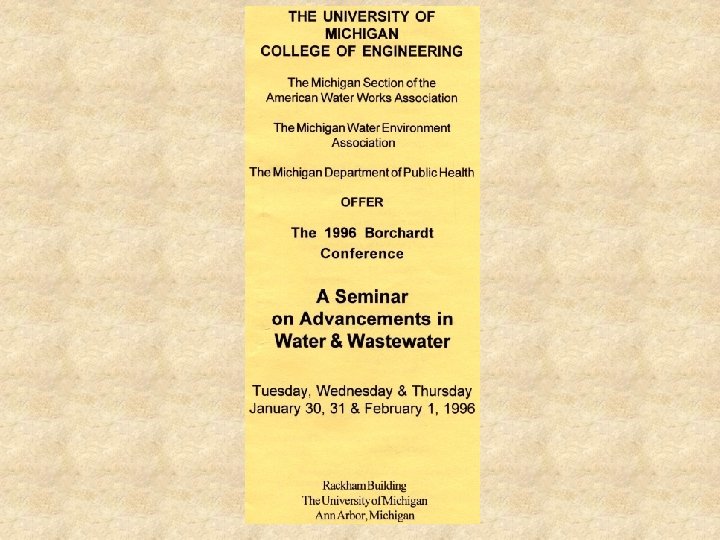

In-State Presentations at U. of MI 1980 A seminar on Sludge and Its Ultimate Disposal, Jan. 30 -31 & Feb. 1 “Agricultural Application of Sewage Sludge” Became Chapter 9 of a book published under the same seminar name 1996 A seminar on Advancements in Water & Wastewater, Jan. 30 -31 & Feb. 1 “Biosolids Utilization in Michigan: Where Should We be in Relation to 503 Regulations”

The Biosolids Demo plot and Biosolids Team tent has been a part of the Ag Expo on the MSU campus from 2000 thru 2007.

MSU Ag Expo – 2007

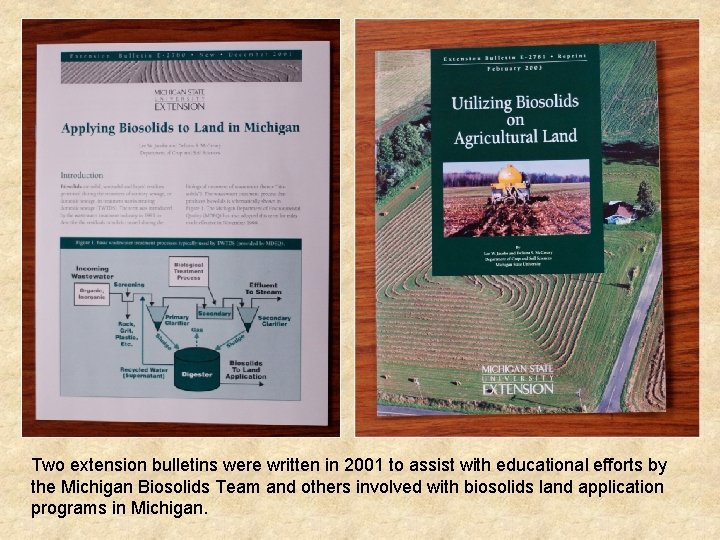

Two extension bulletins were written in 2001 to assist with educational efforts by the Michigan Biosolids Team and others involved with biosolids land application programs in Michigan.

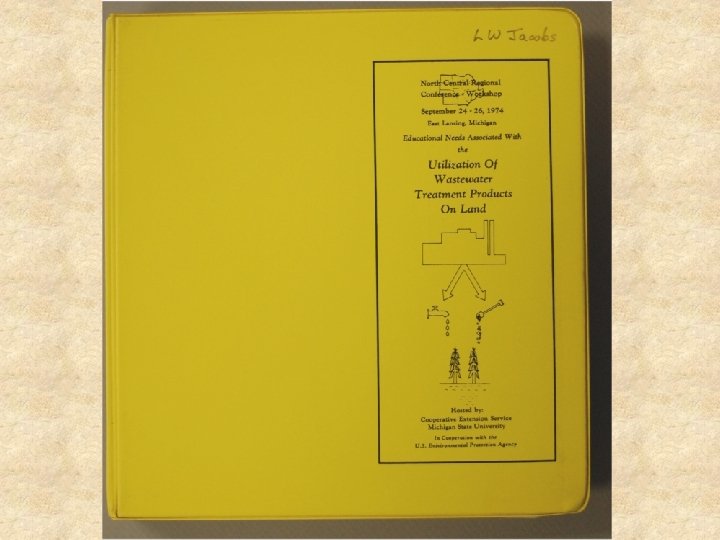

Extension Activities -- Regional 1974 Coordinated a North Central Workshop on “Educational Needs Associated with the Utilization of Wastewater Treatment Products on Land” held Sept. 24 -26, at MSU

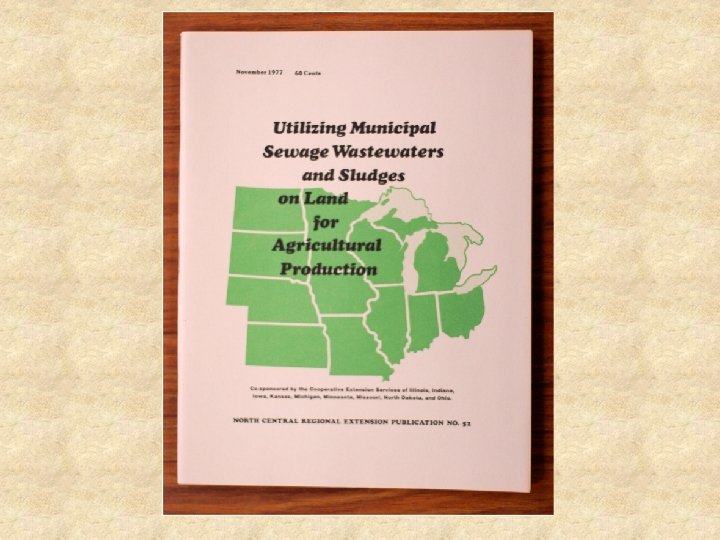

Extension Activities -- Regional 1974 Coordinated a North Central Workshop on “Educational Needs Associated with the Utilization of Wastewater Treatment Products on Land” held Sept. 24 -26, at MSU 1977 Edited and co-authored chapters in a North Central Regional Extension Pub. No. 52

Extension Activities -- Regional 1979 Invited to present “Land Application of Wastewater and Sludge” at a workshop held June 12 -13 at U. of Illinois 1980 Invited to present “Utilizing Sewage Sludge on Agricultural Land” at a seminar held March 6 at Cornell University

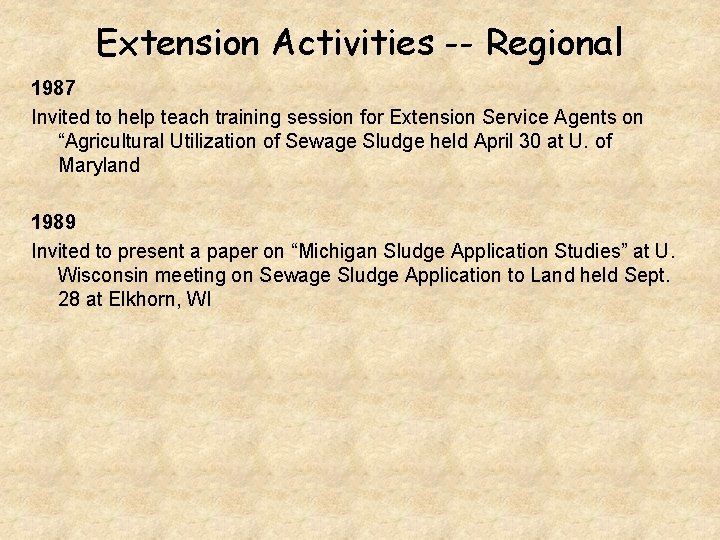

Extension Activities -- Regional 1987 Invited to help teach training session for Extension Service Agents on “Agricultural Utilization of Sewage Sludge held April 30 at U. of Maryland 1989 Invited to present a paper on “Michigan Sludge Application Studies” at U. Wisconsin meeting on Sewage Sludge Application to Land held Sept. 28 at Elkhorn, WI

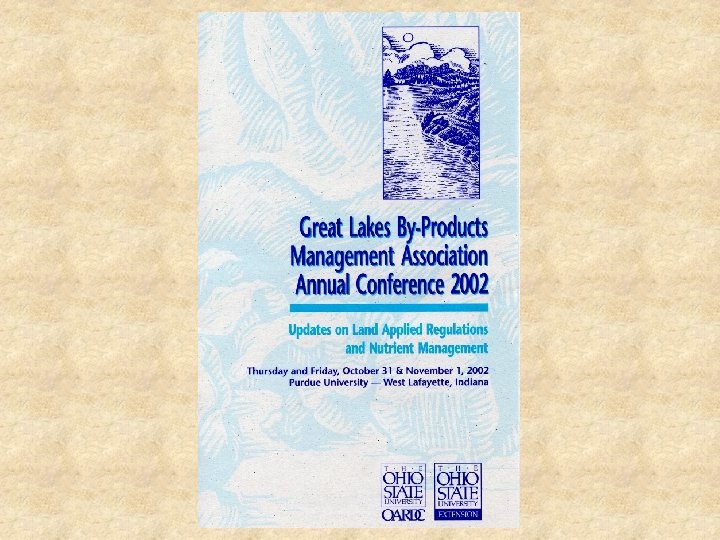

Extension Activities -- Regional 2000 Invited to give presentation on “Nitrogen Management Protocols for Beneficially Using Biosolids on Crop Land” held Nov. 30 -Dec. 1 at Ohio State U. (GLBMA Conf. ) 2002 Invited to give presentation on “New Mineralization Factors for Estimating Plant-Available Nitrogen (PAN) in Biosolids” held Oct. 31 -Nov. 1 at Purdue U. (GLBMA Conf. )

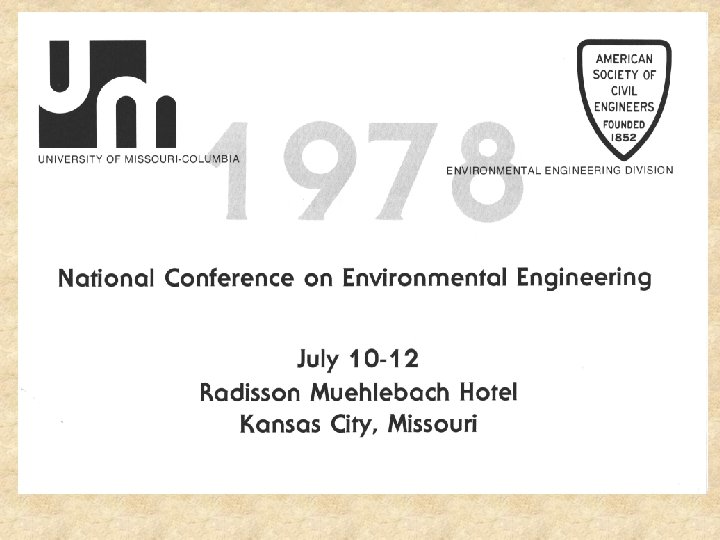

Extension Activities -- National 1978 Invited to give presentation on “An Agricultural Perspective on Applying Sludges to farmland” held July 10 -12 at Kansas City, MO

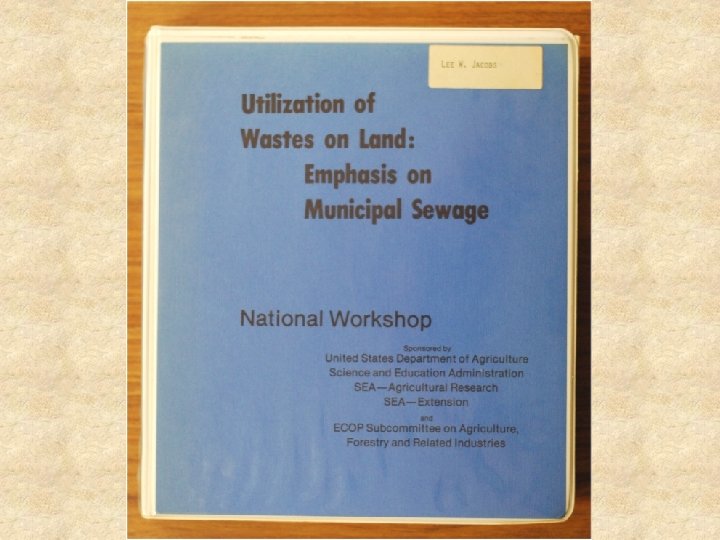

Extension Activities -- National 1978 Invited to give presentation on “An Agricultural Perspective on Applying Sludges to farmland” held July 10 -12 at Kansas City, MO 1980 Invited to teach part of training session at the National Workshop on Utilization of Wastes on Land: Emphasis on Municipal Sludge held July 15 -17 at U. of Maryland (similar to my biosolids workshop)

Extension Activities -- National 1989, 1990, 1991, 1993 Invited to teach part of a national short course on Beneficial Use of Municipal and industrial Sludge sponsored by U. Wisconsin-Milwaukee held June, ’ 89; Feb. , ’ 90; March, ’ 91; June, ’ 93 “Applying Sludges to Cropland”

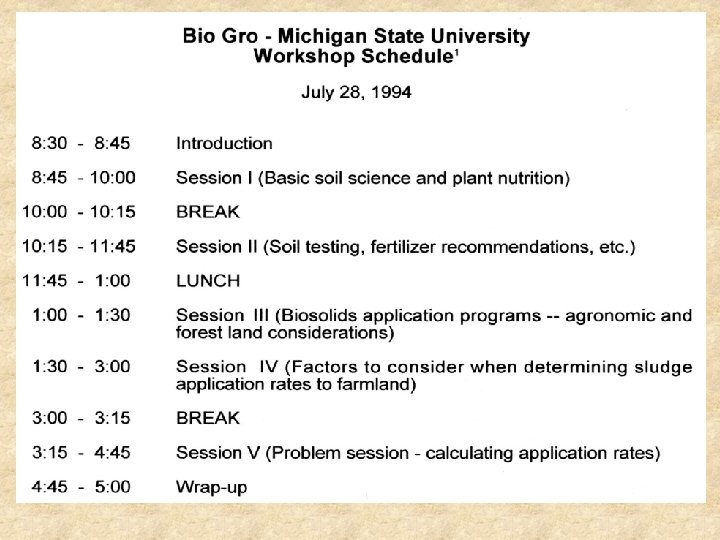

Extension Activities -- National 1994 Invited to present a workshop on “Biosolids Application to Land” an annual training session of Bio Gro Systems, Inc. employees located across the U. S. (similar to my Biosolids Workshop)

Extension Activities -- National 1995 Invited to revise the chapter on “Process Design for Agricultural Utilization” in the 1983 USEPA Process Design Manual, Land Application of Municipal Sludge

Extension Activities -- National 1995 Invited to revise the chapter on “Process Design for Agricultural Utilization” in the 1983 USEPA Process Design Manual, Land Application of Municipal Sludge for the 1995 Process Design Manual, Land Application of Sewage Sludge and Domestic Septage Chapter 7, “Process Design for Agricultural Land Application Sites”

Extension -- International Invited to present a paper at an international seminar on “The Use of Organic Fertilizer in Crop Production” held June 1990 in Suweon, Korea

Research Projects on Biosolids 1976 -1978: Metal-contaminated sludge expt. at Muskegon WWT site 1977 -2008: High sludge metal loadings to crop land at MSU research farm 1978 -1982: W-124/W-170 field research nationally using Chicago sludge 1980 -1981: Analyzing MI sewage sludges for hazardous chemicals 1982 -1984: Mo accumulation by corn/soybeans from Mo-rich sludge 1991 -1993: Long-term experience of biosolids land application programs 1998 -2000: Estimating plant-available nitrogen in biosolids 2001 -2004: Evaluation of N-Viro products for environmental impact

Joint Conference sponsored by USEPA, USDA, and NASULGC held at U. of Illinois on July 9 -13, 1973. Purpose: 1) to identify what was known about application of liquid effluent and sludge to land 2) what research was needed to successfully utilize the land as a treatment system.

1976 -1978: Metal-contaminated sludge experiment at Muskegon WWT site Sludge Rates* - - ton/ac - 5+5+5 10 + 10 44 + 36 + 62 Total Metal Loadings (lb/ac) Suggested Maximum (lb/ac) Cd Cu Pb Ni Zn 1. 2 90 33 69 290 2. 3 180 65 140 590 5 125 500 50 250 11 830 330 690 3100 2 -3 x 6 -7 x 2/3 13 -14 x 12 -13 x * Grand Rapids sewage sludge Conclusions: 1) Yields of corn signif. increased by 5 t/ac sludge but not additionally by higher rates. 2) Zn was the only metal signif. increased in the corn grain (30 50 ppm) but still safe. 3) Some increase in Cu (0. 04 0. 13 ppm), Ni (0. 03 0. 07 ppm), and Zn (0. 1 0. 8 ppm) was measured in groundwater at the top of the water table (~3 -4 ft) below the highest sludge application rate (142 ton/ac). No movement occurred at the lower sludge rates.

1977 -2008: High sludge metal loadings to crop land at MSU research farm Goal: To apply quantities of sludge metals that would cause plant toxicity by Ni (Tmt #3) and Zn (Tmt #2) and high Cd uptake (Tmt #1) into the food chain.

High Sludge Metal Loadings Study Tmt #1 Sludge add’ns 107 t/ac Metal add’ns Cadimum Chromium Copper Lead Nickel Zinc - 39 1, 000 310 54 250 1, 300 Tmt #2 388 t/ac - - - Tmt #3 308 t/ac - lb/acre - 19 15 2, 700 2, 400 1, 600 1, 700 430 380 1, 900 1, 500 10, 100 2, 400 CPLR - - - 35 2, 700 1, 300 270 370 2, 500

1977 -2008: High sludge metal loadings to crop land at MSU research farm Goal: To apply quantities of sludge metals that would cause plant toxicity by Ni (Tmt #3) and Zn (Tmt #2) and high Cd uptake (Tmt #1) into the food chain. Conclusions: 1) Zn toxicity occurred on Tmt #2 plots. No plants survived for soybeans, whereas corn and sorghum-sudangrass yields were significantly increased on Tmt #1 and Tmt #3 compared to control and similar on Tmt #2 compared to control. 2) Concentrations of Cd in corn and sorghum-sudangrass tissue were significantly higher for Tmt #1 but not for Tmt #2 and #3 compared to control. 3) Concentrations of Cu, Ni and Zn in corn and sorghum-sudangrass tissue were significantly higher for all treatments compared to control. 4) Metals have not moved below the 6 -12” depth.

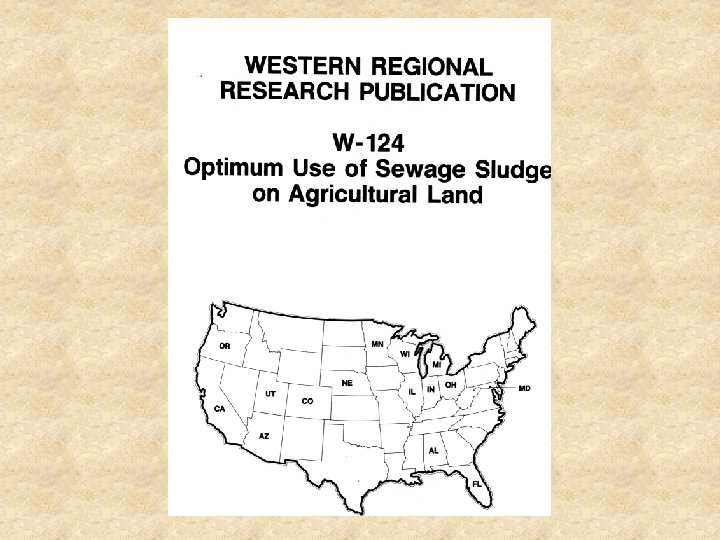

1978 -1982: W-124/W-170 field research nationally using Chicago sludge A common field experiment established at 16 sites in 15 states using the same application rates (45 t/ac vs. 5 annual 9 t/ac) of Chicago sewage sludge and growing the same crop, barley, to determine the effects of regional soil and climate differences on plant uptake.

1978 -1982: W-124/W-170 field research nationally using Chicago sludge A common field experiment established at 16 sites in 15 states using the same application rates (45 t/ac vs. 5 annual 9 t/ac) of Chicago sewage sludge and growing the same crop, barley, to determine the effects of regional soil and climate differences on plant uptake. Conclusions: 1) 2) 3) 4) Sludge application increased Zn and Cd levels in barley leaf and grain at most locations. Sludge applications had minimal impact on Cu, Ni, or Pb in barley tissues. Sludge applications generally resulted in enhanced yields of barley grain (nutrient add’ns) Cumulative metal loadings (1 x 45 vs 5 x 9 ton/ac) results in similar uptake of Zn and Cd.

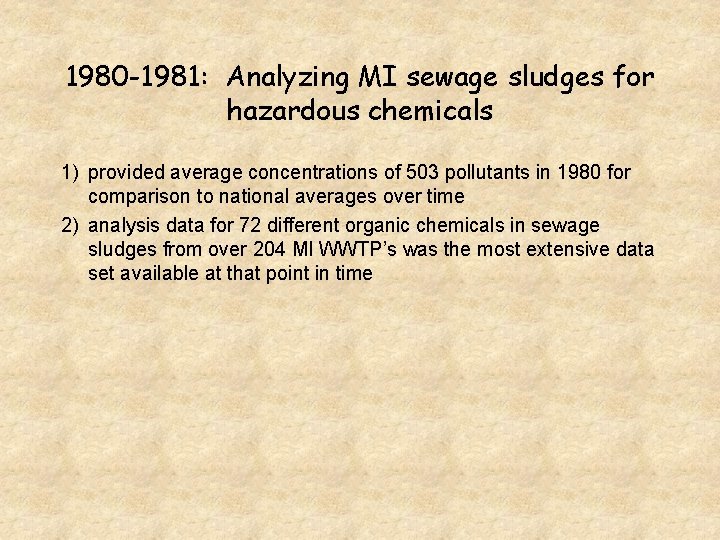

1980 -1981: Analyzing MI sewage sludges for hazardous chemicals 1) provided average concentrations of 503 pollutants in 1980 for comparison to national averages over time 2) analysis data for 72 different organic chemicals in sewage sludges from over 204 MI WWTP’s was the most extensive data set available at that point in time

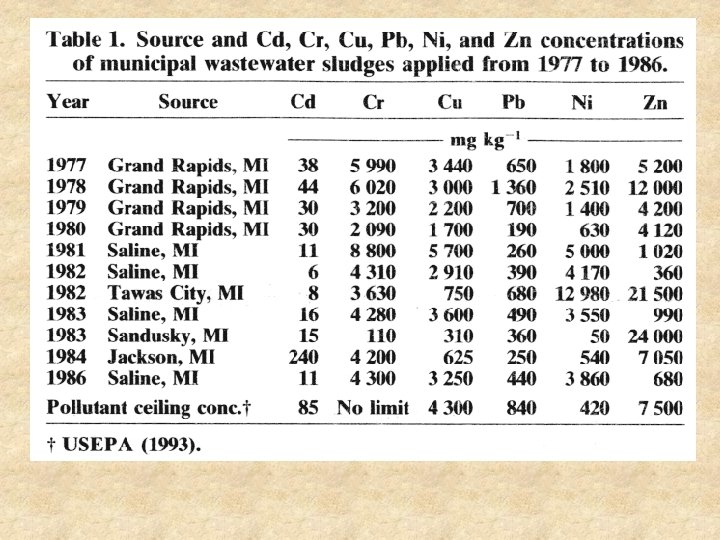

Part 503 Pollutants • • • MI (1973) - - MI (1980) - - - • As 1. 6 - 18 5. 4 • Cd 2 – 1, 100 4. 4 • Cr 22 – 30, 000 130 • Cu 84 – 10, 400 416 • Pb 80 – 26, 000 75. 7 • Hg 1. 8 • Mo • Ni <0. 1 – 56 - - - 12 – 2, 800 - - - mg/kg or ppm NSSS (1988) - - AMSA (1996) - - - 8 9. 9 11 6. 9 119 741 270 134 32 - 5. 2 9. 2 49 - 62. 0 580 2 - 12. 0 43

1982 -1984: Mo accumulation by corn/soybeans from Mo-rich sludge A high-Mo (1, 500 ppm) sewage sludge was applied at rates of 19 and 42 ton/ac to give loading rates of 56 and 126 lb Mo/ac (Mo CCL = 75 ppm & CPLR = 16 lb/ac). Conclusions: 1) Corn and soybean yields were not significantly affected by either sludge rate. 2) Concentrations of Mo in whole plant, diagnostic tissue and grain samples from both crops were significantly increased at both sludge rates and could make these crops unsafe for animal consumption.

1991 -1993: Long-term experience of biosolids land application programs 1) Data from 10 long-term biosolids land application programs across the U. S. [AZ, NM, VA, WI, CO, IL(2), MI, NC, NV] were evaluated for maximum cumulative loadings of several 503 pollutants (Cd, Cr, Cu, Ni, Pb, & Zn). 2) Biosolids loadings ranged from 15 -630 ton/ac which could represent 4 -630 years of continuous, annual biosolids applications, assuming agronomic rates of 1 -4 ton/ac/yr. 3) One site exceeded the CPLR for all six metals and one site exceeded the CPLR for Pb. 4) In spite of high metal loadings at these two sites, very little negative impact on the soil-plant system and water resources were observed. 5) No toxicity to plants were observed at any to the 10 sites.

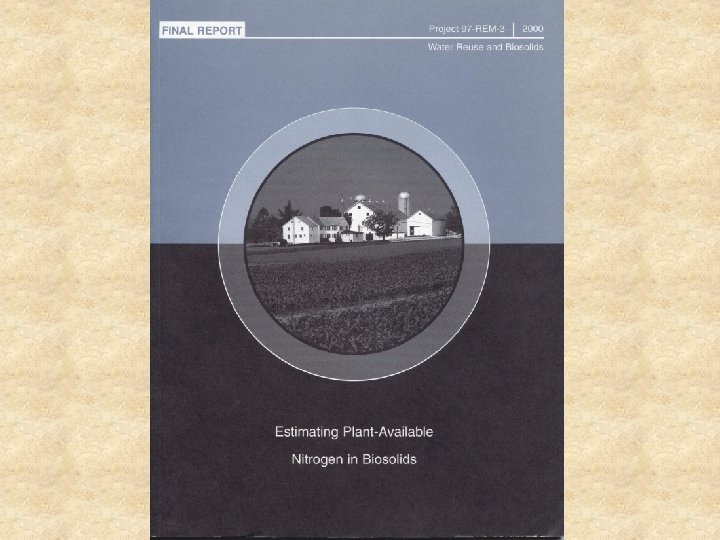

1998 -2000: Estimating plant-available nitrogen in biosolids 1) Laboratory incubation studies with a wide range of different biosolids and a computer model were used to predict PAN for different climates across the U. S. Field studies were established in AR, MI, VA, and WA to verify PAN released by N mineralization from biosolids applications. 2) Predicted PAN using the computer model, DECOMPOSITION, actual growing season weather, actual analytical data of biosolids and laboratory decomposition kinetics compared well with the observed PAN in the field. 3) GIS maps of the U. S. based on average weather at 140 U. S. locations show the expected mineralized PAN released during the 1 st, 2 nd, 3 rd, and 4 th growing seasons following a biosolids application.

2001 -2004: Evaluation of N-Viro products for environmental impact 1) Determine the long-term environmental impact of trace substances in N-Viro Soil and Nure. Soil when applied to crop land. 2) We initiated a field experiment in October, 2001, with East Lansing NViro Soil (ELNVS) and swine Nure. Soil (SNS) at rates of 8, 58 and 120 ton/ac and 13, 26 and 100 ton/ac, respectively. 3) Field corn and soybeans were grown during the 2002, 2003 and 2004 growing seasons. 4) Currently completing data summaries and statistics for final research report and writing scientific papers.
