34 Chapters 3 and 4 Drawing ERDs October

3&4 Chapters 3 and 4 Drawing ERDs October 16, 2006 Week 3 Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel

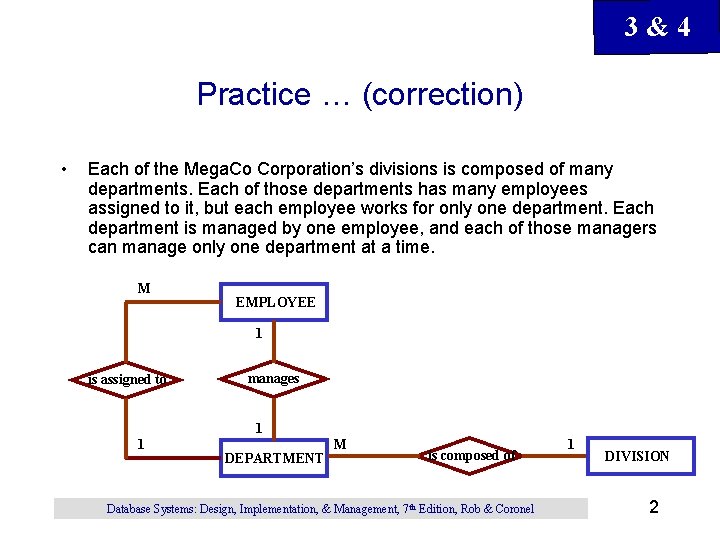

3&4 Practice … (correction) • Each of the Mega. Co Corporation’s divisions is composed of many departments. Each of those departments has many employees assigned to it, but each employee works for only one department. Each department is managed by one employee, and each of those managers can manage only one department at a time. M EMPLOYEE 1 is assigned to manages 1 1 DEPARTMENT M is composed of Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 1 DIVISION 2

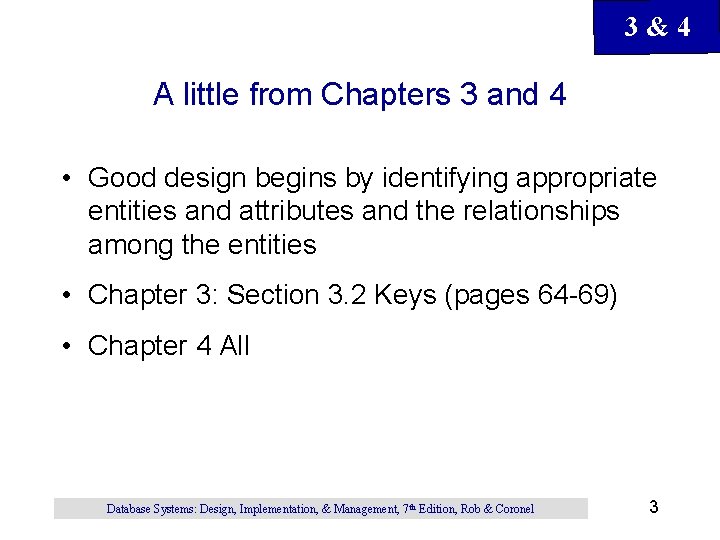

3&4 A little from Chapters 3 and 4 • Good design begins by identifying appropriate entities and attributes and the relationships among the entities • Chapter 3: Section 3. 2 Keys (pages 64 -69) • Chapter 4 All Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 3

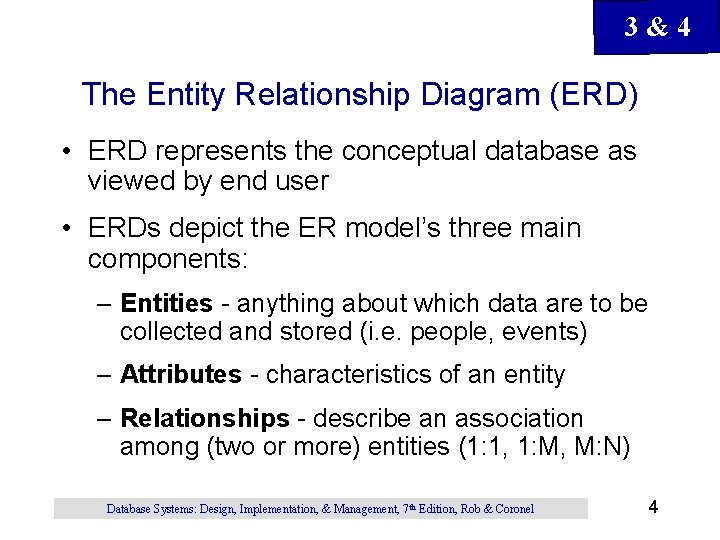

3&4 The Entity Relationship Diagram (ERD) • ERD represents the conceptual database as viewed by end user • ERDs depict the ER model’s three main components: – Entities - anything about which data are to be collected and stored (i. e. people, events) – Attributes - characteristics of an entity – Relationships - describe an association among (two or more) entities (1: 1, 1: M, M: N) Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 4

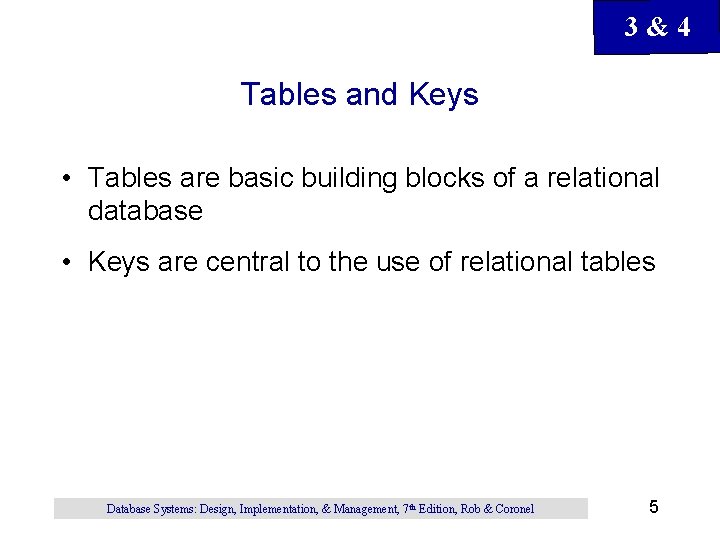

3&4 Tables and Keys • Tables are basic building blocks of a relational database • Keys are central to the use of relational tables Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 5

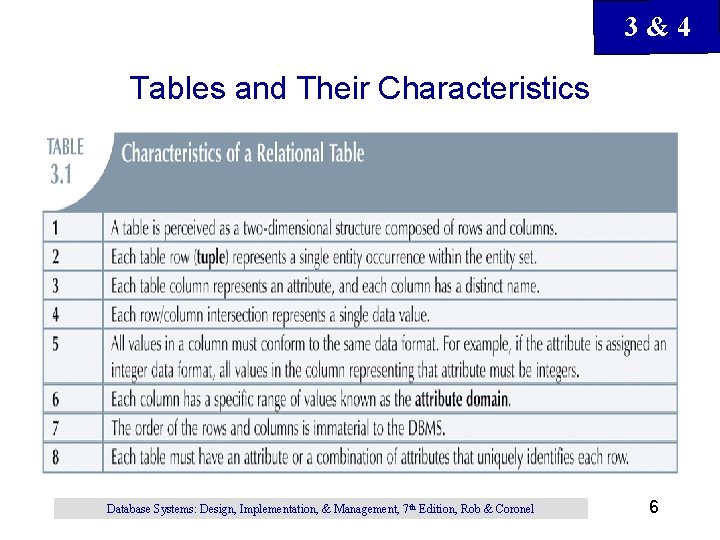

3&4 Tables and Their Characteristics Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 6

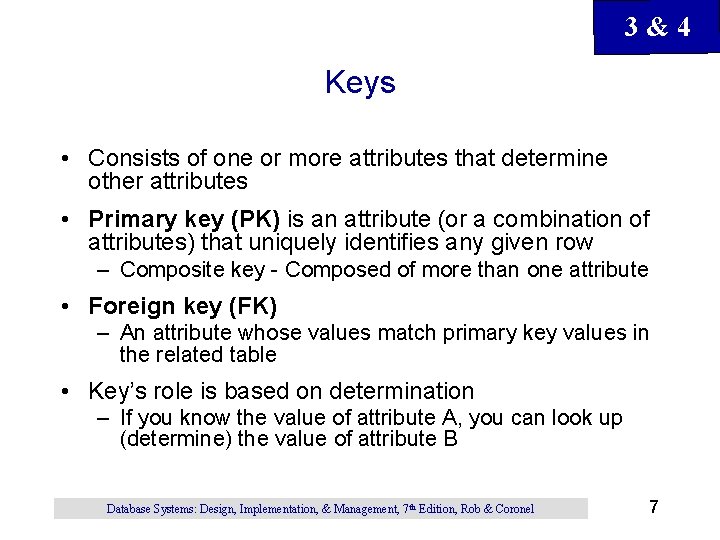

3&4 Keys • Consists of one or more attributes that determine other attributes • Primary key (PK) is an attribute (or a combination of attributes) that uniquely identifies any given row – Composite key - Composed of more than one attribute • Foreign key (FK) – An attribute whose values match primary key values in the related table • Key’s role is based on determination – If you know the value of attribute A, you can look up (determine) the value of attribute B Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 7

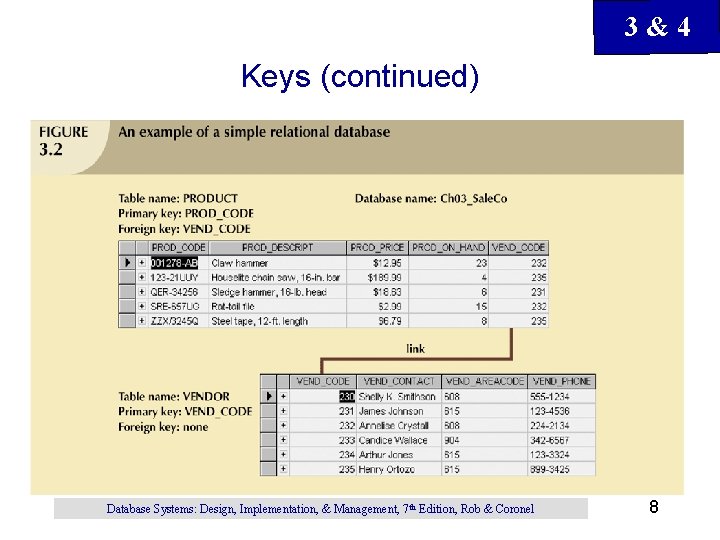

3&4 Keys (continued) Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 8

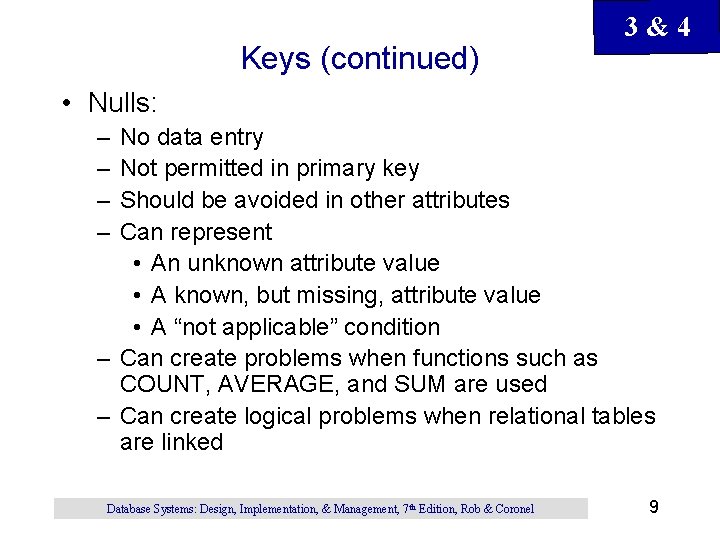

Keys (continued) 3&4 • Nulls: – – No data entry Not permitted in primary key Should be avoided in other attributes Can represent • An unknown attribute value • A known, but missing, attribute value • A “not applicable” condition – Can create problems when functions such as COUNT, AVERAGE, and SUM are used – Can create logical problems when relational tables are linked Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 9

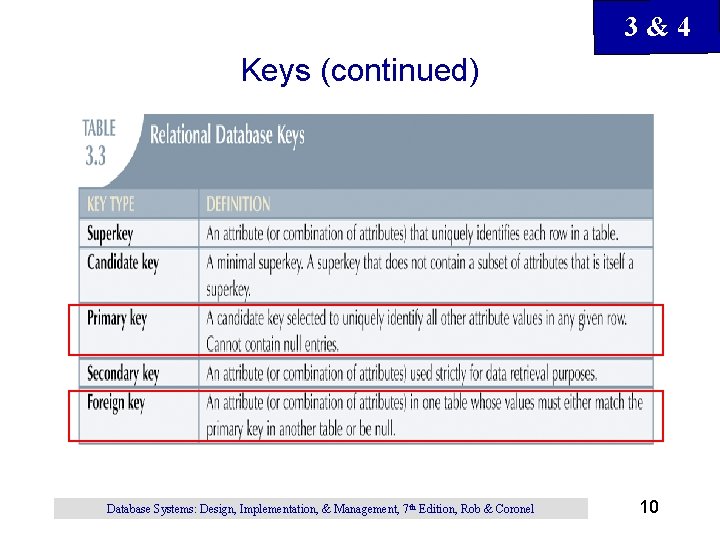

3&4 Keys (continued) Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 10

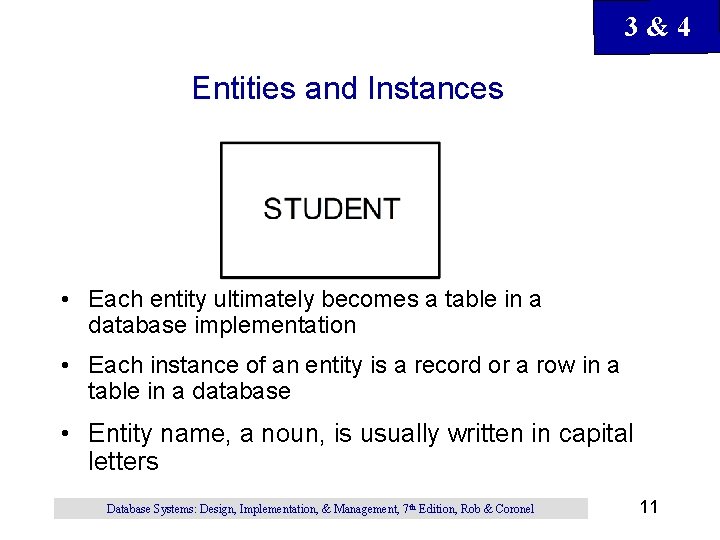

3&4 Entities and Instances • Each entity ultimately becomes a table in a database implementation • Each instance of an entity is a record or a row in a table in a database • Entity name, a noun, is usually written in capital letters Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 11

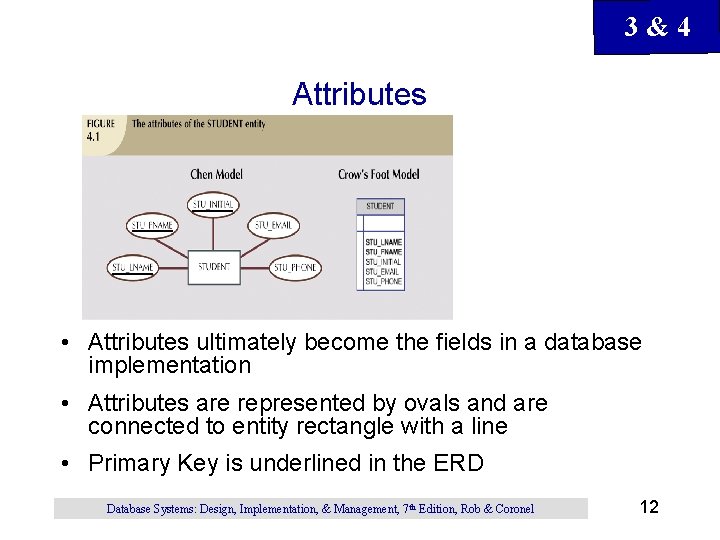

3&4 Attributes • Attributes ultimately become the fields in a database implementation • Attributes are represented by ovals and are connected to entity rectangle with a line • Primary Key is underlined in the ERD Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 12

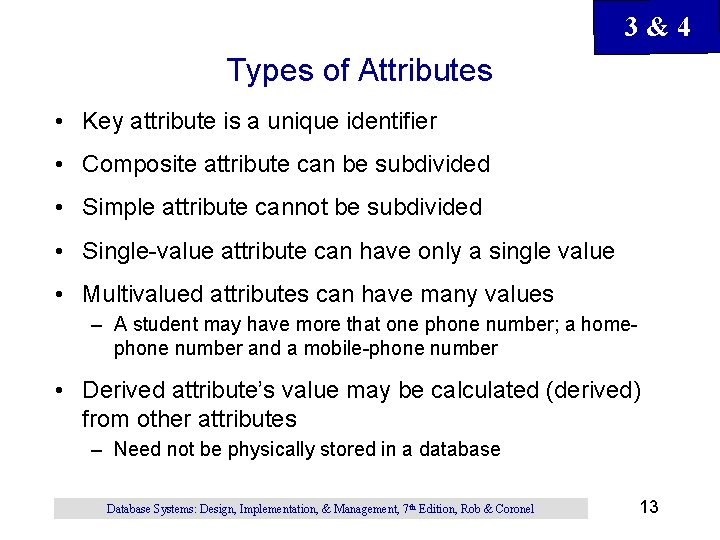

3&4 Types of Attributes • Key attribute is a unique identifier • Composite attribute can be subdivided • Simple attribute cannot be subdivided • Single-value attribute can have only a single value • Multivalued attributes can have many values – A student may have more that one phone number; a homephone number and a mobile-phone number • Derived attribute’s value may be calculated (derived) from other attributes – Need not be physically stored in a database Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 13

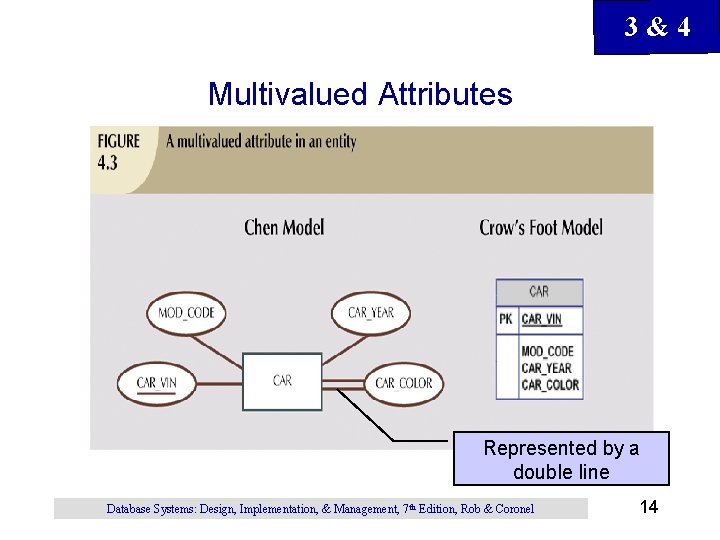

3&4 Multivalued Attributes Represented by a double line Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 14

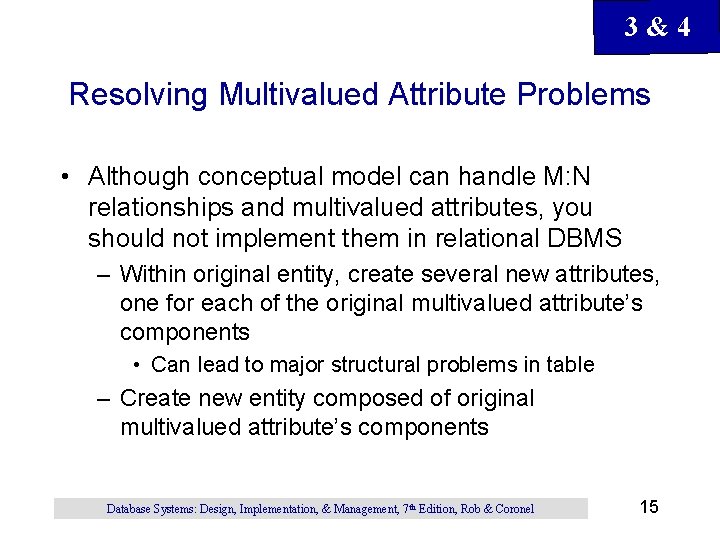

3&4 Resolving Multivalued Attribute Problems • Although conceptual model can handle M: N relationships and multivalued attributes, you should not implement them in relational DBMS – Within original entity, create several new attributes, one for each of the original multivalued attribute’s components • Can lead to major structural problems in table – Create new entity composed of original multivalued attribute’s components Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 15

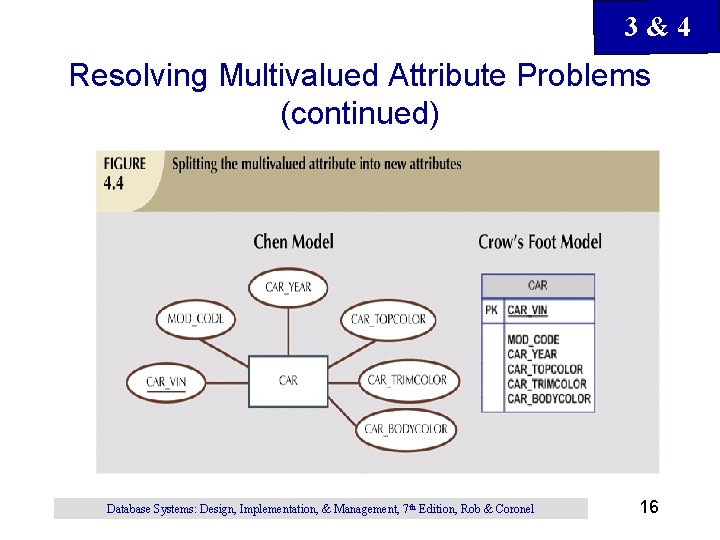

3&4 Resolving Multivalued Attribute Problems (continued) Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 16

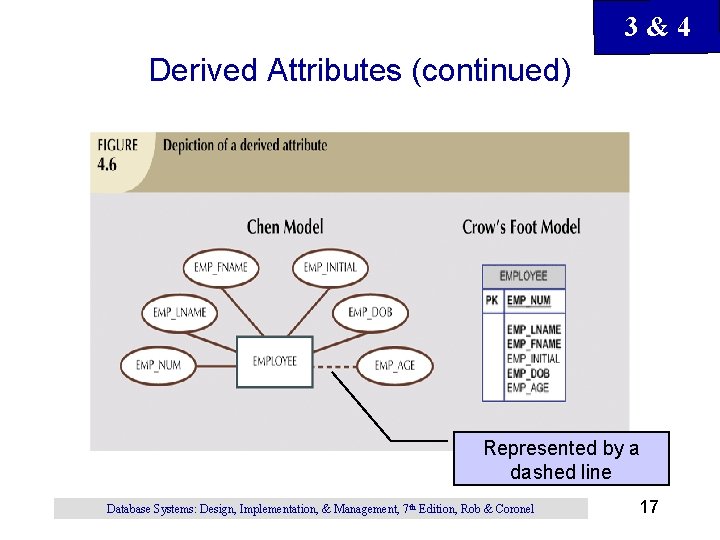

3&4 Derived Attributes (continued) Represented by a dashed line Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 17

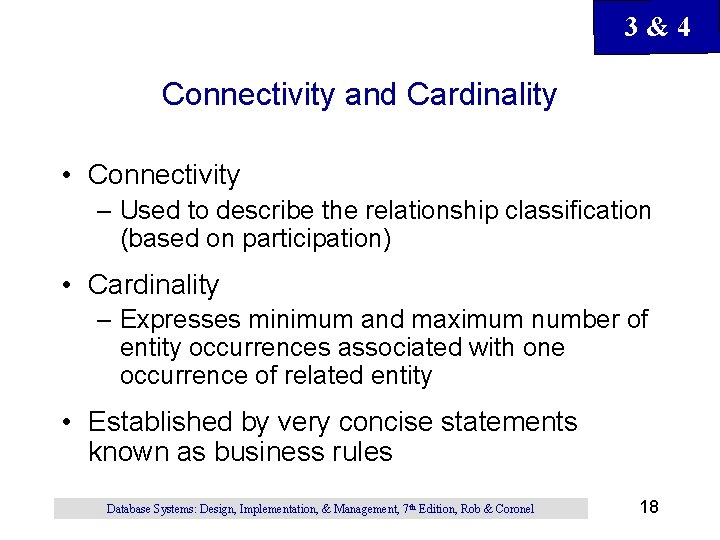

3&4 Connectivity and Cardinality • Connectivity – Used to describe the relationship classification (based on participation) • Cardinality – Expresses minimum and maximum number of entity occurrences associated with one occurrence of related entity • Established by very concise statements known as business rules Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 18

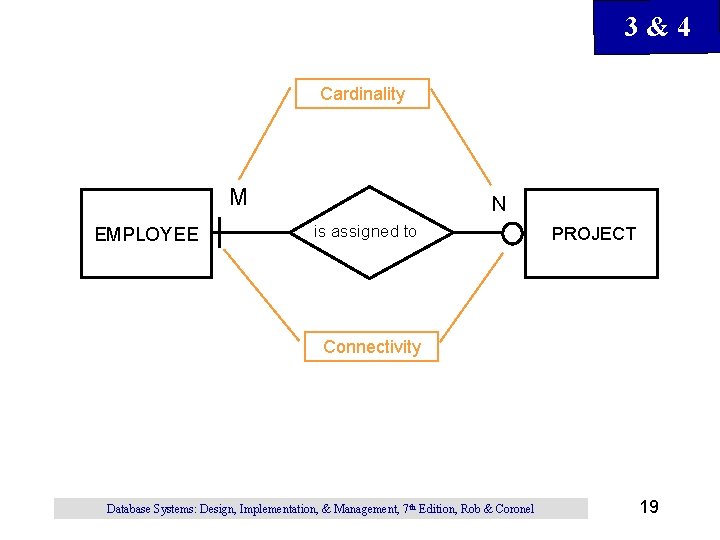

3&4 Cardinality M EMPLOYEE N is assigned to PROJECT Connectivity Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 19

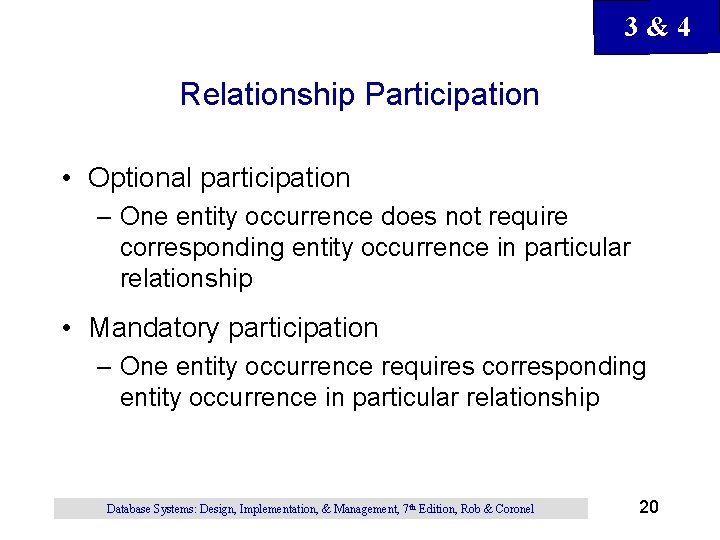

3&4 Relationship Participation • Optional participation – One entity occurrence does not require corresponding entity occurrence in particular relationship • Mandatory participation – One entity occurrence requires corresponding entity occurrence in particular relationship Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 20

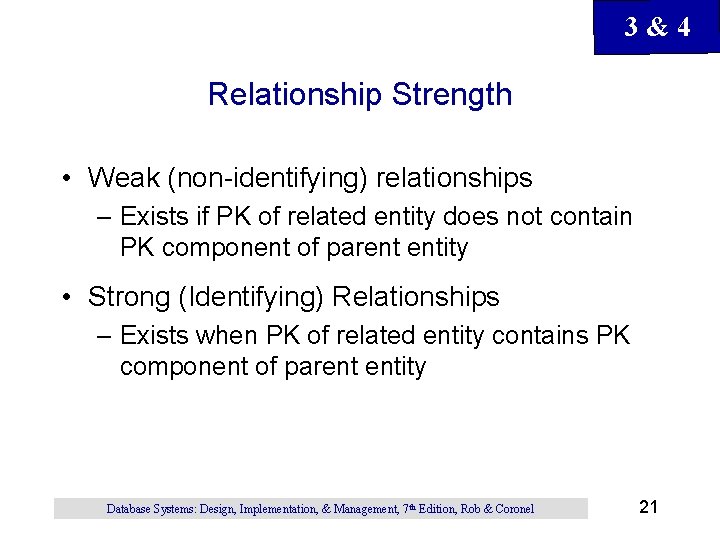

3&4 Relationship Strength • Weak (non-identifying) relationships – Exists if PK of related entity does not contain PK component of parent entity • Strong (Identifying) Relationships – Exists when PK of related entity contains PK component of parent entity Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 21

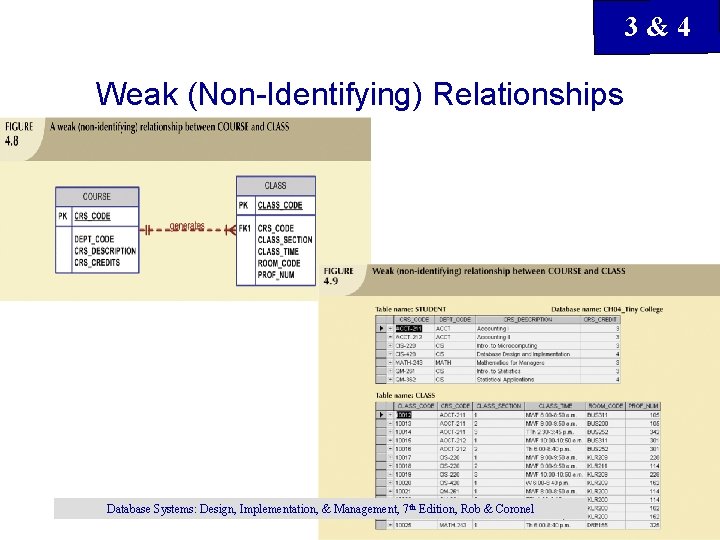

3&4 Weak (Non-Identifying) Relationships Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 22

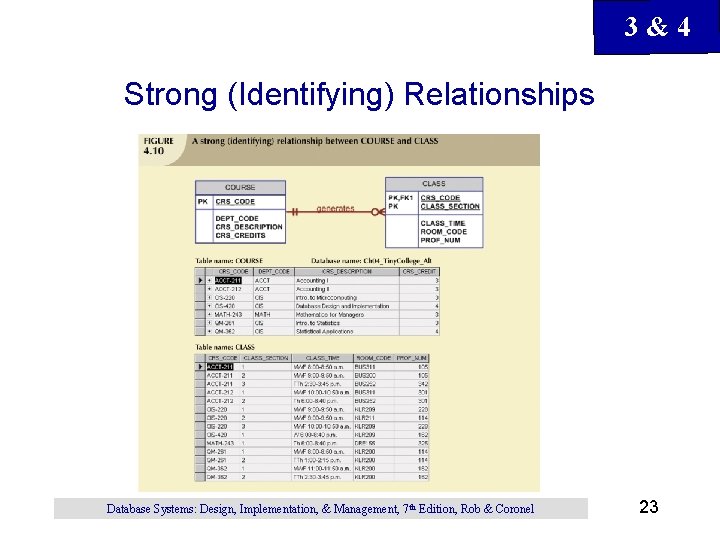

3&4 Strong (Identifying) Relationships Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 23

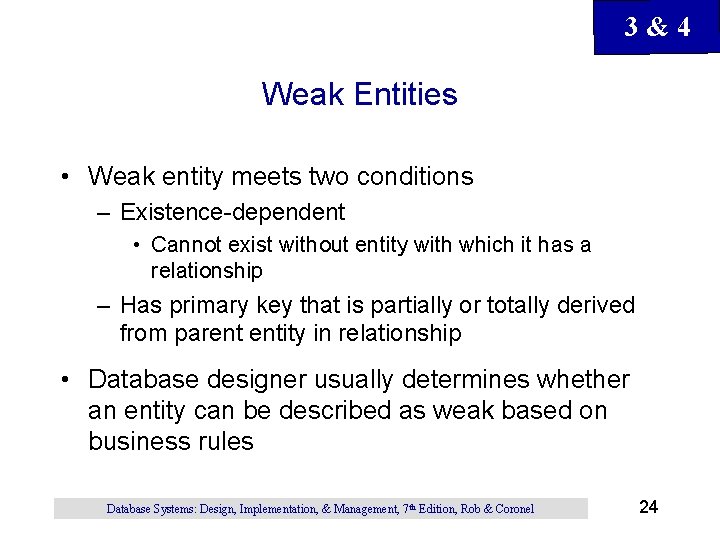

3&4 Weak Entities • Weak entity meets two conditions – Existence-dependent • Cannot exist without entity with which it has a relationship – Has primary key that is partially or totally derived from parent entity in relationship • Database designer usually determines whether an entity can be described as weak based on business rules Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 24

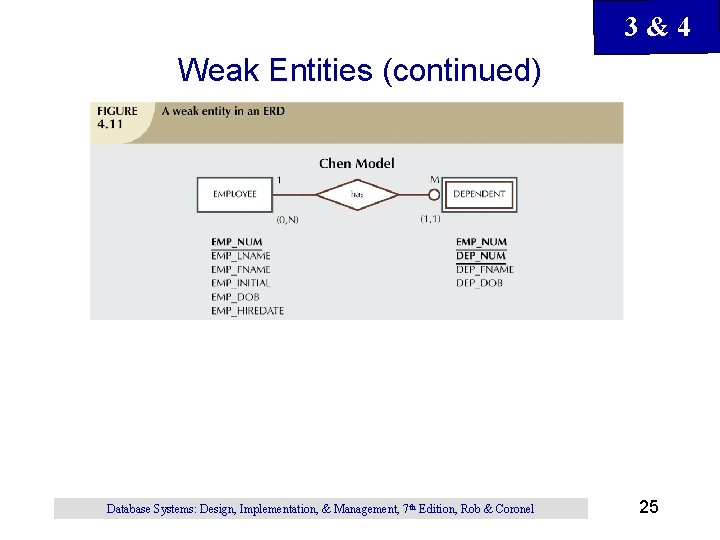

3&4 Weak Entities (continued) Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 25

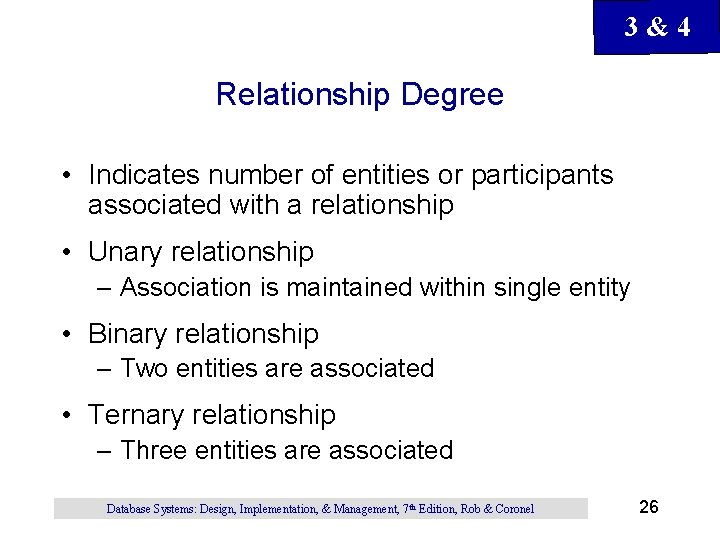

3&4 Relationship Degree • Indicates number of entities or participants associated with a relationship • Unary relationship – Association is maintained within single entity • Binary relationship – Two entities are associated • Ternary relationship – Three entities are associated Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 26

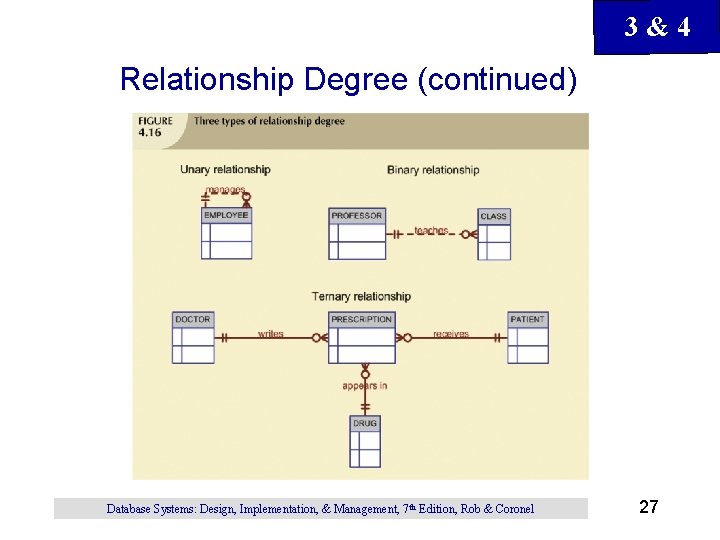

3&4 Relationship Degree (continued) Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 27

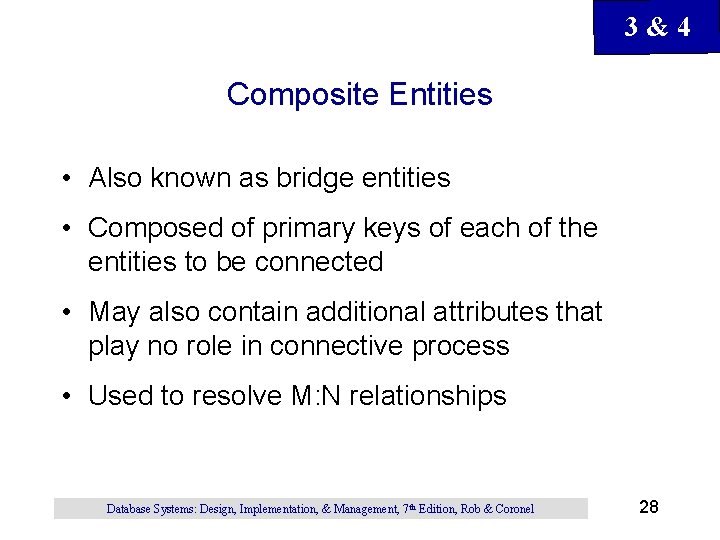

3&4 Composite Entities • Also known as bridge entities • Composed of primary keys of each of the entities to be connected • May also contain additional attributes that play no role in connective process • Used to resolve M: N relationships Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 28

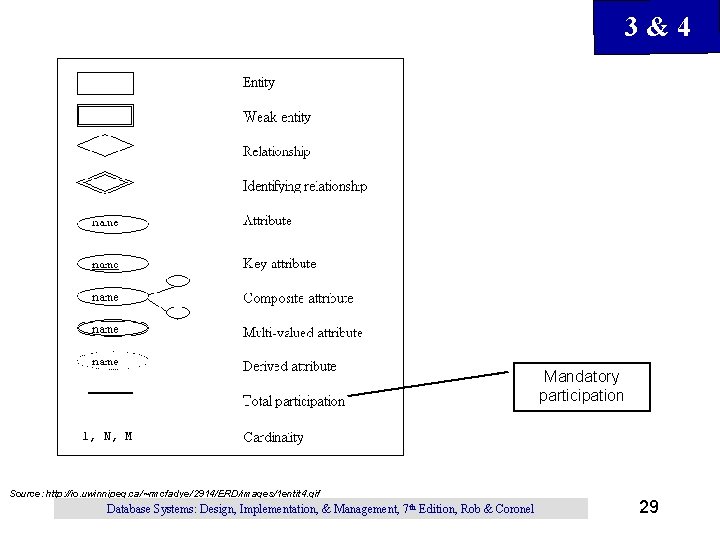

3&4 Mandatory participation 1, N, M Source: http: //io. uwinnipeg. ca/~rmcfadye/2914/ERD/images/1 entit 4. gif Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 29

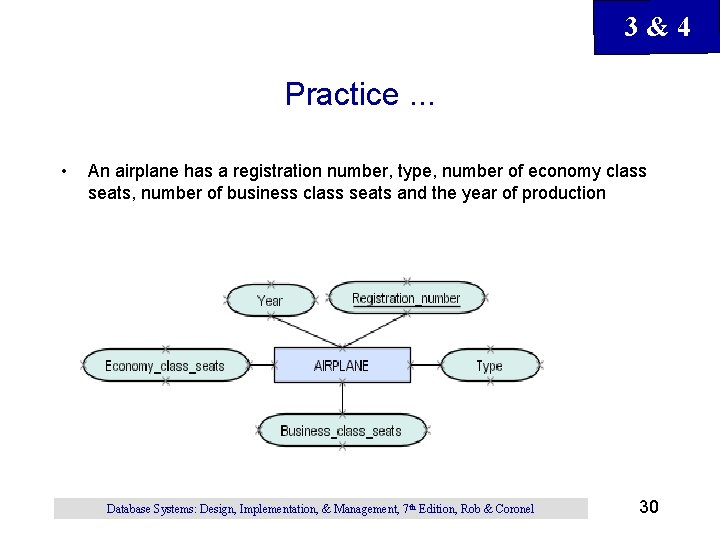

3&4 Practice. . . • An airplane has a registration number, type, number of economy class seats, number of business class seats and the year of production Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 30

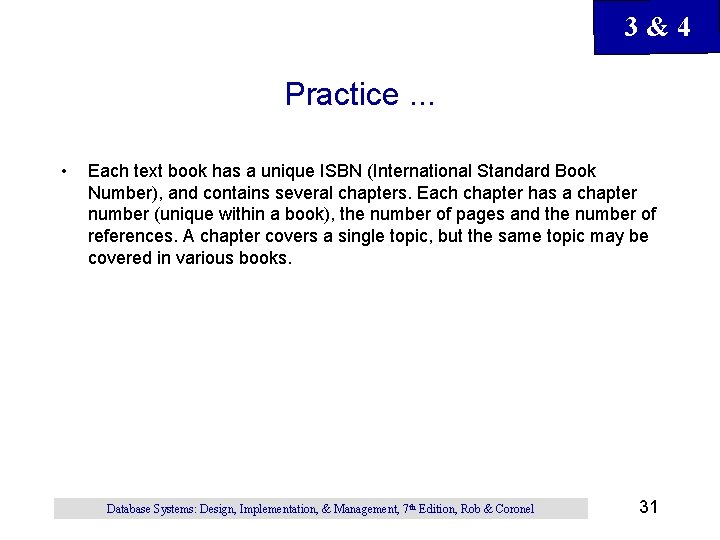

3&4 Practice. . . • Each text book has a unique ISBN (International Standard Book Number), and contains several chapters. Each chapter has a chapter number (unique within a book), the number of pages and the number of references. A chapter covers a single topic, but the same topic may be covered in various books. Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 31

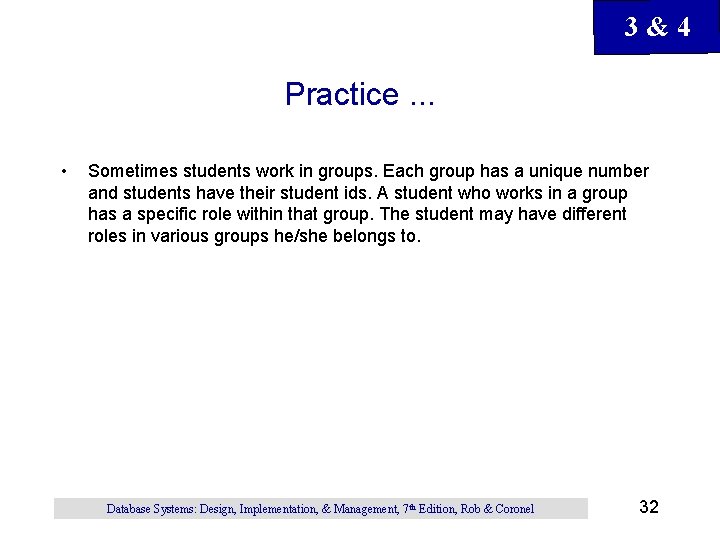

3&4 Practice. . . • Sometimes students work in groups. Each group has a unique number and students have their student ids. A student who works in a group has a specific role within that group. The student may have different roles in various groups he/she belongs to. Database Systems: Design, Implementation, & Management, 7 th Edition, Rob & Coronel 32
