30 Outline Maxwells Equations and the Displacement Current

30 Outline • Maxwell’s Equations and the Displacement Current • Electromagnetic Waves • Polarization 1

Maxwell’s Equations • Gauss’ Law: E & B • Faraday’s Law • Ampere’s Law 2

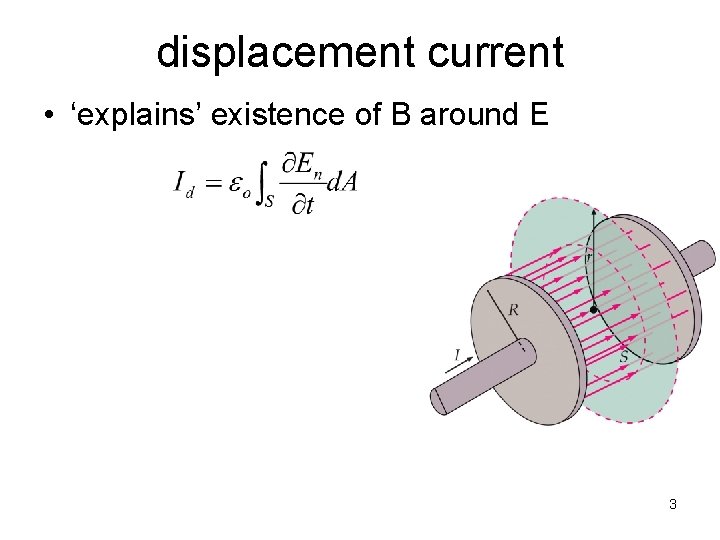

displacement current • ‘explains’ existence of B around E 3

EM waves • accelerating charges produce ‘waves’ of E and B • can be ‘pulse’ or ‘harmonic wave’ 4

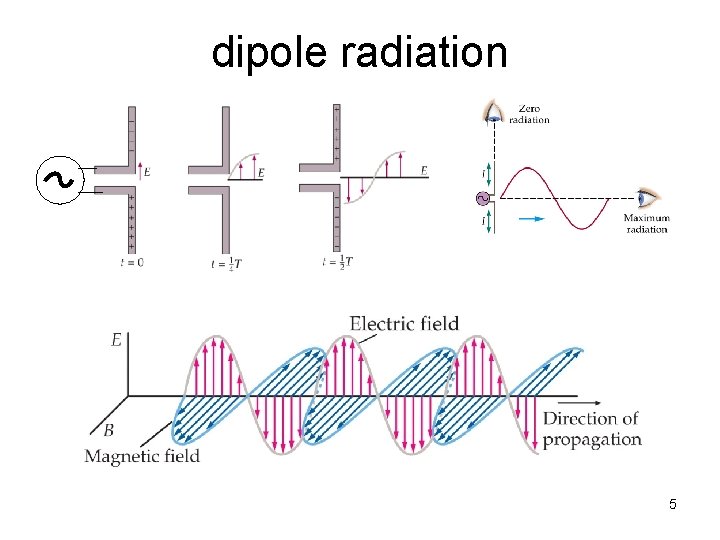

dipole radiation 5

EM waves • transverse: E perpendicular to B • E and B are in phase • speed: c = fl = 3 108 m/s 6

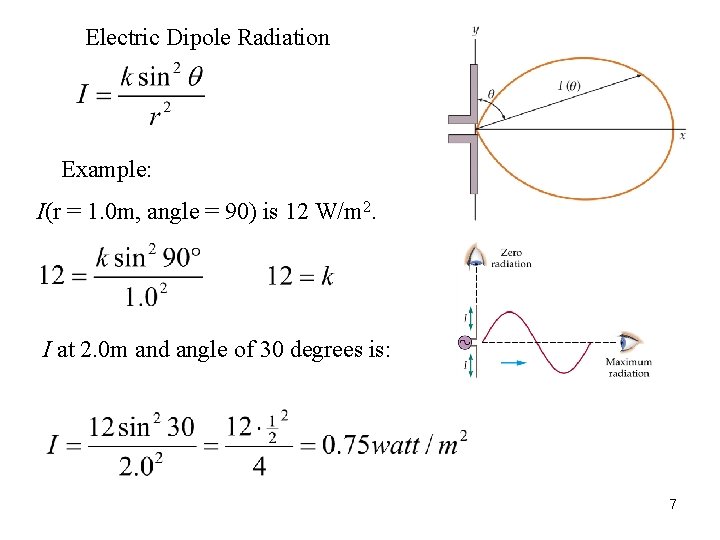

Electric Dipole Radiation Example: I(r = 1. 0 m, angle = 90) is 12 W/m 2. I at 2. 0 m and angle of 30 degrees is: 7

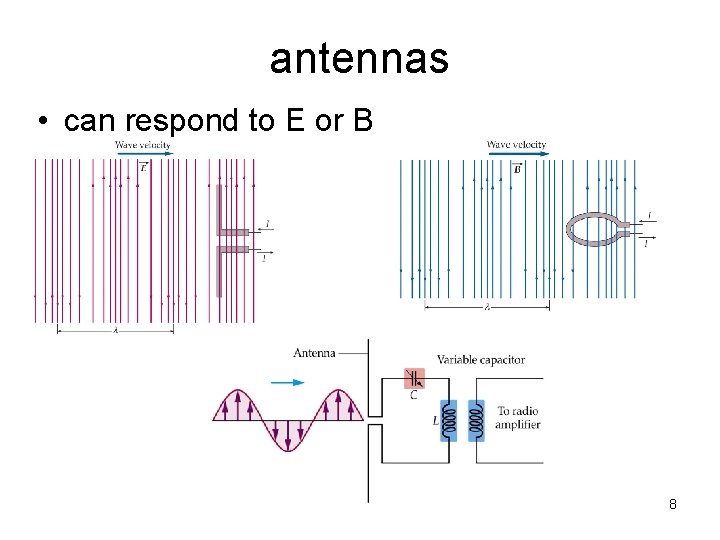

antennas • can respond to E or B 8

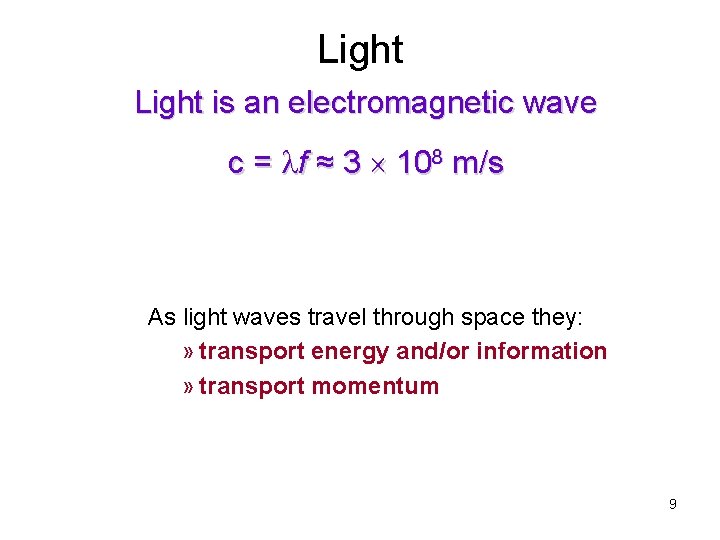

Light is an electromagnetic wave c = lf ≈ 3 108 m/s As light waves travel through space they: » transport energy and/or information » transport momentum 9

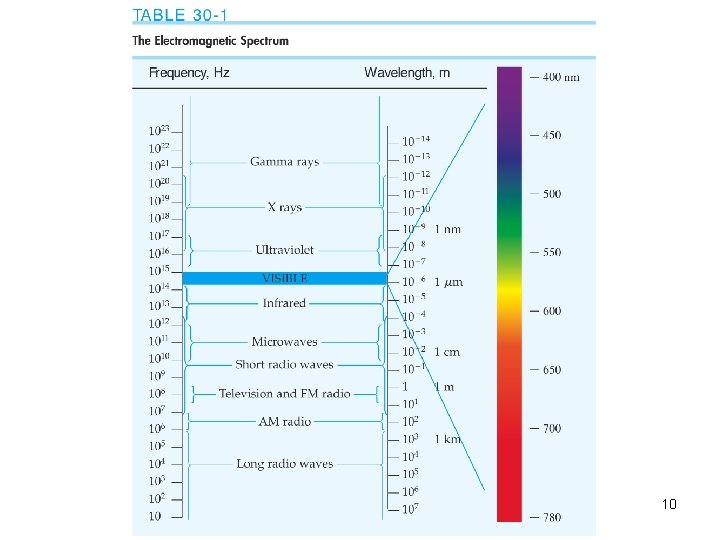

10

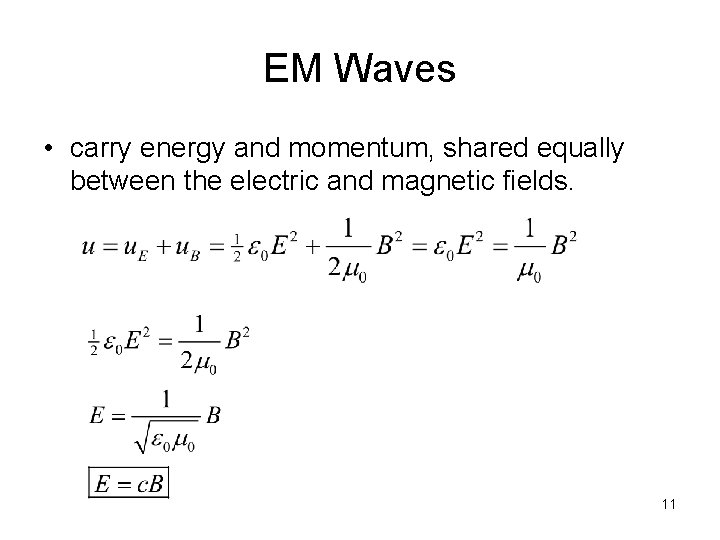

EM Waves • carry energy and momentum, shared equally between the electric and magnetic fields. 11

Energy and Momentum in EM Waves • Intensity: energy/area/time [watts/sq. meter] 12

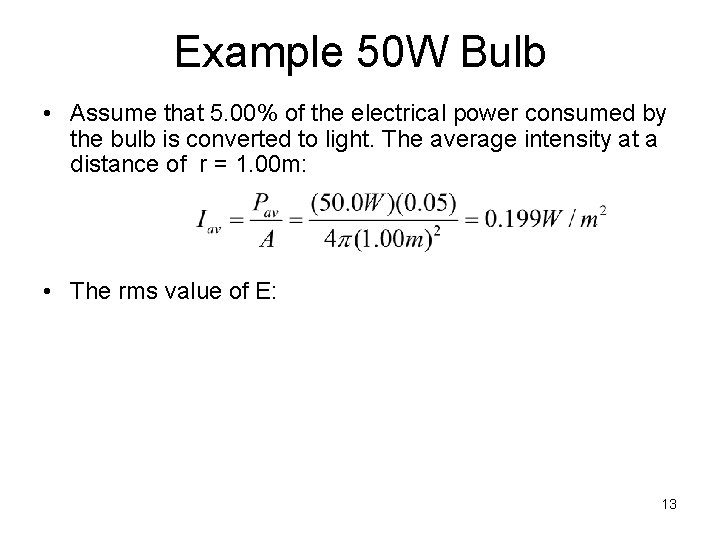

Example 50 W Bulb • Assume that 5. 00% of the electrical power consumed by the bulb is converted to light. The average intensity at a distance of r = 1. 00 m: • The rms value of E: 13

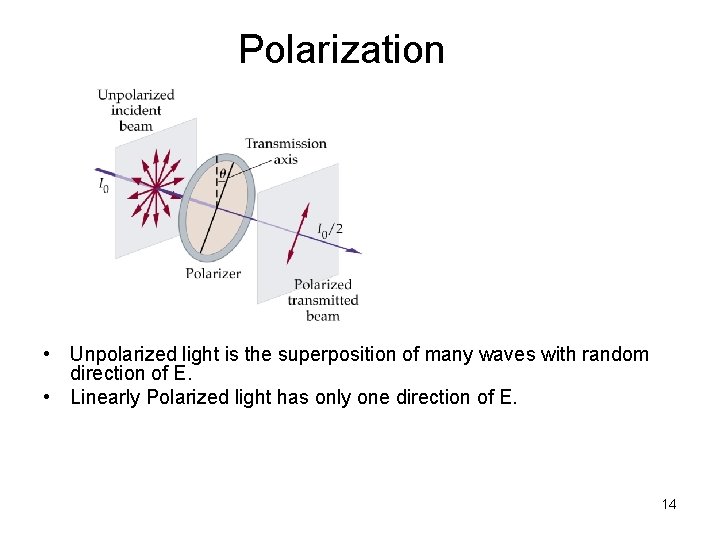

Polarization • Unpolarized light is the superposition of many waves with random direction of E. • Linearly Polarized light has only one direction of E. 14

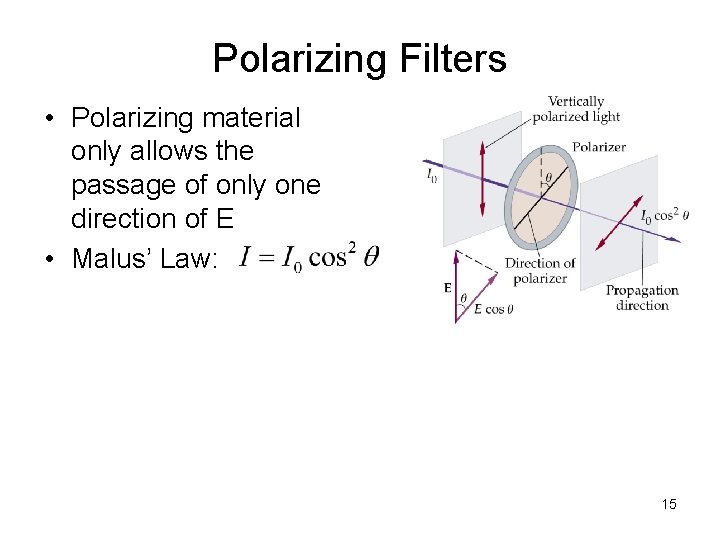

Polarizing Filters • Polarizing material only allows the passage of only one direction of E • Malus’ Law: 15

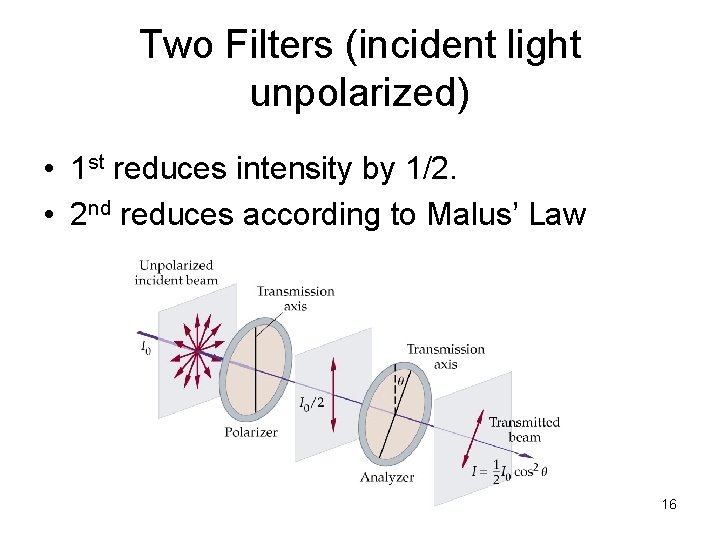

Two Filters (incident light unpolarized) • 1 st reduces intensity by 1/2. • 2 nd reduces according to Malus’ Law 16

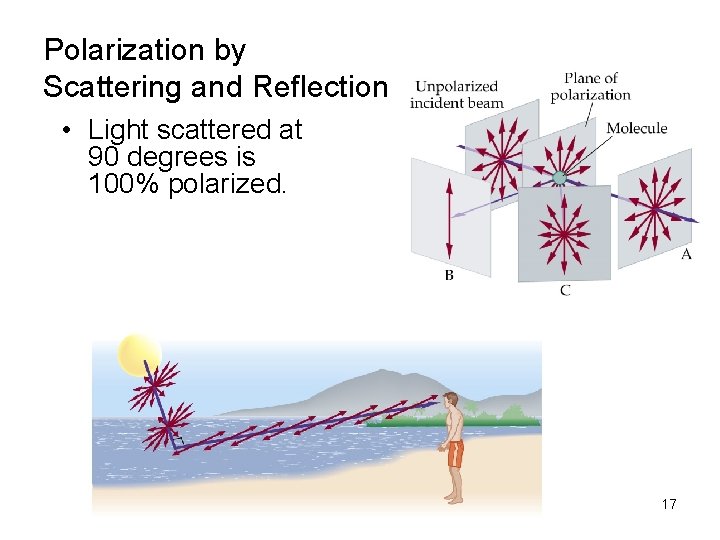

Polarization by Scattering and Reflection • Light scattered at 90 degrees is 100% polarized. 17

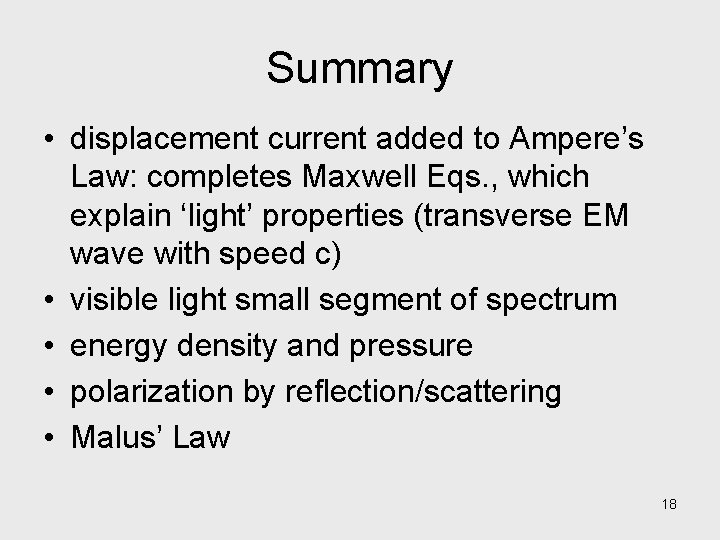

Summary • displacement current added to Ampere’s Law: completes Maxwell Eqs. , which explain ‘light’ properties (transverse EM wave with speed c) • visible light small segment of spectrum • energy density and pressure • polarization by reflection/scattering • Malus’ Law 18

Omit 30 -4 The Wave Equation for Electromagnetic Waves End 19

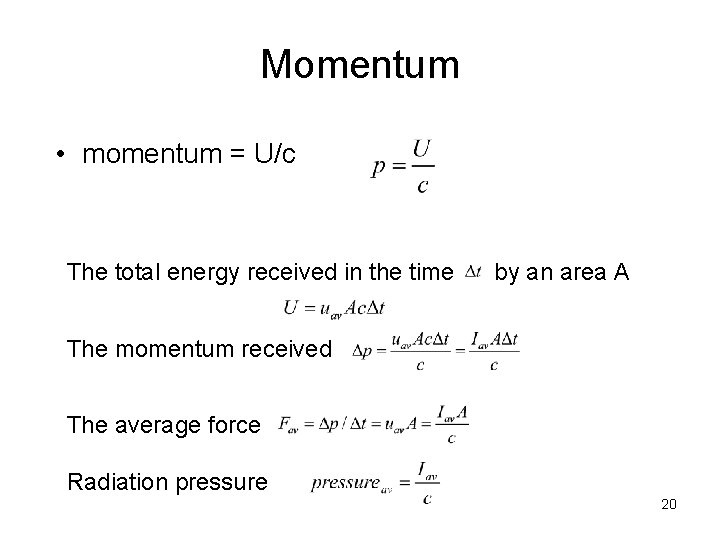

Momentum • momentum = U/c The total energy received in the time by an area A The momentum received The average force Radiation pressure 20

21

22

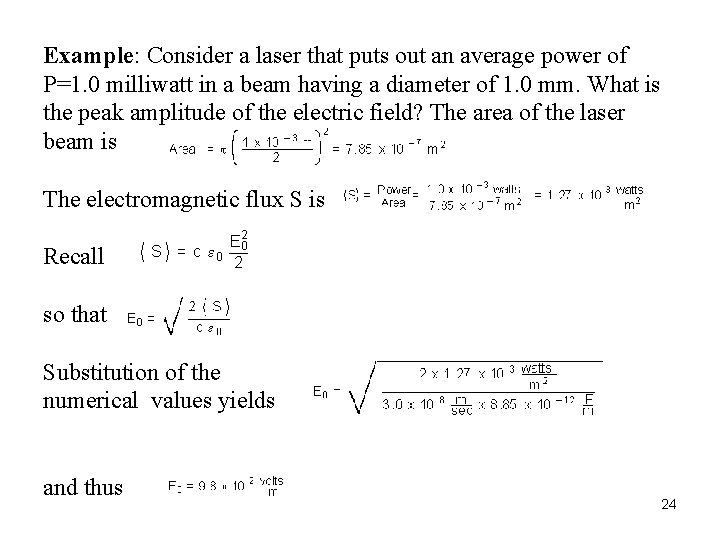

Example (cont. ) Part (b) 2. Use 3. Use to find 23
