3 Way IndoorOutdoor Horn Loaded Speaker System 10

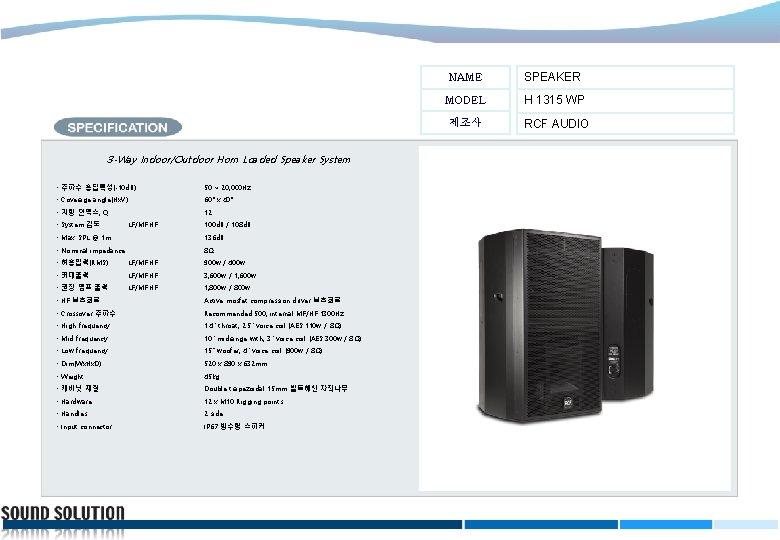

3 -Way Indoor/Outdoor Horn Loaded Speaker System • 주파수 응답특성(-10 d. B) : 50 ~ 20, 000 Hz • Coverage angle(Hx. V) : 60° x 40° • 지향 인덱스; Q : 12 • System 감도 LF/MF. HF : 100 d. B / 108 d. B • Max. SPL @ 1 m : 136 d. B • Nominal impedance : 8Ω • 허용입력(RMS) LF/MF. HF : 900 w / 400 w • 최대출력 LF/MF. HF : 3, 600 w / 1, 600 w • 권장 앰프 출력 LF/MF. HF : 1, 800 w / 800 w • HF 보호회로 : Active mosfet compression driver 보호회로 • Crossover 주파수 : Recommended 500, internal MF/HF 1300 Hz • High frequency : 1. 4" throat, 2. 5" voice coil (AES 110 w / 8Ω) • Mid frequency : 10" midrange with, 3" voice coil (AES 300 w / 8Ω) • Low frequency : 15” woofer, 4" voice coil (900 w / 8Ω) • Dim(Wx. Hx. D) : 520 x 890 x 632 mm • Weight : 45 kg • 캐비닛 재질 : Double trapezoidal 15 mm 발트해산 자작나무 • Hardware : 12 x M 10 Rigging points • Handles : 2 side • Input connector : IP 67 방수형 스피커 NAME SPEAKER MODEL H 1315 WP 제조사 RCF AUDIO
