3 Visible Human Project Chinese Visible Human Virtual

미국, 중국에서 여성 온몸의 절단 면영상과 3차원 영상을 만들었음. Visible Human Project Chinese Visible Human Virtual Chinese Human

테두리영상을 널리 퍼뜨리지 않아서 3차원영상을 만들기 어려웠음. Visible Human Project Chinese Visible Human Virtual Chinese Human Visible Korean

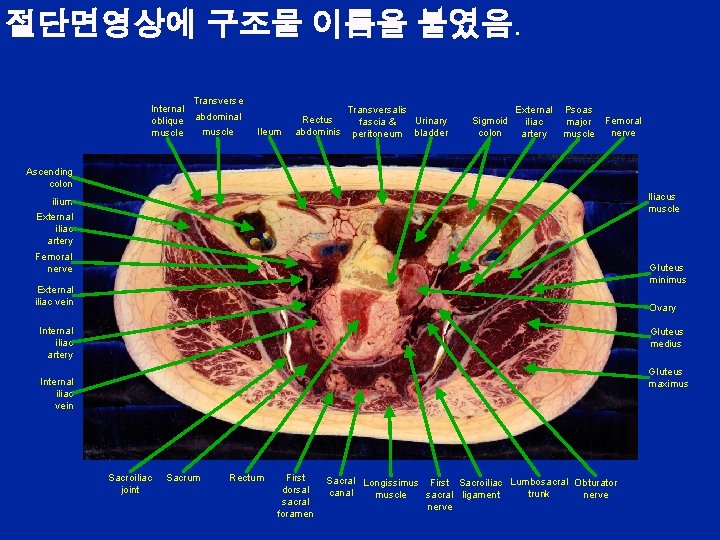

절단면영상에 구조물 이름을 붙였음. Internal oblique muscle Transverse abdominal muscle Ileum Rectus abdominis Transversalis Urinary fascia & peritoneum bladder Sigmoid colon External iliac artery Psoas major muscle Femoral nerve Ascending colon Iliacus muscle ilium External iliac artery Femoral nerve Gluteus minimus External iliac vein Ovary Internal iliac artery Gluteus medius Gluteus maximus Internal iliac vein Sacroiliac joint Sacrum Rectum First dorsal sacral foramen Sacral Longissimus First Sacroiliac Lumbosacral Obturator canal trunk muscle sacral ligament nerve

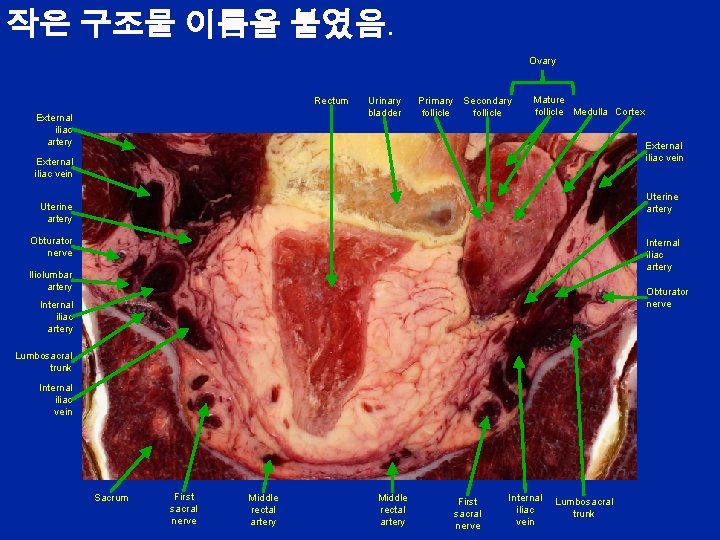

작은 구조물 이름을 붙였음. Ovary Rectum External iliac artery Urinary bladder Primary follicle Secondary follicle Mature follicle Medulla Cortex External iliac vein Uterine artery Obturator nerve Internal iliac artery Iliolumbar artery Obturator nerve Internal iliac artery Lumbosacral trunk Internal iliac vein Sacrum First sacral nerve Middle rectal artery First sacral nerve Internal iliac vein Lumbosacral trunk

절단면영상(간격 1 mm)에서 보이는 골반 구조물(175개)의 테두리를 그리기로 하였음. System Structures Integumentary (1) Skin Skeletal (8) 4 th lumbar vertebrae, 5 th lumbar vertebra, Sacrum, Coccyx, Hip bone*, Femur* Articular (22) Intervertebral disc (LV 4 -LV 5, LV 5 sacrum), Iliolumbar ligament*, Pubic symphysis, Anterior sacroiliac ligament*, Sacrotuberous ligament*, Sacrospinous ligament*, Iliofemoral ligament*, Ischiofemoral ligament*, structures (Number of. Pubofemoral structures), *Bilateral Transverse acetabular ligament*, Ligament

절단면영상(간격 1 mm)에서 보이는 골반 구조물(175개)의 테두리를 그리기로 하였음. System Structures Muscular (68) Rectus abdominis muscle*, External oblique abdominal muscle*, Internal oblique abdominal muscle (lt), Transversus abdominis muscle*, Pubococcygeus muscle, Puborectalis muscle, Iliococcygeus muscle, Coccygeus muscle, External anal sphincter, Iliopsoas muscle*, Iliacus muscle*, Psoas major muscle*, Gluteus maximus muscle*, Gluteus medius muscle* (Number of structures), *Bilateral structures

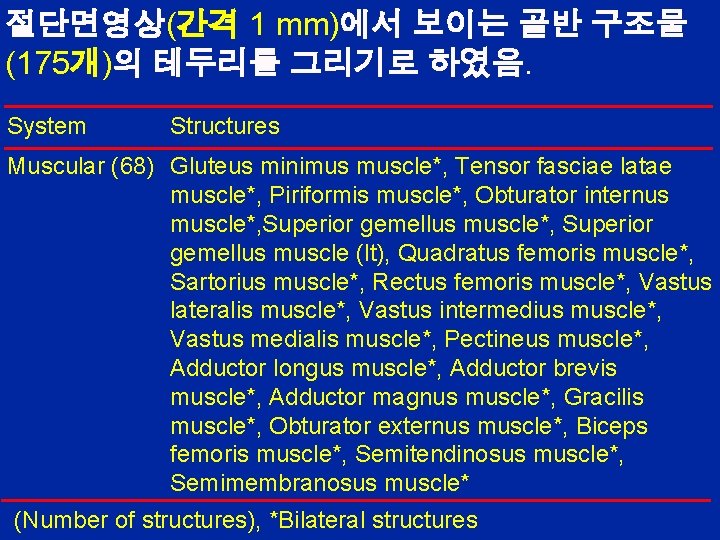

절단면영상(간격 1 mm)에서 보이는 골반 구조물 (175개)의 테두리를 그리기로 하였음. System Structures Muscular (68) Gluteus minimus muscle*, Tensor fasciae latae muscle*, Piriformis muscle*, Obturator internus muscle*, Superior gemellus muscle (lt), Quadratus femoris muscle*, Sartorius muscle*, Rectus femoris muscle*, Vastus lateralis muscle*, Vastus intermedius muscle*, Vastus medialis muscle*, Pectineus muscle*, Adductor longus muscle*, Adductor brevis muscle*, Adductor magnus muscle*, Gracilis muscle*, Obturator externus muscle*, Biceps femoris muscle*, Semitendinosus muscle*, Semimembranosus muscle* (Number of structures), *Bilateral structures

절단면영상(간격 1 mm)에서 보이는 골반 구조물 (175개)의 테두리를 그리기로 하였음. System Structures Vascular (44) Common iliac artery, Internal iliac artery*, Iliolumbar artery*, Obturator artery*, Superior gluteal artery*, Inferior gluteal artery (lt), Umbilical artery (lt), Superior vesical artery*, Inferior vesical artery (lt), Uterine artery*, Vaginal artery*, Middle rectal artery*, Internal pudendal artery*, External iliac artery*, Deep circumflex iliac artery*, Femoral artery*, Deep femoral artery* Common iliac vein*, Internal iliac vein*, Superior gluteal veins*, Uterine veins*, External iliac vein*, Great saphenous vein; Long saphenous vein*, Femoral vein* (Number of structures), *Bilateral structures

절단면영상(간격 1 mm)에서 보이는 골반 구조물 (175개)의 테두리를 그리기로 하였음. System Structures Genital (14) Ovary*, Uterine tube, Uterus (Outline of uterus, Fundus of uterus, Body of uterus, Cervix of uterus), Vagina, Body of clitoris (Glans of clitoris), Female urethra, Urinary bladder, Ureter* Nervous (19) LN 4*, LN 5*, SN 1*, SN 2*, SN 3*, SN 4*, Genitofemoral nerve, Femoral nerve, Obturator nerve, Superior gluteal nerve, Inferior gluteal nerve, Sciatic nerve, Pudendal nerve (Number of structures), *Bilateral structures
