3 J Scalar Couplings 3 J HNHa The

3 J Scalar Couplings 3 J HN-Ha • The 3 J coupling constants are related to the dihedral angles by the Karplus equation, which is an empirical relationship obtained from molecules for which the crystal structure is known. • The equation is a sum of cosines, and depending on the type of topology (H-N-C-H or H-C-C-H) we have different parameters: 3 J 3 J 2 Na = 9. 4 cos ( f - 60 ) - 1. 1 cos( f - 60 ) + 0. 4 2 ab = 9. 5 cos ( y - 60 ) - 1. 6 cos( y - 60 ) + 1. 8 Sometimes 3 J has no unique solution and extra information is required! CS, NOE, Ramachandran plot!

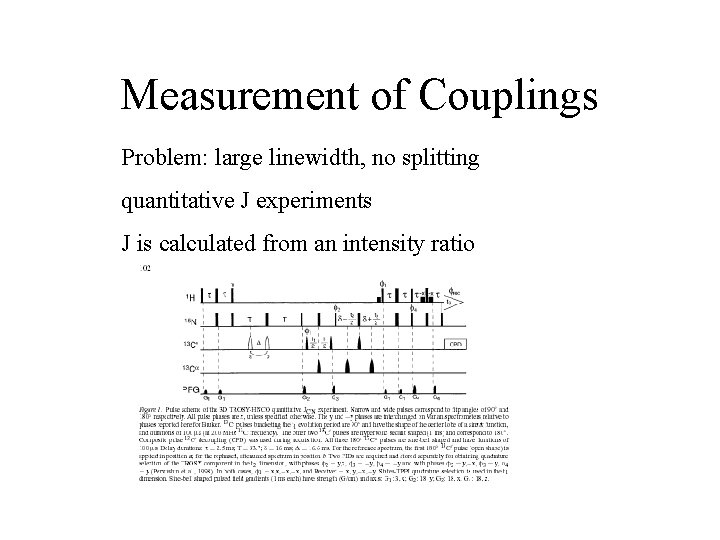

Measurement of Couplings Problem: large linewidth, no splitting quantitative J experiments J is calculated from an intensity ratio

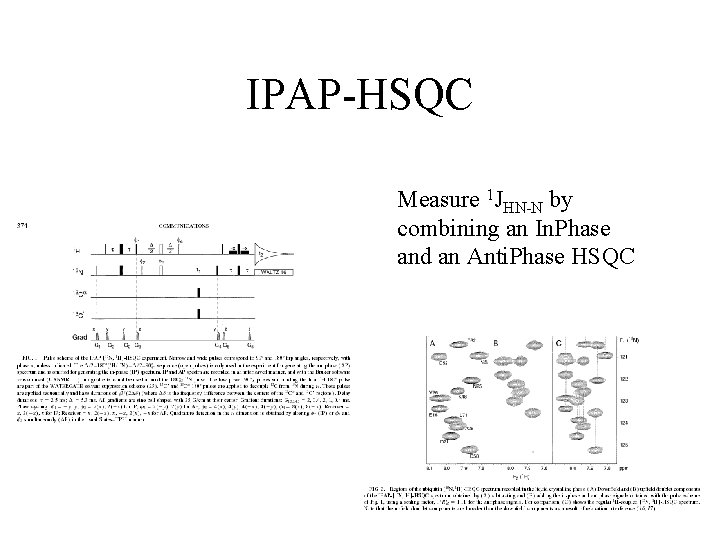

IPAP-HSQC Measure 1 JHN-N by combining an In. Phase and an Anti. Phase HSQC

J-Correlation through H-Bonds H-N-C’ and H-N … O=C’ Correlations e- density in the H-bond ubq. pdb

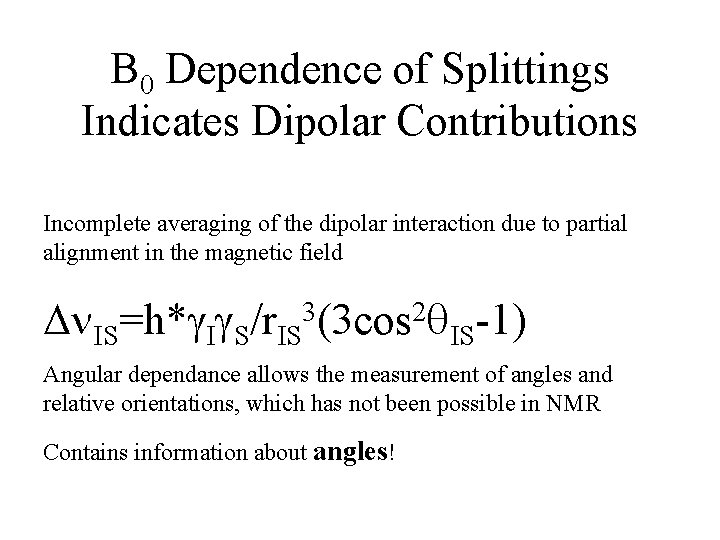

B 0 Dependence of Splittings Indicates Dipolar Contributions Incomplete averaging of the dipolar interaction due to partial alignment in the magnetic field Dn. IS=h*g. Ig. S/r. IS 3(3 cos 2 q. IS-1) Angular dependance allows the measurement of angles and relative orientations, which has not been possible in NMR Contains information about angles!

Field induced Alignment • Dipolar Contribution to J Splitings • Proportional to B 02, but effects are very small • Few Hz in molecules with a large magnetic anisotropy e. g. 2 gat. pdb • ‘Artificial’ Alignment required DIS is measured as the different splitting between different B 0 fields

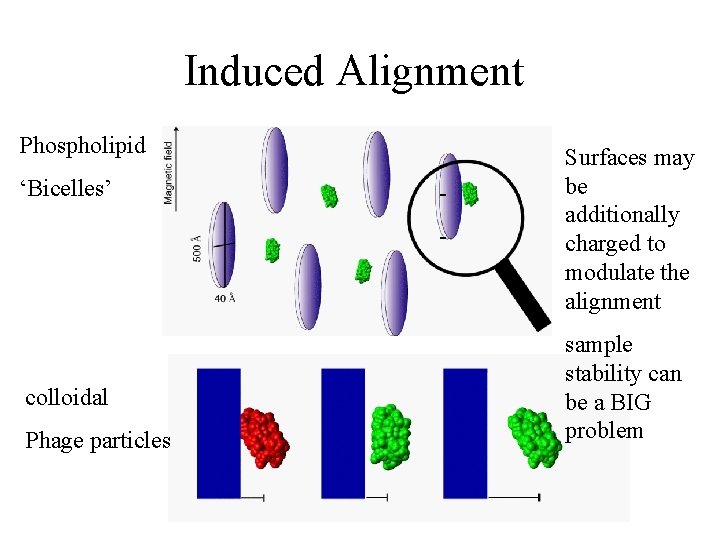

Induced Alignment Phospholipid ‘Bicelles’ - colloidal Phage particles Surfaces may be additionally charged to modulate the alignment sample stability can be a BIG problem

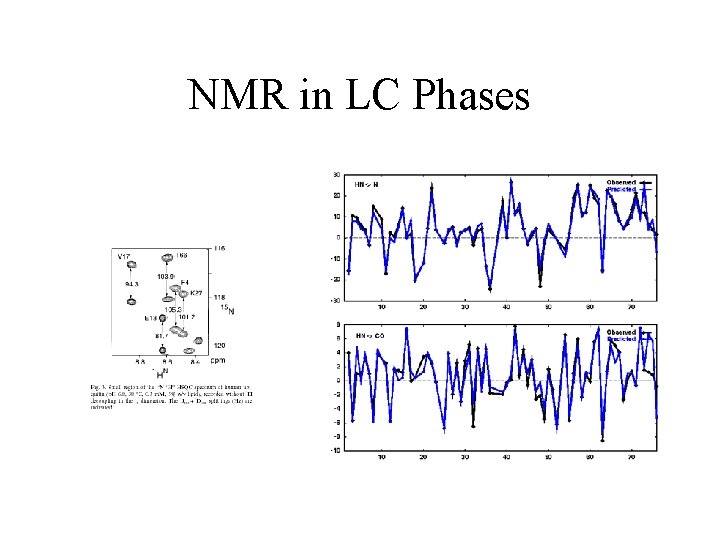

NMR in LC Phases

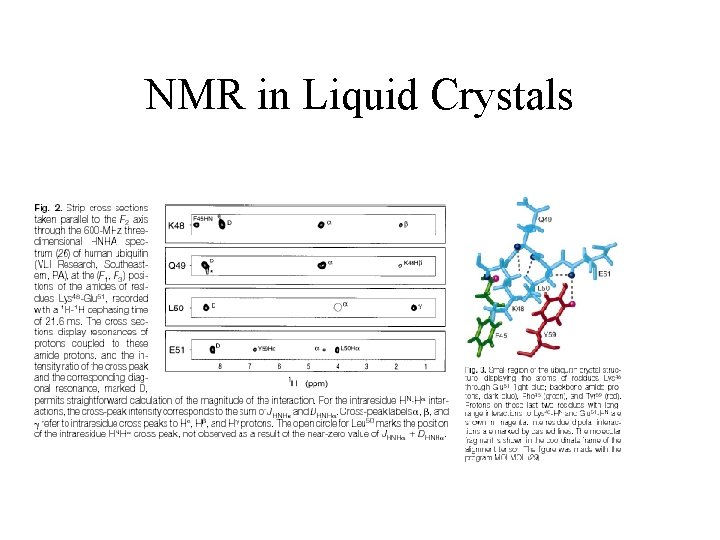

NMR in Liquid Crystals

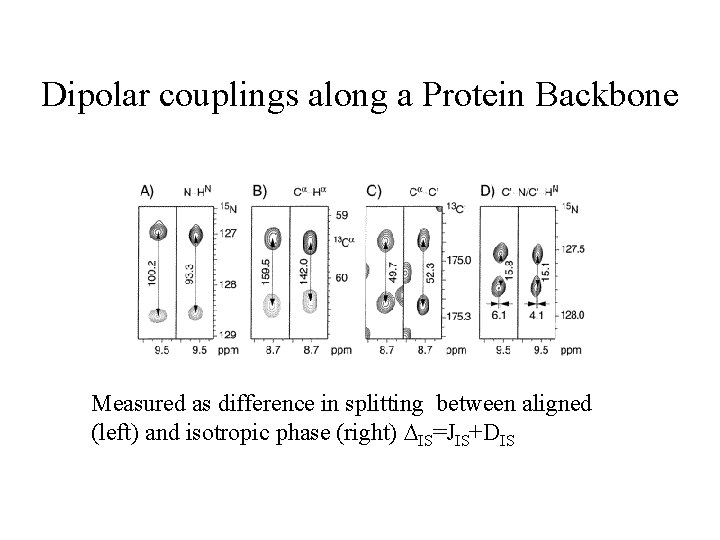

Dipolar couplings along a Protein Backbone Measured as difference in splitting between aligned (left) and isotropic phase (right) DIS=JIS+DIS

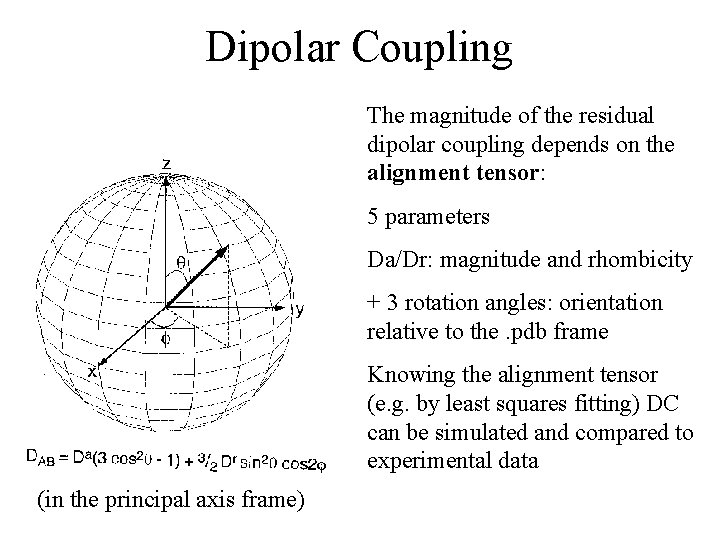

Dipolar Coupling The magnitude of the residual dipolar coupling depends on the alignment tensor: 5 parameters Da/Dr: magnitude and rhombicity + 3 rotation angles: orientation relative to the. pdb frame Knowing the alignment tensor (e. g. by least squares fitting) DC can be simulated and compared to experimental data (in the principal axis frame)

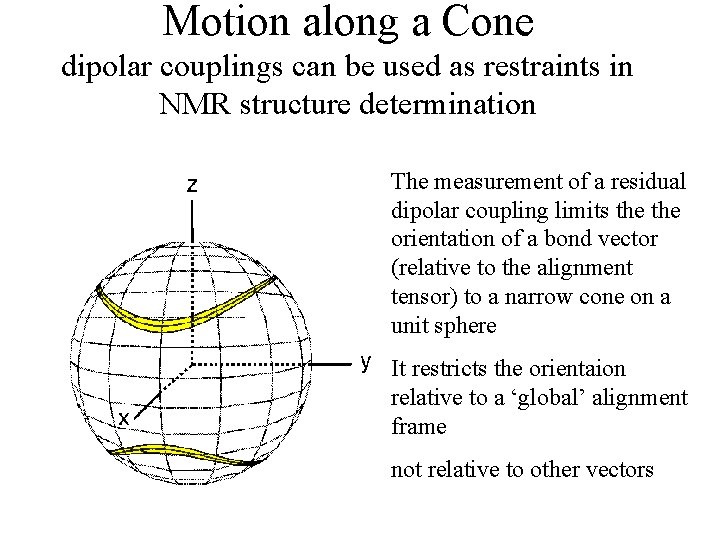

Motion along a Cone dipolar couplings can be used as restraints in NMR structure determination The measurement of a residual dipolar coupling limits the orientation of a bond vector (relative to the alignment tensor) to a narrow cone on a unit sphere It restricts the orientaion relative to a ‘global’ alignment frame not relative to other vectors

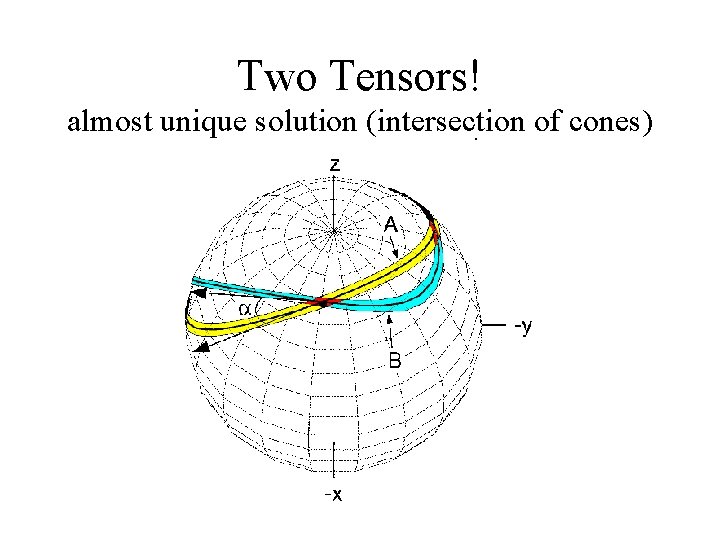

Two Tensors! almost unique solution (intersection of cones)

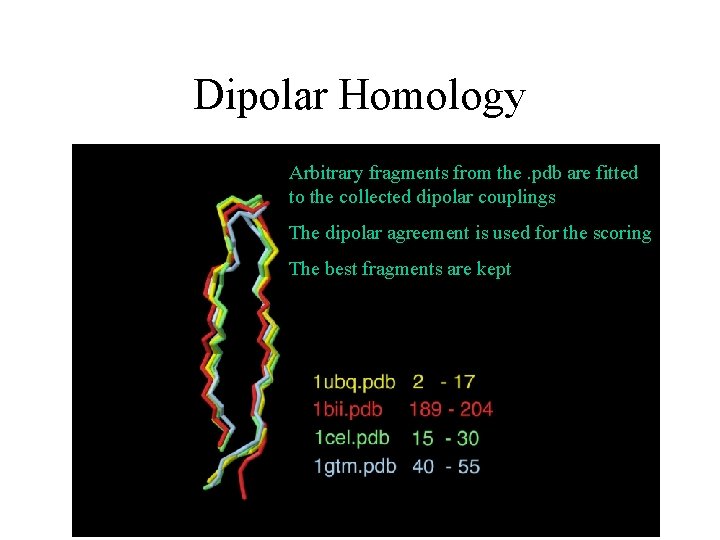

Dipolar Homology Arbitrary fragments from the. pdb are fitted to the collected dipolar couplings The dipolar agreement is used for the scoring The best fragments are kept

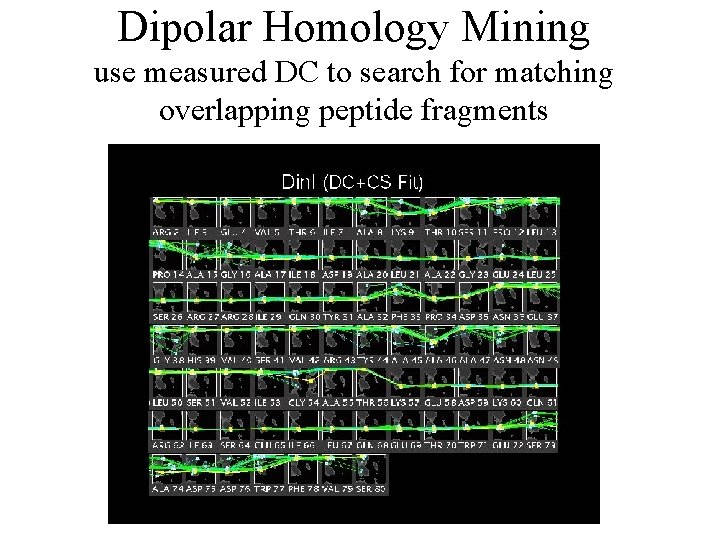

Dipolar Homology Mining use measured DC to search for matching overlapping peptide fragments

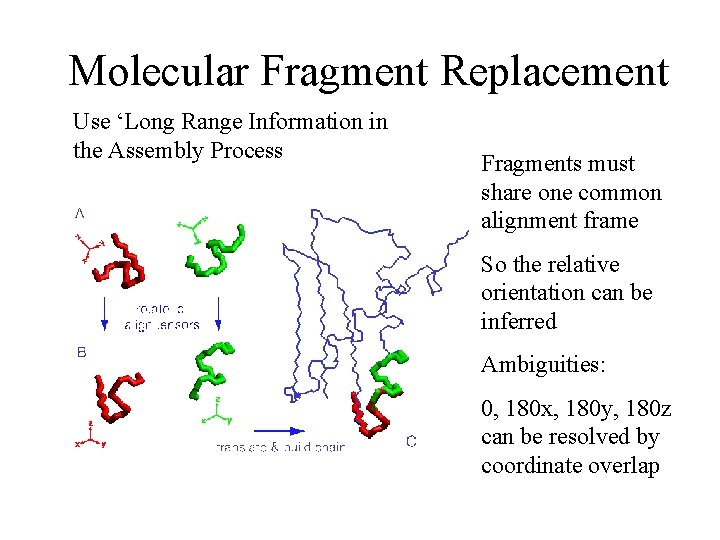

Molecular Fragment Replacement Use ‘Long Range Information in the Assembly Process Fragments must share one common alignment frame So the relative orientation can be inferred Ambiguities: 0, 180 x, 180 y, 180 z can be resolved by coordinate overlap

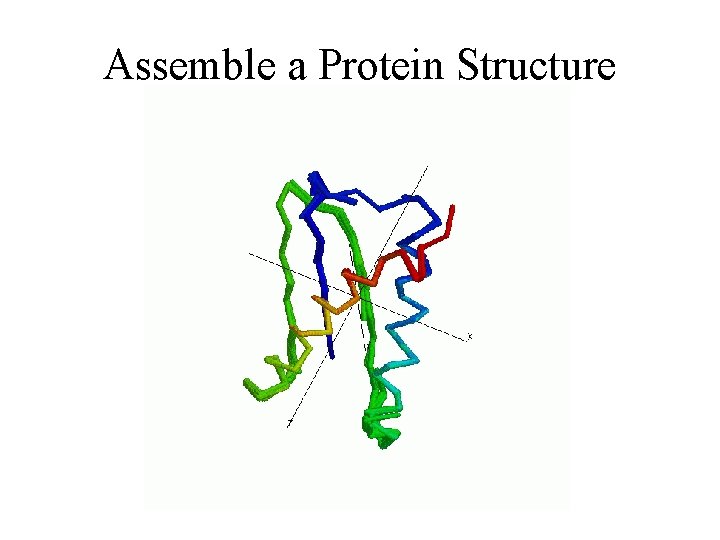

Assemble a Protein Structure

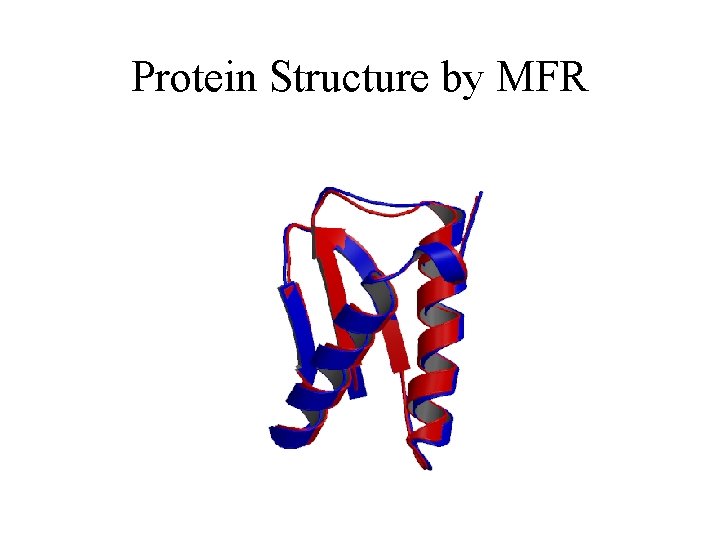

Protein Structure by MFR
