3 Humiseal Product Range Review Humiseal Product Code

3 - Humiseal Product Range Review

Humiseal Product Code 1 A 33 1 B 31 UV 40 1 C 49 1 H 20 AR 1 1 B 73 2 A 64

Humiseal Product Code Solvent Based 1 B 31 2 A 64 Number of part: 1 = 1 part system 2 = 2 part system

Humiseal Product Code Solvent Based 1 B 31 2 A 64 Number of part: 1 = 1 part system 2 = 2 part system Chemistry: A = PU B or R= AR C = SR

Humiseal Product Code Solvent Based 1 B 31 2 A 64 Number of part: 1 = 1 part system 2 = 2 part system Chemistry: A = PU B or R= AR C = SR Product number

Humiseal Solvent Based Most widely used products Products 1 B 73 1 B 18 1 B 31 1 R 32 A-2 1 A 33 1 A 68 1 A 20 2 A 64 Technology SB SB SB Chemistry AR AR AR PU PU Cure mechanism Solvent Evap. Oxygen Moisture MIL Yes No No Yes Yes UL Yes No No Yes No Low cost equivalent 1 B 18 N/A 1 R 32 N/A 1 A 68 N/A N/A Automotive Reference Military Reference for PU Comments Military Reference for AR SB = Solvent Based AR = Acrylic PU = Polyurethane

Humiseal Product Code Low VOC 1 H 20 AR 1/S 1 H 20 UR 5/D Technology: 1 H 20 = water based Chemistry: AR = Acrylic UR = Polyurethane Application method: S = spraying D = dipping

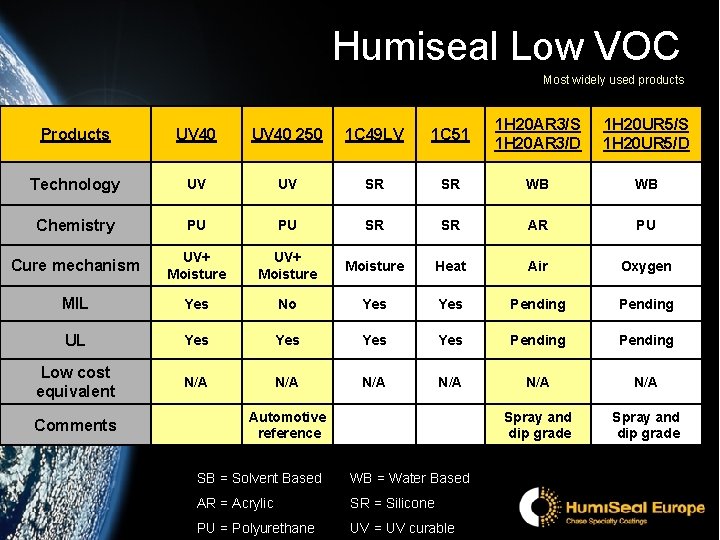

Humiseal Low VOC Most widely used products Products UV 40 250 1 C 49 LV 1 C 51 1 H 20 AR 3/S 1 H 20 AR 3/D 1 H 20 UR 5/S 1 H 20 UR 5/D Technology UV UV SR SR WB WB Chemistry PU PU SR SR AR PU Cure mechanism UV+ Moisture Heat Air Oxygen MIL Yes No Yes Pending UL Yes Yes Pending Low cost equivalent N/A N/A N/A Spray and dip grade Comments Automotive reference SB = Solvent Based WB = Water Based AR = Acrylic SR = Silicone PU = Polyurethane UV = UV curable

Humiseal Thinners Most widely used products Products 503 535 505 521 604 600 Evaporation Rate (Bu. Ac=1) 3. 7 2. 1 1. 7 0. 6 0. 4 0. 3 Flash point -1 7 14 27 11 47 Material 1 B 31, 1 B 73, 1 A 33 1 B 51 1 R 32 1 B 31, 1 B 73, 1 A 33 1 B 73 EPA 1 R 32 A-2 Application method Dip, brush Spray, brush Comments Reference for dipping Reference for spraying Reduce bubbles

Humiseal Strippers Most widely used products Products 1080 A 1020 1063 1072 Chemistry to remove SB AR WB AR PU PU Coatings 1 B 31, 1 B 73, 1 R 32 A-2 1 H 20 AR 3 1 A 33 1 H 20 UR 5, UV 40 Comments Replacing previous 1080 Replacing previous 1071 SB = Solvent Based WB = Water Based AR = Acrylic SR = Silicone PU = Polyurethane UV = UV curable

Humiseal Product Range • Humiseal can provide: – A wide range of technologies and chemistries available – Expertise and technical support in product selection and application – Process solution for each challenging requirement

The way Humiseal work: Customer Coating Manufacturer Process Solution Equipment Manufacturer
