3 GPP Presence Requirements for Presence Service based

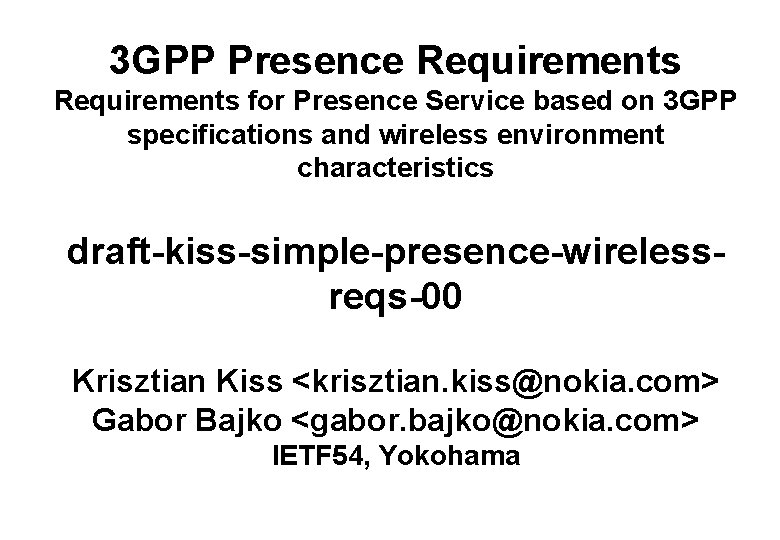

3 GPP Presence Requirements for Presence Service based on 3 GPP specifications and wireless environment characteristics draft-kiss-simple-presence-wirelessreqs-00 Krisztian Kiss <krisztian. kiss@nokia. com> Gabor Bajko <gabor. bajko@nokia. com> IETF 54, Yokohama
draft-kiss-simple-presence-wirelessreqs-00 • Background • 3 G specifications • 3 GPP Presence Stage 1 specification: TS 22. 141 • 3 GPP Presence Stage 2 specification: TS 23. 141 • 3 GPP Presence Stage 3 work has not been started yet • Needs rising from mobile/wireless environment characteristics • Requirements: • • • General wireless Publishing Subscription and Notification Presence Document Authorization Watcher information • No discussion on the mailing list
General & Publishing • General wireless requirements • Radio interface • number/size of messages over the air should be at minimum • Mobile terminals • memory, power consumption, processing power are limited • Publishing • Standardized mechanism • Publishing from multiple PUAs • merge the information and resolve conflicts • keep all the PUAs aware of each other's publishing • Efficient publishing • full state update within each publish transaction is not necessarily needed • update only the information that has changed

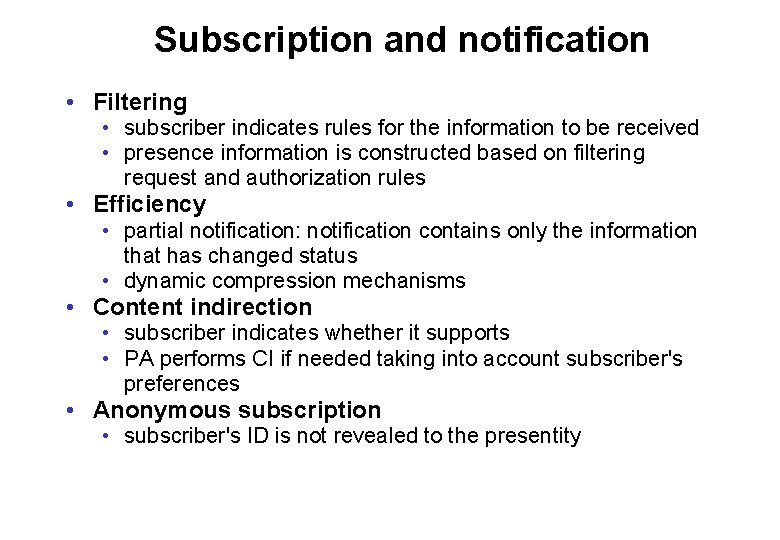

Subscription and notification • Filtering • subscriber indicates rules for the information to be received • presence information is constructed based on filtering request and authorization rules • Efficiency • partial notification: notification contains only the information that has changed status • dynamic compression mechanisms • Content indirection • subscriber indicates whether it supports • PA performs CI if needed taking into account subscriber's preferences • Anonymous subscription • subscriber's ID is not revealed to the presentity

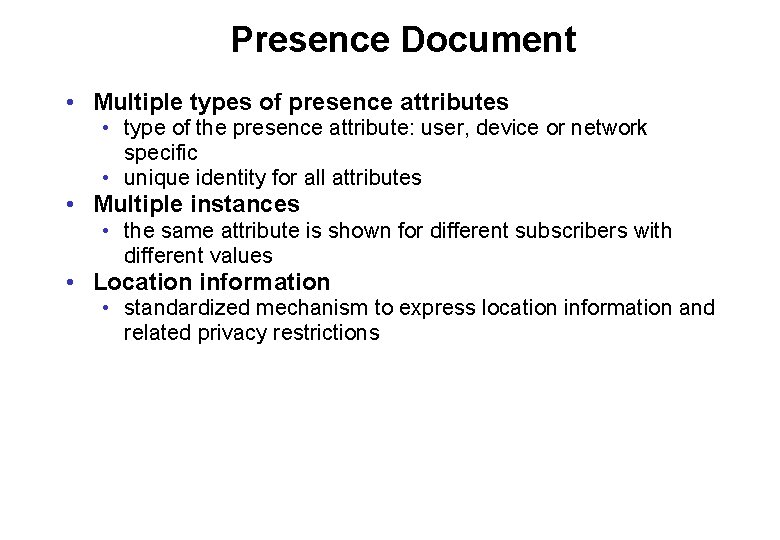

Presence Document • Multiple types of presence attributes • type of the presence attribute: user, device or network specific • unique identity for all attributes • Multiple instances • the same attribute is shown for different subscribers with different values • Location information • standardized mechanism to express location information and related privacy restrictions
Authorization • Standardized authorization policy • standardized mechanism for the PUA to set the authorization policy: document format and manipulation operations • network operators are able to extend the document format and the operations based on local policy • Expressiveness of authorization rules • different access rights for different subscribers or groups • grant access rights • separately for all elements of the presence information • on the level of detail of the presence information • with an expiry time • Group management • authorization policy management includes operations for management of groups • aligned with the group management operations used for other purposes

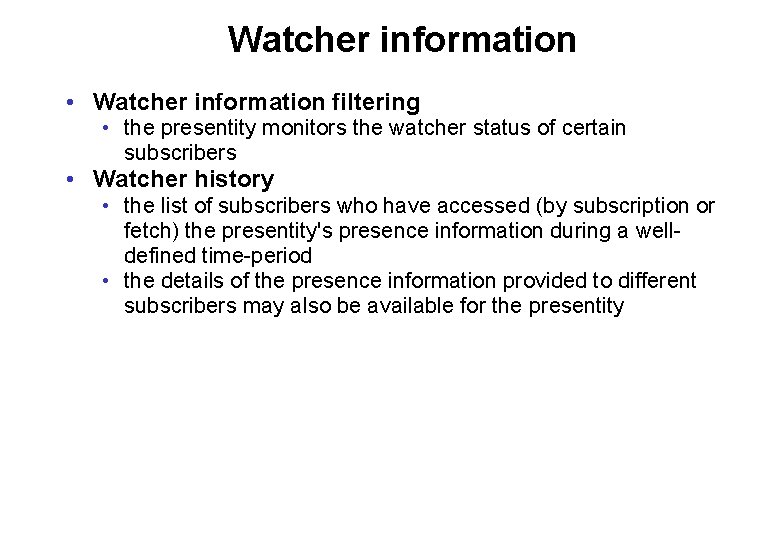

Watcher information • Watcher information filtering • the presentity monitors the watcher status of certain subscribers • Watcher history • the list of subscribers who have accessed (by subscription or fetch) the presentity's presence information during a welldefined time-period • the details of the presence information provided to different subscribers may also be available for the presentity
Proposed way forward • SIMPLE WG should evaluate the requirements in the draft • If a consensus is found within the WG about a requirement • charter should be checked where it fits • if needed, charter item should be created • If a requirement falls out of the WG's scope, 3 GPP would be able to start working on the solution • if needed, IETF could be informed about the result via informational documents • 3 GPP Presence Work Item • Stage 2 work is planned to be finished by the next SA 2 meeting (August) • Stage 2 has now a Technical Specification: TR 23. 841 was converted to TS 23. 141 • Stage 2 will present TS 23. 141 to SA#17 in September • Stage 3 work is expected to be started in the next 3 GPP

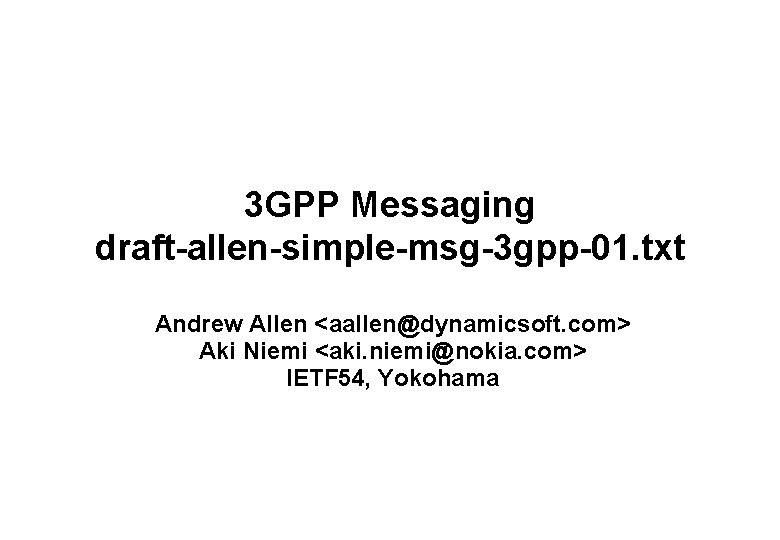

3 GPP Messaging draft-allen-simple-msg-3 gpp-01. txt Andrew Allen <aallen@dynamicsoft. com> Aki Niemi <aki. niemi@nokia. com> IETF 54, Yokohama

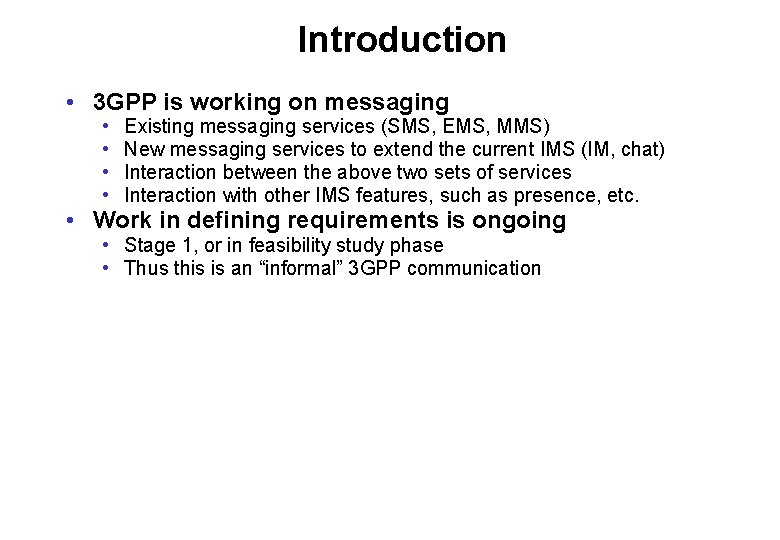

Introduction • 3 GPP is working on messaging • • Existing messaging services (SMS, EMS, MMS) New messaging services to extend the current IMS (IM, chat) Interaction between the above two sets of services Interaction with other IMS features, such as presence, etc. • Work in defining requirements is ongoing • Stage 1, or in feasibility study phase • Thus this is an “informal” 3 GPP communication

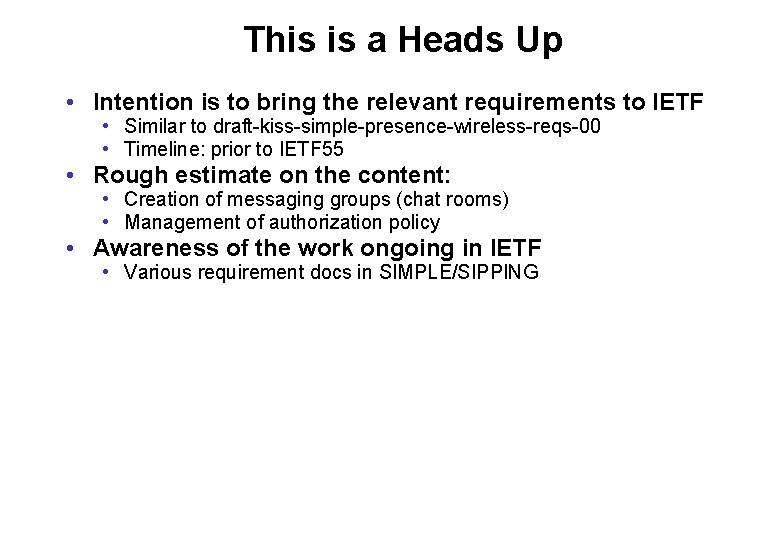

This is a Heads Up • Intention is to bring the relevant requirements to IETF • Similar to draft-kiss-simple-presence-wireless-reqs-00 • Timeline: prior to IETF 55 • Rough estimate on the content: • Creation of messaging groups (chat rooms) • Management of authorization policy • Awareness of the work ongoing in IETF • Various requirement docs in SIMPLE/SIPPING
- Slides: 11
