3 D Object Development Agenda Concept Generation Design

3 D Object Development

Agenda � Concept Generation � Design Idea Possibilities for each category ◦ Easy objects ◦ Intermediate objects ◦ Difficult objects � Next Steps � Question and Answer

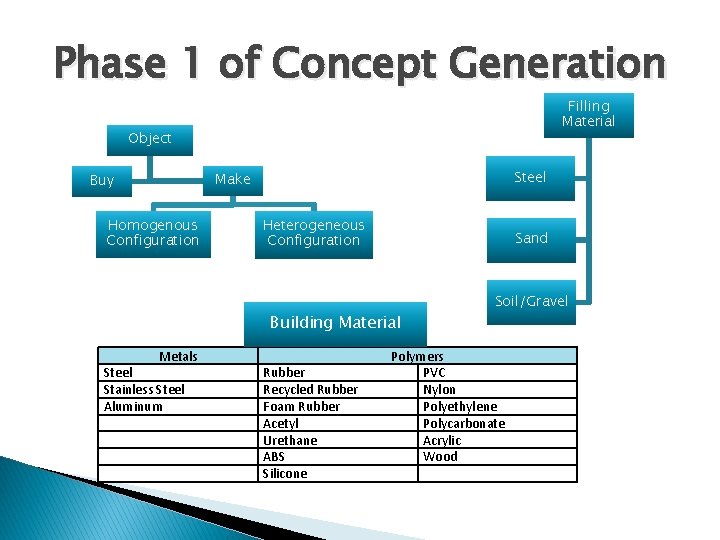

Phase 1 of Concept Generation Filling Material Object Steel Make Buy Homogenous Configuration Heterogeneous Configuration Sand Building Material Metals Steel Stainless Steel Aluminum Rubber Recycled Rubber Foam Rubber Acetyl Urethane ABS Silicone Soil/Gravel Polymers PVC Nylon Polyethylene Polycarbonate Acrylic Wood

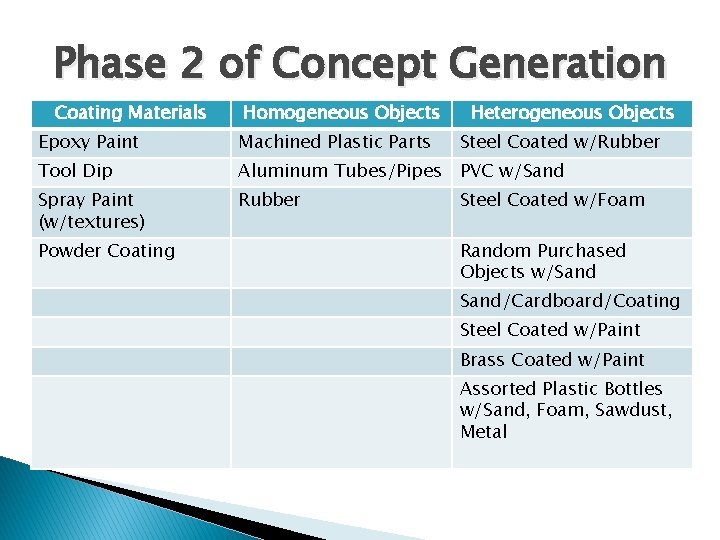

Phase 2 of Concept Generation Coating Materials Homogeneous Objects Heterogeneous Objects Epoxy Paint Machined Plastic Parts Tool Dip Aluminum Tubes/Pipes PVC w/Sand Spray Paint (w/textures) Rubber Powder Coating Steel Coated w/Rubber Steel Coated w/Foam Random Purchased Objects w/Sand/Cardboard/Coating Steel Coated w/Paint Brass Coated w/Paint Assorted Plastic Bottles w/Sand, Foam, Sawdust, Metal

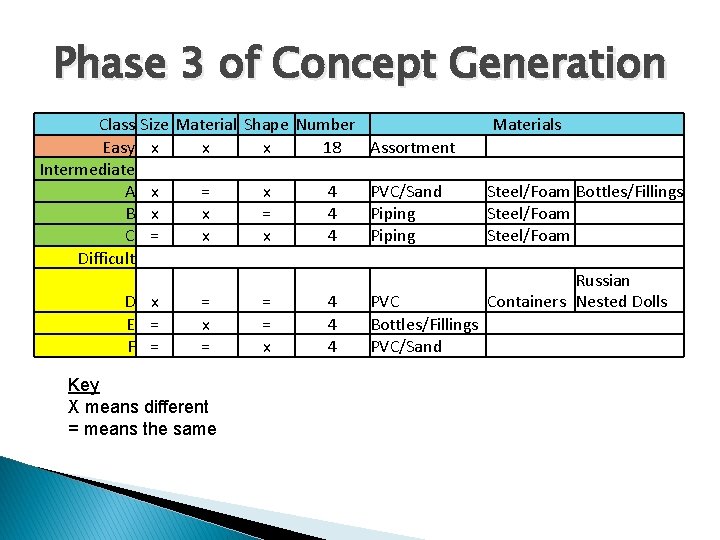

Phase 3 of Concept Generation Class Size Material Shape Number Easy x x x 18 Assortment Intermediate A x = x 4 PVC/Sand B x x = 4 Piping C = x x 4 Piping Difficult D x E = F = = x = Key X means different = means the same = = x 4 4 4 PVC Bottles/Fillings PVC/Sand Materials Steel/Foam Bottles/Fillings Steel/Foam Russian Containers Nested Dolls

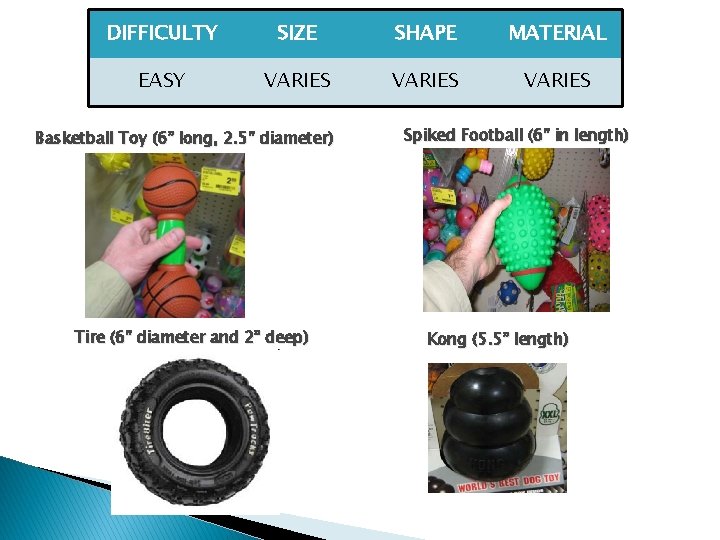

DIFFICULTY EASY SIZE SHAPE MATERIAL Easy Object Set VARIES Vary in all dimensions Basketball Toy (6” long, 2. 5” diameter) Tire (6” diameter and 2” deep) VARIES Spiked Football (6” in length) Kong (5. 5” length)

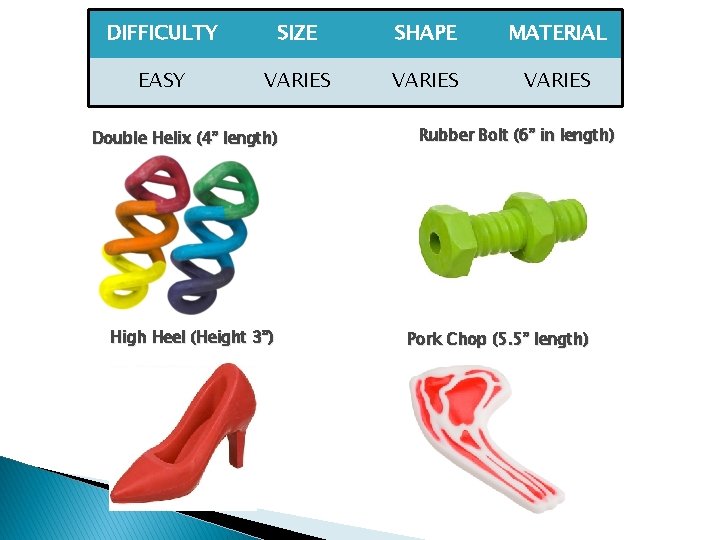

DIFFICULTY EASY SIZE SHAPE MATERIAL Easy Object Set VARIES Vary in all dimensions Double Helix (4” length) High Heel (Height 3”) VARIES Rubber Bolt (6” in length) Pork Chop (5. 5” length)

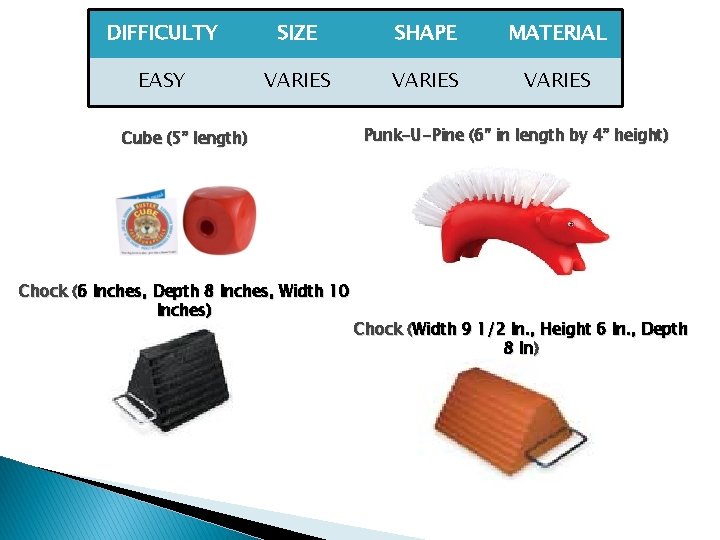

DIFFICULTY EASY SIZE SHAPE MATERIAL Easy Object Set VARIES Vary in all dimensions Cube (5” length) Chock (6 Inches, Depth 8 Inches, Width 10 Inches) VARIES Punk-U-Pine (6” in length by 4” height) Chock (Width 9 1/2 In. , Height 6 In. , Depth 8 In)

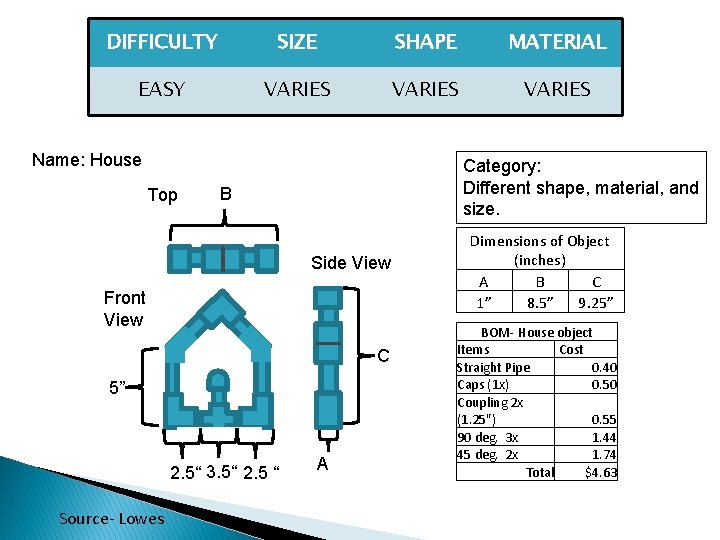

DIFFICULTY EASY SIZE SHAPE Easy Object Set VARIES Vary in all dimensions Name: House Top Category: Different shape, material, and size. B Side View Front View C 5” 2. 5“ 3. 5“ 2. 5 “ Source- Lowes MATERIAL A Dimensions of Object (inches) A B C 1” 8. 5” 9. 25” BOM- House object Items Cost Straight Pipe 0. 40 Caps (1 x) 0. 50 Coupling 2 x (1. 25") 0. 55 90 deg. 3 x 1. 44 45 deg. 2 x 1. 74 Total $4. 63

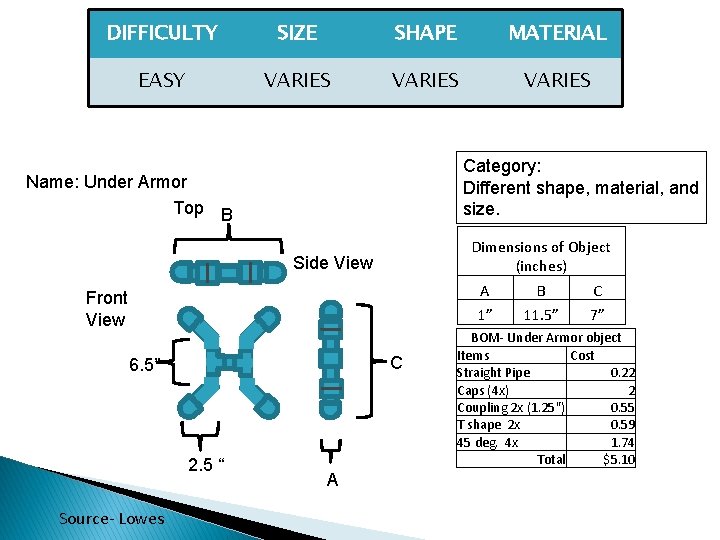

DIFFICULTY EASY SIZE SHAPE Easy Object Set VARIES Vary in all dimensions Dimensions of Object (inches) Side View Front View C 6. 5” 2. 5 “ VARIES Category: Different shape, material, and size. Name: Under Armor Top B Source- Lowes MATERIAL A A B C 1” 11. 5” 7” BOM- Under Armor object Items Cost Straight Pipe 0. 22 Caps (4 x) 2 Coupling 2 x (1. 25") 0. 55 T shape 2 x 0. 59 45 deg. 4 x 1. 74 Total $5. 10

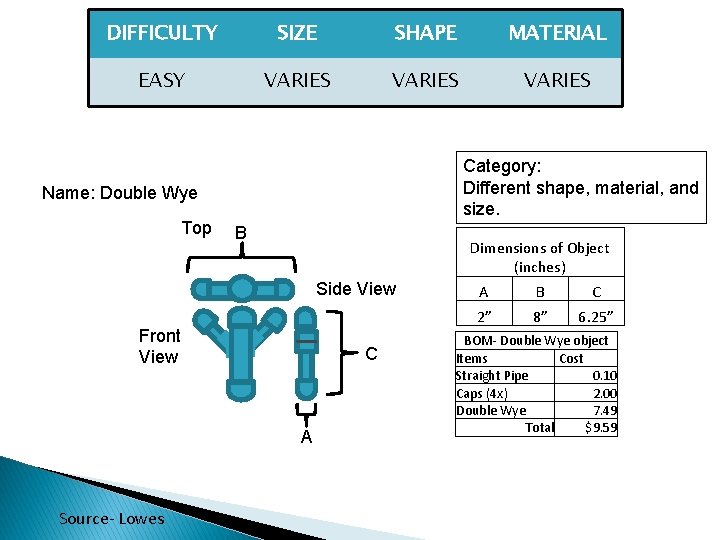

DIFFICULTY EASY SIZE SHAPE Easy Object Set VARIES Vary in all dimensions Top VARIES Category: Different shape, material, and size. Name: Double Wye B Dimensions of Object (inches) Side View Front View C A Source- Lowes MATERIAL A B C 2” 8” 6. 25” BOM- Double Wye object Items Cost Straight Pipe 0. 10 Caps (4 x) 2. 00 Double Wye 7. 49 Total $9. 59

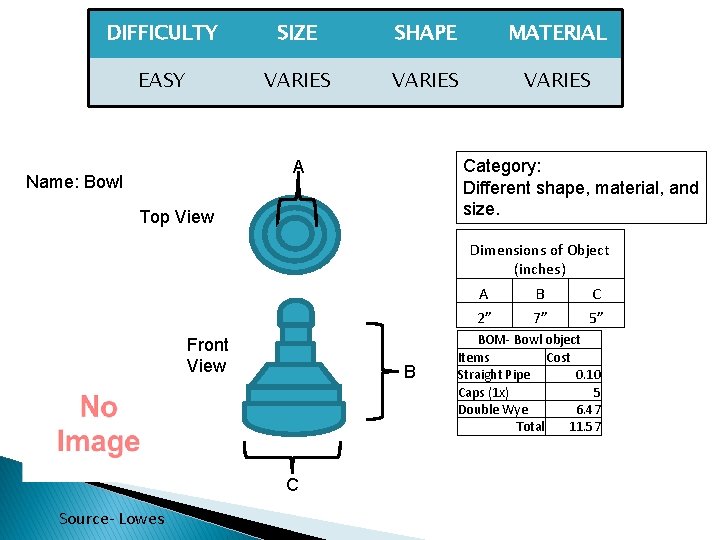

DIFFICULTY EASY SIZE SHAPE MATERIAL Easy Object Set VARIES Vary in all dimensions Category: Different shape, material, and size. A Name: Bowl VARIES Top View Dimensions of Object (inches) Front View B C Source- Lowes A B C 2” 7” 5” BOM- Bowl object Items Cost Straight Pipe 0. 10 Caps (1 x) 5 Double Wye 6. 47 Total 11. 57

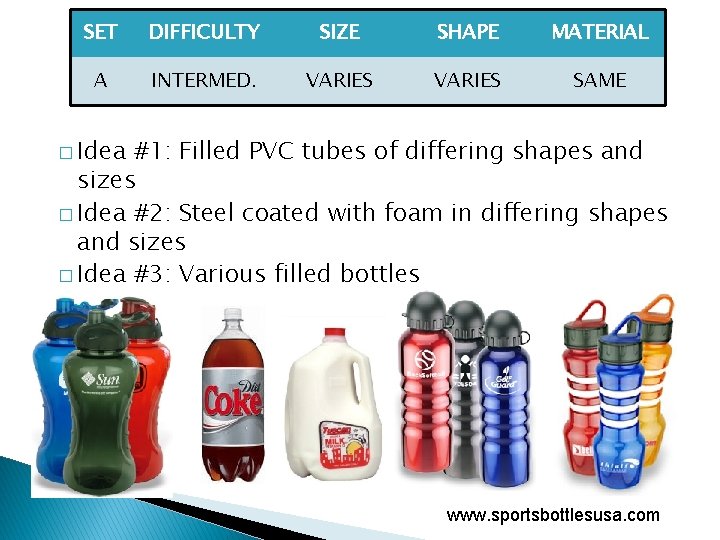

SET DIFFICULTY SIZE SHAPE MATERIAL A INTERMED. VARIES SAME � Idea #1: Filled PVC tubes of differing shapes and sizes � Idea #2: Steel coated with foam in differing shapes and sizes � Idea #3: Various filled bottles www. sportsbottlesusa. com

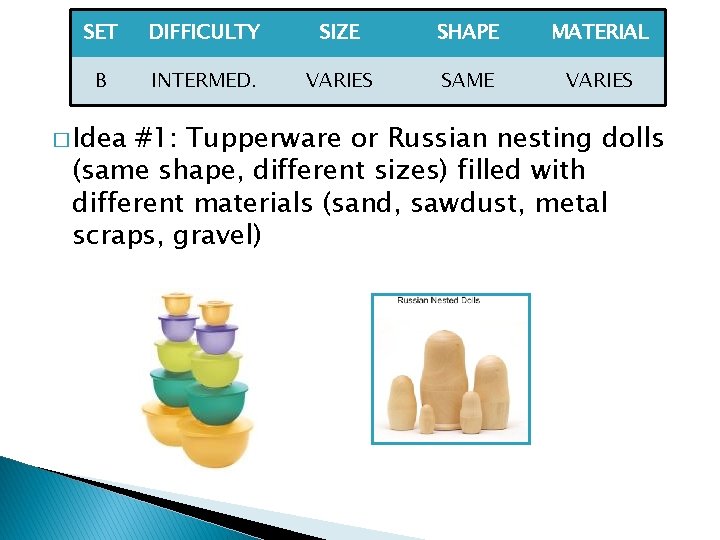

SET B � Idea DIFFICULTY SIZE SHAPE Intermediate Set B INTERMED. VARIES SAME MATERIAL Vary in size and material but same shape VARIES #1: Tupperware or Russian nesting dolls (same shape, different sizes) filled with different materials (sand, sawdust, metal scraps, gravel)

SET C � Idea DIFFICULTY SIZE SHAPE Intermediate Set C INTERMED. SAME VARIES MATERIAL Vary in material and shape but same size VARIES #1: Same sized, differently shaped bottles, filled with different materials � Idea #2: Same sized, differently shaped combinations of pipe (steel, brass, alum, plastic)

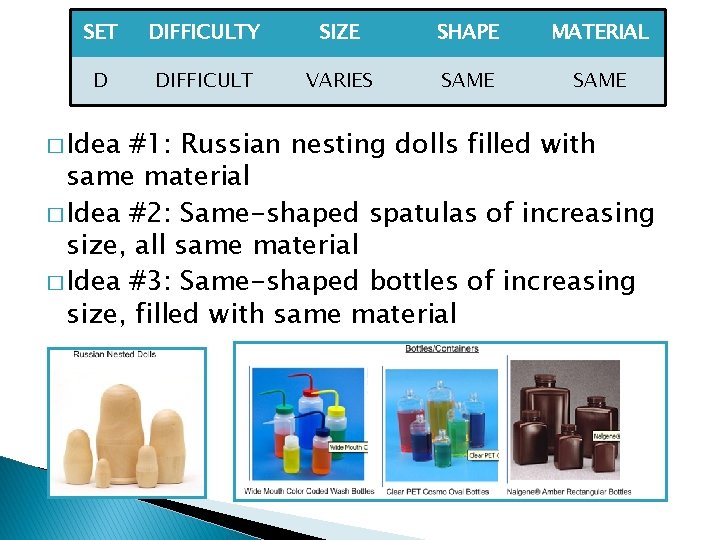

SET D � Idea DIFFICULTY SIZE SHAPE Difficult Set D DIFFICULT VARIES SAME MATERIAL Same in material and shape but vary in size SAME #1: Russian nesting dolls filled with same material � Idea #2: Same-shaped spatulas of increasing size, all same material � Idea #3: Same-shaped bottles of increasing size, filled with same material

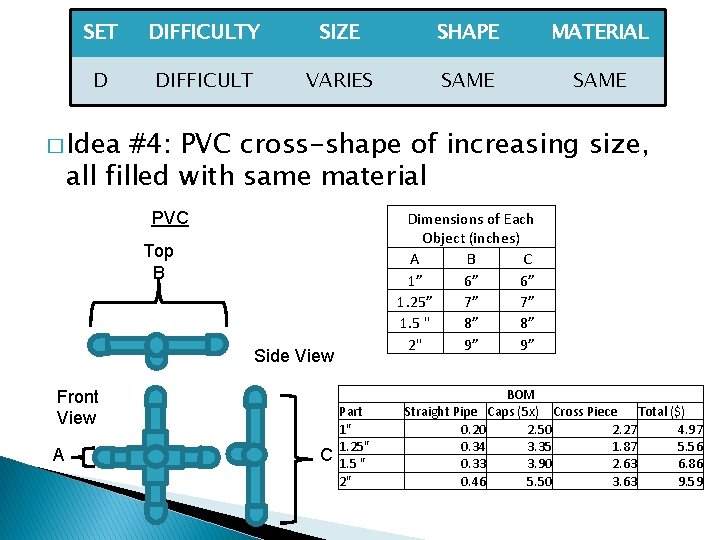

SET D DIFFICULTY SIZE SHAPE Difficult Set D DIFFICULT VARIES SAME MATERIAL Same in material and shape but vary in size SAME � Idea #4: PVC cross-shape of increasing size, all filled with same material PVC Dimensions of Each Object (inches) A B C 1” 6” 6” 1. 25” 7” 7” 1. 5 " 8” 8” 2" 9” 9” Top B Side View Front View A C Part 1" 1. 25" 1. 5 " 2" BOM Straight Pipe Caps (5 x) Cross Piece Total ($) 0. 20 2. 50 2. 27 4. 97 0. 34 3. 35 1. 87 5. 56 0. 33 3. 90 2. 63 6. 86 0. 46 5. 50 3. 63 9. 59

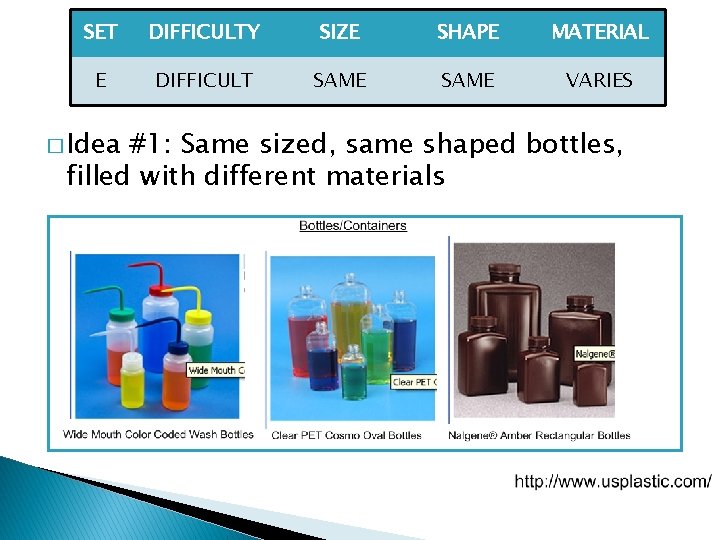

SET E � Idea DIFFICULTY SIZE SHAPE Difficult Set E DIFFICULT SAME MATERIAL Same in size and shape but vary in material. VARIES #1: Same sized, same shaped bottles, filled with different materials

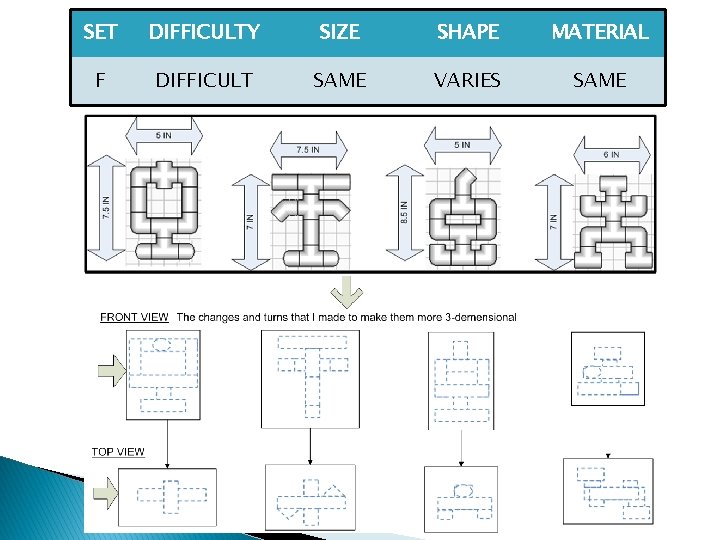

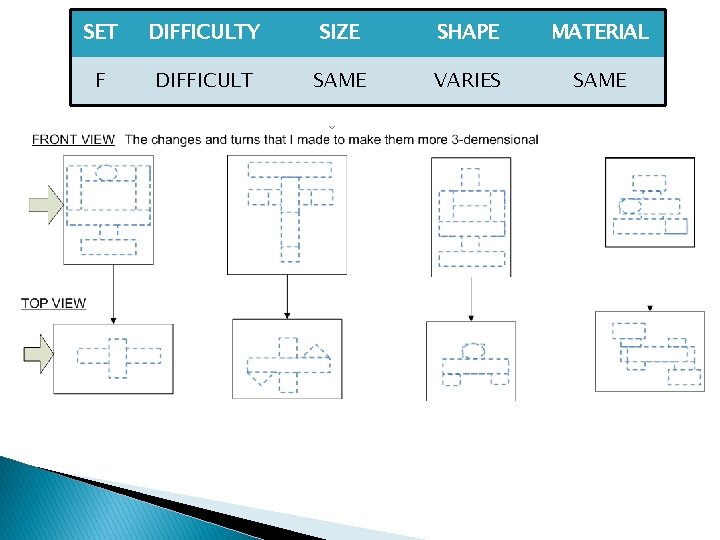

SET F DIFFICULTY SIZE SHAPE Difficult Set F DIFFICULT SAME VARIES MATERIAL Same in size and material but vary in shape SAME

Combinations of Objects

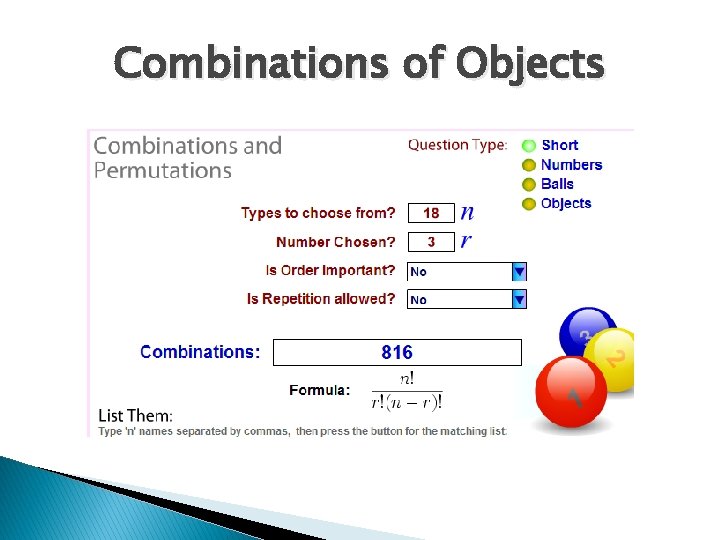

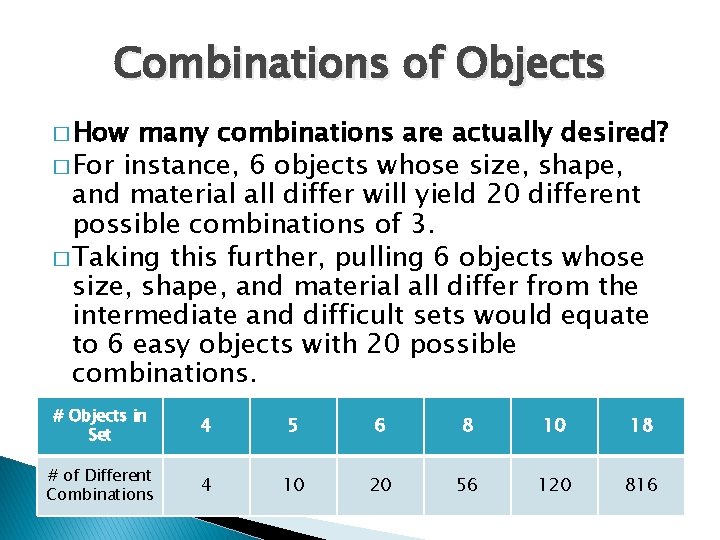

Combinations of Objects � How many combinations are actually desired? � For instance, 6 objects whose size, shape, and material all differ will yield 20 different possible combinations of 3. � Taking this further, pulling 6 objects whose size, shape, and material all differ from the intermediate and difficult sets would equate to 6 easy objects with 20 possible combinations. # Objects in Set 4 5 6 8 10 18 # of Different Combinations 4 10 20 56 120 816

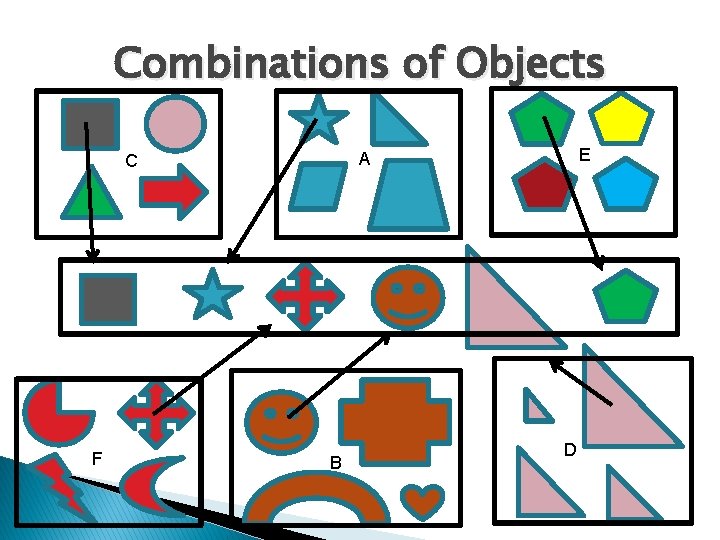

Combinations of Objects F E A C B D

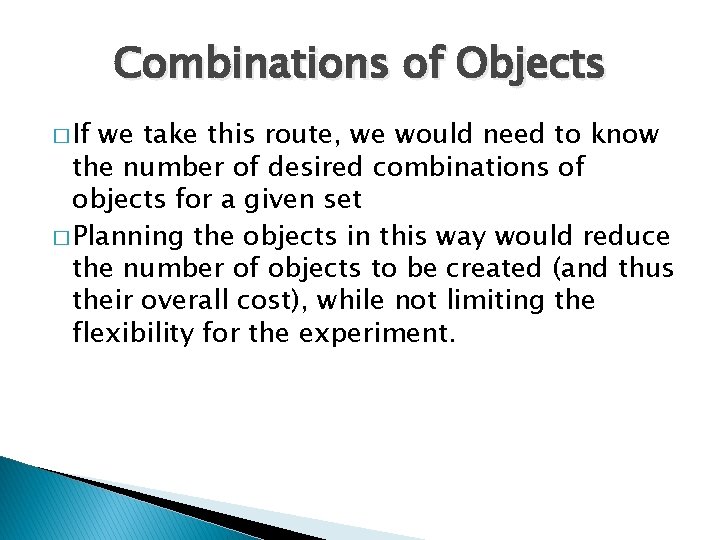

Combinations of Objects � If we take this route, we would need to know the number of desired combinations of objects for a given set � Planning the objects in this way would reduce the number of objects to be created (and thus their overall cost), while not limiting the flexibility for the experiment.

Next Steps � Finalize more of the designs for each category after review � Receive approval from Dr. Delong and the personnel at the aquarium � Order � Build the material the objects
