3 Beam optics 3 1 The Gaussian beam

3. Beam optics

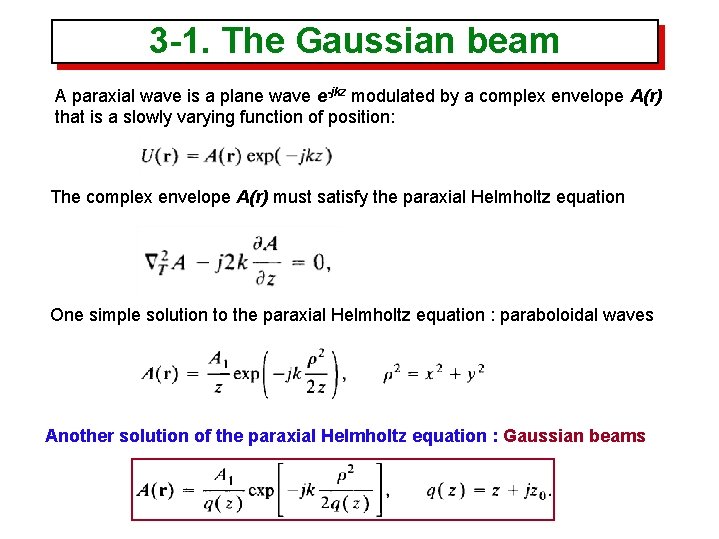

3 -1. The Gaussian beam A paraxial wave is a plane wave e-jkz modulated by a complex envelope A(r) that is a slowly varying function of position: The complex envelope A(r) must satisfy the paraxial Helmholtz equation One simple solution to the paraxial Helmholtz equation : paraboloidal waves Another solution of the paraxial Helmholtz equation : Gaussian beams

Gaussian beams z 0 : Rayleigh range.

Gaussian beam : Intensity The intensity is a Gaussian function of the radial distance r. This is why the wave is called a Gaussian beam. On the beam axis (r = 0) At z = z 0 , I = Io/2

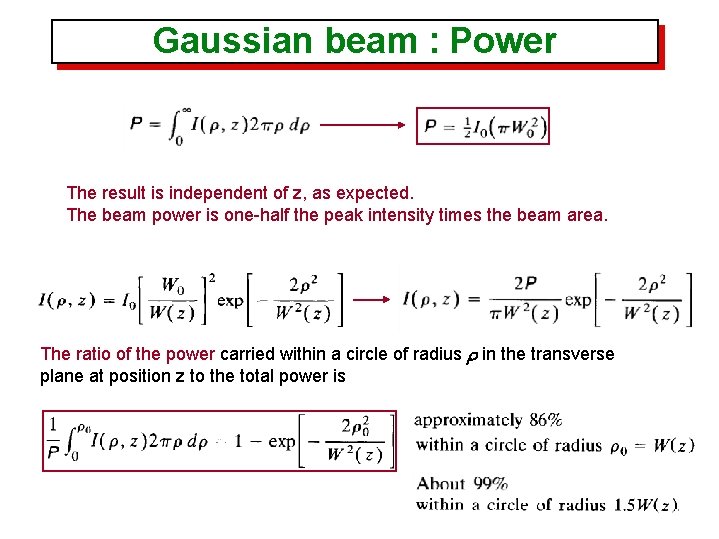

Gaussian beam : Power The result is independent of z, as expected. The beam power is one-half the peak intensity times the beam area. The ratio of the power carried within a circle of radius r in the transverse plane at position z to the total power is

Beam radius At the Beam waist : Waist radius = W 0 Spot size = 2 W 0 (divergence angle)

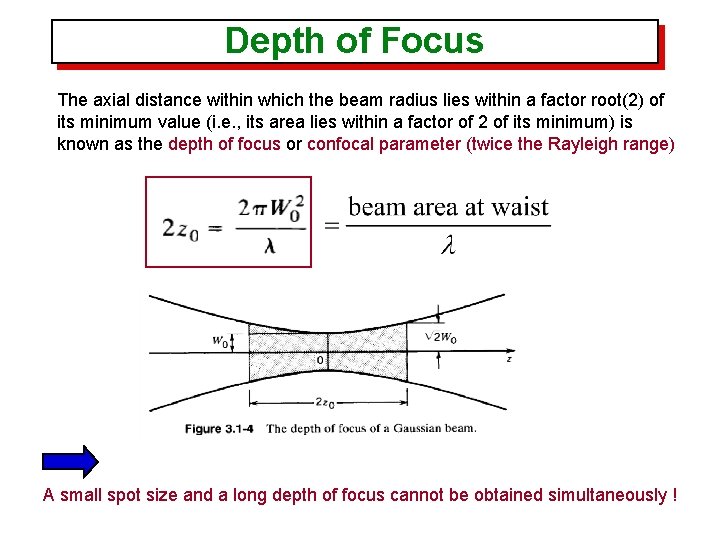

Depth of Focus The axial distance within which the beam radius lies within a factor root(2) of its minimum value (i. e. , its area lies within a factor of 2 of its minimum) is known as the depth of focus or confocal parameter (twice the Rayleigh range) A small spot size and a long depth of focus cannot be obtained simultaneously !

Phase of the Gaussian beam kz : the phase of a plane wave. : a phase retardation ranging from - p/2 to - p/2. : This phase retardation corresponds to an excess delay of the wavefront in comparison with a plane wave or a spherical wave The total accumulated excess retardation as the wave travels from Guoy effect

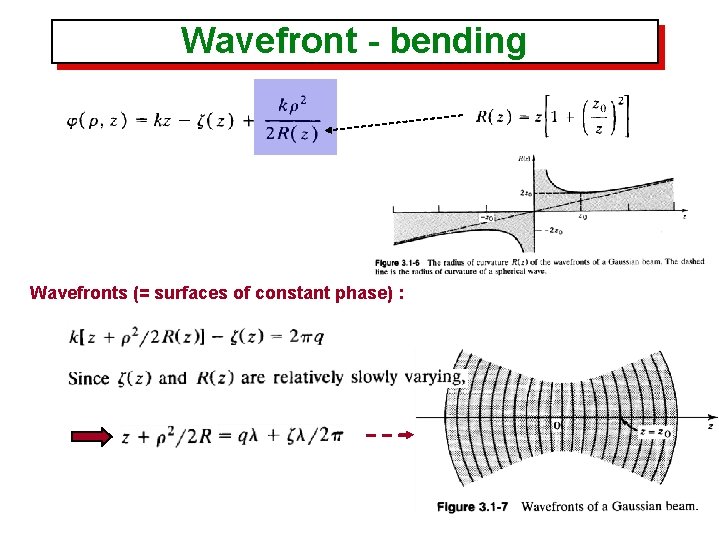

Wavefront - bending Wavefronts (= surfaces of constant phase) :

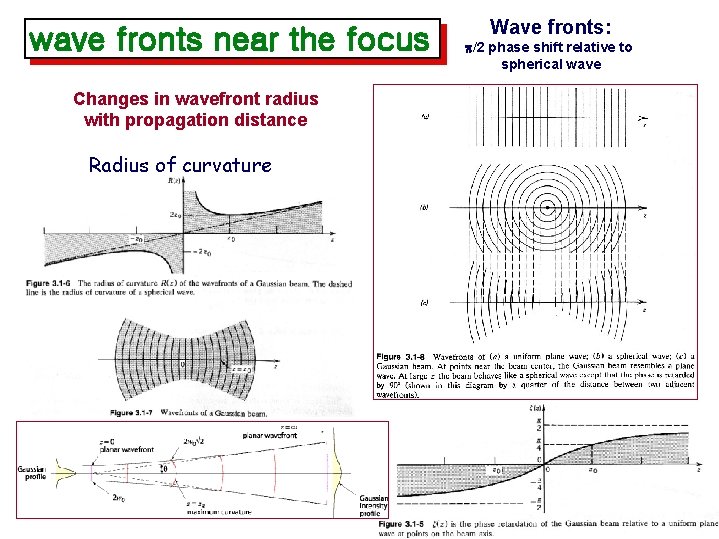

wave fronts near the focus Changes in wavefront radius with propagation distance Radius of curvature Wave fronts: p/2 phase shift relative to spherical wave

Gaussian parameters : Relationships between parameters

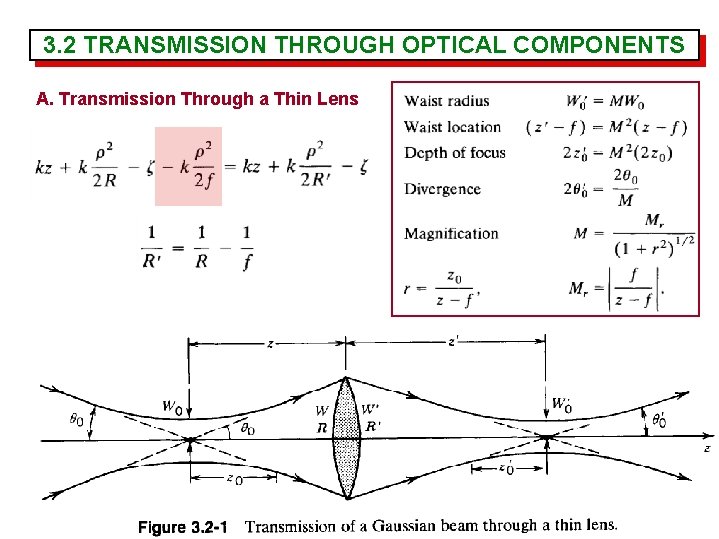

3. 2 TRANSMISSION THROUGH OPTICAL COMPONENTS A. Transmission Through a Thin Lens

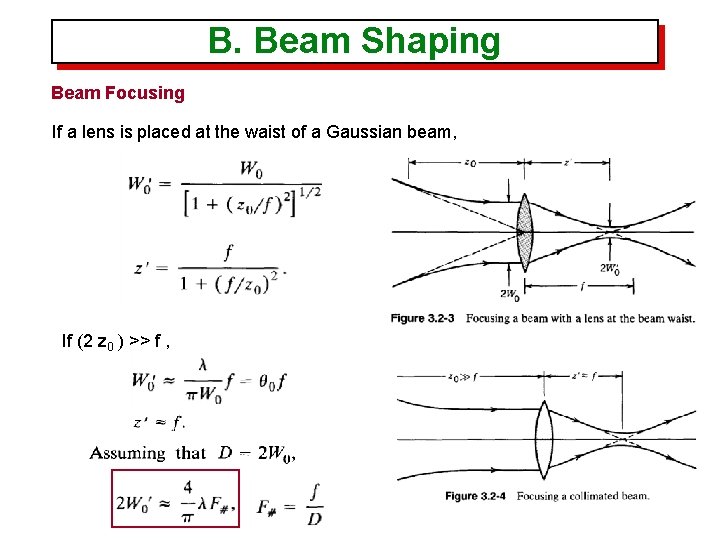

B. Beam Shaping Beam Focusing If a lens is placed at the waist of a Gaussian beam, If (2 z 0 ) >> f ,

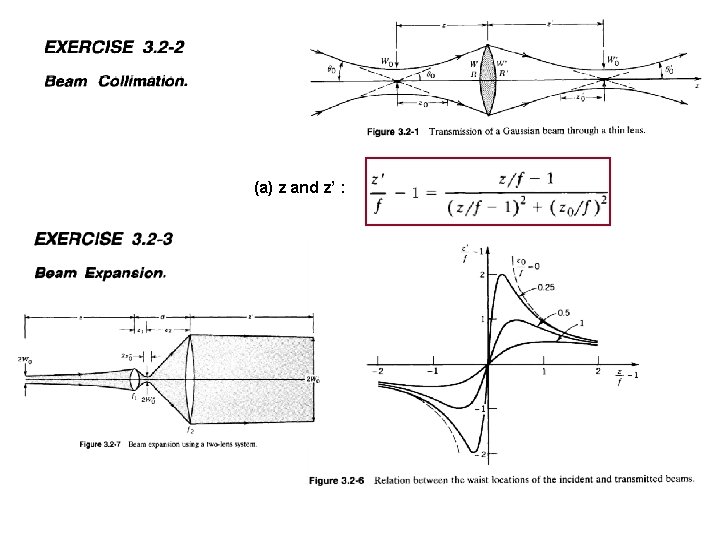

(a) z and z’ :

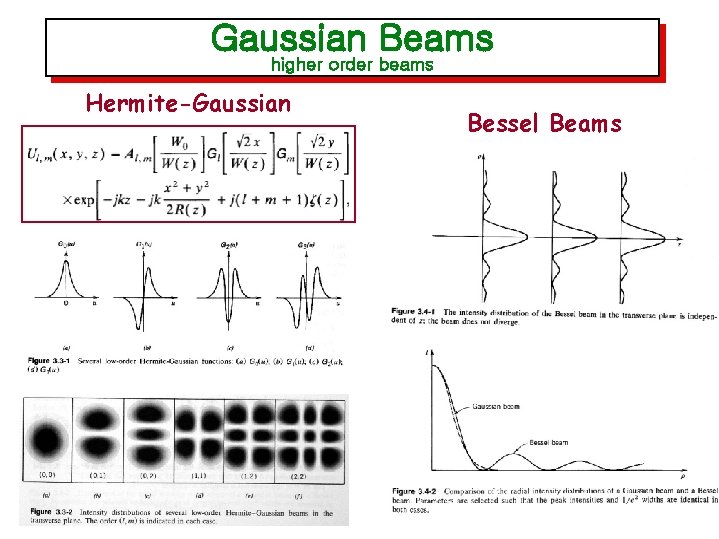

Gaussian Beams higher order beams Hermite-Gaussian Bessel Beams
