![3 2 The Gas Laws 3. 2: The Gas Laws](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-1.jpg)
3. 2: The Gas Laws
![Pressure Pressure is the result of a force distributed over an area Pressure • Pressure is the result of a force distributed over an area. •](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-2.jpg)
Pressure • Pressure is the result of a force distributed over an area. • Collisions between particles of a gas and the walls of the container cause the pressure in a closed container of gas. • The SI unit for pressure, the pascal (Pa), is shorthand for newtons per square meter.
![Factors that Affect Gas Pressure Temperature Volume Number of particles Factors that Affect Gas Pressure: Temperature Volume Number of particles](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-3.jpg)
Factors that Affect Gas Pressure: Temperature Volume Number of particles
![Temperature Raising the temperature of a gas will increase its pressure if the Temperature • Raising the temperature of a gas will increase its pressure if the](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-4.jpg)
Temperature • Raising the temperature of a gas will increase its pressure if the volume of the gas and the number of particles are constant. • As the temperature rises, the average kinetic energy of the particles in the air increases. • With increased kinetic energy, the particles move faster and collide more often with the inner walls of the tires. • Faster-moving particles hit the walls with greater force. • More collisions and increased force cause the pressure of the air in the tires to rise.
![Volume Reducing the volume of a gas increases its pressure if the temperature Volume • Reducing the volume of a gas increases its pressure if the temperature](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-5.jpg)
Volume • Reducing the volume of a gas increases its pressure if the temperature of the gas and the number of particles are constant. –Twist the cap onto a plastic bottle and then squeeze it. What happens? • The volume of the plastic bottle begins to decrease. • As the volume decreases, the particles of trapped air collide more often with the walls of the bottle. • The pressure in the bottle increases.
![Number of Particles Increasing the number of particles will increase the pressure of Number of Particles • Increasing the number of particles will increase the pressure of](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-6.jpg)
Number of Particles • Increasing the number of particles will increase the pressure of a gas if the temperature and the volume are constant. • The more particles there are in the same volume, the greater the number of collisions and the greater the pressure.
![Charles Law French physicist Jacques Charles collected data on the relationship between the Charles’ Law • French physicist Jacques Charles collected data on the relationship between the](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-7.jpg)
Charles’ Law • French physicist Jacques Charles collected data on the relationship between the temperature and volume of gases. • The graph of the data showed a direct relationship between the volume of a gas and the temperature of the gas.
![Charles Law Charles extended the graph beyond the measured data to find the Charles’ Law • Charles extended the graph beyond the measured data to find the](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-8.jpg)
Charles’ Law • Charles extended the graph beyond the measured data to find the temperature that would produce a volume of 0 L. • The temperature at the point where the line crossed the xaxis was – 273. 15°C. • This temperature is equal to 0 K on the Kelvin temperature scale. • A temperature of 0 K is called absolute zero.
![Charles Law Charless law states that the volume of a gas is directly proportional Charles’ Law Charles’s law states that the volume of a gas is directly proportional](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-9.jpg)
Charles’ Law Charles’s law states that the volume of a gas is directly proportional to its temperature in kelvins if the pressure and the number of particles of the gas are constant. T 1 and V 1 represent the temperature and volume of a gas before a change occurs. T 2 and V 2 represent the temperature and volume after a change occurs.
![Boyles Law Robert Boyle described the relationship between the pressure and volume of Boyle’s Law • Robert Boyle described the relationship between the pressure and volume of](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-10.jpg)
Boyle’s Law • Robert Boyle described the relationship between the pressure and volume of a gas. • The graph shows an inverse relationship between the volume of a gas and the pressure of the gas.
![Boyles Law Boyles law states that the volume of a gas is inversely proportional Boyle’s Law Boyle’s law states that the volume of a gas is inversely proportional](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-11.jpg)
Boyle’s Law Boyle’s law states that the volume of a gas is inversely proportional to its pressure if the temperature and the number of particles are constant. P 1 and V 1 represent the pressure and volume of a gas before a change occurs. P 2 and V 2 represent the pressure and volume of a gas after a change occurs.
![The Combined Gas Law The combined gas law describes the relationship among the The Combined Gas Law • The combined gas law describes the relationship among the](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-12.jpg)
The Combined Gas Law • The combined gas law describes the relationship among the temperature, volume, and pressure of a gas when the number of particles is constant.
![Examples A cylinder that contains air at a pressure of 100 k Pa Examples: • A cylinder that contains air at a pressure of 100 k. Pa](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-13.jpg)
Examples: • A cylinder that contains air at a pressure of 100 k. Pa has a volume of 0. 75 L. The pressure is increased to 300 k. Pa. The temperature does not change. Find the new volume of air.
![What do you do Read and Understand What information are you given What do you do? • Read and Understand • What information are you given?](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-14.jpg)
What do you do? • Read and Understand • What information are you given? • P 1 = 100 k. Pa P 2 = 300 k. Pa V 1 = 0. 75 L
![What do you do Plan and Solve What unknown are you trying to calculate What do you do? Plan and Solve What unknown are you trying to calculate?](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-15.jpg)
What do you do? Plan and Solve What unknown are you trying to calculate? What expression can you use?
![What do you do Cancel out the variable that does not change and rearrange What do you do? Cancel out the variable that does not change and rearrange](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-16.jpg)
What do you do? Cancel out the variable that does not change and rearrange the expression to solve for V 2. Replace each variable with its known value.

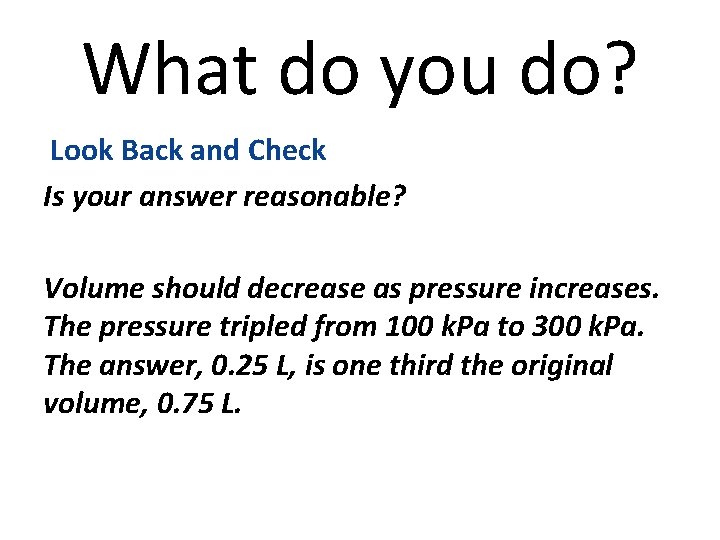

![What do you do Look Back and Check Is your answer reasonable Volume should What do you do? Look Back and Check Is your answer reasonable? Volume should](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-17.jpg)
What do you do? Look Back and Check Is your answer reasonable? Volume should decrease as pressure increases. The pressure tripled from 100 k. Pa to 300 k. Pa. The answer, 0. 25 L, is one third the original volume, 0. 75 L.
![Examples 1 A gas has a volume of 5 0 L at a Examples: • 1. A gas has a volume of 5. 0 L at a](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-18.jpg)
Examples: • 1. A gas has a volume of 5. 0 L at a pressure of 50 k. Pa. What happens to the volume when the pressure is increased to 125 k. Pa? The temperature does not change. • 2. Gas stored in a tank at 273 K has a pressure of 388 k. Pa. The safe limit for the pressure is 825 k. Pa. At what temperature will the gas reach this pressure?
![Examples 3 At 10ºC the gas in a cylinder has a volume of Examples: • 3. At 10ºC, the gas in a cylinder has a volume of](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-19.jpg)
Examples: • 3. At 10ºC, the gas in a cylinder has a volume of 0. 250 L. The gas is allowed to expand to 0. 285 L. What must the final temperature be for the pressure to remain constant? (Hint: Convert from degrees Celsius to kelvins using the expression ºC + 273 = K. )
![Assignment Pg 81 9 and 10 Assignment Pg. 81 # 9 and 10](https://slidetodoc.com/presentation_image/5fd5263448783617170bb5918e32df1e/image-20.jpg)
Assignment Pg. 81 # 9 and 10
