29 Introduction Chapter to Invertebrates Introduction to Invertebrates
29 Introduction Chapter to Invertebrates Introduction to Invertebrates
Introduction to Invertebrates Animals What makes an animal? How can you tell if something is an animal or not? What are some examples of animals? 2
Introduction to Invertebrates 3 Evolution of Animals (intro) All animals are multicellular heterotrophic organisms that must take in preformed food. mulitcellular: made of more than one cell heterotrophic: take in preformed food from heterotrophic: other organisms food: complex organic molecules; often glucose food: related compounds
Introduction to Invertebrates Outline Criteria for the Evolution of Animals 1. Multicellularity 2. True Tissues 3. Bilateral Symmetry 4. Body Cavities 5. The Coelom 6. Segmentation 7. Development 4

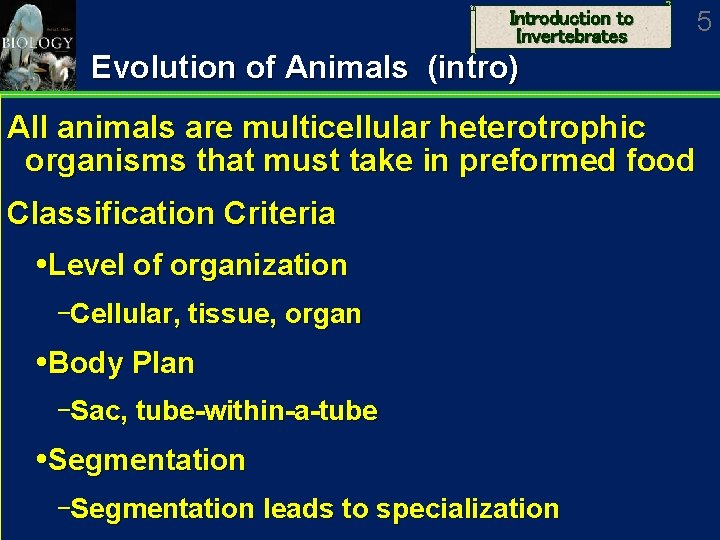

Introduction to Invertebrates Evolution of Animals (intro) All animals are multicellular heterotrophic organisms that must take in preformed food Classification Criteria Level of organization Cellular, tissue, organ Body Plan Sac, tube-within-a-tube Segmentation leads to specialization 5

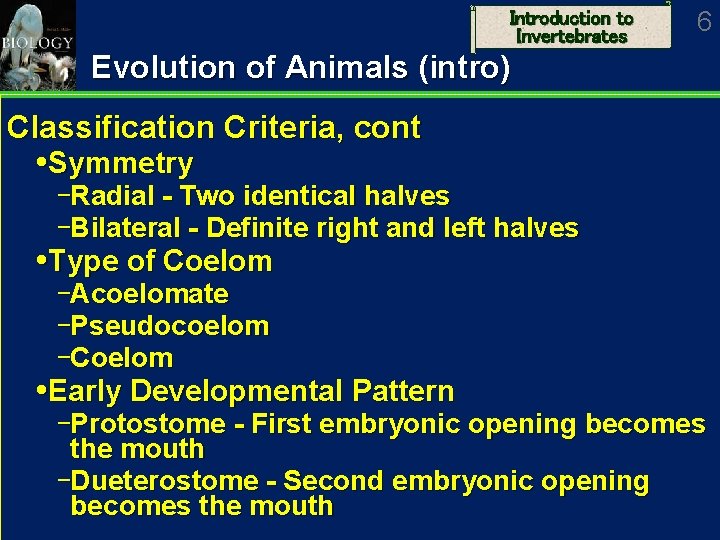

Introduction to Invertebrates 6 Evolution of Animals (intro) Classification Criteria, cont Symmetry Radial - Two identical halves Bilateral - Definite right and left halves Type of Coelom Acoelomate Pseudocoelom Coelom Early Developmental Pattern Protostome - First embryonic opening becomes the mouth Dueterostome - Second embryonic opening becomes the mouth
Animals: How does this picture demonstrate that an animal is involved? 7

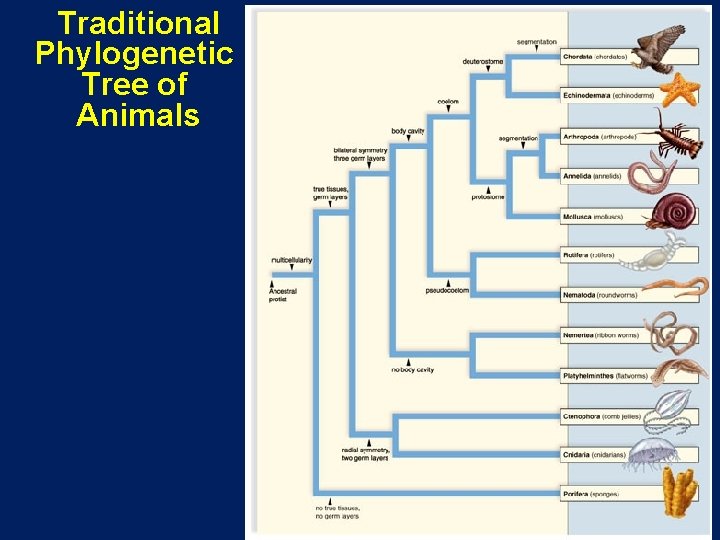

Traditional Phylogenetic Tree of Animals 8

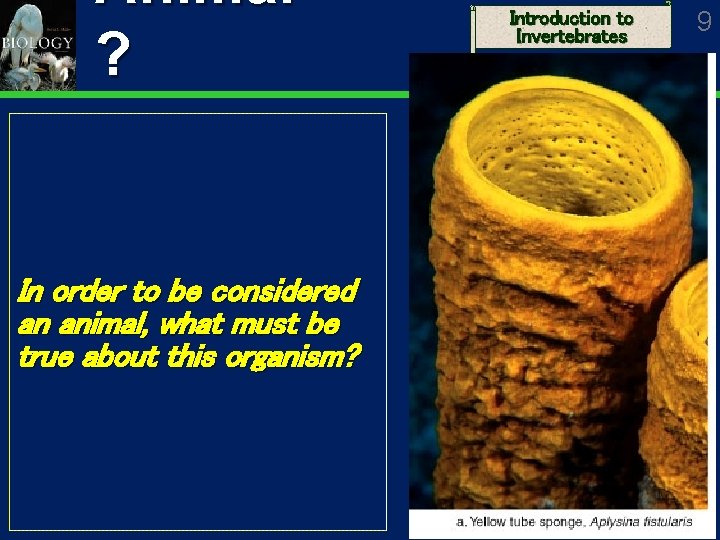

Animal ? In order to be considered an animal, what must be true about this organism? Introduction to Invertebrates 9
Introduction to Invertebrates 10 Multicellularity Sponges Only level of animal to have cellular organization Saclike bodies perforated by many pores Beating of flagella produces water currents that flow through pores into central cavity and out osculum Sessile filter feeders Asexual reproduction by fragmentation or

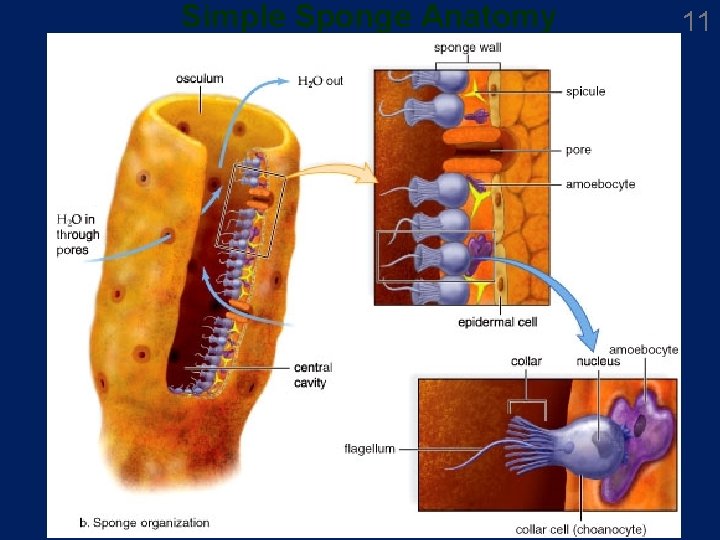

Simple Sponge Anatomy 11
Introduction to Invertebrates Porifera in the Animal Cladogram Sponges sitting at the bottom of the animal phylogeny simplest of the existing animals and possibly one of the simplest of all time 12

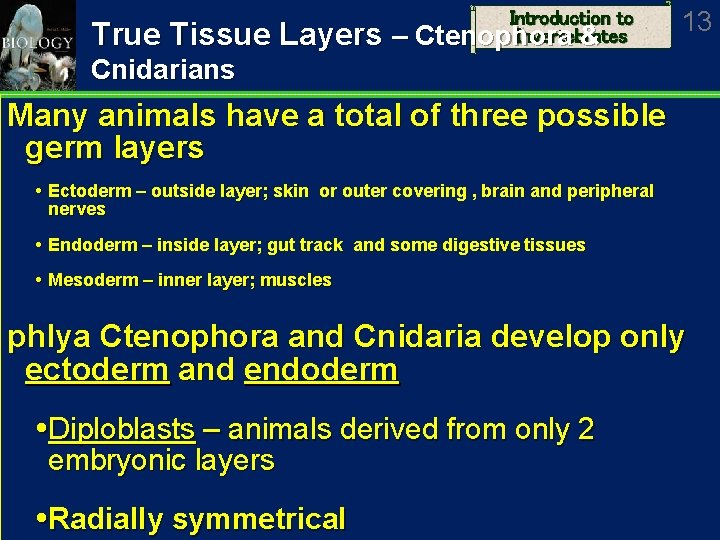

True Tissue Layers – Introduction to Invertebrates Ctenophora & 13 Cnidarians Many animals have a total of three possible germ layers Ectoderm – outside layer; skin or outer covering , brain and peripheral nerves Endoderm – inside layer; gut track and some digestive tissues Mesoderm – inner layer; muscles phlya Ctenophora and Cnidaria develop only ectoderm and endoderm Diploblasts – animals derived from only 2 embryonic layers Radially symmetrical
Introduction to Invertebrates 14 True Tissue Layers phlya Ctenophora and Cnidaria develop only ectoderm and endoderm So what is in the middle if these organisms (the first with true tissue layers) ? What are Ctenophora called again?

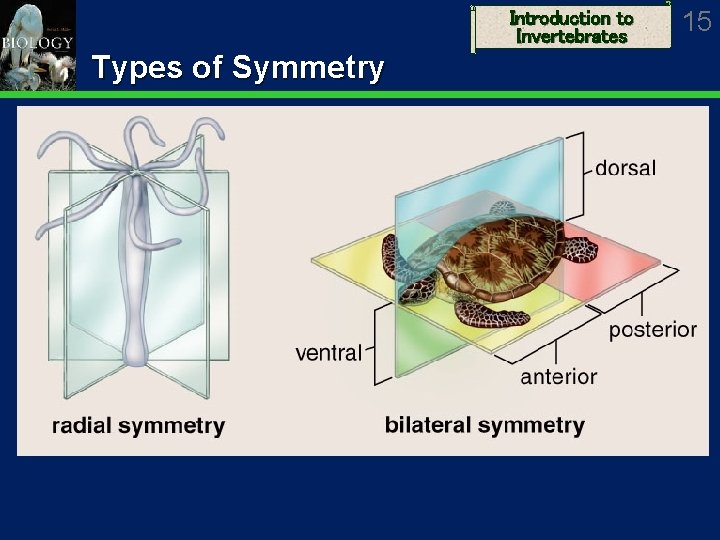

Introduction to Invertebrates Types of Symmetry 15

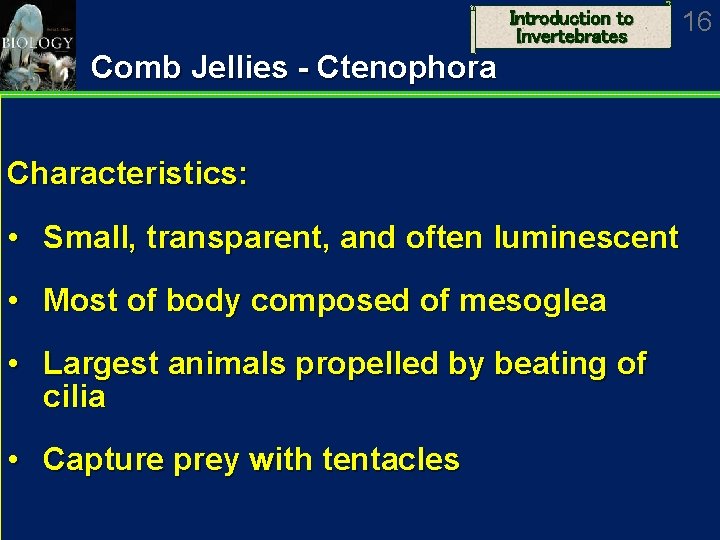

Introduction to Invertebrates Comb Jellies - Ctenophora Characteristics: • Small, transparent, and often luminescent • Most of body composed of mesoglea • Largest animals propelled by beating of cilia • Capture prey with tentacles 16
17 Comb Jelly Compared to Cnidarian

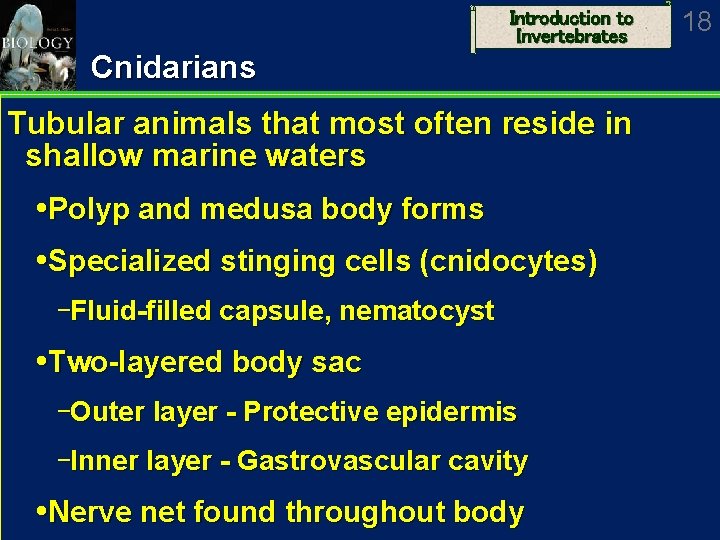

Introduction to Invertebrates Cnidarians Tubular animals that most often reside in shallow marine waters Polyp and medusa body forms Specialized stinging cells (cnidocytes) Fluid-filled capsule, nematocyst Two-layered body sac Outer layer - Protective epidermis Inner layer - Gastrovascular cavity Nerve net found throughout body 18

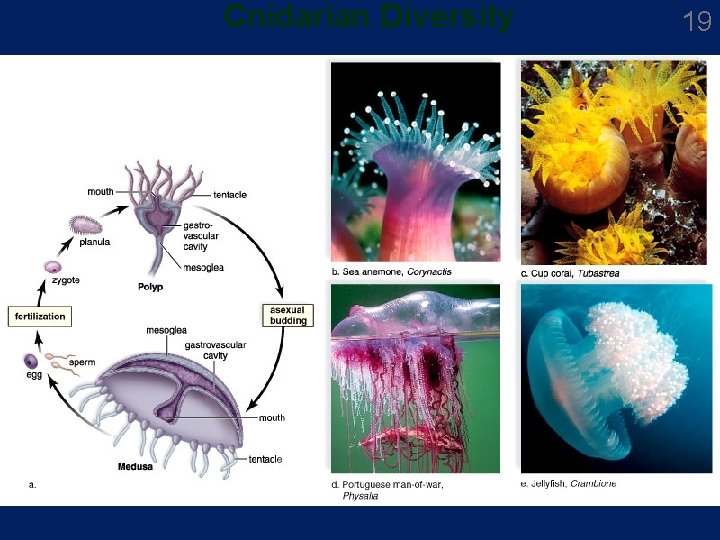

Cnidarian Diversity 19

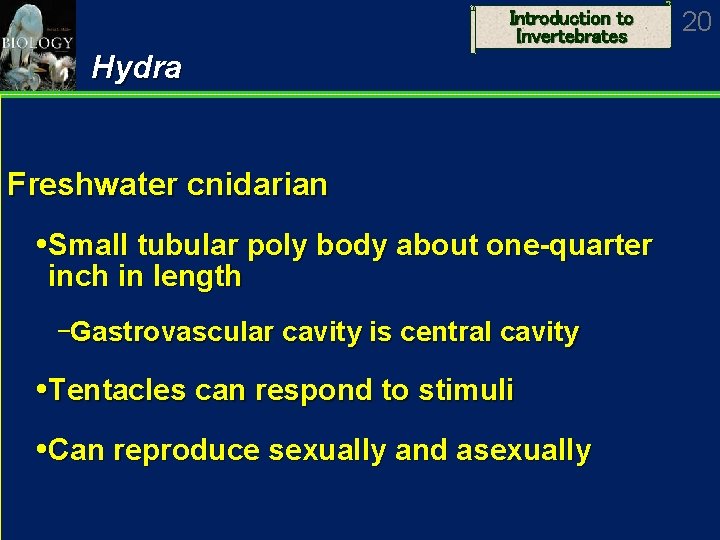

Introduction to Invertebrates Hydra Freshwater cnidarian Small tubular poly body about one-quarter inch in length Gastrovascular cavity is central cavity Tentacles can respond to stimuli Can reproduce sexually and asexually 20
Anatomy of Hydra 21

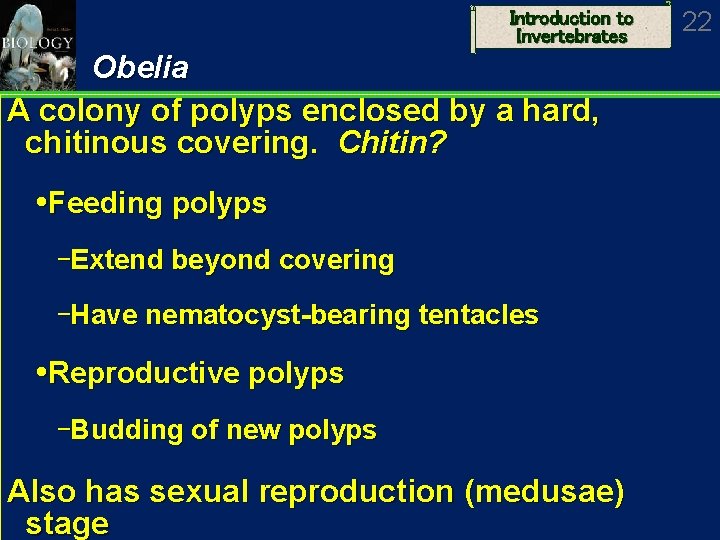

Introduction to Invertebrates Obelia A colony of polyps enclosed by a hard, chitinous covering. Chitin? Feeding polyps Extend beyond covering Have nematocyst-bearing tentacles Reproductive polyps Budding of new polyps Also has sexual reproduction (medusae) stage 22

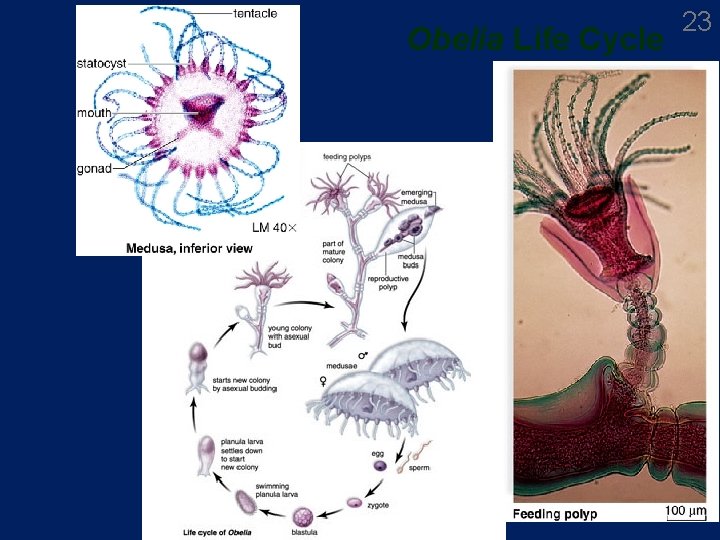

Obelia Life Cycle 23
Ctenophora and Cnidarians Where are we now? How are cnidarians and ctenophora different from sponges? What new “feature” do they posses that sponges did not have? http: //www. youtube. com/ watch? v=bcm. Lxs. J 5 SAg&f eature=related 24

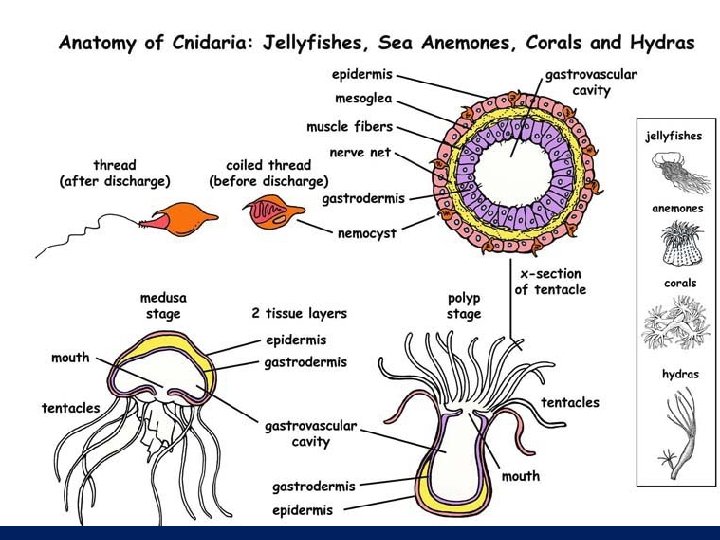

25

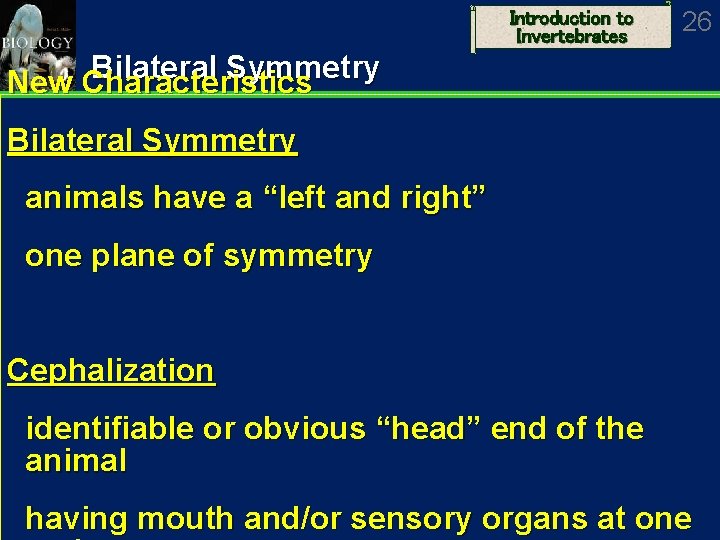

Introduction to Invertebrates 26 Bilateral Symmetry New Characteristics Bilateral Symmetry animals have a “left and right” one plane of symmetry Cephalization identifiable or obvious “head” end of the animal having mouth and/or sensory organs at one
Introduction to Invertebrates 27 Bilateral Symmetry Pseudocoelomates Both phyla today will be considered pseudocoelomates What is the difference between acoelomates, pseudocoelomates and coelomates (or eucoelomates? )

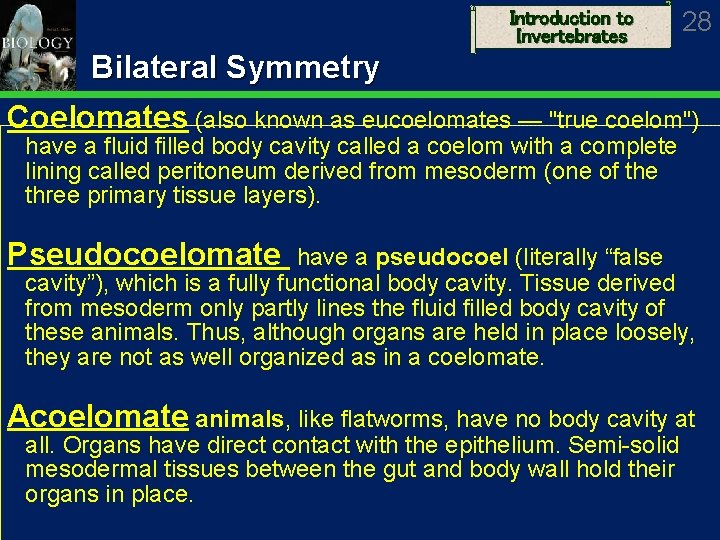

Introduction to Invertebrates 28 Bilateral Symmetry Coelomates (also known as eucoelomates — "true coelom") have a fluid filled body cavity called a coelom with a complete lining called peritoneum derived from mesoderm (one of the three primary tissue layers). Pseudocoelomate have a pseudocoel (literally “false cavity”), which is a fully functional body cavity. Tissue derived from mesoderm only partly lines the fluid filled body cavity of these animals. Thus, although organs are held in place loosely, they are not as well organized as in a coelomate. Acoelomate animals, like flatworms, have no body cavity at all. Organs have direct contact with the epithelium. Semi-solid mesodermal tissues between the gut and body wall hold their organs in place.

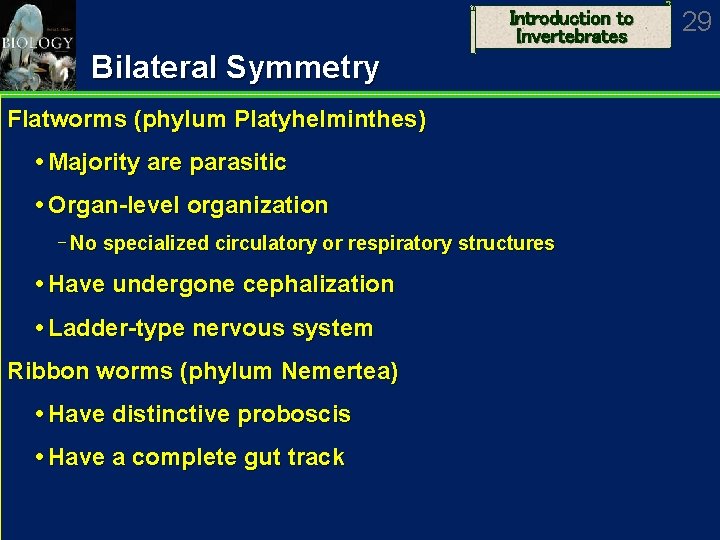

Introduction to Invertebrates Bilateral Symmetry Flatworms (phylum Platyhelminthes) Majority are parasitic Organ-level organization No specialized circulatory or respiratory structures Have undergone cephalization Ladder-type nervous system Ribbon worms (phylum Nemertea) Have distinctive proboscis Have a complete gut track 29

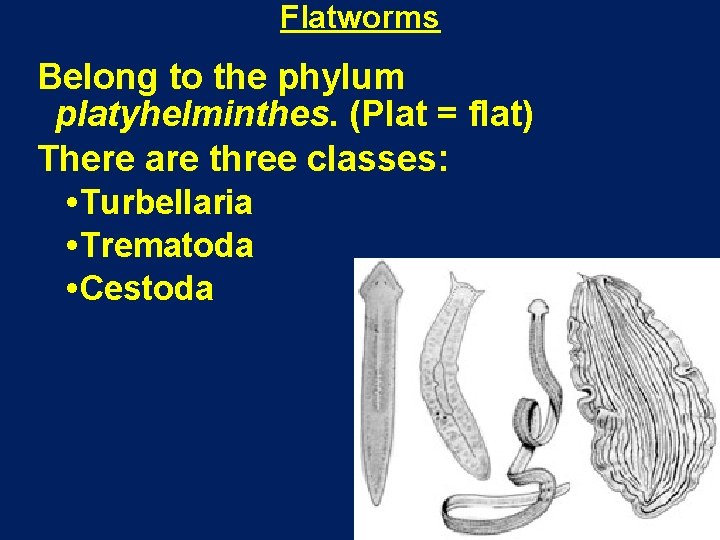

Flatworms Belong to the phylum platyhelminthes. (Plat = flat) There are three classes: Turbellaria Trematoda Cestoda

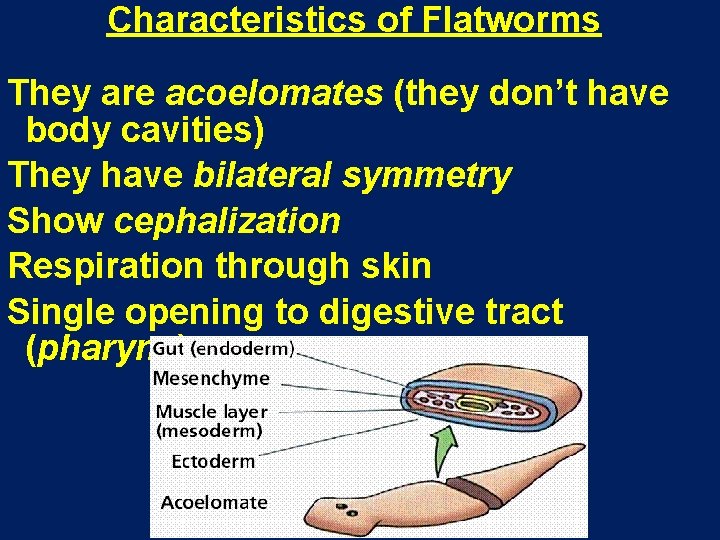

Characteristics of Flatworms They are acoelomates (they don’t have body cavities) They have bilateral symmetry Show cephalization Respiration through skin Single opening to digestive tract (pharynx)

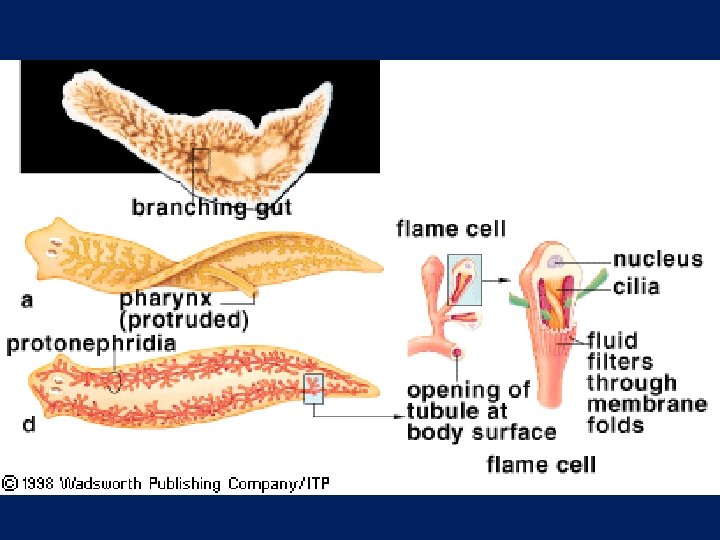

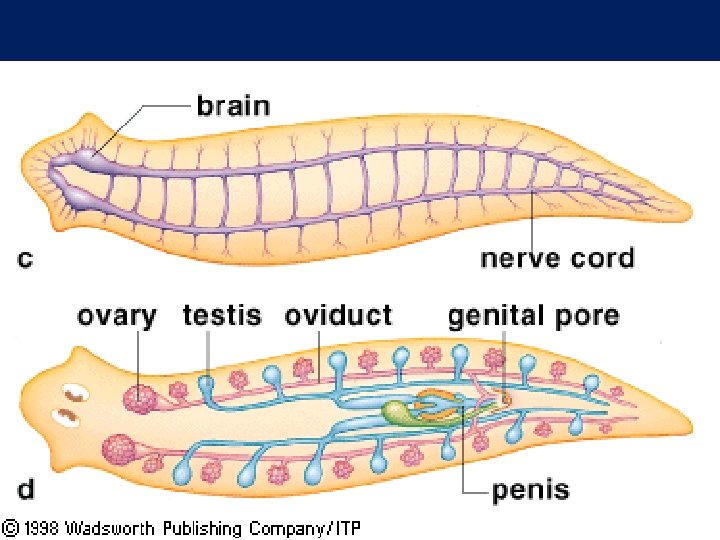

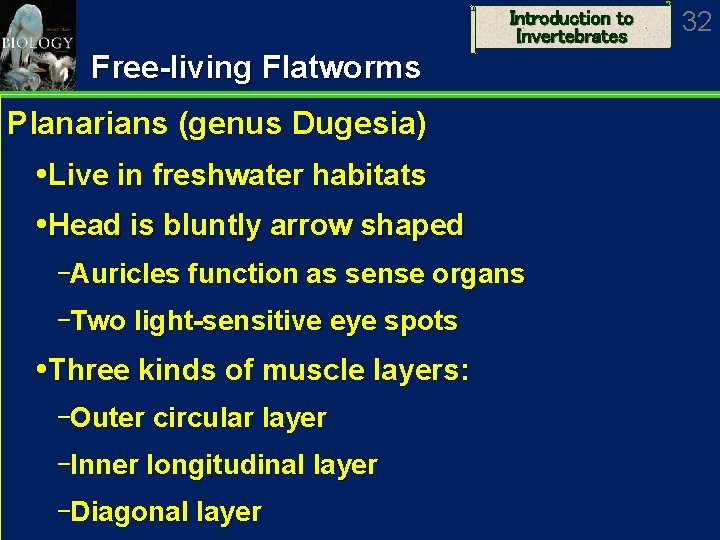

Introduction to Invertebrates Free-living Flatworms Planarians (genus Dugesia) Live in freshwater habitats Head is bluntly arrow shaped Auricles function as sense organs Two light-sensitive eye spots Three kinds of muscle layers: Outer circular layer Inner longitudinal layer Diagonal layer 32

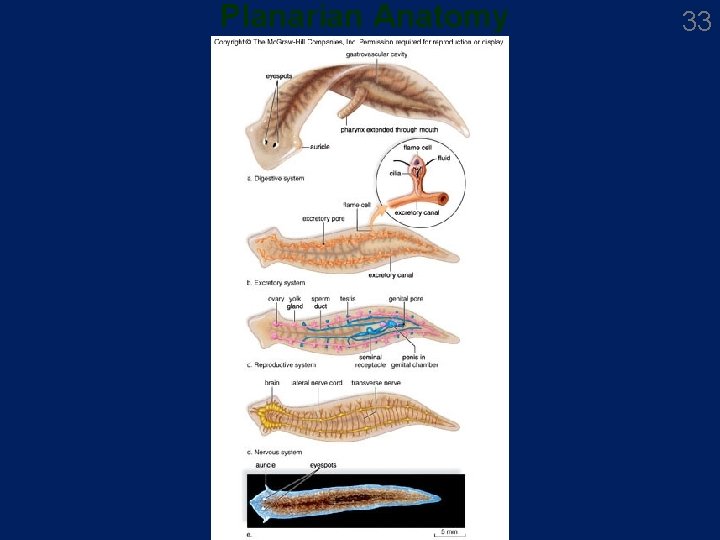

Planarian Anatomy 33

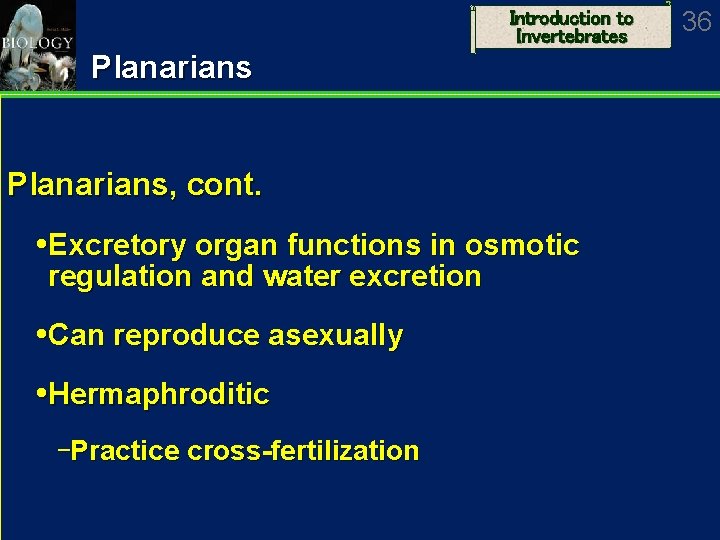

Introduction to Invertebrates Planarians, cont. Excretory organ functions in osmotic regulation and water excretion Can reproduce asexually Hermaphroditic Practice cross-fertilization 36

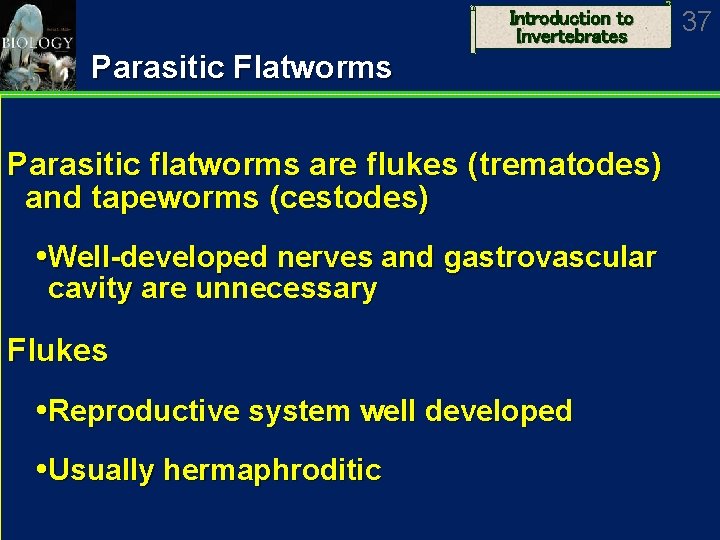

Introduction to Invertebrates Parasitic Flatworms Parasitic flatworms are flukes (trematodes) and tapeworms (cestodes) Well-developed nerves and gastrovascular cavity are unnecessary Flukes Reproductive system well developed Usually hermaphroditic 37

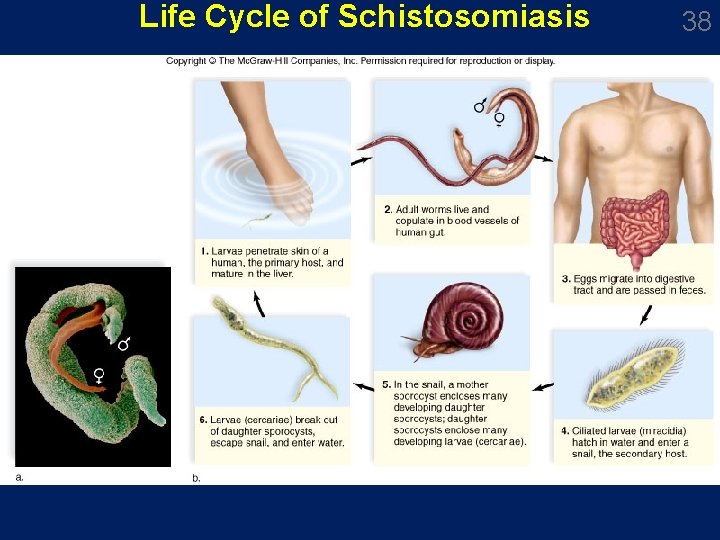

Life Cycle of Schistosomiasis 38

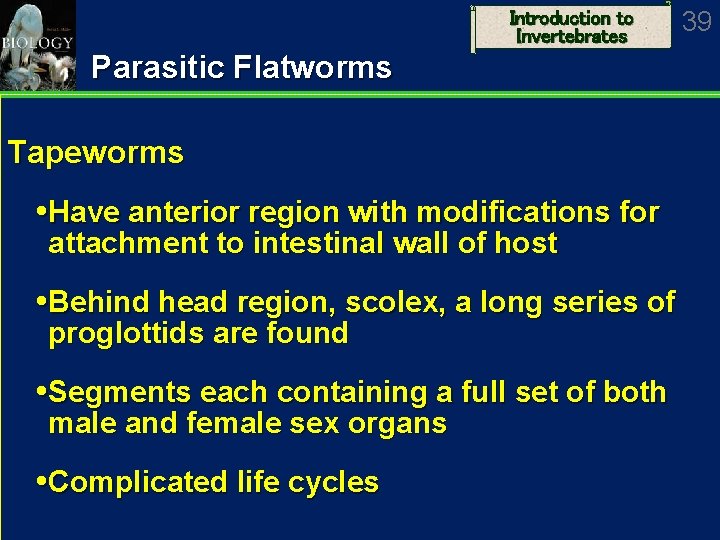

Introduction to Invertebrates Parasitic Flatworms Tapeworms Have anterior region with modifications for attachment to intestinal wall of host Behind head region, scolex, a long series of proglottids are found Segments each containing a full set of both male and female sex organs Complicated life cycles 39

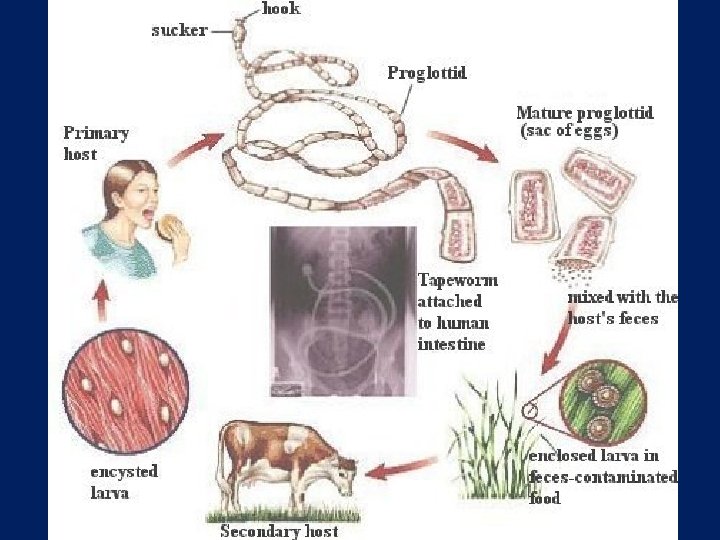

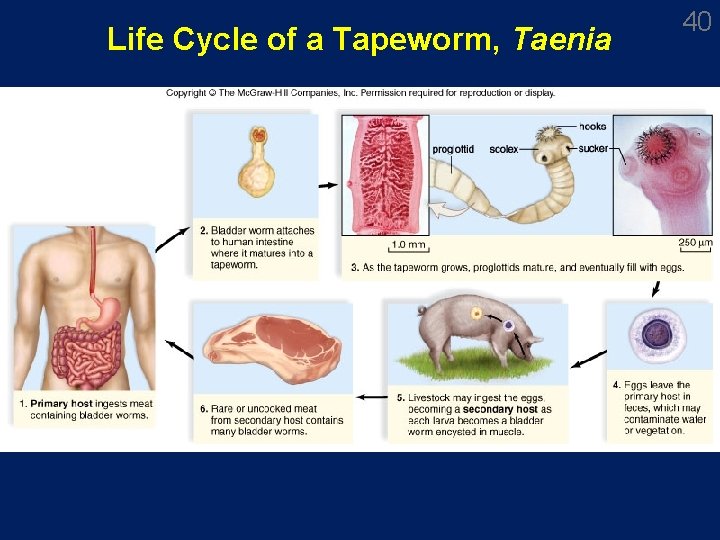

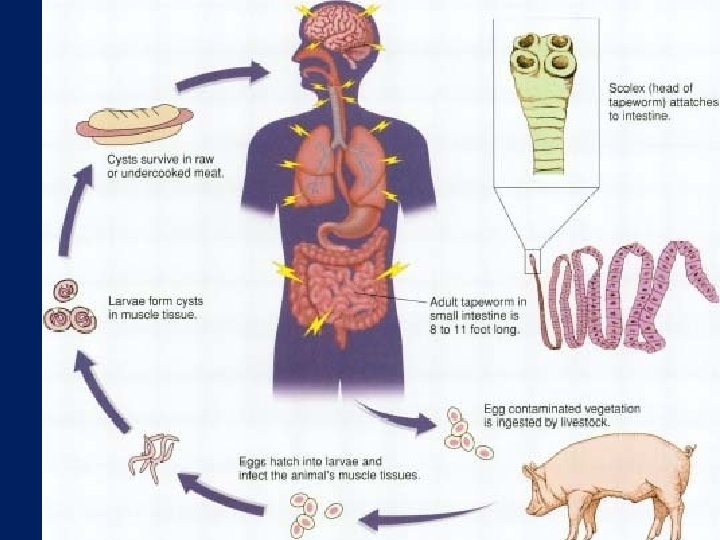

Life Cycle of a Tapeworm, Taenia 40

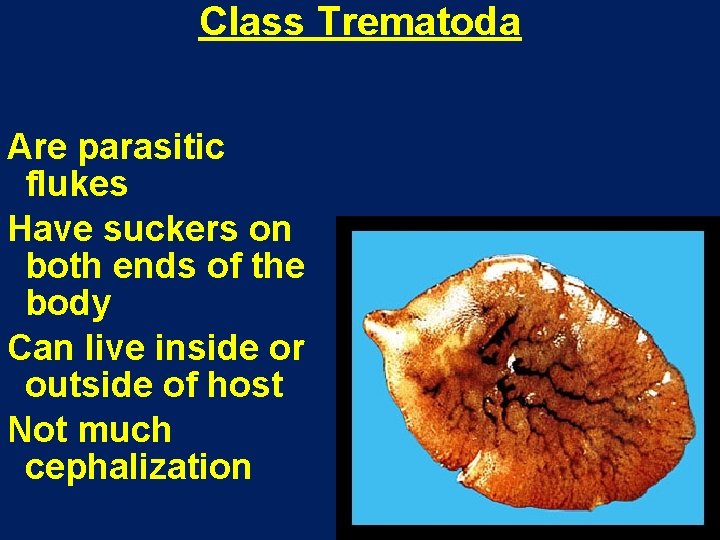

Class Trematoda Are parasitic flukes Have suckers on both ends of the body Can live inside or outside of host Not much cephalization
Class Trematoda Nervous and excretory systems like turbellarians Hermaphrodites Have complex life cycles
Class Cestoda Parasitic Tapeworms Long, ribbon-like bodies Absorbs nutrients from host Hermaphrodites

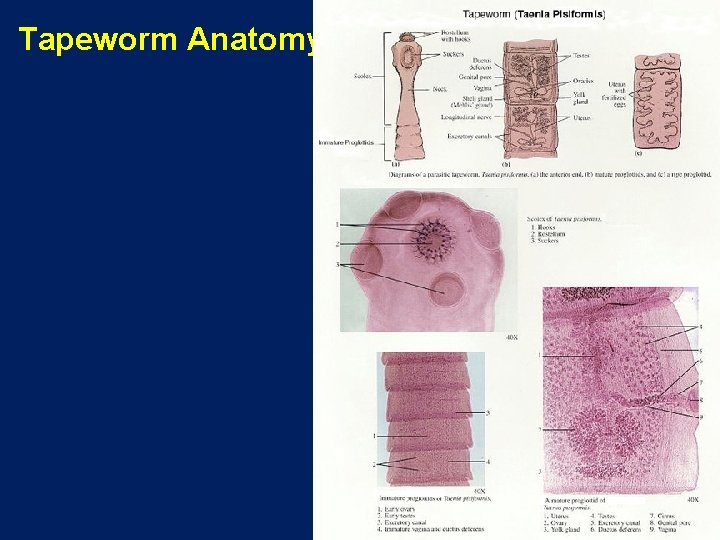

Tapeworm Anatomy
Ribbon Worm, Lineus 48

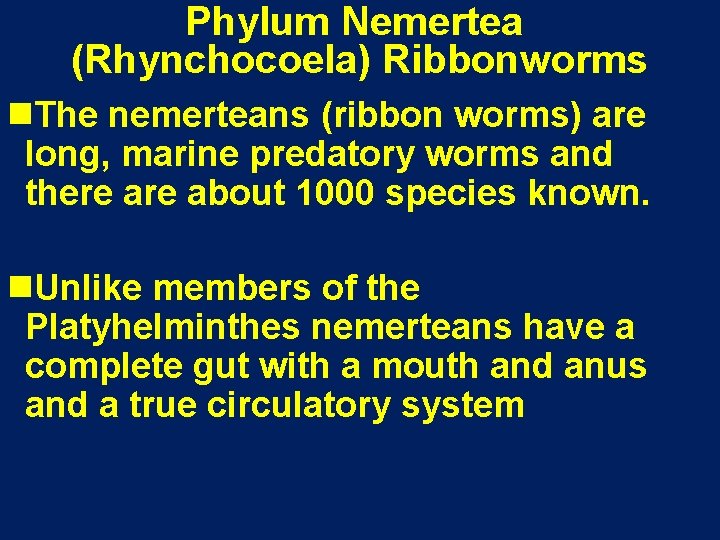

Phylum Nemertea (Rhynchocoela) Ribbonworms n. The nemerteans (ribbon worms) are long, marine predatory worms and there about 1000 species known. n. Unlike members of the Platyhelminthes nemerteans have a complete gut with a mouth and anus and a true circulatory system

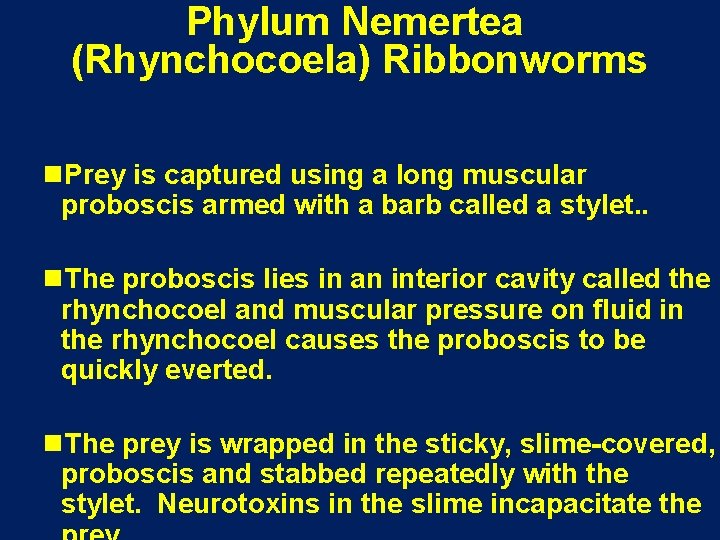

Phylum Nemertea (Rhynchocoela) Ribbonworms n. Prey is captured using a long muscular proboscis armed with a barb called a stylet. . n. The proboscis lies in an interior cavity called the rhynchocoel and muscular pressure on fluid in the rhynchocoel causes the proboscis to be quickly everted. n. The prey is wrapped in the sticky, slime-covered, proboscis and stabbed repeatedly with the stylet. Neurotoxins in the slime incapacitate the
Internal structure of female ribbon worm (left). Nemertean with proboscis extended (below) 8. 18
8. 19 Baseodiscus mexicanus a nemertean from the Galapagos Islands

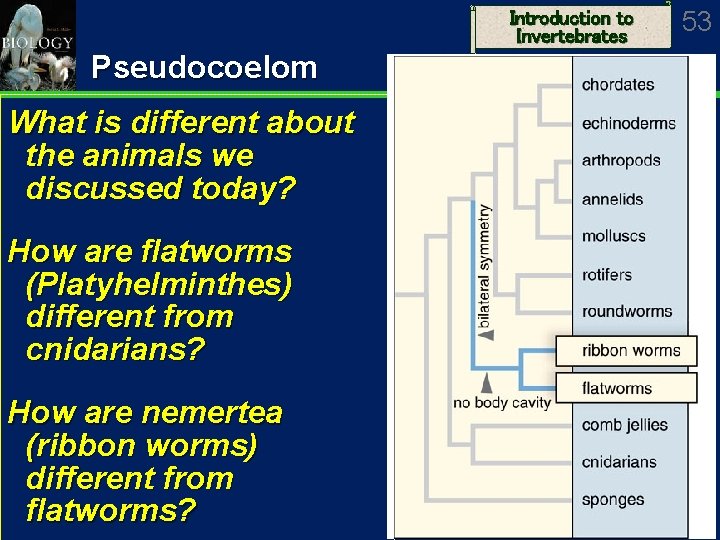

Introduction to Invertebrates Pseudocoelom What is different about the animals we discussed today? How are flatworms (Platyhelminthes) different from cnidarians? How are nemertea (ribbon worms) different from flatworms? 53
Introduction to Invertebrates 54 Pseudocoelom: A “false” body cavity that is incompletely lined by mesoderm Provides a space for internal organs and can serve as hydrostatic skeleton Both phyla today are animals with a complete body gut track and pseudo coelom phylum Nematoda and Rotifera

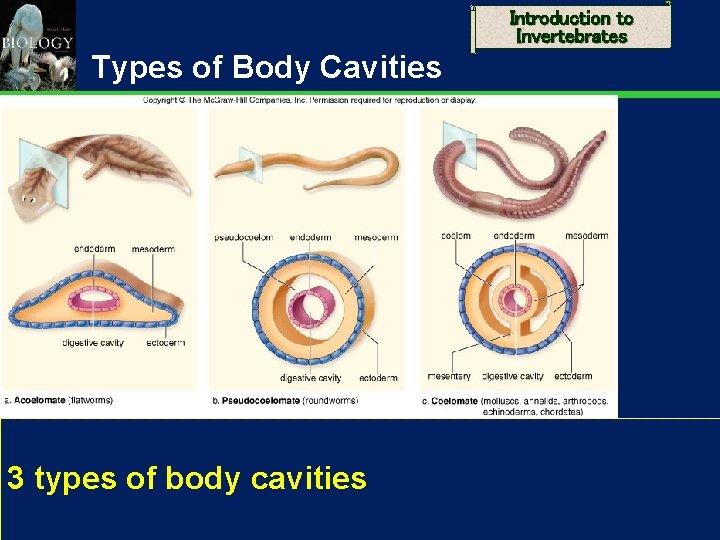

Introduction to Invertebrates Types of Body Cavities 3 types of body cavities

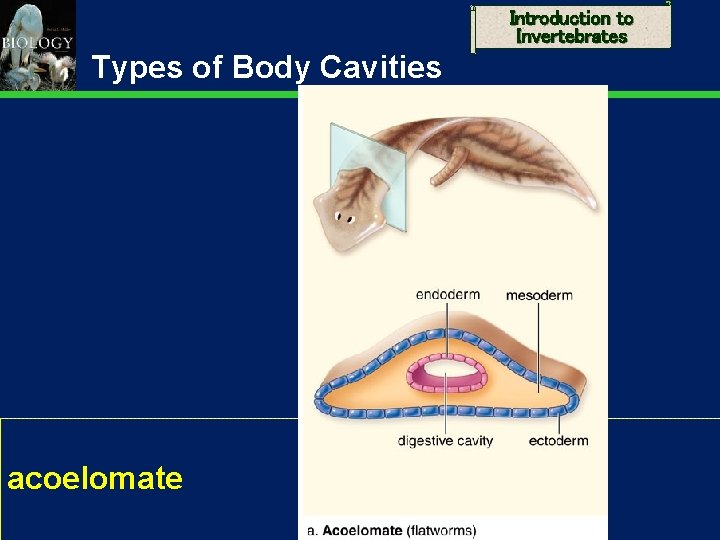

Introduction to Invertebrates Types of Body Cavities acoelomate

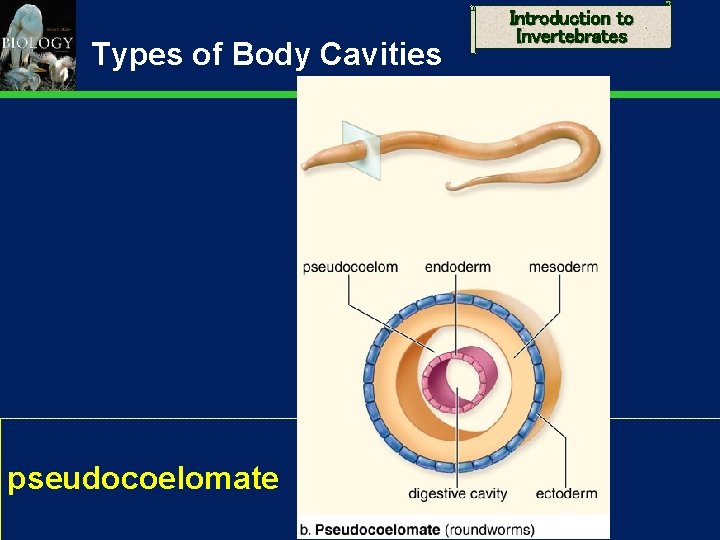

Types of Body Cavities pseudocoelomate Introduction to Invertebrates
Introduction to Invertebrates Types of Body Cavities Coelomates – not there yet

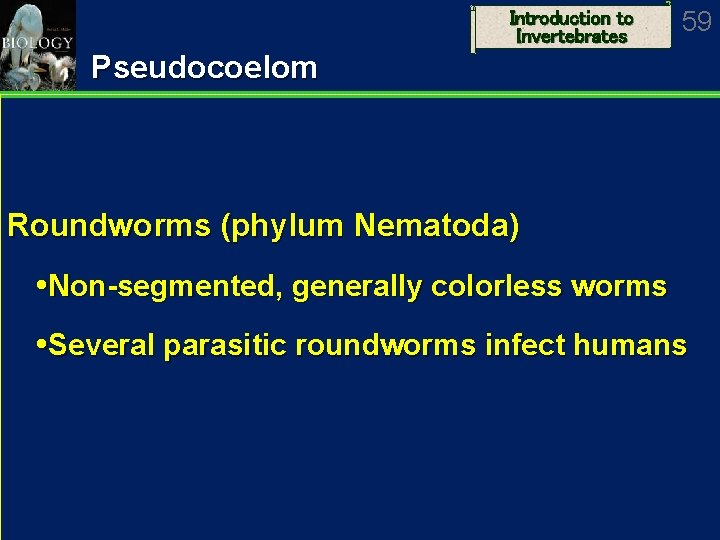

Introduction to Invertebrates 59 Pseudocoelom Roundworms (phylum Nematoda) Non-segmented, generally colorless worms Several parasitic roundworms infect humans

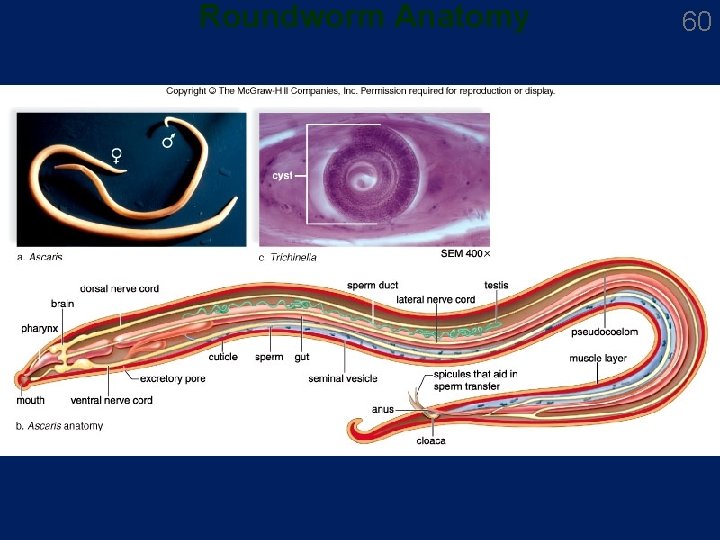

Roundworm Anatomy 60

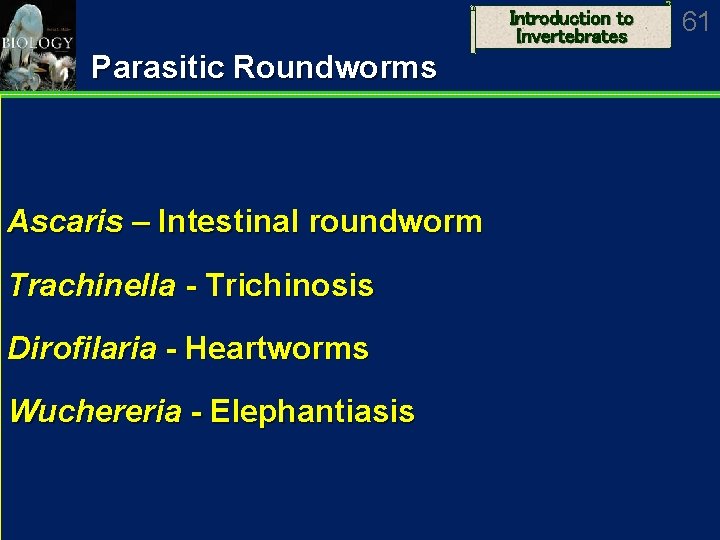

Introduction to Invertebrates Parasitic Roundworms Ascaris – Intestinal roundworm Trachinella - Trichinosis Dirofilaria - Heartworms Wuchereria - Elephantiasis 61
Filarial Worm 62

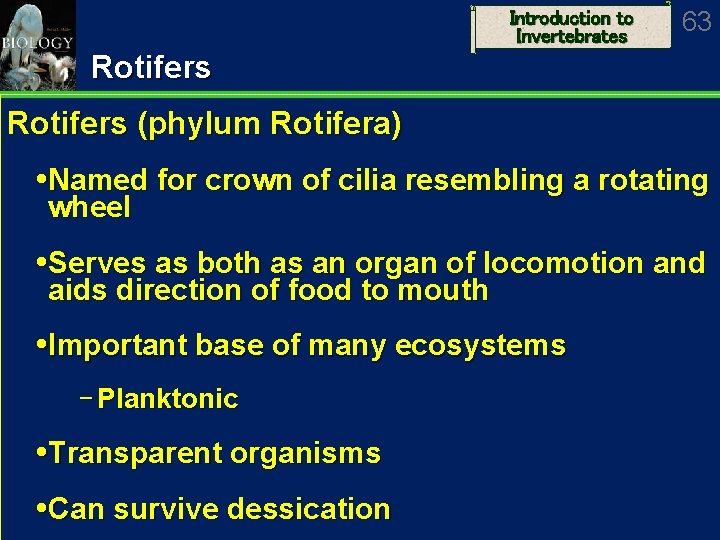

Introduction to Invertebrates 63 Rotifers (phylum Rotifera) Named for crown of cilia resembling a rotating wheel Serves as both as an organ of locomotion and aids direction of food to mouth Important base of many ecosystems Planktonic Transparent organisms Can survive dessication
Rotifer 64
Rotifers on youtube. com 25 X Magnification

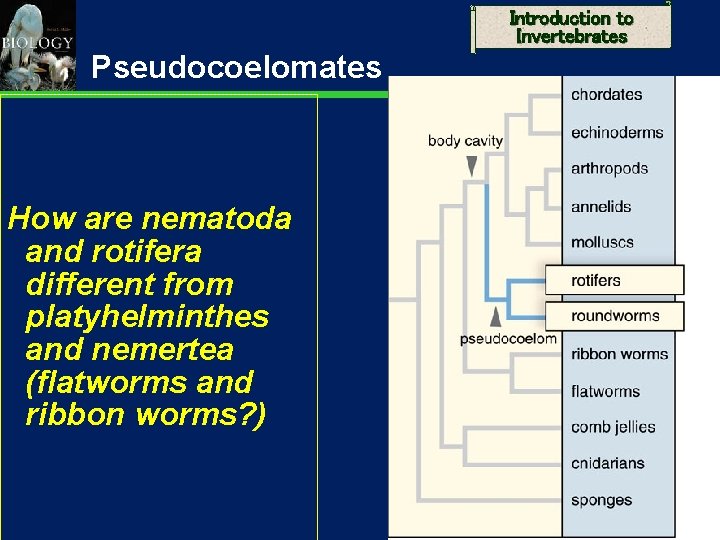

Introduction to Invertebrates Pseudocoelomates How are nematoda and rotifera different from platyhelminthes and nemertea (flatworms and ribbon worms? )
