256 ch ASD Encoder PIC 256 ch analog

  • Slides: 10
Download presentation

256 ch 読み出し回路 ASD & Encoder μ-PIC 256 ch (analog) 8 ch (32 pixel

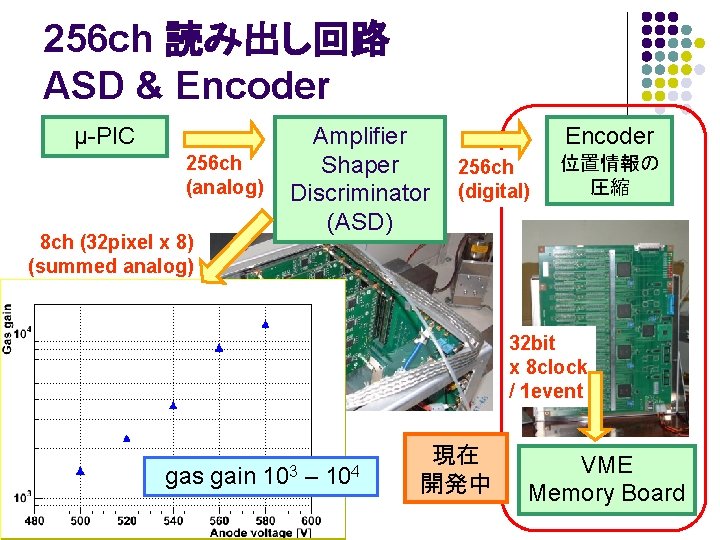

256 ch 読み出し回路 ASD & Encoder μ-PIC 256 ch (analog) 8 ch (32 pixel x 8) (summed analog) Amplifier Shaper Discriminator (ASD) Encoder 256 ch (digital) 32 pixel分の信号 gas gain ～ 5000 150 nsec 30 m. V Ar(90%) + C 2 H 6 55 Fe(5. 9 ke. V) 3 – 104 gas gain 10 (10%) 位置情報の 圧縮 32 bit x 8 clock / 1 event 現在 開発中 VME Memory Board

旧型読み出し回路 ASD & Encoder 512 ch (analog) μ-PIC(256 x 256) 512 ch (digital) Amplifier

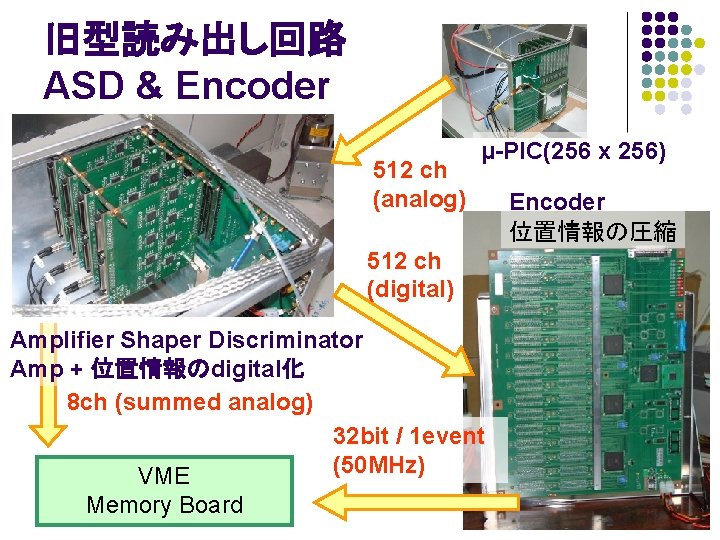

旧型読み出し回路 ASD & Encoder 512 ch (analog) μ-PIC(256 x 256) 512 ch (digital) Amplifier Shaper Discriminator Amp + 位置情報のdigital化 8 ch (summed analog) 32 bit / 1 event (50 MHz) VME Memory Board Encoder 位置情報の圧縮
