2500 Series® Slice I/O

2500 Series® Slice I/O Intelligent Features • • Best solution for installing a few I/O points in a remote location Mixed I/O – 4 DI / 4 DO / 2 UAI / 2 AO – 8 DIO / 2 UAI – 2 DIO / 4 UAI / 2 AI • • • Universal analog inputs allow conventional analog, thermocouple, and RTD in a single unit Connects over Ethernet to CTI 2572, 2572 -A, 2572 -B, 2500 -Cxxx, 2500 P-ECC 1, 2500 C-Cxxx, 2500 C-2572 -B Uses CAMP to transfer I/O values directly to the CPU – Should be used for non-critical I/O, as CAMP is not an I/O optimized protocol • • Can also be configured as a Modbus-Ethernet slave Includes options for long distance connection using 900 Mhz radio (subject to import limitation, depending on countries) OR cellular 2

Slice I/O Modules 23 -1050 27 -1050 23 -1550 27 -1550 23 -1750 27 -1750 Ethernet yes yes yes Serial no no yes yes 900 MHz Radio no no yes Digital Inputs 4 4 4 Digital Outputs 4 4 4 Digital In/Out Universal Analog Inputs 2 4 Analog Inputs Analog Outputs 4 2 4 2 2 3

2500 Series® Slice I/O Typical Connections - Wired 100 Mb Cat 5 5 b Cat 100 Mb Cat 5 54 Mb Wireless 100 Mb Fibe r at 5 b. C M 100 M b Cat 5 100 Mb Cat 5 4

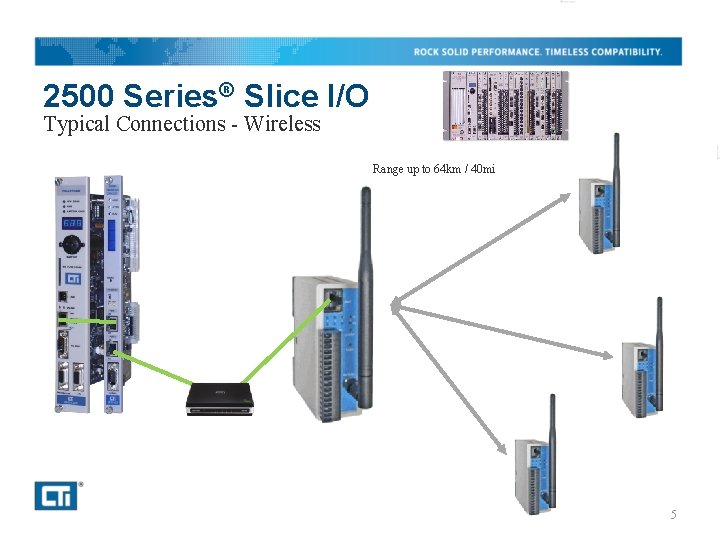

2500 Series® Slice I/O Typical Connections - Wireless Range up to 64 km / 40 mi 5

2500 Series® Slice I/O Demonstration 7
