2500 Series Compact System Components 2500 Series Compact
- Slides: 16
2500 Series® Compact System Components
2500 Series® Compact System Components Highlights I/O Modules Hot Pluggable! C 100, C 200, C 300 Processors Durable steel and aluminum housings for rugged environments 4, 8, 16 slot bases Processors, Profibus and RIO RBCs 24 VDC, 120/240 VAC, 120 VDC power supplies 8/16 pt digital I/O for 24 VDC and 120/240 VAC 8 pt Analog input and output for 20 m. A, 5 V, 10 V signals 8 pt Thermocouple and RTD input 8 pt Relay output Input/Output simulator 2
2500 Series® Compact System Highlights • • • 50% smaller than current system Hot swappable modules Latest design methods and components Reduction of jumpers for module configuration Expanded I/O image map allows modules to perform more functions in software • Can be used as remote I/O connected to Classic system or even TI/Siemens® 505 3
2500 Series® Compact System Overview • Where does the Compact System fit? – When 2500 Series® “Classic” system is too large to fit the application – When fewer I/O points are needed and the cost of installing Classic is too high • Easy connection as remote base to 2500 Series® Classic system or Remote I/O or Profibus • Released October 2013 4
Processors 2500 CC 100 2500 CC 200 2500 CC 300 Memory 128 K 256 K 512 K Digital I/O 1024 2048 8192 Analog I/O 1024 8192 Loops / Alarms 16 / 32 64 / 128 512 / 512 SFP / SFS 64 / 64 1023 / 1023 Ethernet Yes Yes Remote I/O No Yes Profibus No Yes 2500 C 100 5451103* 5451105* 2500 C 200 545 -1101 545 -1102 545 -1104 545 -1106 2500 C 300 555 -1101 555 -1103 555 -1105 Equivalent to *without Profibus-DP annex card 6
2500 C-2572 -B Fast Ethernet Adapter • Direct 100 Mbit connection using RJ 45 • HMI/SCADA interface using CAMP server • Communicates with 2500 C-2572 -B, 2572 A, 2572, 505 -CP 1434 -TCP, CTI CPUs (Compact or Classic) • Also supports Modbus TCP and Ethernet/IP • IP address display • Web server access for diagnostics and configuration • Enhanced event logging for troubleshooting • Flash upgradeable 7

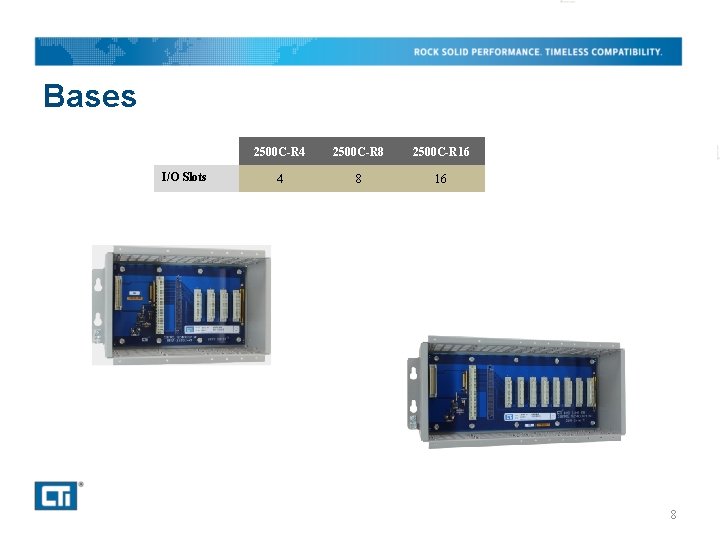

Bases I/O Slots 2500 C-R 4 2500 C-R 8 2500 C-R 16 4 8 16 8
Power Supplies Output Input 2500 C-PS 120 V-35 2500 C-PS 120 V-50 2500 C-PS 24 V-35 2500 C-PS 125 V-35 35 W 50 W 35 W 20 -30 VDC 85 -125 VDC 90 -264 VAC 9
Remote Base Controllers Interface 2500 C-RBCPRF 2500 C-RBCRS 485 Profibus-DP Remote I/O 10
Digital Input Modules 2500 C-16 -DI 24 V 2500 C-16 -DI 120 V 2500 C-16 -IDI 24 V 2500 C-16 -IDI 120 V Channels 16 16 Isolation groups of 8 each channel Voltage rating 10 -30 V AC/DC 79 -132 V AC/DC / 164 -264 VAC 10 -30 V AC/DC 79 -132 V AC/DC 11
Digital Output Modules 2500 C-8 -IDO 24 V 2500 C-8 -IDO 120 V 2500 C-16 -DO 24 V 2500 C-16 -DO 120 V Channels 8 8 16 16 Isolation each channel groups of 8 Voltage rating 11 -30 VDC 79 -265 VAC 11 -30 VDC 79 -132 V AC 12

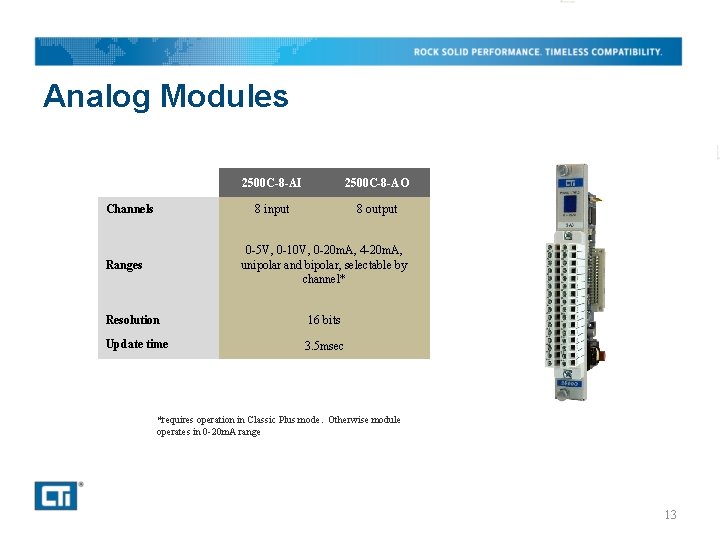

Analog Modules Channels 2500 C-8 -AI 2500 C-8 -AO 8 input 8 output 0 -5 V, 0 -10 V, 0 -20 m. A, 4 -20 m. A, unipolar and bipolar, selectable by channel* Ranges Resolution Update time 16 bits 3. 5 msec *requires operation in Classic Plus mode. Otherwise module operates in 0 -20 m. A range 13
Relay Output Modules 2500 C-8 -RL-FC Channels Type 8 Form-C Voltage rating 15 VDC to 30 VDC, 15 VAC to 240 V AC Current rating Up to 5 A per channel 14

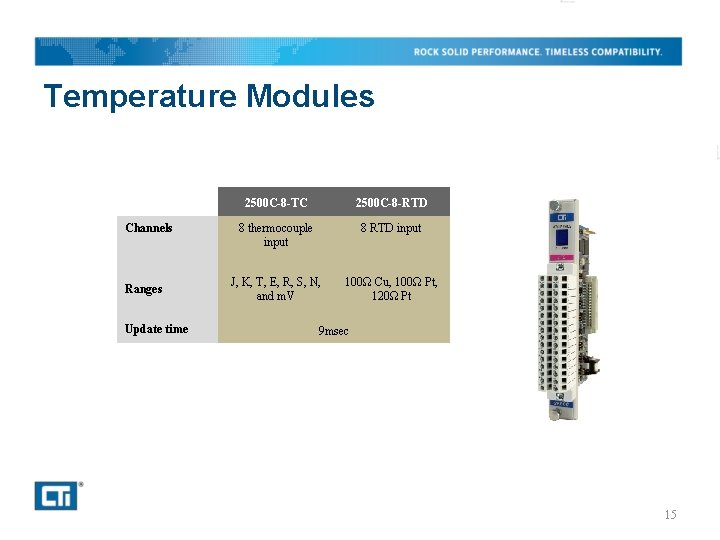

Temperature Modules Channels Ranges Update time 2500 C-8 -TC 2500 C-8 -RTD 8 thermocouple input 8 RTD input J, K, T, E, R, S, N, and m. V 100Ω Cu, 100Ω Pt, 120Ω Pt 9 msec 15
Simulator Modules 2500 C-16 -DIDO -SIM Channels Type 16 In / 16 Out Simulator 16
Product Spotlight Upgrading TI Series 500 Systems using Compact • 2500 C-RADP-RBC • Profibus RBC for Series 500 • 2500 C-RADP-RS 485 • RS 485 RBC for Series 500 • 2500 C-PADP-PS-120 V • 50 W Power Supply for Series 500 17
