2500 PECC 1 Ethernet Communications Coprocessor 2500 PECC

2500 P-ECC 1 Ethernet Communications Coprocessor

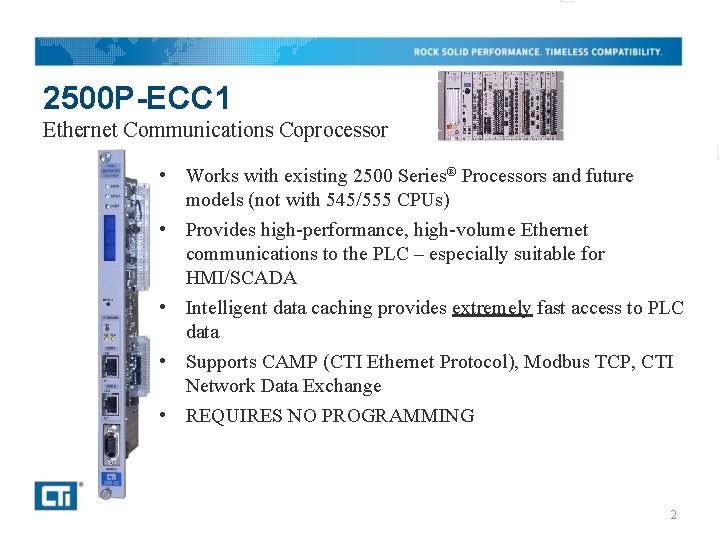

2500 P-ECC 1 Ethernet Communications Coprocessor • Works with existing 2500 Series® Processors and future models (not with 545/555 CPUs) • Provides high-performance, high-volume Ethernet communications to the PLC – especially suitable for HMI/SCADA • Intelligent data caching provides extremely fast access to PLC data • Supports CAMP (CTI Ethernet Protocol), Modbus TCP, CTI Network Data Exchange • REQUIRES NO PROGRAMMING 2

2500 Series® Ethernet Communications using the 2500 P-ECC 1 HMI DEVICES PLANT NETWORK SCADA SYSTEMS 2500 P-ECC 1 PROGRAMMING OTHER PLCs 5

2500 P-ECC 1 Standard Protocols • CAMP (CTI ASCII Messaging Protocol) – Server and Client (includes multicast) – Allows communication with 2572, 2572 -A, and 2500 Series® Processors, HMI which support CAMP (or OPC) • Open Modbus (Ethernet) – Modbus Server – Modbus Client • Network Data Exchange – Shares data with other 2500 P-ECC 1 – Publish/ Subscribe Model – Communicates only when there is a change 6

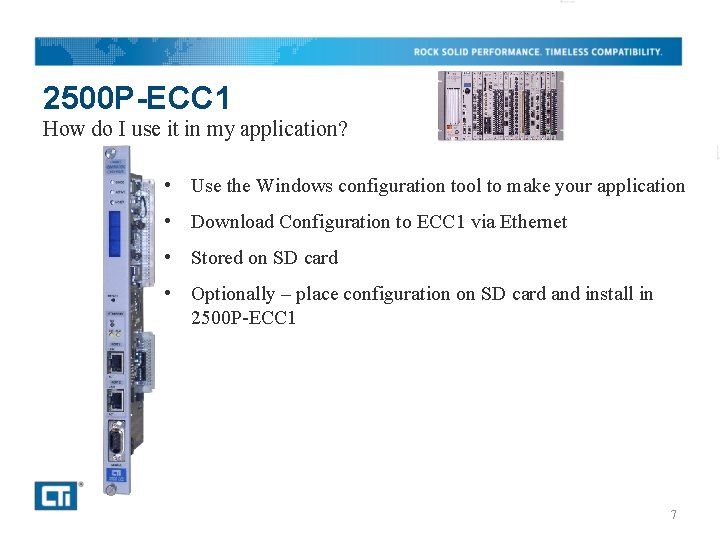

2500 P-ECC 1 How do I use it in my application? • Use the Windows configuration tool to make your application • Download Configuration to ECC 1 via Ethernet • Stored on SD card • Optionally – place configuration on SD card and install in 2500 P-ECC 1 7

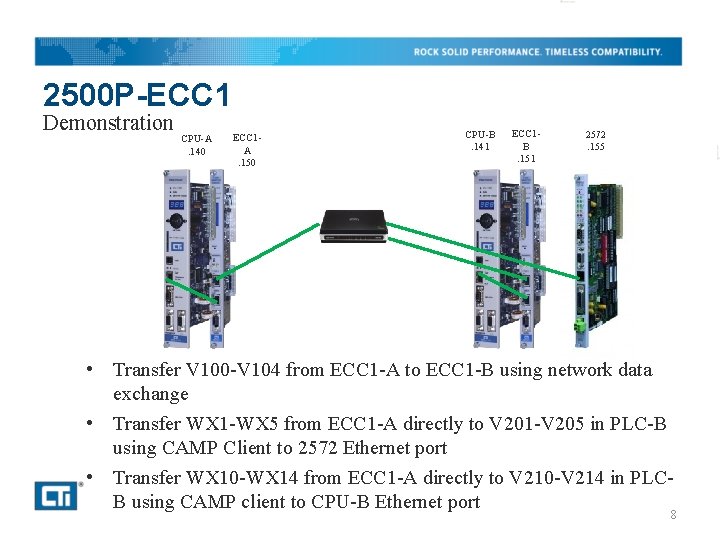

2500 P-ECC 1 Demonstration CPU-A. 140 ECC 1 A. 150 CPU-B. 141 ECC 1 B. 151 2572. 155 • Transfer V 100 -V 104 from ECC 1 -A to ECC 1 -B using network data exchange • Transfer WX 1 -WX 5 from ECC 1 -A directly to V 201 -V 205 in PLC-B using CAMP Client to 2572 Ethernet port • Transfer WX 10 -WX 14 from ECC 1 -A directly to V 210 -V 214 in PLCB using CAMP client to CPU-B Ethernet port 8
