24 The Plant Body Chapter 24 The Plant

24 The Plant Body

Chapter 24 The Plant Body Key Concepts • 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way • 24. 2 Meristems Build Roots, Stems, and Leaves • 24. 3 Domestication Has Altered Plant Form

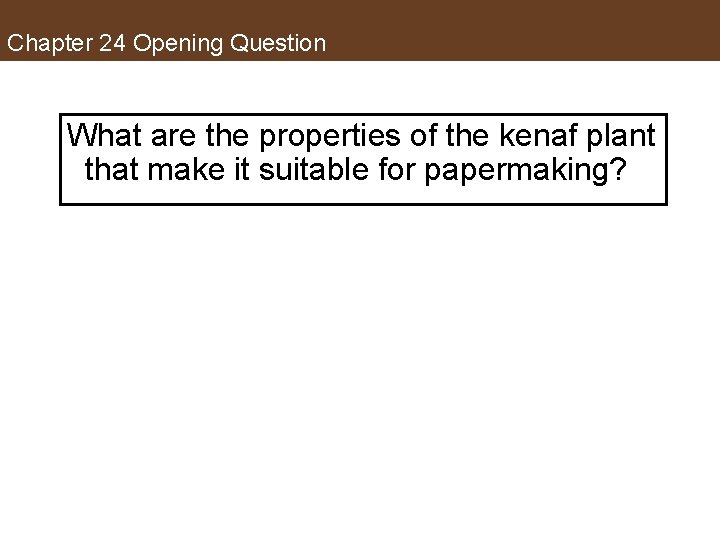

Chapter 24 Opening Question What are the properties of the kenaf plant that make it suitable for papermaking?

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Plants must harvest energy from sunlight and mineral nutrients from the soil. Body plans and physiology enable plants to do these things. They also grow throughout their lifetime; they can redirect growth to respond to environmental opportunities.

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Two systems of plant vegetative organs: Root system—anchors plant, absorbs water and minerals, stores products of photosynthesis. Branching increases surface area. Shoot system • Leaves—main photosynthetic organs • Stems—hold leaves up in the sunlight; connect roots and leaves

Figure 24. 1 Vegetative Plant Organs and Systems

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Plant development is influenced by three unique properties: • Apical meristems • Cell walls • Totipotency of most cells. Apical meristems are always embryonic, producing new tissues throughout the plant’s life.

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Cell walls are a rigid extracellular matrix. Plant morphogenesis occurs through changes in the plane of cell division at cytokinesis. This changes the direction of tissue growth. Cytokinesis can be uneven; location of the cell plate is determined by differentiation signals early in mitosis.

Figure 24. 2 Cytokinesis and Morphogenesis

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Most plant cells are totipotent (can differentiate into any kind of cell). Plants can readily repair damage caused by the environment or herbivores.

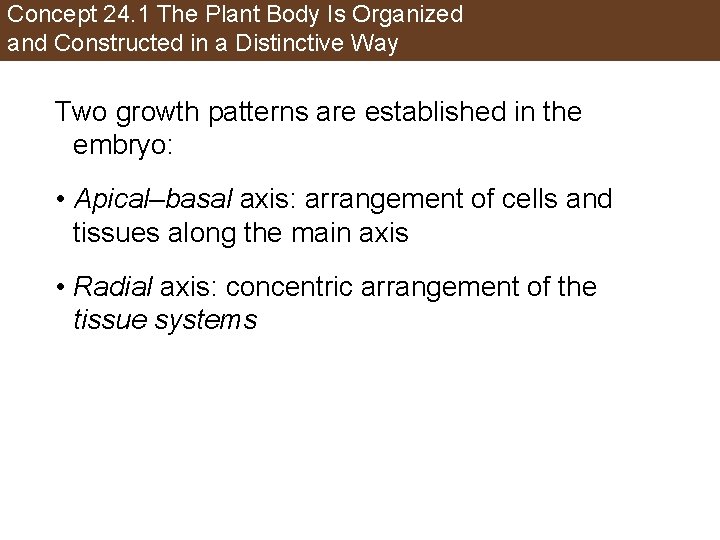

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Two growth patterns are established in the embryo: • Apical–basal axis: arrangement of cells and tissues along the main axis • Radial axis: concentric arrangement of the tissue systems

Figure 24. 3 Two Patterns for Plant Morphogenesis

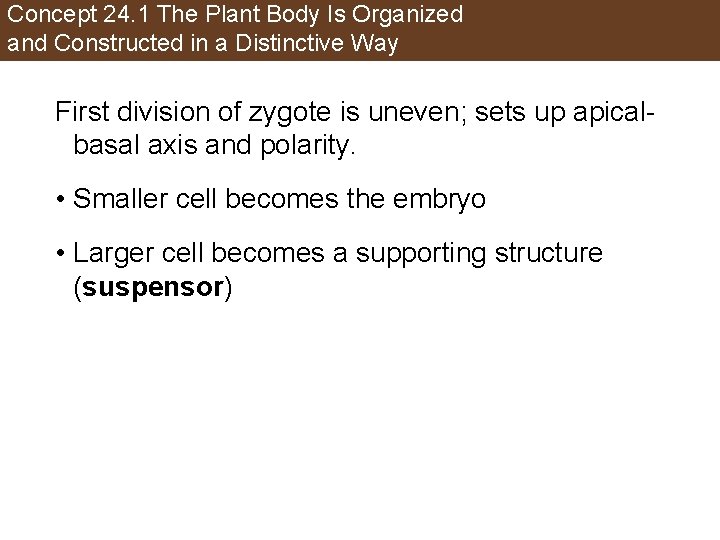

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way First division of zygote is uneven; sets up apicalbasal axis and polarity. • Smaller cell becomes the embryo • Larger cell becomes a supporting structure (suspensor)

Figure 24. 4 Plant Embryogenesis

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way In eudicots, the cotyledons begin to grow, and a shoot apical meristem forms between them. At the other end of the embryo, a root apical meristem forms.

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Three tissue systems are established during embryogensis: 1. Dermal—forms epidermis, usually one cell layer. Some cells differentiate: • Stomata—pores for gas exchange • Trichomes—leaf hairs, protect from herbivores and damaging solar radiation • Root hairs—increase root surface area

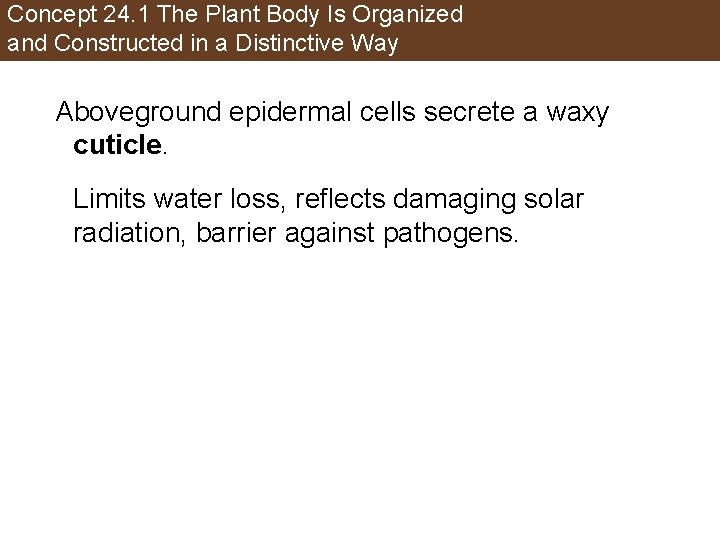

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Aboveground epidermal cells secrete a waxy cuticle. Limits water loss, reflects damaging solar radiation, barrier against pathogens.

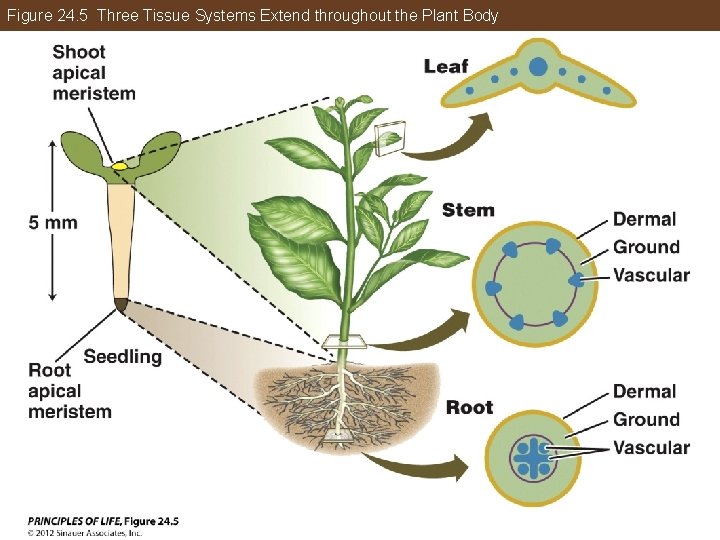

Figure 24. 5 Three Tissue Systems Extend throughout the Plant Body

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way 2. Ground tissue—between dermal and vascular tissue; Three cell types: • Parenchyma cells • Collenchyma cells • Sclerenchyma cells

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Parenchyma cells • most abundant • large vacuoles and thin cell walls • do photosynthesis • store protein and starch

In-Text Art, Ch. 24, p. 510 (1)

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Collenchyma cells • elongated • thick cell walls • provide support

In-Text Art, Ch. 24, p. 510 (2)

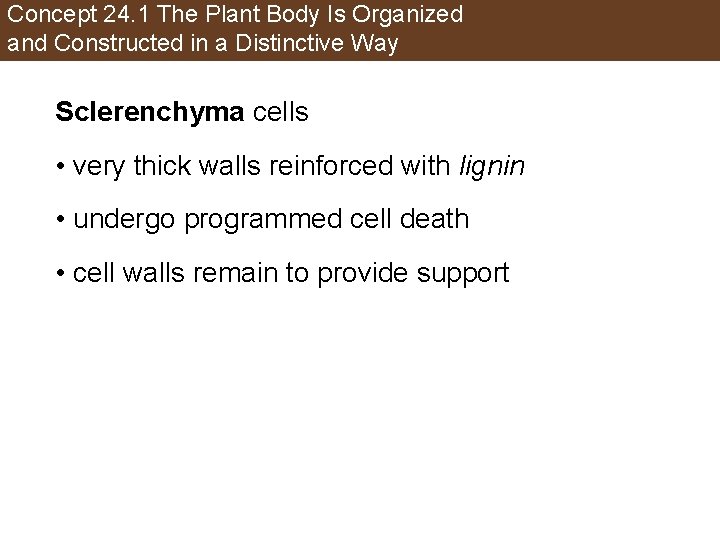

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Sclerenchyma cells • very thick walls reinforced with lignin • undergo programmed cell death • cell walls remain to provide support

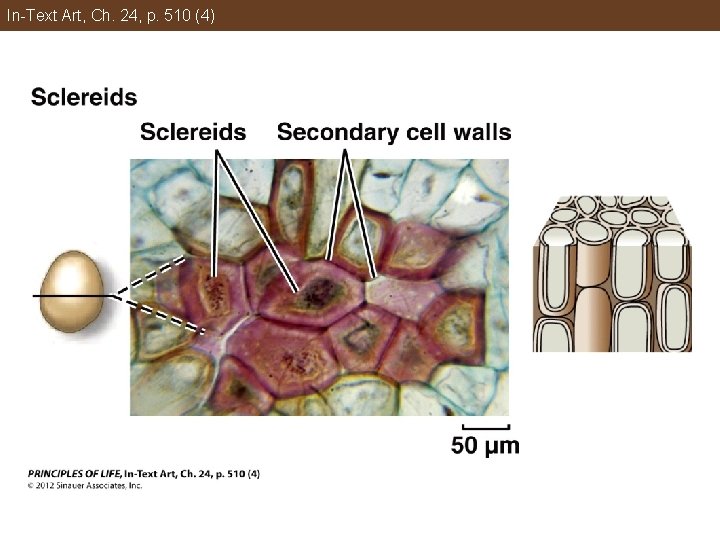

In-Text Art, Ch. 24, p. 510 (4)

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way 3. Vascular tissue—the transport system Xylem carries water and minerals from roots to rest of plant.

In-Text Art, Ch. 24, p. 510 (5)

Concept 24. 1 The Plant Body Is Organized and Constructed in a Distinctive Way Phloem • living cells • moves carbohydrates from production sites to sites where they are used or stored

In-Text Art, Ch. 24, p. 511 (1)

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Primary growth—lengthening of shoots and roots; branching. Results in nonwoody tissues—herbaceous Secondary growth—increase in thickness Woody plants have a secondary plant body consisting of wood and bark.

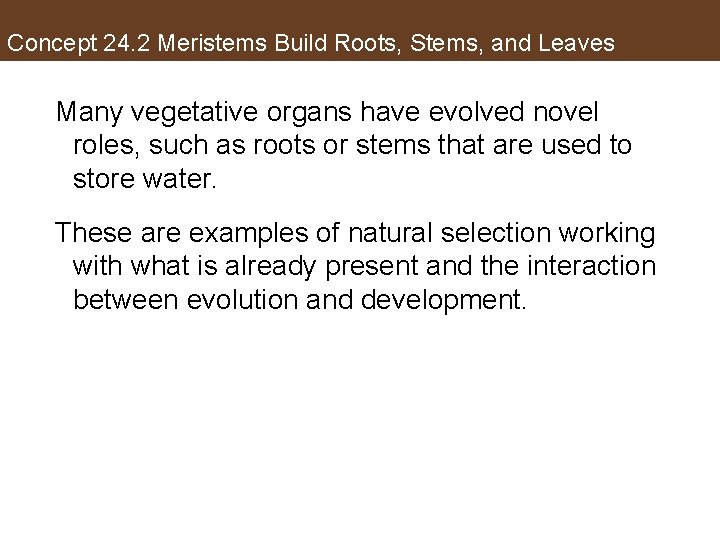

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Many vegetative organs have evolved novel roles, such as roots or stems that are used to store water. These are examples of natural selection working with what is already present and the interaction between evolution and development.

Concept 24. 2 Meristems Build Roots, Stems, and Leaves When cells divide in meristem tissue, one daughter cell can differentiate, the other remains undifferentiated. Apical meristems result in primary growth; cell division followed by cell elongation Lateral meristems result in secondary growth

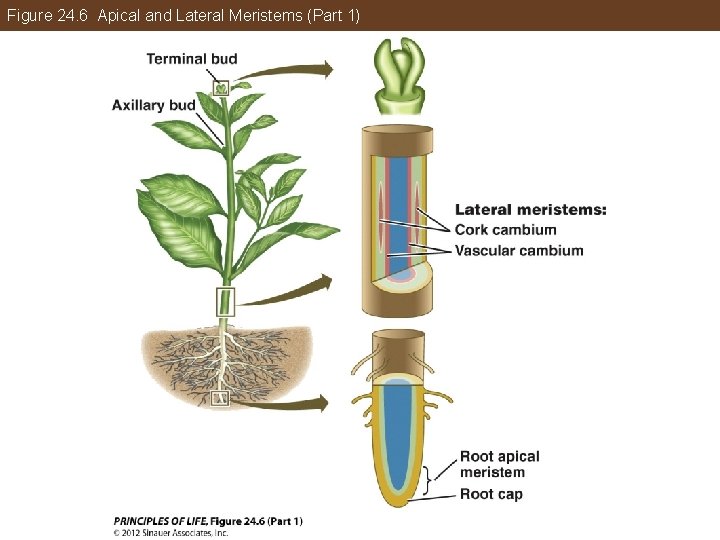

Figure 24. 6 Apical and Lateral Meristems (Part 1)

Figure 24. 6 Apical and Lateral Meristems (Part 2)

Figure 24. 6 Apical and Lateral Meristems (Part 3)

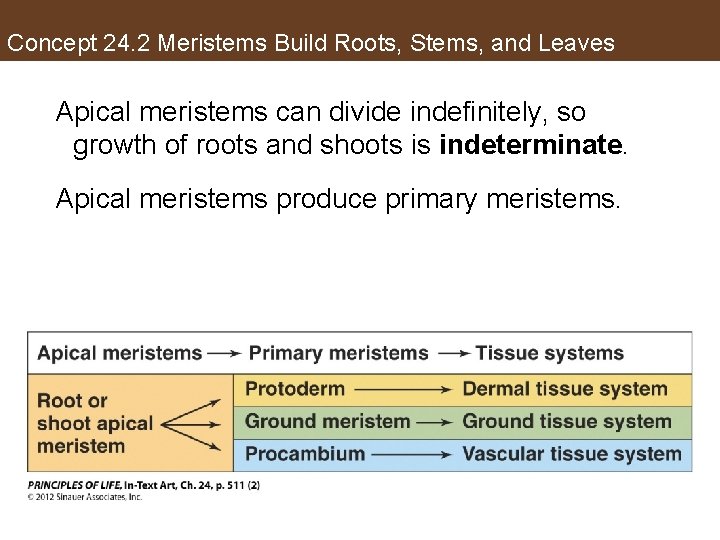

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Apical meristems can divide indefinitely, so growth of roots and shoots is indeterminate. Apical meristems produce primary meristems.

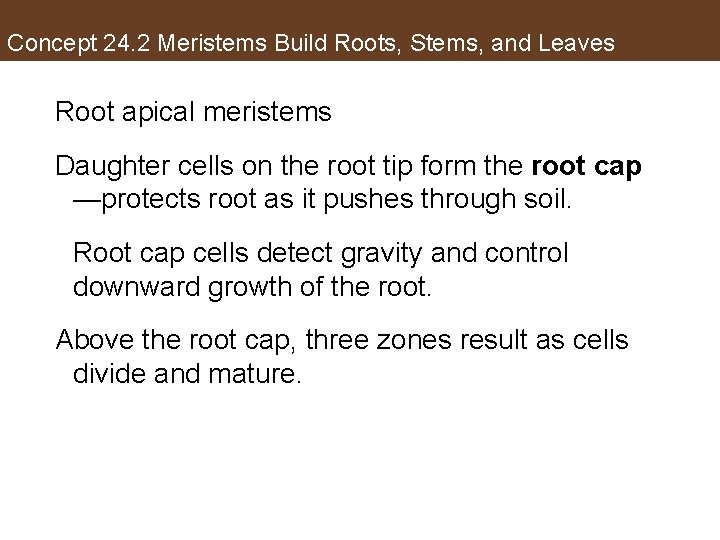

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Root apical meristems Daughter cells on the root tip form the root cap —protects root as it pushes through soil. Root cap cells detect gravity and control downward growth of the root. Above the root cap, three zones result as cells divide and mature.

Figure 24. 7 Tissues and Regions of the Root Tip (Part 1)

Figure 24. 7 Tissues and Regions of the Root Tip (Part 2)

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Root primary meristems give rise to root tissues: • Protoderm produces the epidermis; many epidermal cells have root hairs. • Ground meristem produces the cortex, consisting of parenchyma cells and the endodermis. Endodermal cells have waterproof suberin in the cell walls and can control movement of water and mineral ions into the vascular system.

Concept 24. 2 Meristems Build Roots, Stems, and Leaves • Procambium produces the vascular cylinder (stele), made up of pericycle, xylem, phloem. Pericycle has 3 functions: • Tissue within which lateral roots arise. • Contributes to secondary growth by giving rise to lateral meristems. • Membrane transport proteins export nutrient ions into the xylem.

Figure 24. 8 Products of the Root’s Primary Meristems (Part 1)

Figure 24. 8 Products of the Root’s Primary Meristems (Part 2)

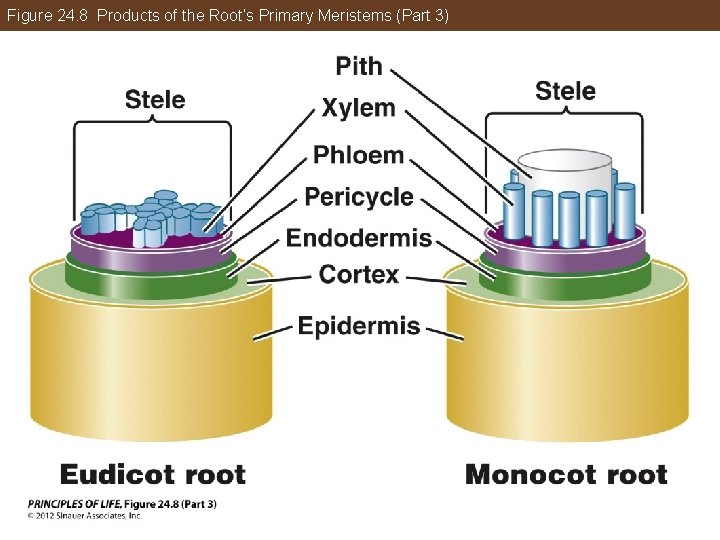

Figure 24. 8 Products of the Root’s Primary Meristems (Part 3)

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Angiosperm roots begin to grow as a radicle, which develops into the primary root (taproot) in eudicots. Taproots often store nutrients (e. g. , carrots, beets, sweet potato). Monocots form a fibrous root system; roots are equal in diameter (e. g. , grasses, leeks). Also called adventitious roots. Some monocots have prop roots to support the shoot (e. g. , corn, banyan trees).

Figure 24. 9 Root Systems of Eudicots and Monocots (Part 1)

Figure 24. 9 Root Systems of Eudicots and Monocots (Part 2)

Figure 24. 9 Root Systems of Eudicots and Monocots (Part 3)

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Shoots are composed of repeating modules (phytomers). Each has a node with attached leaves, internode (stem section), and one or more axillary buds. Shoots grow by adding more phytomers.

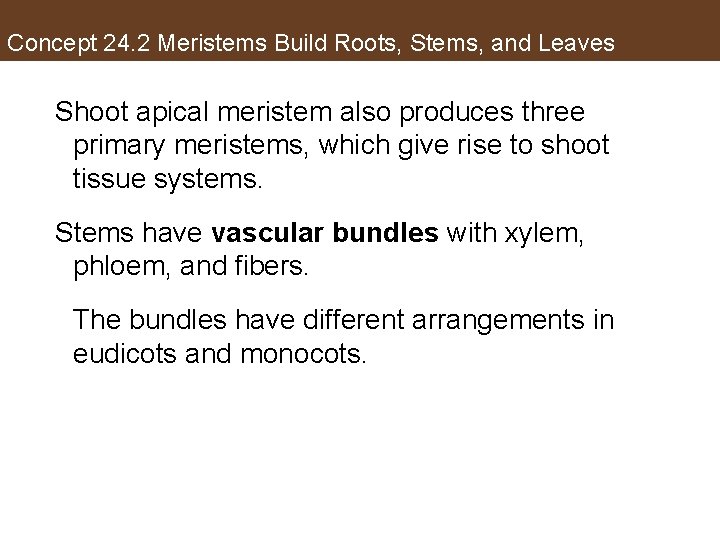

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Shoot apical meristem also produces three primary meristems, which give rise to shoot tissue systems. Stems have vascular bundles with xylem, phloem, and fibers. The bundles have different arrangements in eudicots and monocots.

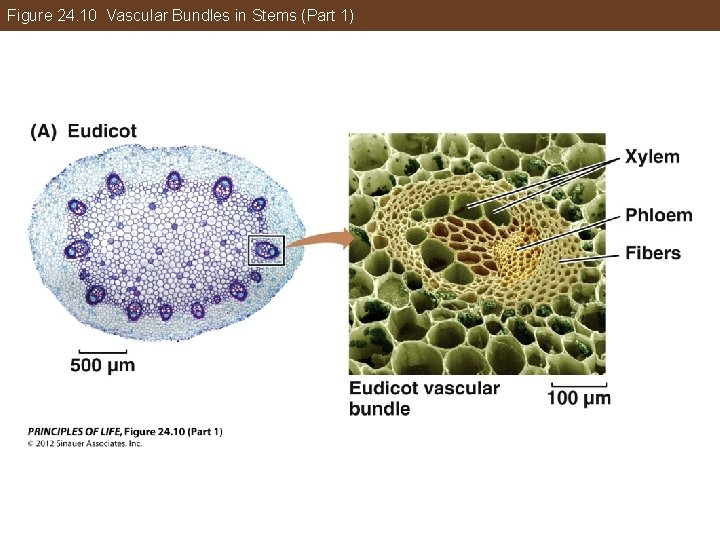

Figure 24. 10 Vascular Bundles in Stems (Part 1)

Figure 24. 10 Vascular Bundles in Stems (Part 2)

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Stem modifications Potato tubers are underground stems; the “eyes” are axillary buds. Many desert plants have enlarged stems that store water. Strawberry plant runners are horizontal stems from which roots grow. If the runners break, new plants develop on either side (asexual reproduction).

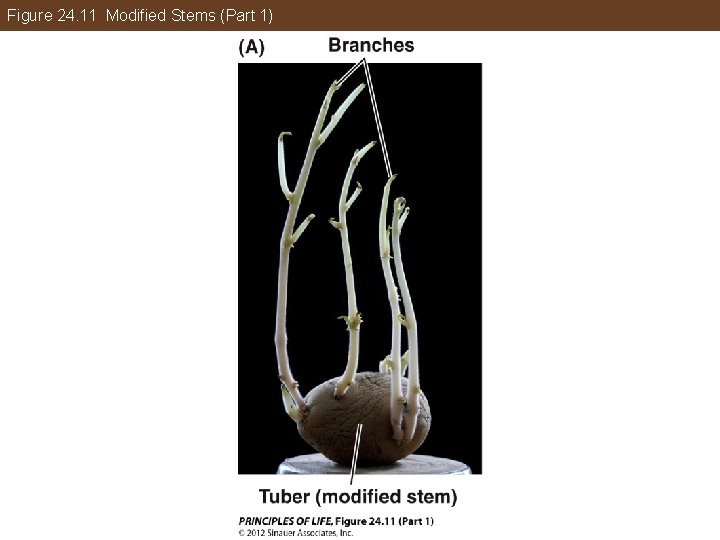

Figure 24. 11 Modified Stems (Part 1)

Figure 24. 11 Modified Stems (Part 2)

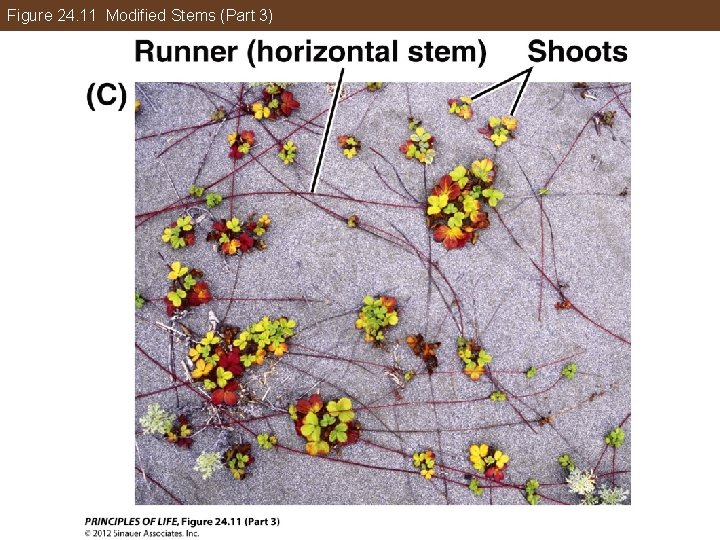

Figure 24. 11 Modified Stems (Part 3)

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Growth of leaves is determinate: they stop growing once they reach a predetermined mature size. Leaves consist of a blade, attached to the plant stem by a petiole. Leaves are often oriented perpendicular to the sun’s rays, to maximize the amount of light for photosynthesis.

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Leaf anatomy is well adapted to: • Carry out photosynthesis • Exchange O 2 and CO 2 with the environment • Limit evaporative water loss • Export products of photosynthesis to the rest of the plant

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Leaf mesophyll has two zones of photosynthetic parenchyma tissue. A network of air spaces allows CO 2 to diffuse to photosynthetic cells. Vascular bundles form veins that extend to within a few diameters of all cells—to ensure transport of water and minerals in and carbohydrates out.

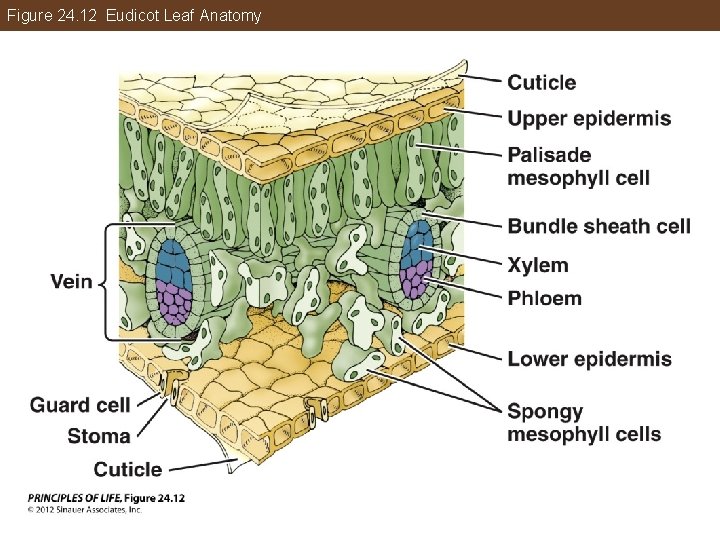

Figure 24. 12 Eudicot Leaf Anatomy

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Leaf surfaces are covered with nonphotosynthetic epidermal cells. They secrete the waterproof cuticle. Water and gases are exchanged through pores called stomata.

Concept 24. 2 Meristems Build Roots, Stems, and Leaves can also be modified for other functions: • Nutrient storage (e. g. , onion bulbs) • Water storage (e. g. , in succulent plants) • Protection (e. g. , cacti have spines that are modified leaves) • Tendrils that wrap around structures to support climbing plants (e. g. , peas)

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Many eudicot stems and roots have secondary growth: Wood and bark are derived by secondary growth from the two lateral meristems: • Vascular cambium produces secondary xylem (wood) and secondary phloem (inner bark). • Cork cambium produces waxy-walled protective cells; some become the outer bark.

Figure 24. 13 A Woody Twig Has Both Primary and Secondary Tissues (Part 1)

Figure 24. 13 A Woody Twig Has Both Primary and Secondary Tissues (Part 2)

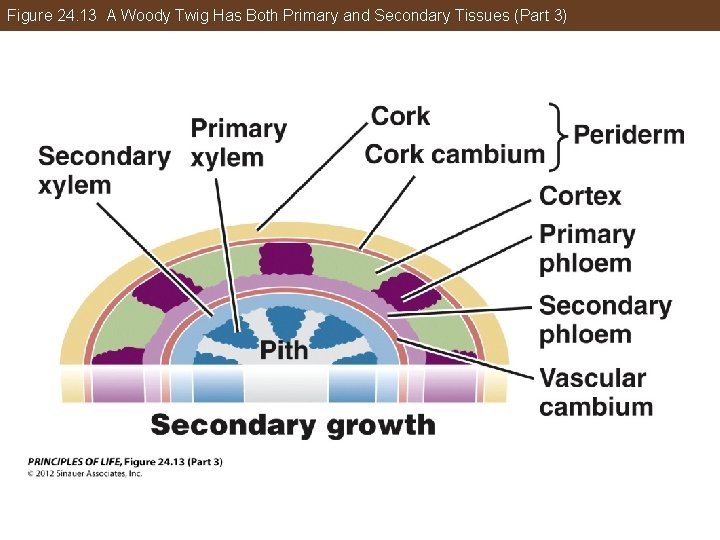

Figure 24. 13 A Woody Twig Has Both Primary and Secondary Tissues (Part 3)

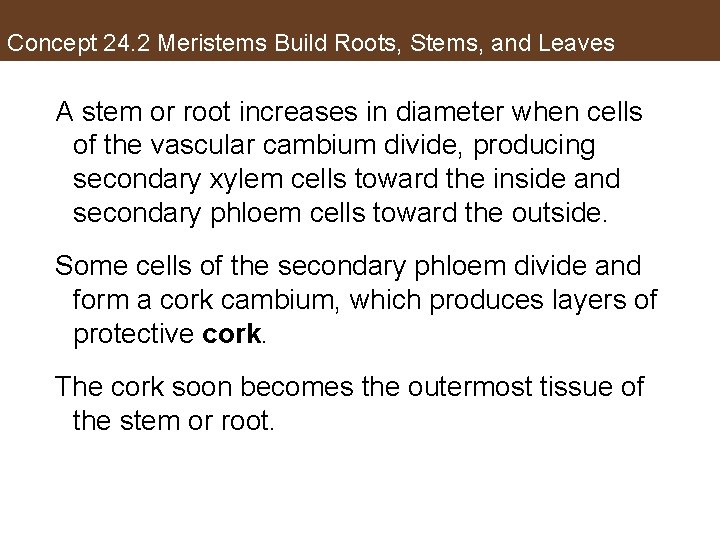

Concept 24. 2 Meristems Build Roots, Stems, and Leaves A stem or root increases in diameter when cells of the vascular cambium divide, producing secondary xylem cells toward the inside and secondary phloem cells toward the outside. Some cells of the secondary phloem divide and form a cork cambium, which produces layers of protective cork. The cork soon becomes the outermost tissue of the stem or root.

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Cork cambium produces cells to the inside, forming the phelloderm. Periderm—secondary dermal tissue composed of cork cambium, cork, and phelloderm Bark—periderm plus secondary phloem

Concept 24. 2 Meristems Build Roots, Stems, and Leaves In temperate zones, annual rings form in the wood. In spring, tracheids or vessel elements tend to be large in diameter and thin-walled. In summer, thick-walled, narrow cells are produced.

Figure 24. 14 Annual Rings

Concept 24. 2 Meristems Build Roots, Stems, and Leaves Monocots do not have secondary growth. A few have thickened stems (e. g. , palms). Palms have a very wide apical meristem that produces a wide stem, and dead leaf bases add to the diameter of the stem.

Concept 24. 3 Domestication Has Altered Plant Form A simple body plan underlies the diversity of flowering plant forms. Plant body form is subject to natural selection. Example: some plants have become vines; the climbing phenotype gives them access to light in crowded conditions.

Concept 24. 3 Domestication Has Altered Plant Form Humans domesticate crop plants by artificial selection for phenotypes best suited for agriculture. Corn was domesticated from the wild grass teosinte, which still grows in Mexico. Teosinte is highly branched; corn has a single shoot. Branching is controlled by a single gene that regulates axillary buds.

Figure 24. 15 Corn Was Domesticated from the Wild Grass Teosinte

Concept 24. 3 Domestication Has Altered Plant Form Brassica oleracea (wild mustard) is the ancestor of several morphologically diverse crops: kale, broccoli, brussels sprouts, cabbage. Starting with diverse populations of wild mustard, humans selected and planted seeds from variants with traits they found desirable.

Figure 15. 4 Many Vegetables from One Species

Answer to Opening Question • Kenaf grows rapidly, reaching 4– 5 meters in 5 months. • There are over 500 known genetic strains. • Since its domestication, it has been selected to grow taller and branch less. • The adventitious roots have become longer (2 meters!), and more numerous, promoting growth in dense stands.

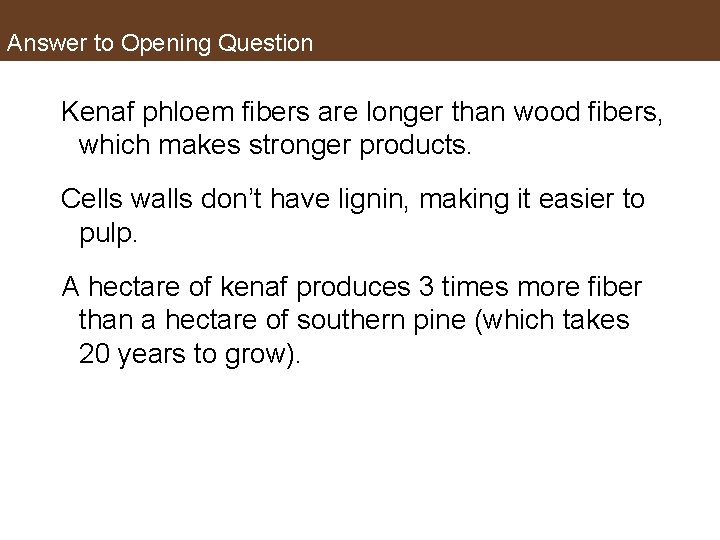

Answer to Opening Question Kenaf phloem fibers are longer than wood fibers, which makes stronger products. Cells walls don’t have lignin, making it easier to pulp. A hectare of kenaf produces 3 times more fiber than a hectare of southern pine (which takes 20 years to grow).

Figure 24. 16 Kenaf Stems
