24 Geometric Optics Water drop as a converging lens

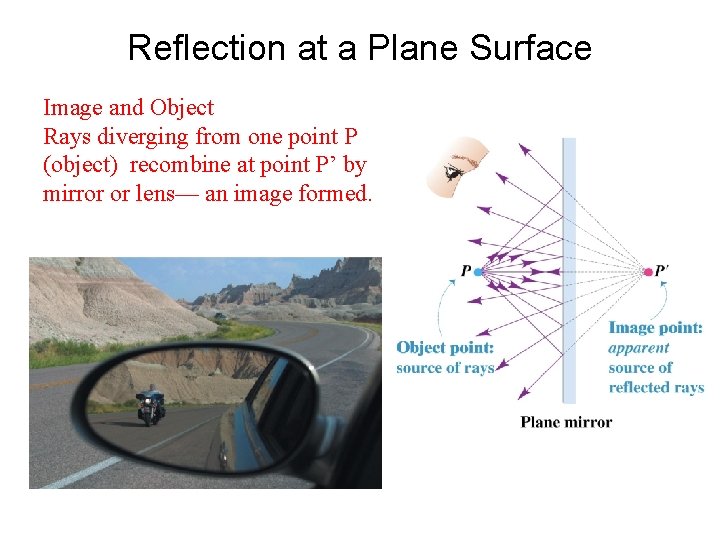

Reflection at a Plane Surface Image and Object Rays diverging from one point P (object) recombine at point P’ by mirror or lens— an image formed.

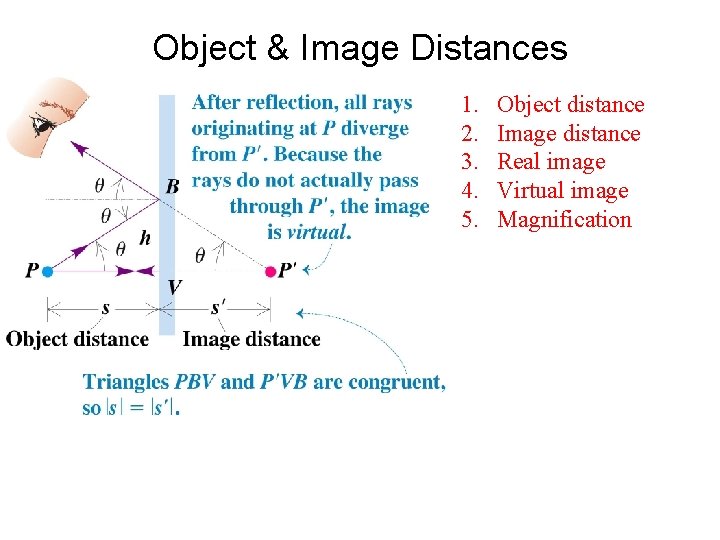

Object & Image Distances 1. 2. 3. 4. 5. Object distance Image distance Real image Virtual image Magnification

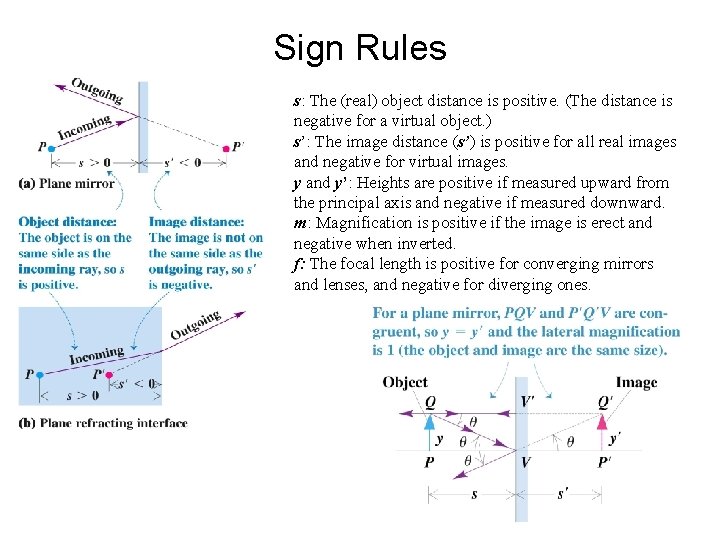

Sign Rules s: The (real) object distance is positive. (The distance is negative for a virtual object. ) s’: The image distance (s’) is positive for all real images and negative for virtual images. y and y’: Heights are positive if measured upward from the principal axis and negative if measured downward. m: Magnification is positive if the image is erect and negative when inverted. f: The focal length is positive for converging mirrors and lenses, and negative for diverging ones.

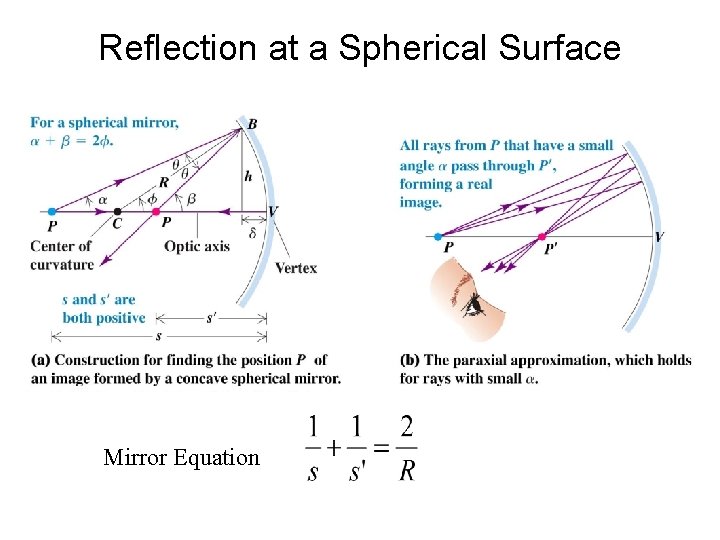

Reflection at a Spherical Surface Mirror Equation

Focal Point & Focal Length-Concave

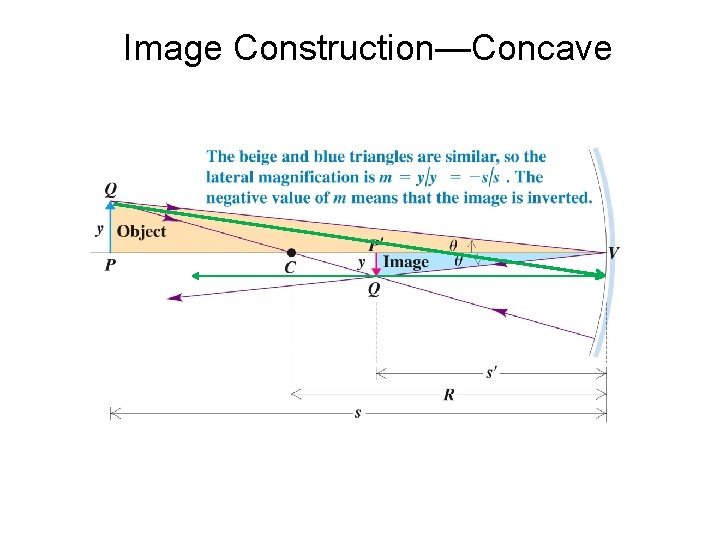

Image Construction—Concave

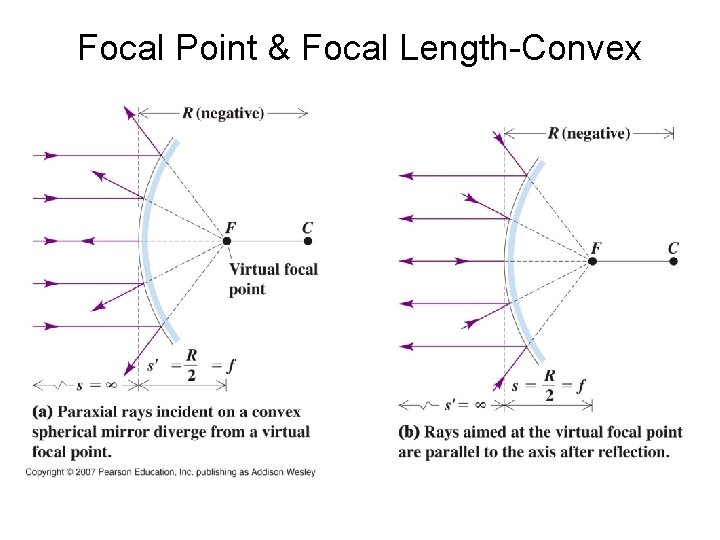

Focal Point & Focal Length-Convex

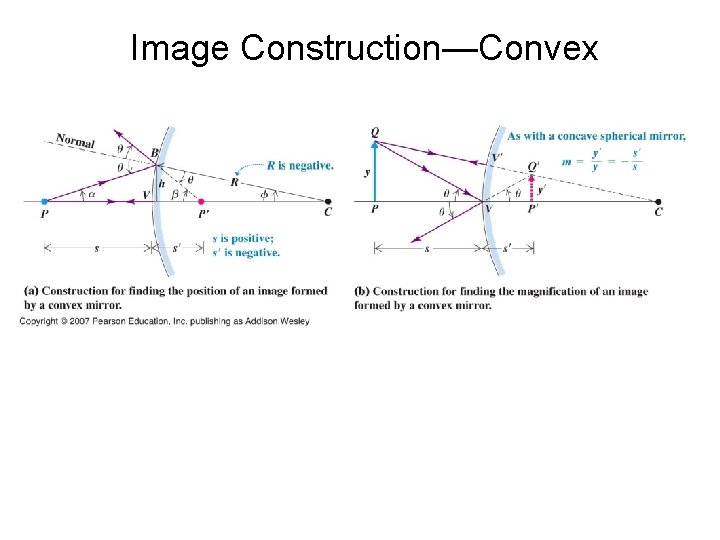

Image Construction—Convex

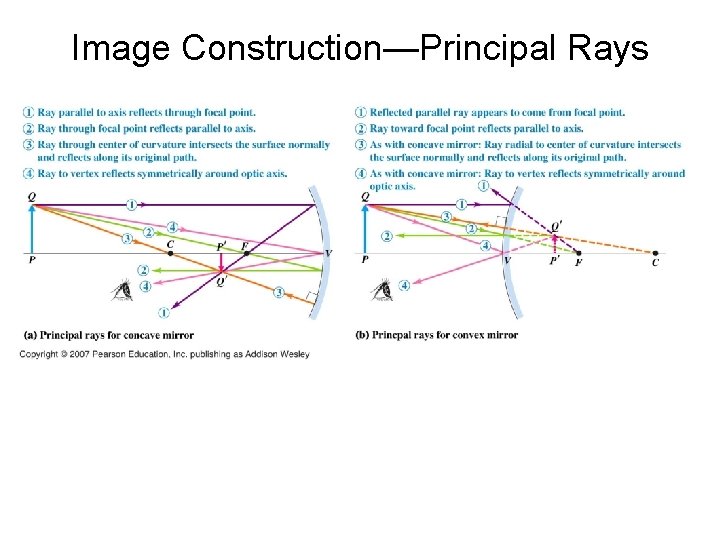

Image Construction—Principal Rays

Image Construction—Practice

$Refraction at a Spherical Surface$

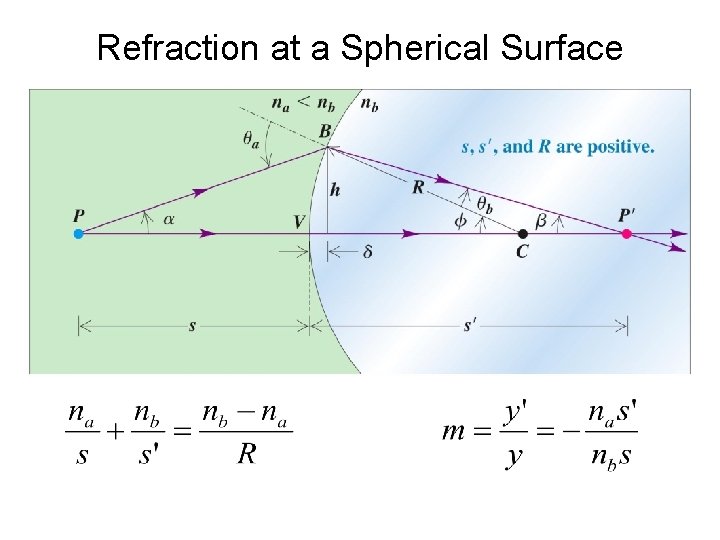

Refraction at a Spherical Surface

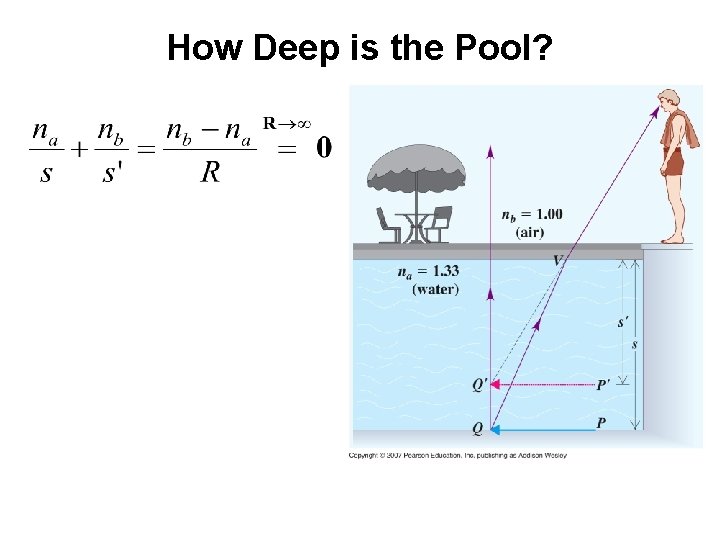

How Deep is the Pool?

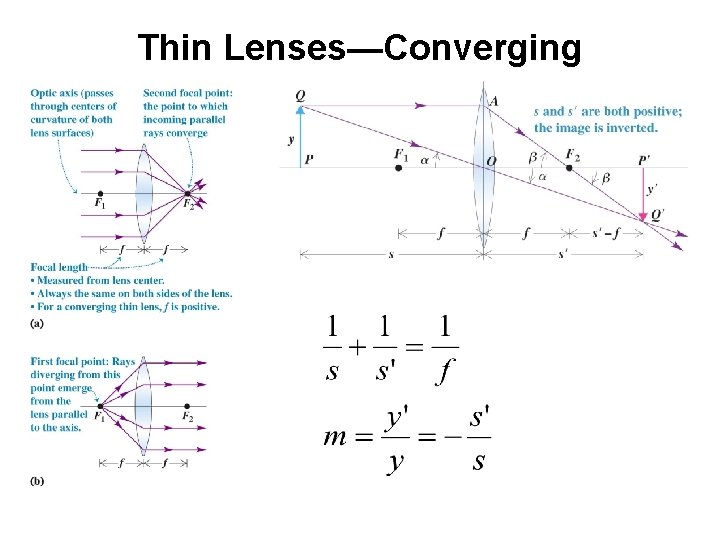

Thin Lenses—Converging

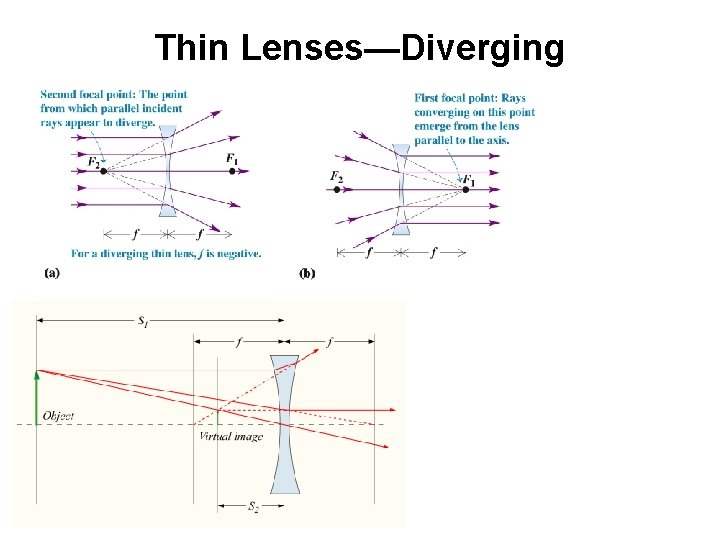

Thin Lenses—Diverging

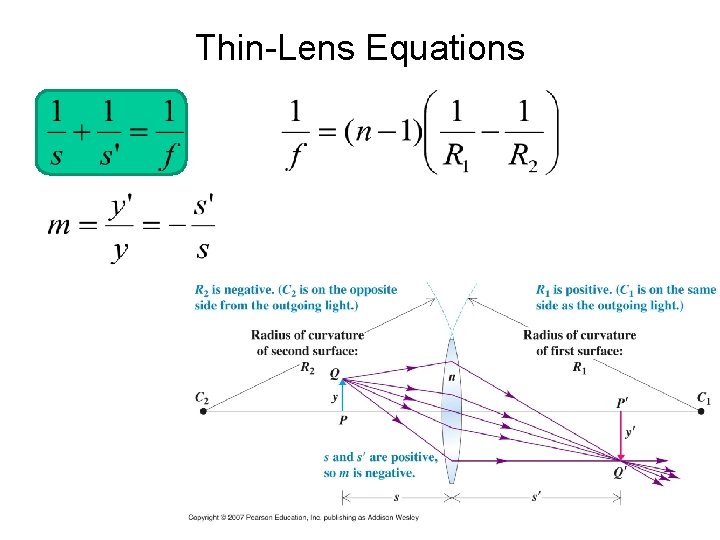

Thin-Lens Equations

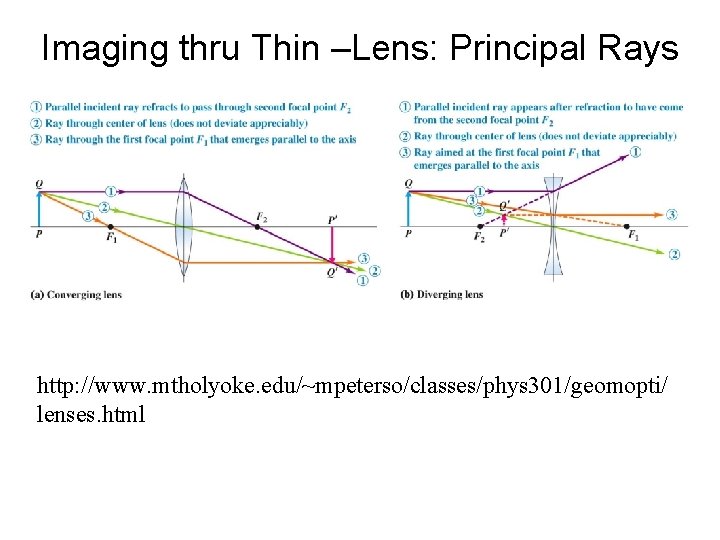

Imaging thru Thin –Lens: Principal Rays http: //www. mtholyoke. edu/~mpeterso/classes/phys 301/geomopti/ lenses. html

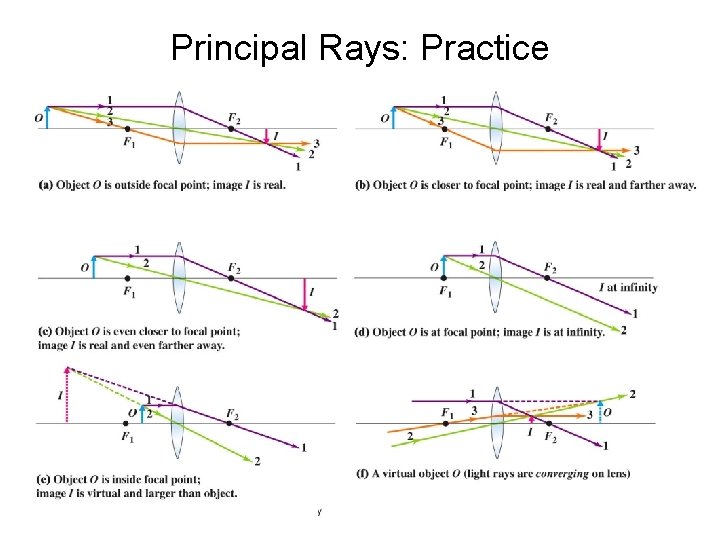

Principal Rays: Practice

Summary: Reflection at a Plane Surface

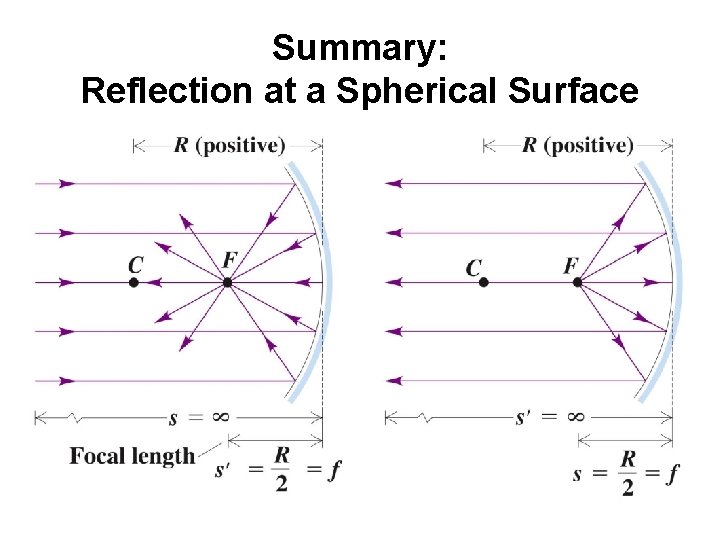

Summary: Reflection at a Spherical Surface

Summary: Graphical Methods for Mirrors

$Summary: Refraction at a Spherical Surface & Thin Lenses$

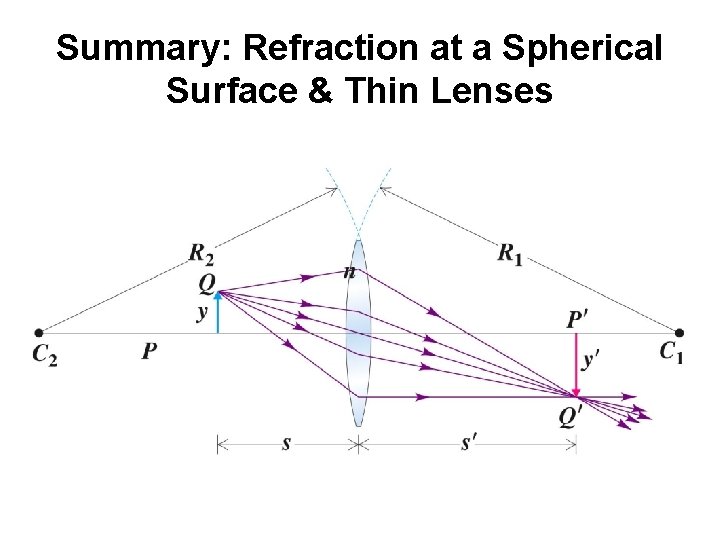

Summary: Refraction at a Spherical Surface & Thin Lenses

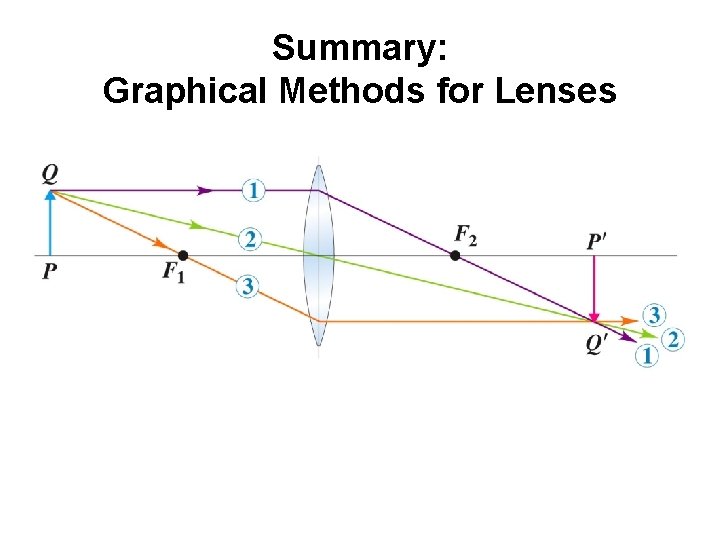

Summary: Graphical Methods for Lenses

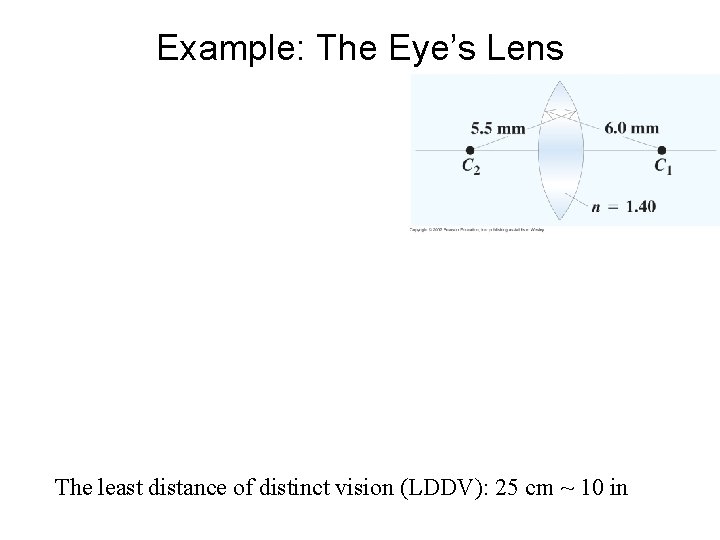

Example: The Eye’s Lens The least distance of distinct vision (LDDV): 25 cm ~ 10 in

Mirror/Lens Equation

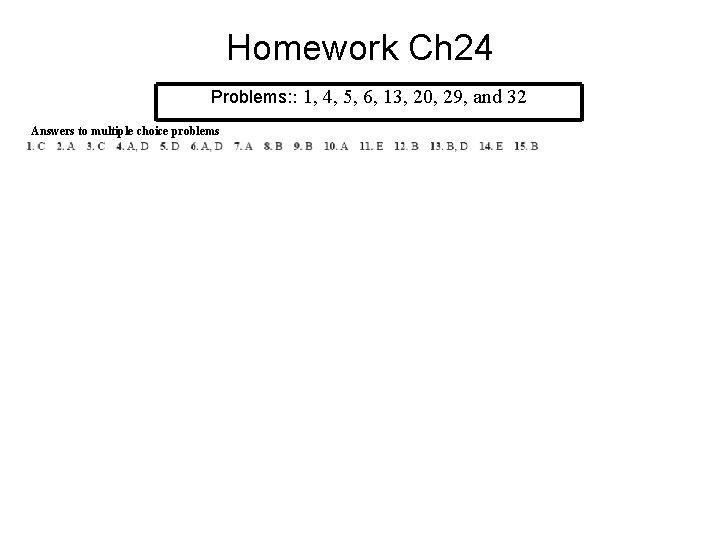

Homework Ch 24 Problems: : 1, 4, 5, 6, 13, 20, 29, and 32 Answers to multiple choice problems

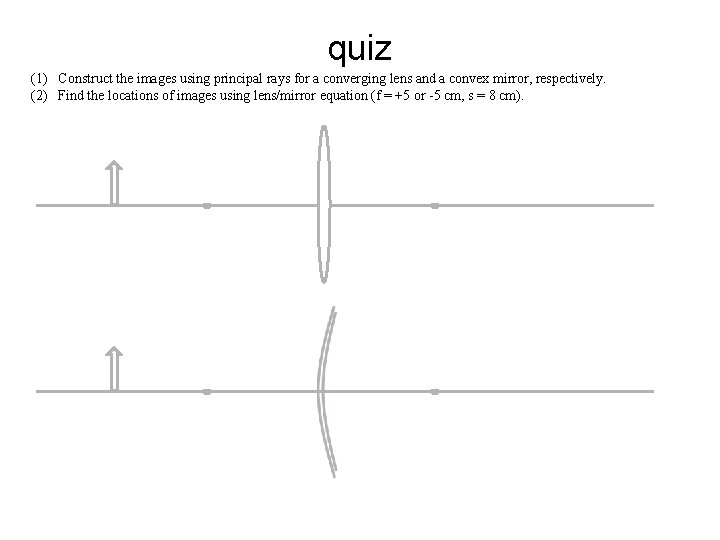

quiz (1) Construct the images using principal rays for a converging lens and a convex mirror, respectively. (2) Find the locations of images using lens/mirror equation (f = +5 or -5 cm, s = 8 cm).

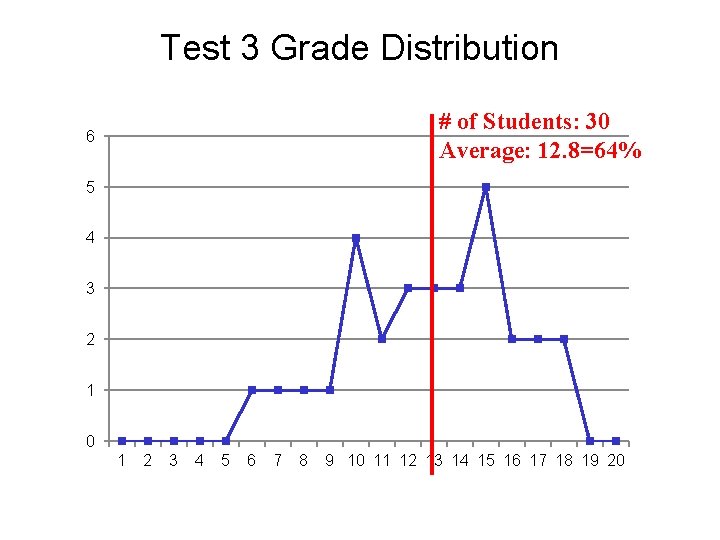

Test 3 Grade Distribution # of Students: 30 Average: 12. 8=64% 6 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

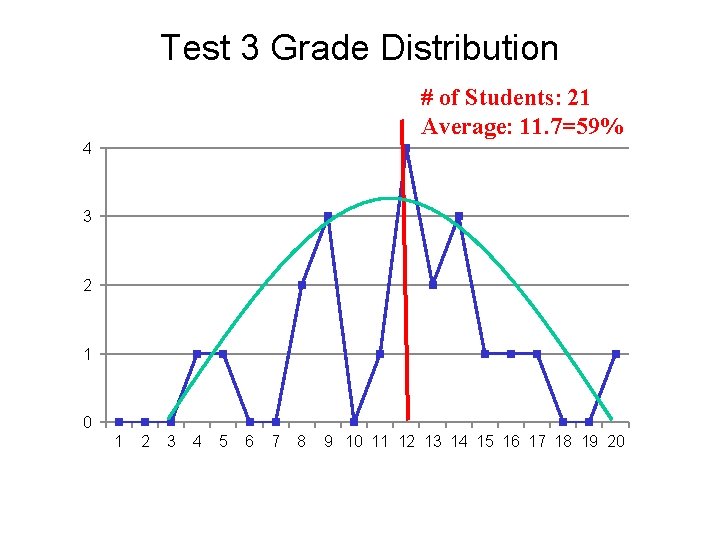

Test 3 Grade Distribution # of Students: 21 Average: 11. 7=59% 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
