221308 Engineering Electronics I Analog Integrated Circuits (Integrated Circuit Timer) Asst. Prof. Dr. Montree Siripruchyanun Matheepot Pattanasak Dept. of Teacher Training in Electrical Engineering Faculty of Technical Education King Mongkut’s Institiute of Technology North Bangkok 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 1
The Capacitor Ø Ø The capacitor is a device that stores electric charge Rislove’s Rules of Capacitors (DC Circuits) 1) 2) 3) 4) 5) When voltage is applied, capacitors will briefly allow current to flow as they charge Voltage across a capacitor increases as it charges Once charged, capacitors no longer allow current to flow and the voltage across the capacitor is constant Capacitors with large capacitance (measured in Farads) take longer to charge Capacitors can be discharged by short-circuiting them 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 2
Charging and Discharging Ø Voltage across a capacitor increases as it charges Ø Large resistor + large capacitor = longer charging time 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 3

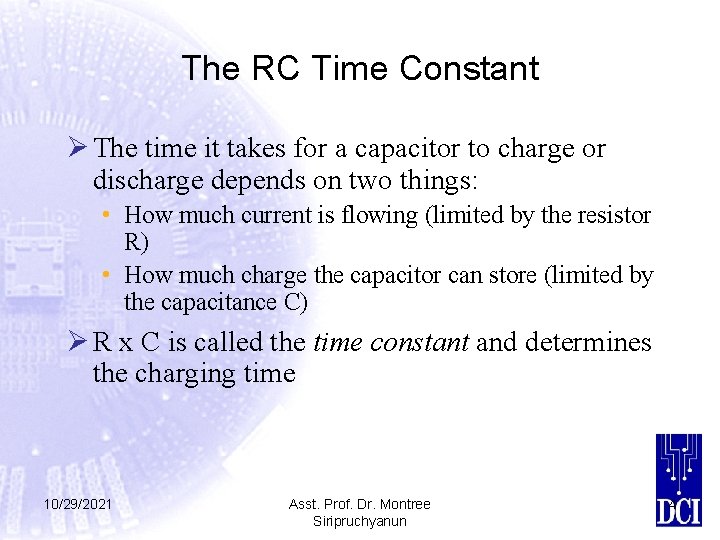

The RC Time Constant Ø The time it takes for a capacitor to charge or discharge depends on two things: • How much current is flowing (limited by the resistor R) • How much charge the capacitor can store (limited by the capacitance C) Ø R x C is called the time constant and determines the charging time 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 4

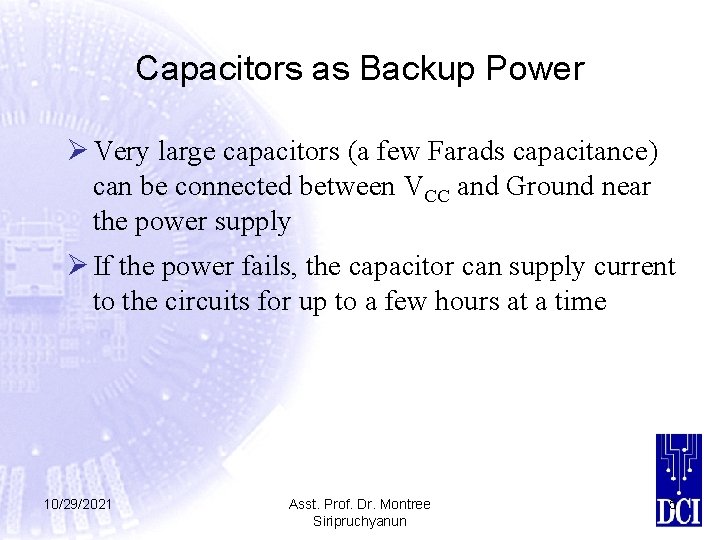

Capacitors as Backup Power Ø Very large capacitors (a few Farads capacitance) can be connected between VCC and Ground near the power supply Ø If the power fails, the capacitor can supply current to the circuits for up to a few hours at a time 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 5
Capacitors in Digital Circuits Ø 99% of capacitors in digital circuits connect VCC to ground near a chip in order to cut down on noise Ø The rest do one of the following: • Provide backup power • Provide external capacitors for the clock circuit (known as an astable multivibrator) 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 6
Mutivibrators Ø A multivibrator is a circuit that changes its output between two states continuously or on demand Ø Three types: • Bistable multivibrators (i. e. flip-flops) • Monostable multivibrators produce a single pulse once triggered by an input signal • Astable multivibrators produce an oscillating train of ones and zeroes spontaneously 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 7
Monostable Multivibrators Ø Principal use: to adjust the duty cycle of a pulse train Ø Feel free to read more in your text —enough said 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 8
Astable Multivibrators Ø An astable multivibrator is inherently unstable, switching constantly between HIGH and LOW Ø Astable multivibrators are used principally to generate clock signals in digital circuits 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 9
A Simple Astable Multivibrator Ø The input (and output) constantly switches from HIGH to LOW as the capacitor is charged and discharged Ø Uses feedback to make the circuit unstable 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 10
Timing Diagram 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 11
555 Timer 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 12
The 555 Timing IC Note: A comparator outputs a HIGH when the + input is at a higher voltage than the input 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 13
The 555 as an Astable Multivibrator Ø The discharging time constant is RBC Ø The charging time constant is (RA+RB)C Ø In this case, the circuit takes longer to charge than to discharge A small (~0. 01 u. F) capacitor should be placed on pin 5 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 14
Timing Diagram Ø t. LO = 0. 693 RBC Ø t. HI = 0. 693(RA+RB)C Ø The output frequency is f = 1/(t. LO+t. HI) 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 15

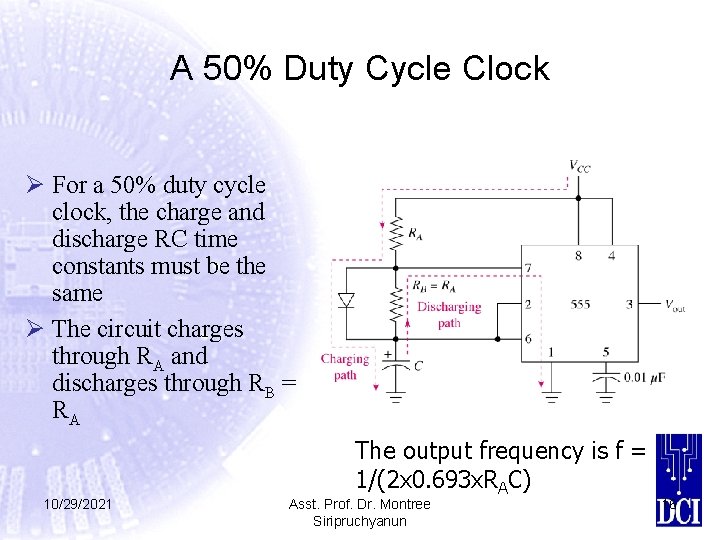

A 50% Duty Cycle Clock Ø For a 50% duty cycle clock, the charge and discharge RC time constants must be the same Ø The circuit charges through RA and discharges through RB = RA 10/29/2021 The output frequency is f = 1/(2 x 0. 693 x. RAC) Asst. Prof. Dr. Montree Siripruchyanun 16

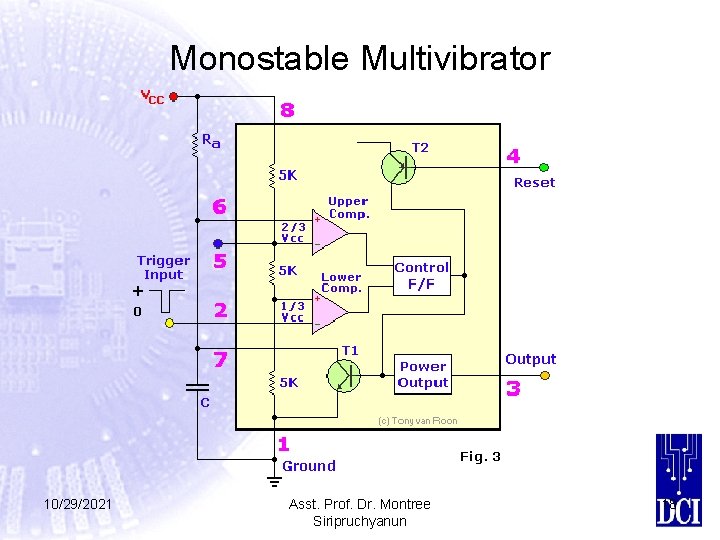

Monostable Multivibrator 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 17
Monostable Multivibrator 10/29/2021 Asst. Prof. Dr. Montree Siripruchyanun 18
