2016 © U. S. Space & Rocket Center. Rights reserved. Do not copy or modify without written permission Payload Operations
• The Google Lunar X PRIZE is a competition begun in 2007. • The first privately funded team to send a robot to the Moon wins $20, 000. 00 • In order to win the prize, teams must: • Successfully Launch • Land on the Moon • Rove 500 meters • Transmit back images and video This is not it
Payload Operations L. U. N. A. R. Landing Unique Navigable Prize Astronaut-Driven Rovers
Payload Operations • What is payload? • Payload is anything launched inside the spacecraft • Astronauts • Food • Medical equipment • Science experiments • Electronics • The size and weight of payloads are limited by the lift capability of the rocket they are riding to space aboard.
Payload Operations • What do you need to protect your payload from? • Launch forces • Vibrations from flight • Pressure changes • High & low temperatures • Speed jumps / drops • Landing forces
Payload Operations • How can you protect payloads? • Reducing rocket speed • Reducing impact velocity • Changing angle of impact • Restraints • Cushioning • Crumple zones
Payload History Program: Mercury Rocket: Redstone & Atlas
Payload History
Payload History Program: Gemini Rocket: Titan II
Payload History
Payload History Program: Apollo Rocket: Saturn IB & Saturn V

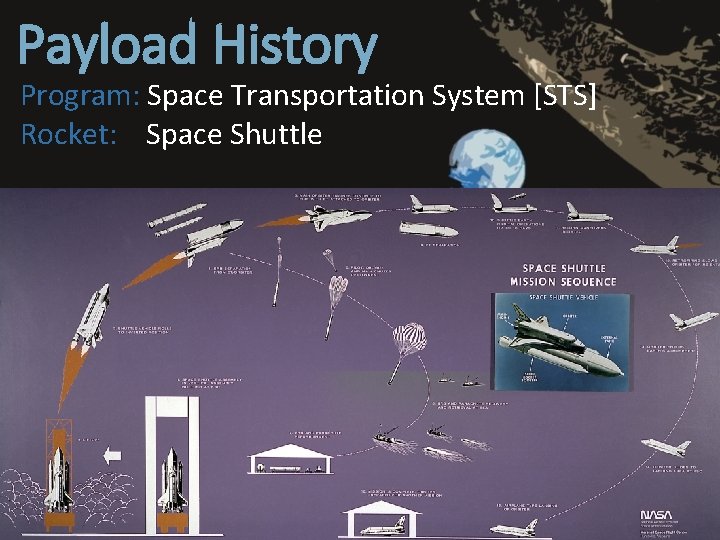

Payload History Program: Space Transportation System [STS] Rocket: Space Shuttle
Payload History Program: Space Launch System [SLS] Rocket: Orion
Payload History Program: Mars Exploration Rovers [MER-A & MER-B] Rocket: Delta II Payload: Spirit & Opportunity (‘ 03 -’ 10) (‘ 03 -Current)
Payload History Program: Mars Science Laboratory [MSL] Rocket: Atlas V Payload: Curiosity (‘ 11 -Current)
L. U. N. A. R. Eggs-Prize • What is your goal? • To land a rover as close as possible to a target landing zone without damage to the rover’s function. • How will you accomplish your goal? • Your team will split into two sub-teams. • Each sub-team will split into two design groups. • Design Group 1: Rover • Design Group 2: Lander
L. U. N. A. R. Eggs-Prize • How? • Each design group will have credits to design and their component. 100 construct • Credits MAY NOT be shared between design groups • Supplies MAY NOT be shared between design groups • Heads-Up: • Certain supplies are only available to one design group or the other.
L. U. N. A. R. Eggs-Prize • Details: • Your payload will be a raw egg in a Ziploc bag. • For the sake of the carpet, the egg should NEVER leave the bag! • The egg will be carried onboard the rover. • The rover (and egg) will be carried inside the lander.
L. U. N. A. R. Eggs-Prize • Challenge – Part 1: • The lander, with rover and egg inside will be dropped 15 -25 feet [4. 5 -7. 6 meters] onto a target zone. • If the egg dies… the rover doesn’t go anywhere. • Points will be deducted for each inch outside the landing zone.
L. U. N. A. R. Eggs-Prize • Challenge – Part 2: • The rover with egg inside be removed AS IS from the lander. will inside • The rover will be placed at the top of a ramp and released. • Points will be added for each inch away from the base of the ramp that the rover travels.
L. U. N. A. R. Eggs-Prize • Challenge – Scoring: • (+) Any unused credits • (-) For each inch outside of • the landing zone • (+) For each inch traveled from the • base of the ramp • [ONLY if egg survived landing] • (+) Egg survival score • +200 = Egg unscathed • +100 = Cracked, but no leaks • +/-0 = Egg leaky / scrambled
L. U. N. A. R. Eggs-Prize L. U. N. A. R. Prize Get Started! Questions?
Copyright© (May, 2016) by the Alabama Space Science Exhibit Commission. All rights reserved, including rights of reproduction and use in any and all form or by any means, including the making of copies by any photo process or by any electronic or mechanical device, printed or oral, or recording for sound or visual reproduction or for use in any knowledge retrieval system or device, unless permission in writing is obtained from the copyright proprietor.
