2016 Cisco andor its affiliates All rights reserved
- Slides: 45

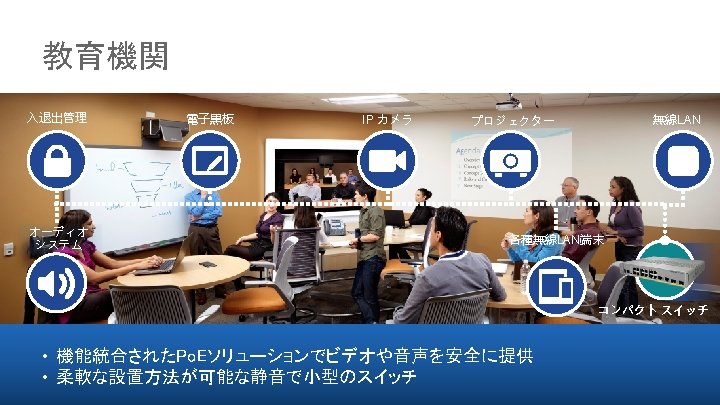

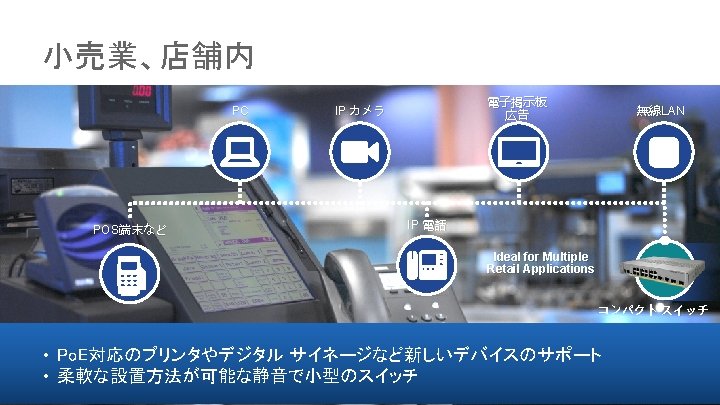

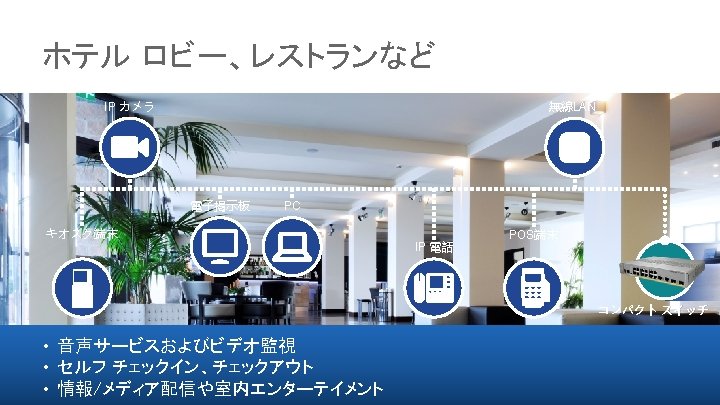

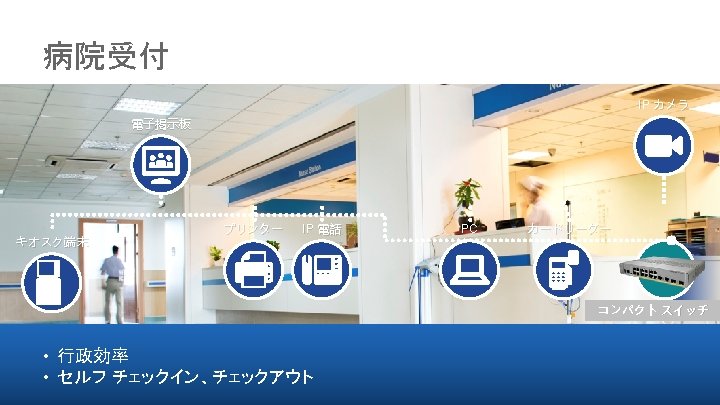

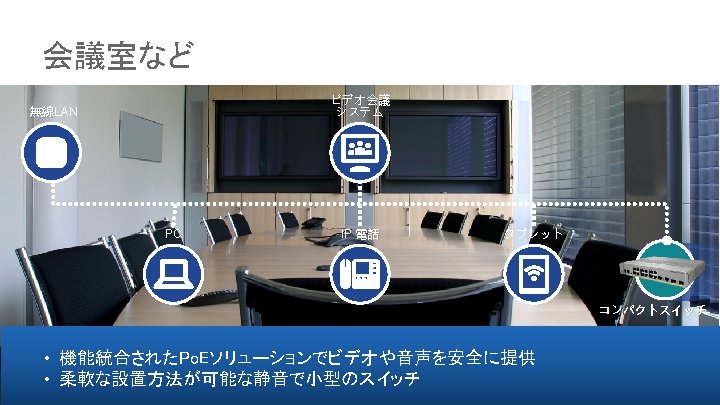

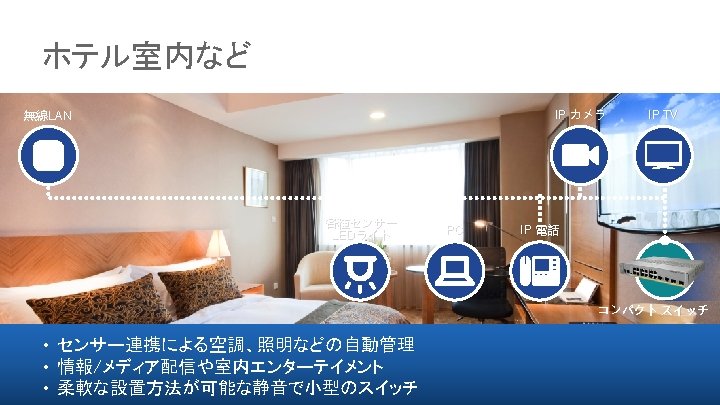

業種別利用シーン © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4
製品の特徴とポジショニング © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11
Cisco Catalyst シリーズ製品ラインナップ モジュラー型L 2/L 3スイッチ コア 既存の Catalyst 2960 C, 3560 C に加え 2960 -CX, 3560 -CXを発売。 ディストリ ビューション Catalyst 4500 E アクセス Catalyst 2960 -CX/3560 -CX Catalyst 2960 -X/XR Catalyst 3650 Catalyst 3850 Catalyst 6800 Catalyst 4500 -X 固定型L 2/L 3スイッチ © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12

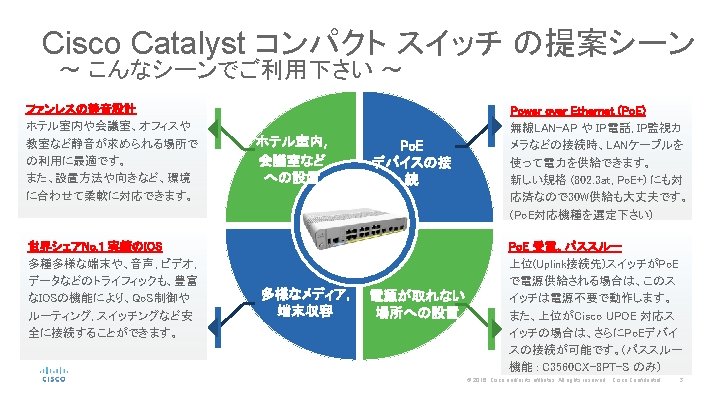

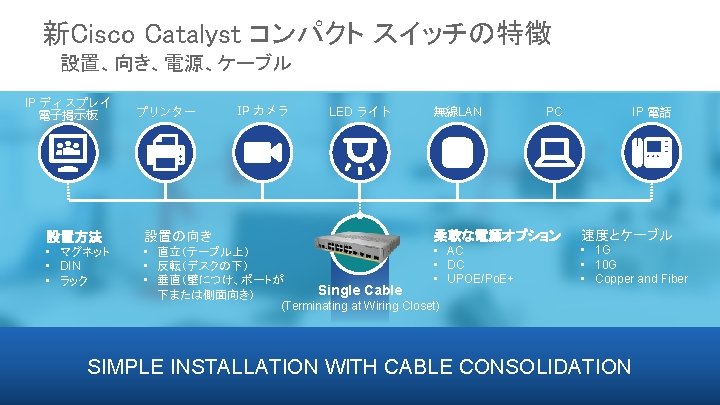

新Cisco Catalyst コンパクト スイッチの特徴 Catalyst 3560 -CX and 2960 -CX 省電力、節電動作 Hibernation機能による電力削減 L 2/L 3 スイッチ機能 Netflow Lite UPOE Powered Po. E Passthrough オプション Trustsec ready (SXP/SGACL) Instant Access Option (with 10 G) DC 電源 オプション APIC-EM 静音/ファンレス 8 x 1 G or 12 x 1 G EEE対応 1 G SFP/Copper uplinks 10 G SFP+ uplinks Cisco Multigigabit (m. Gig) オプション 変化するオフィス環境に最適な機能 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13
製品ラインナップ © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 15

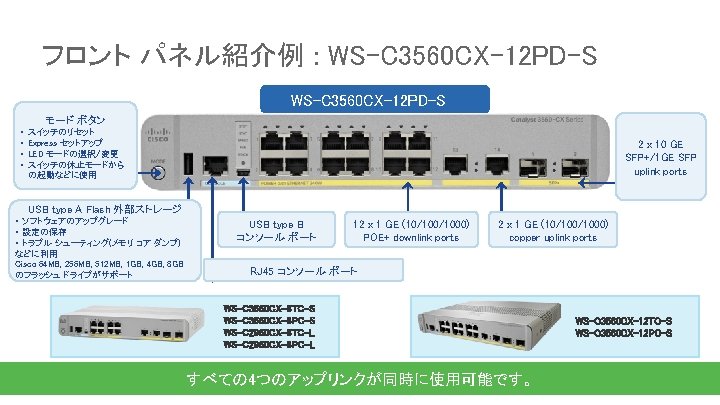

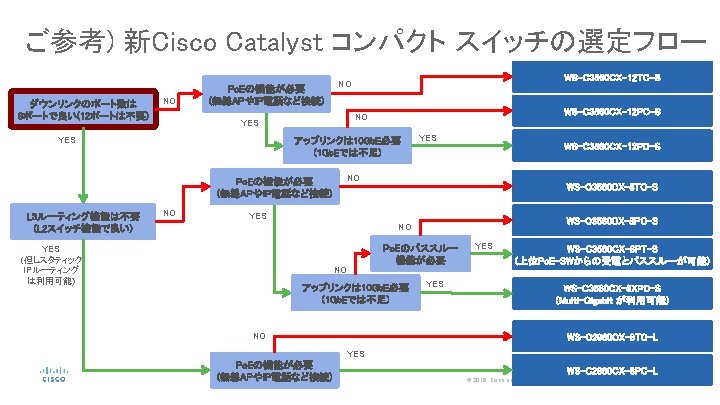

新Cisco Catalyst コンパクト スイッチのラインナップ Product Family PID(型名) ダウン リンク アップ リンク m. Gig Po. E+ 機種選定のポイント 備考 ソフトウェア (L 3機能) 8 x GE 2 x 1 G SFP 2 x 1 G Cu WS-C 2960 CX-8 PC-L 8 x GE 2 x 1 G SFP 2 x 1 G Cu ○ (124 W) Po. E and non-Po. E WS-C 3560 CX-8 PC-S 8 x GE 2 x 1 G SFP 2 x 1 G Cu ○ (240 W) 8/12 port options WS-C 3560 CX-8 TC-S 8 x GE 2 x 1 G SFP 2 x 1 G Cu WS-C 3560 CX-12 PC-S 12 x GE 2 x 1 G SFP 2 x 1 G Cu WS-C 3560 CX-12 TC-S 12 x GE 2 x 1 G SFP 2 x 1 G Cu WS-C 3560 CX-12 PD-S 12 x 1 GE 2 x 10 G SFP+ 2 x 1 G Cu WS-C 3560 CX-8 PT-S 8 x GE 2 x 1 G Cu WS-C 3560 CX-8 XPD-S 2 x m. Gig 6 x 1 GE WS-C 2960 CX-8 TC-L 2960 -CX 3560 -CX ソフト ウェア LAN Base 2 x 10 G SFP+ ○ (240 W) ○ ○ ○ (240 W) Multigigabit option IP Base (オプションで IPServiceへ アップグレード可) Copper and fiber uplinks ・IAクライアント (スタック対応) ・Po. Eパススルー ・IAクライアント (スタック対応) 10 G SFP+ uplinks Po. E passthrough option © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 16

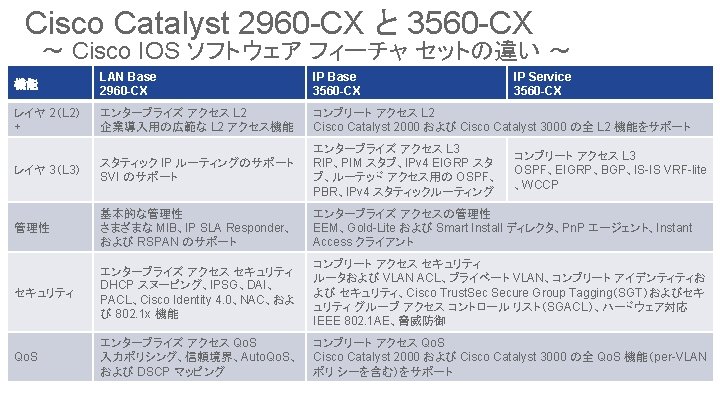

機能比較 ・ Cisco Catalyst 2960 -CX と 3560 -CX ・ 既存製品(Cisco Catalyst 3560 -CG) との比較 ・ 既存製品(Cisco Catalyst 2960 -C, 2960 -CG) との比較 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 21
Cisco Catalyst 2960 -CX と 3560 -CX 〜 物理仕様の違い 〜 機能 10 GE SFP+ uplinks Downlinks MACSec (802. 1 ae) on downlink ports Po. E+ on downlinks Instant access 2960 -CX 3560 -CX No Yes (サポート型番を選択) 8 (max) 12 (max) Not supported Yes 124 W 240 W No Yes (サポート型番を選択) © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 23
既存製品(Cisco Catalyst 3560 -CG) との比較 Feature 3560 -CG 3560 -CX Uplinks 2 x 1 GE copper or 2 X 1 Gb SFP 2 x 1 GE copper and 2 x 10 GE SFP+ (SKU option) Downlinks 8 x 1 GE copper 12 x 1 GE copper m. Gig/10 GE Cu No Downlinks (SKU option) Po. E 124 W Po. E+ 240 W Po. E+ Po. E passthrough 1 x UPOE, 23. 8 W 2 x UPOE, 148. 8 W DC power No Yes Perpetual Po. E No Yes Instant access No Yes (10 GE SKU) Security 802. 1 x, MACsec, SXP AVC No Net. Flow-Lite IPv 6 Basic Enhanced Cisco IOS® Software IP Base only IP Base, IP Services (upgradable) Hardware DRAM, Flash 128 MB, 64 MB Ports Po. E Ease of Management Other © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 512 MB, 128 MB 24
既存製品(Cisco Catalyst 2960 -C, 2960 -CG) と の比較 Feature 2960 -CG 2960 -CX Uplinks 2 x 1 GE copper or 2 x 1 GE SFP 2 x 1 GE copper and 2 x 1 GE SFP+ Downlinks 8/12 x FE copper 8 x 1 GE copper Po. E 124 W Po. E No 124 W Po. E+ Po. E Perpetual Po. E No No Yes Hardware DRAM, Flash 128 MB, 64 MB 512 MB, 128 MB Ports © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 25
参考URL Cisco Catalyst 3560 -CX および 2960 -CX スイッチ ハードウェア設置ガイド http: //www. cisco. com/cisco/web/support/JP/docs/SW/Campus. LANSWT-Compact/CAT 3560 -CXSWT/IG/001/b_2960 cx-3560 cx_hig. html Cisco Catalyst 3560 -CX および 2960 -CX シリーズ スイッチ データ シート http: //www. cisco. com/web/JP/product/hs/switches/cat 3560 cx/prodlit/datasheet-c 78 -733229. html Cisco Catalyst 3560 -CX および 2960 -CX シリーズ スイッチ FAQ http: //www. cisco. com/web/JP/product/hs/switches/cat 3560 cx/prodlit/q-and-a-c 67 -733230. html © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 26
ご参考資料 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 27

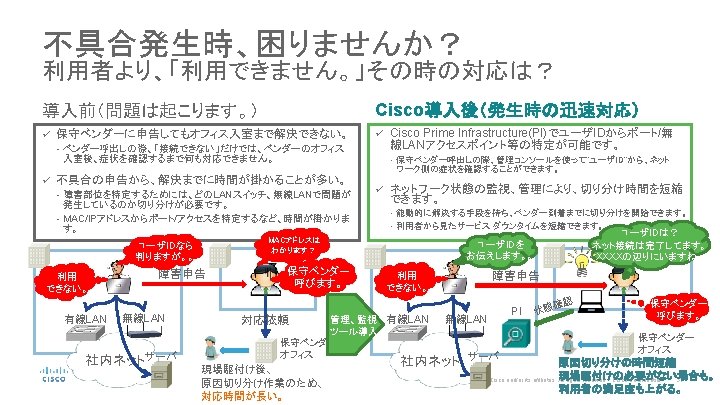

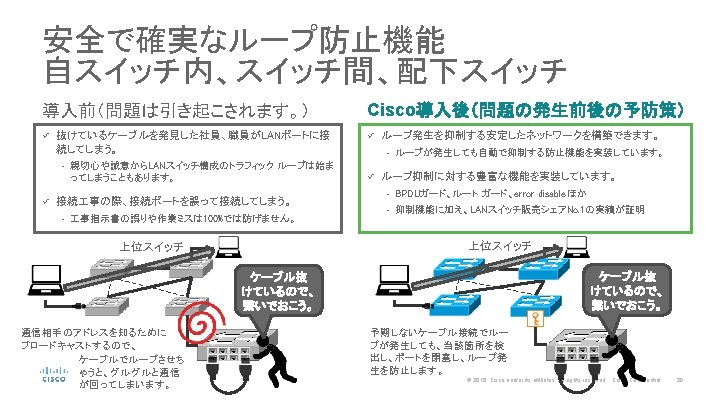

安定稼働に関わる提案 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 28

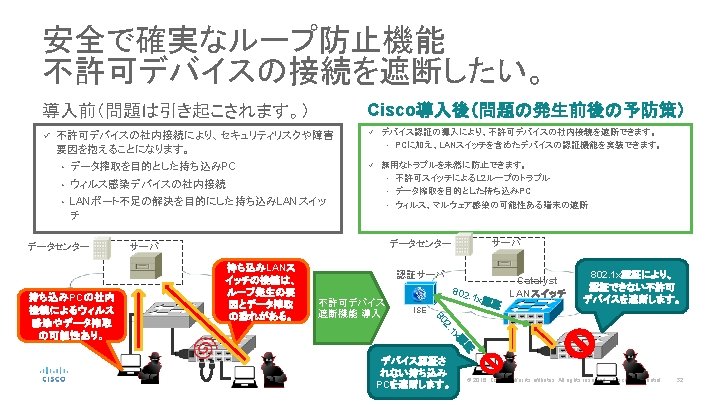

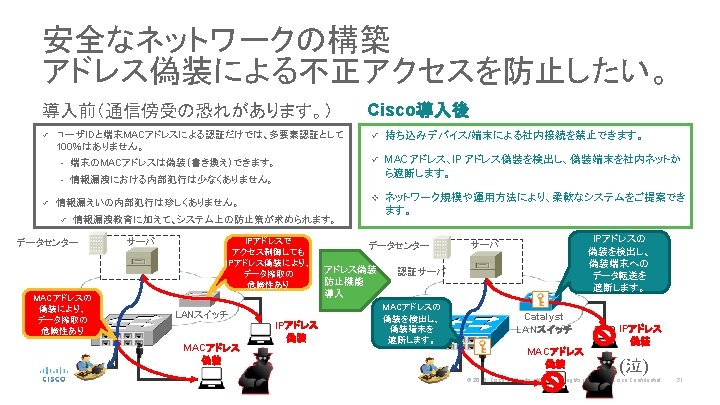

安全なネットワークの構築に 関わる提案 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 30

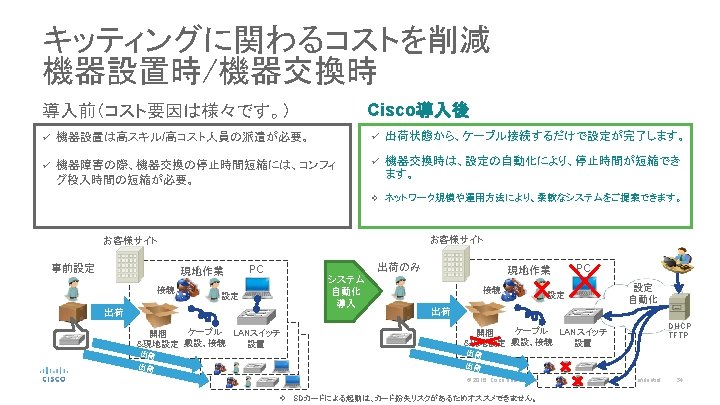

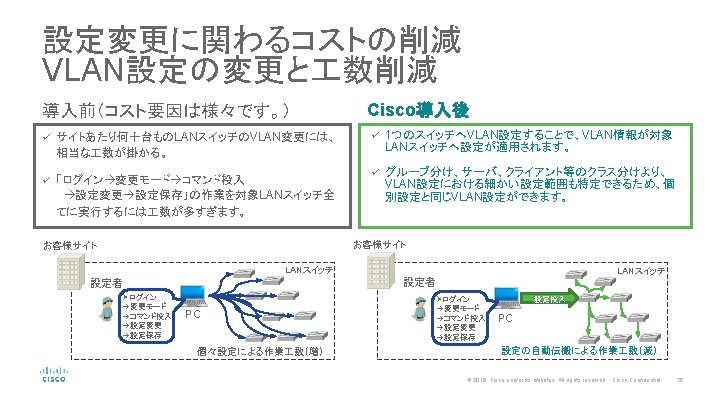

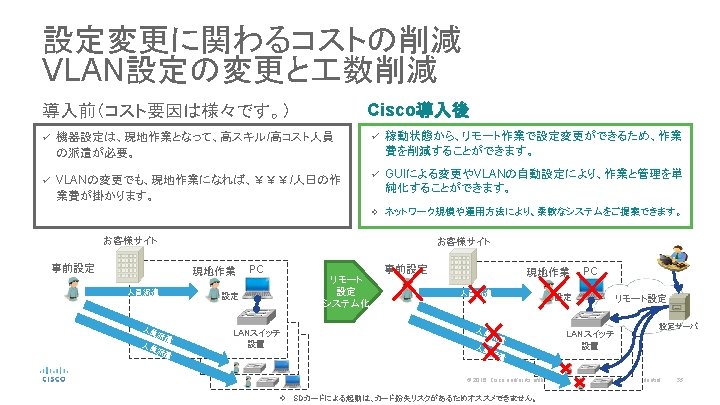

構築、運用に関わる提案 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 33

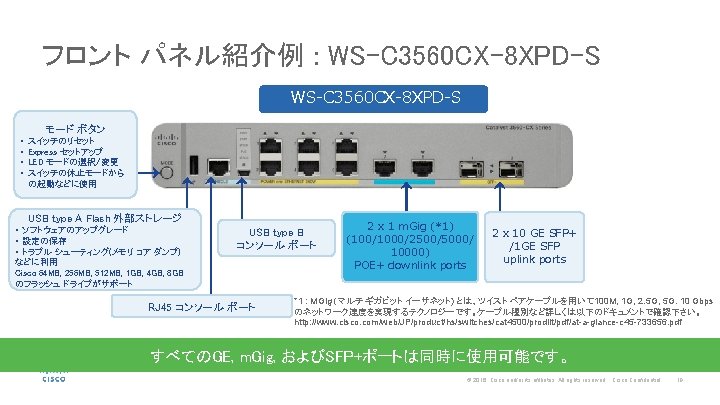

Multigigabit Ethernet (m. Gig) 〜 WS-C 3560 CX-8 XPD-S のみ対応 〜 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 38
ご参考) m. Gig でサポートする速度 10 Mbps § m. Gig PHYs are different than 1 GE PHYs § m. Gig ports are capable of the following speeds: − 100 Mbps, 1 Gbps, 2. 5 Gbps, 10 Gbps − No 10 Mbps on m. Gig PHYs 100 Mbps 1000 Mbps 2. 5 Gbps § 2. 5 and 5 Gbps are not standard yet § The non-m. Gig ports are the same as previous line cards and products 5 Gbps 10 Gbps © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 39
ご参考) m. Gig で利用可能なケーブル種別と長さ Cable Type 1 Gbps 2. 5 Gbps 10 Gbps Cat 5 e 100 m NA Cat 6 100 m 55 m Cat 6 a 100 m § Auto-negotiation of cable type of speeds supported § Brownfield deployments can use existing Cat 5 e, extending the ROI, and support m. Gig at 2. 5 and 5 Gbps speeds at a distance of 100 meters § Greenfield deployments with Cat 6 a will support 10 Gbps, but can also now support m. Gig at 2. 5 and 5 Gbps speeds at a distance of 100 meters * Under validation © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 40
ご参考) CLIでの設定例 : m. Gig Ports Are 10 Gbps Ports switch#show ip int br | i up Ten. Gigabit. Ethernet 2/1 unassigned YES unset up up Ten. Gigabit. Ethernet 2/2 unassigned YES unset up up Ten. Gigabit. Ethernet 2/3 unassigned YES unset up up Ten. Gigabit. Ethernet 2/4 unassigned YES unset up up Ten. Gigabit. Ethernet 2/5 unassigned YES unset up up Ten. Gigabit. Ethernet 2/6 unassigned YES unset up up Ten. Gigabit. Ethernet 2/7 unassigned YES unset up up Ten. Gigabit. Ethernet 2/8 unassigned YES unset up up switch#show int Ten. Gigabit. Ethernet 2/1 Ten. Gigabit. Ethernet 2/9 unassigned YES unset up up Ten. Gigabit. Ethernet 2/1 is up, line protocol is up (connected) Ten. Gigabit. Ethernet 2/10 unassigned YES unset up up Hardware is Ten Gigabit Ethernet Port, address is 18 e 7. 28 d 8. 55 e 0 (bia Ten. Gigabit. Ethernet 2/11 unassigned YES unset up up 18 e 7. 28 d 8. 55 e 0) Ten. Gigabit. Ethernet 2/12 unassigned YES unset up up MTU 1500 bytes, BW 10000000 Kbit/sec, DLY 10 usec, Gigabit. Ethernet 2/13 unassigned YES unset up up reliability 255/255, txload 1/255, rxload 1/255 Encapsulation ARPA, loopback not set Keepalive set (10 sec) Full-duplex, 10 Gb/s, link type is auto, media type is 100/1000/2. 5 G/5 G/10 GBase. Tx © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 41

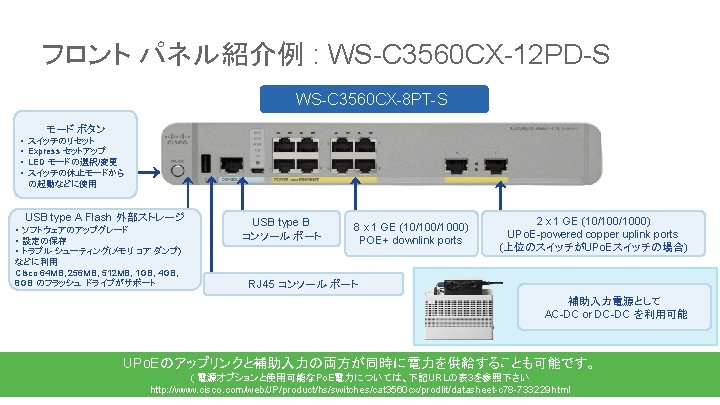

Cisco UPOE-Powered Po. E Passthrough 〜 WS-C 3560 CX-8 PT-S のみ対応 〜 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 42
Cisco UPOE-Powered Po. E Passthrough 3560 CX-8 PT-S § Po. E passthrough to Po. E peripheral devices like phones, access points, etc. eliminates the need for electrical circuits or highmaintenance lithium ion batteries for Internet of Things (Io. T) endpoints § AUX AC power adaptor provides power redundancy and additive Po. E § New AUX DC power adaptor (18 - 60 V) support for Io. T use cases; supports Po. E+ § Power stacking additive Po. E, Po. E+, and UPo. E, and AUX (AC/DC) provide a higher Po. E budget § Dynamic load shedding based on default port priority (port 1 highest, port 8 lowest) No power supply No fan No cooling required 4500 -E 2 x UPOE-powered Po. E passthrough 3850 Industry First! Power From PSE (W) POE Budget (W) Po. E+ 30 W 21. 9 UPo. E 60 W 45. 4 AUX 80 W 78 © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 43
Po. E Passthrough Budgets Input Power (W) PD 1 PD 2 AUX 30 System Consumption Pass-through Power (W) 22 0 30 30 22 20 60 22 22 60 60 22 68 80 22 54 30 80 22 76 30 30 80 22 98 60 80 22 100 60 60 80 22 146 § Switch power consumption is approximately 22 Watts § Po. E only (15. 4 W) links do not add to the Po. E budget § Single Po. E (15. 4 W) link does not power up the switch § 2 x Po. E (15. 4 W) can power up the switch § Po. E budget for Po. E passthrough SKU can now go up to 124 W - 6 x compared to 3 K-C © 2016 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 44
